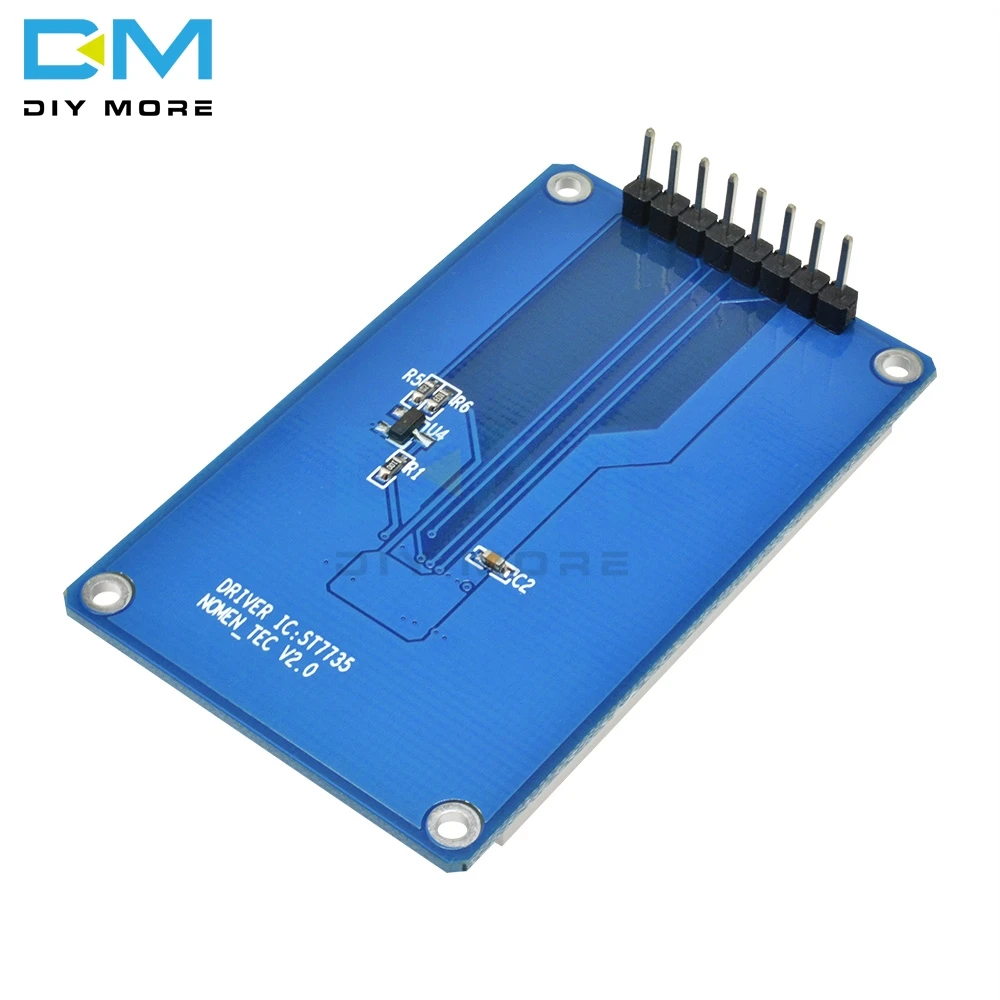

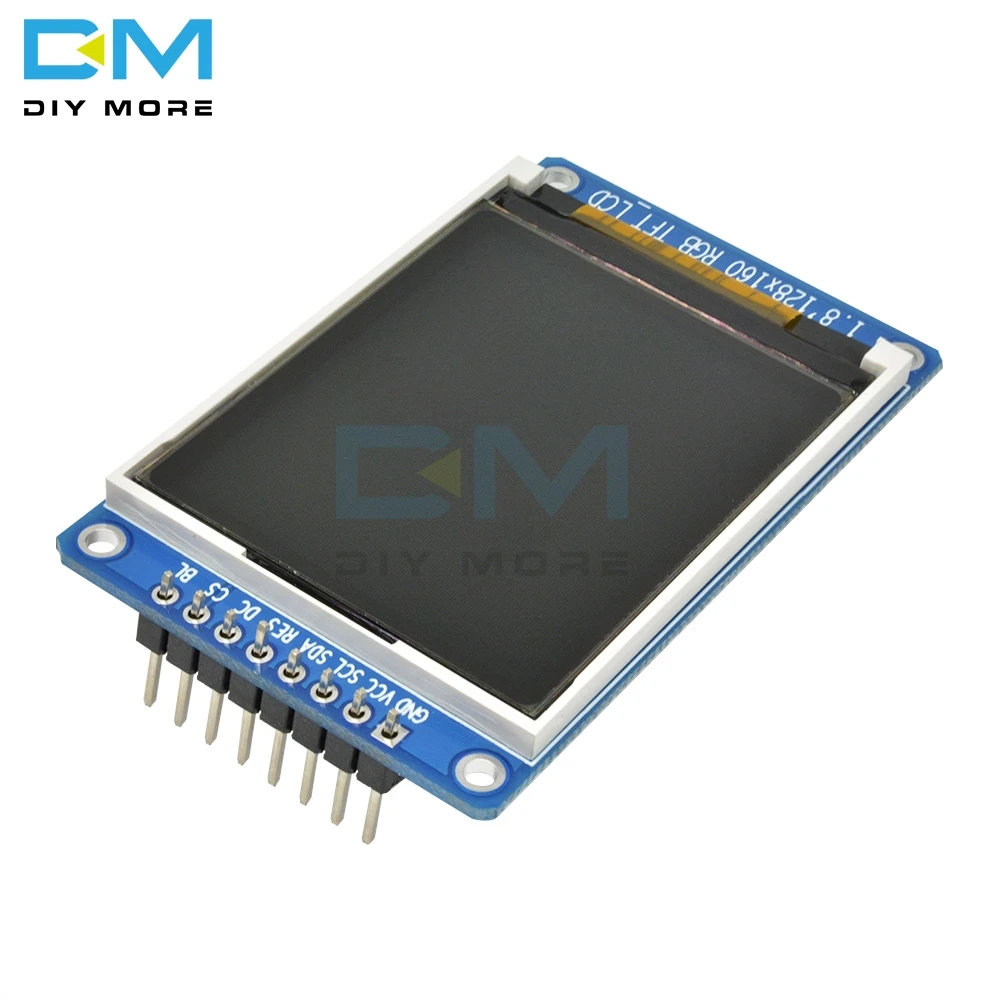

128x160 SPI 1.8 inch Full Color TFT LCD Display Module ST7735S 3.3V Replace OLED Power Supply for Arduino DIY

128X160 Spi 1.8 Inch Full Color Tft Lcd Display Module St7735S 3.3V Replace Oled Power Supply For

128x160 SPI 1.8 inch Full Color TFT LCD Display Module ST7735S 3.3V Replace OLED Power Supply for Arduino DIY

SKU:030530
Regular price $8.99



1.Features

SIZE 1.8inch
Display Mode a-TFT
Display Format Graphic 128RGB*160 Dot-matrix
Input Data SPI interface
Drive IC ST7735S
Dimensional outline 35(W)*56 (H)*3.45+/-0.1(T)mm
Resolution 128RGB*160 Dots
LCD Active area 28.03 (W)*35.04 (H)
Pixel size 0.219(W)*0.219(H)
Viewing Direction 12 o'clock
Operating Temperature -20¡«70°C


2.Pin Descriptions:

PIN No Symbol Description
1 GND Ground
2 VCC Power 3.3V
3 SCL Serial clock pin.
4 SDA Serial data input
5 RES LCM Reset pin
This pin is reset signal input. When the pin is low, initialization of the chip is
executed. Keep this pin pull high during normal operation.
6 DC Data/Command Control
7 CS Chip Select
8 BLK Backlight control pin
