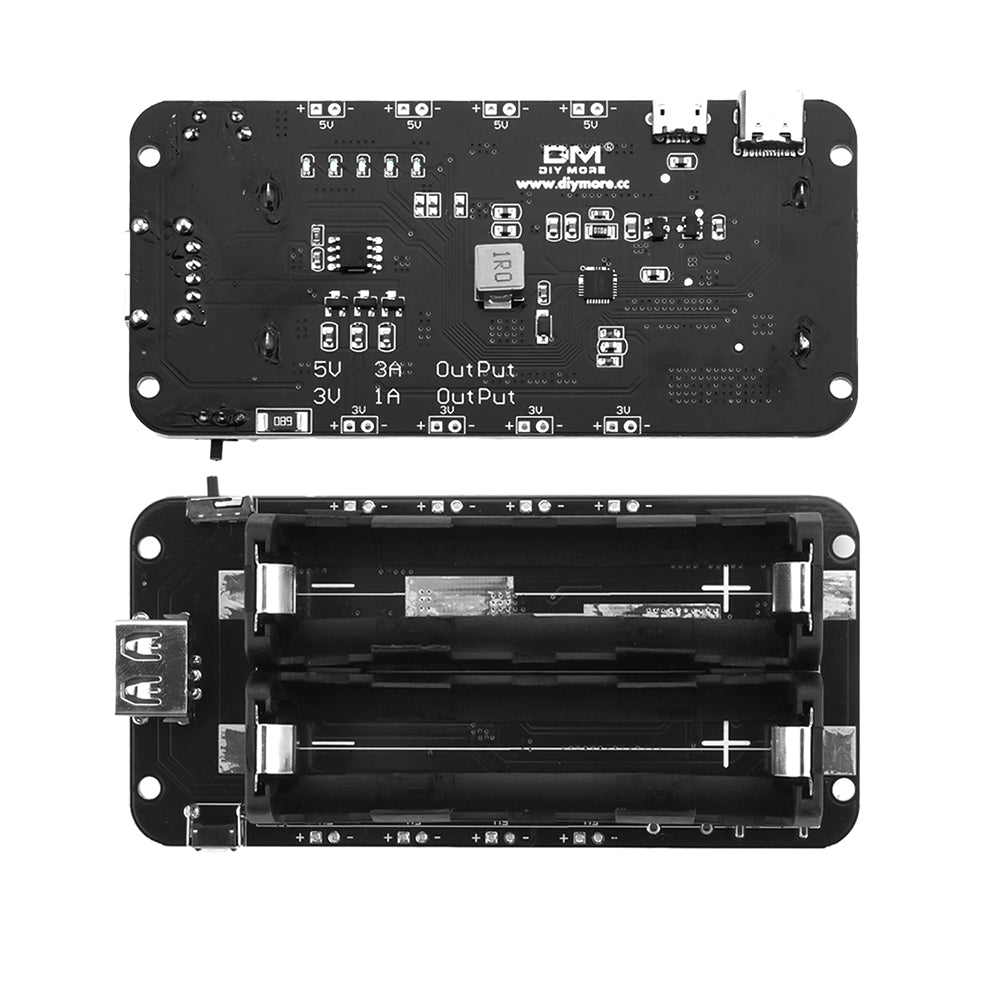

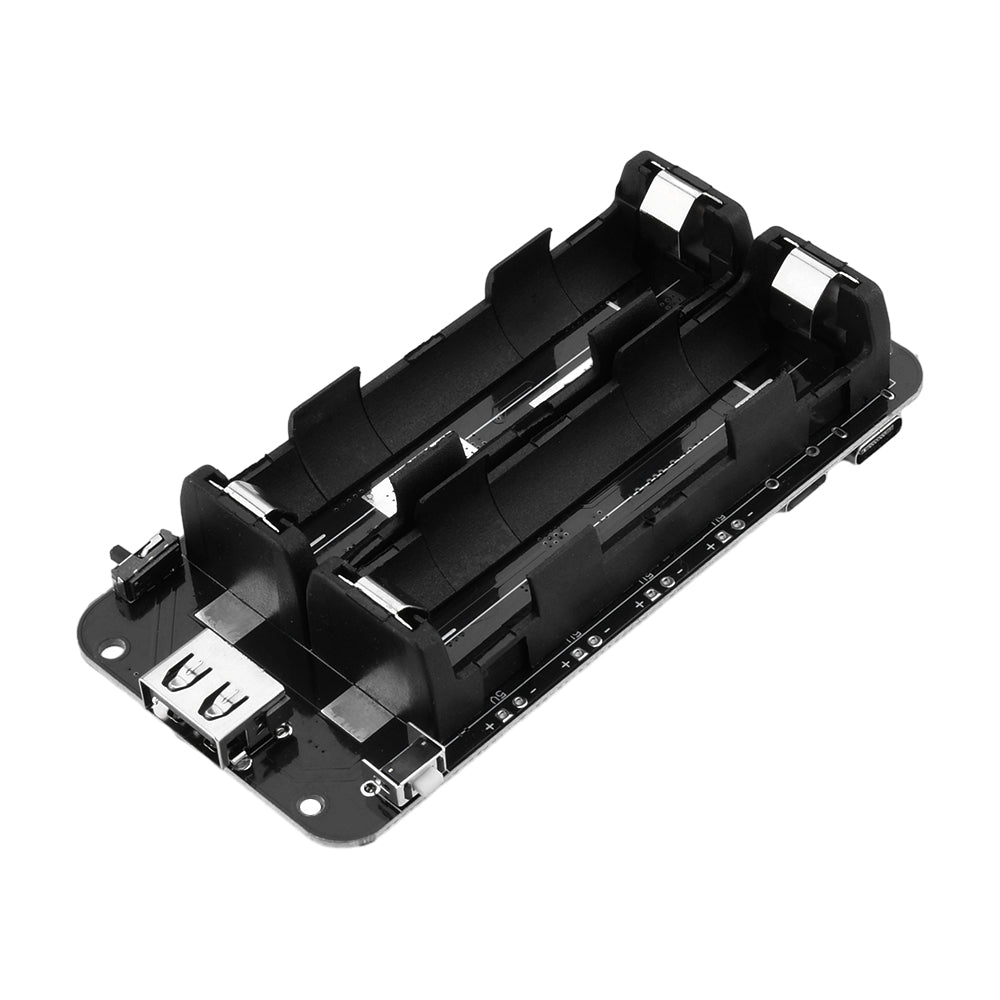

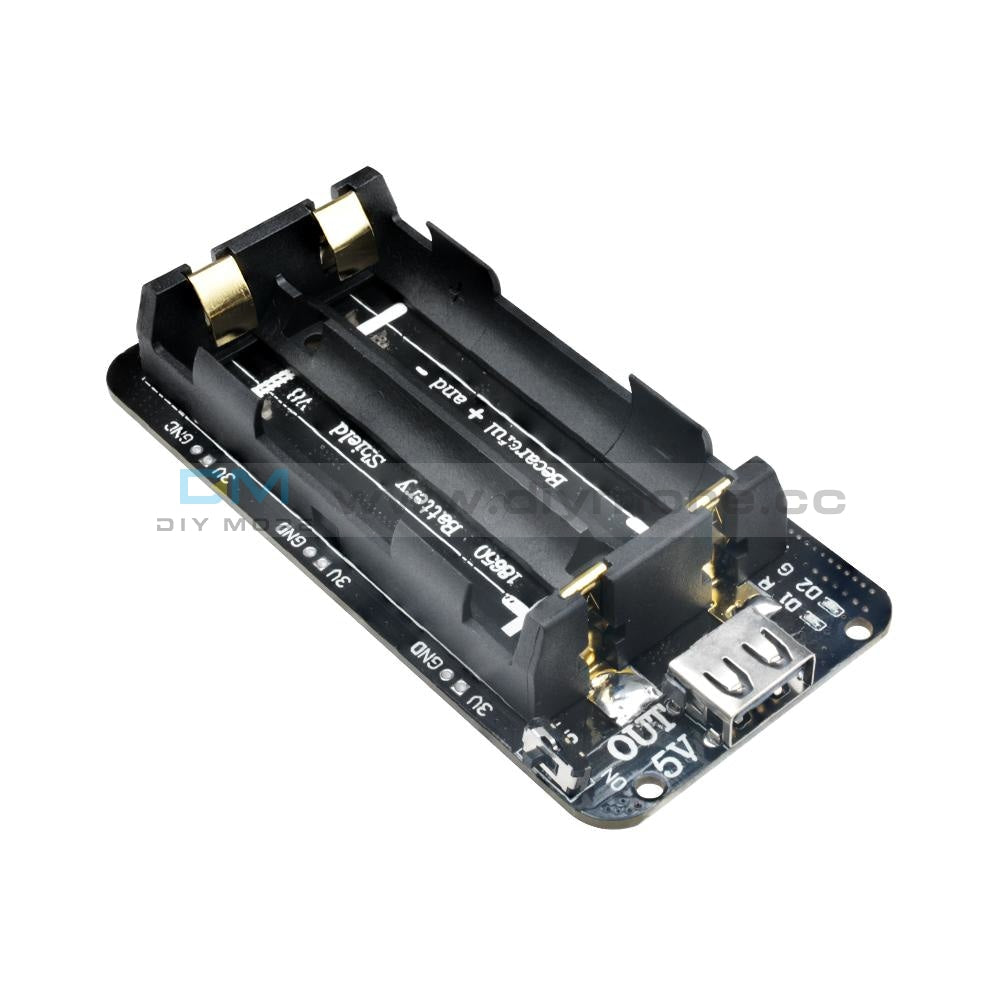

18650 Battery Shield V8 Mobile Power Bank 3V/5V for Arduino ESP32 ESP8266

18650 Battery Shield V8 Mobile Power Bank 3V/5V for Arduino ESP32 ESP8266

SKU:X13129
Regular price $9.99 USD



This module is a portable mobile power supply that supports 3V / 1A and 5V / 2.2A two voltage outputs!

5V voltage output rated current is 2.2A, maximum support 3A current (not recommended for overload, easy to damage the module, speed up the service life), the output of current depends on the quality of the 18650 battery!

MICRO USB charging current 600mA-800mA,

Supports up to two 18650 batteries. It is recommended to use two 18650 batteries, which can be longer!



Special attention: the installation of the battery must be determined positive and negative, the board has been clearly marked positive and negative! Installation errors will burn out the module!






Battery protection(Over charge or Over discharge)
Micro USB port Input
Type-A USB Output
0.5A current charging
1 switch control USB output
5~8V Input Voltage
3V & 1A Output
5V & 2A Output
LED indicate(Green means full,Red means charging)
3V output port x3
5V output port x3
Be careful of "+" and "-", You should follow the direction of "+""-" on the PCB.
If you put wrong direction, charging chip will be destroyed.
This product does not include 18650 battery

Size: 9.8x2.9cm/3.86x1.14inch
Quantity: 1 Set

1.Please allow 1-2cm error due to manual measurement. pls make sure you do not mind before you bid.

2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
















Description:

100% brand new and high quality
High Speed USB 2.0 Cable
Compatible with Cellphones, GPS systems, PDAs, OTG devices and digital cameras
Cable lenght: 30CM
Complies with fully rated cable specification using braid-and-foil shield protection

This 30CM USB A to Micro USB B 5pin Cable provides one USB A Male connector, and one Micro USB B connector to create a simple way to connect mobile devices to a USB capable computer for every day tasks such as data synchronization and file transfers.

The micro-USB connector is smaller and thinner than the previous USB Mini-b standard while offering better performance.
