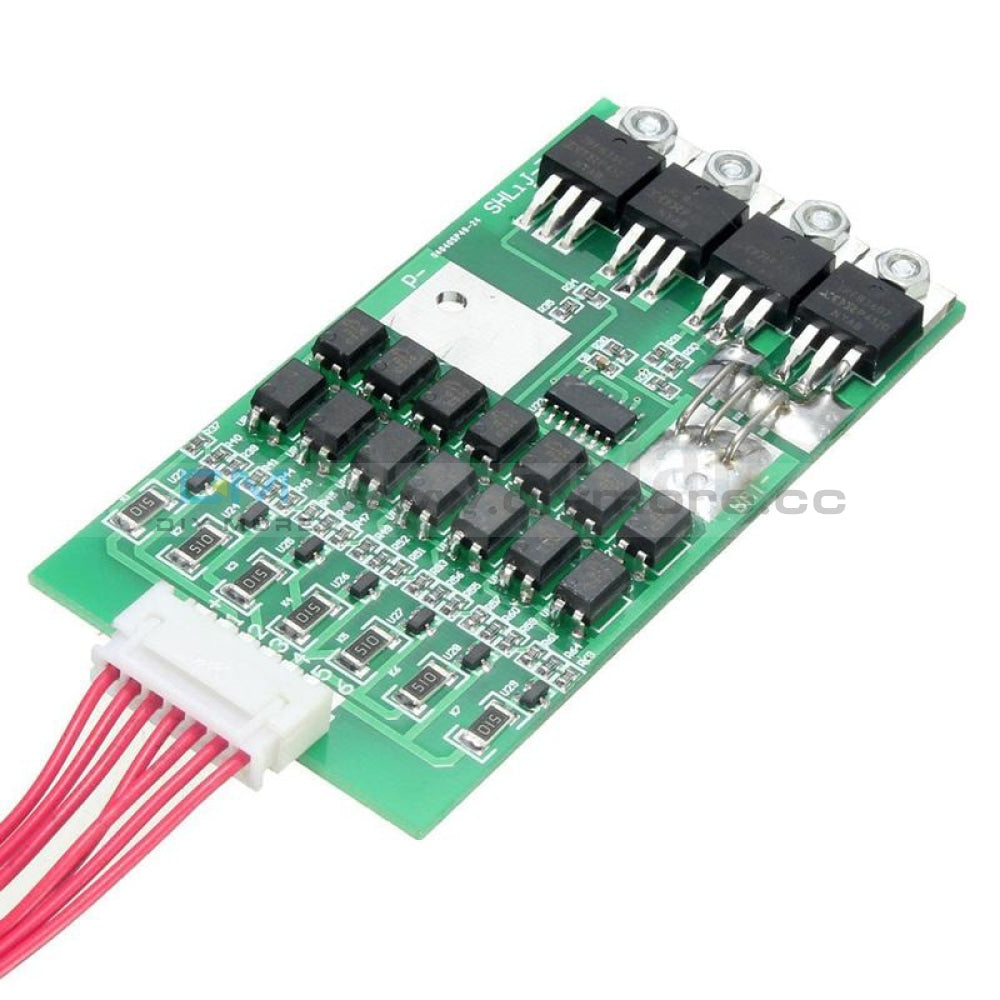

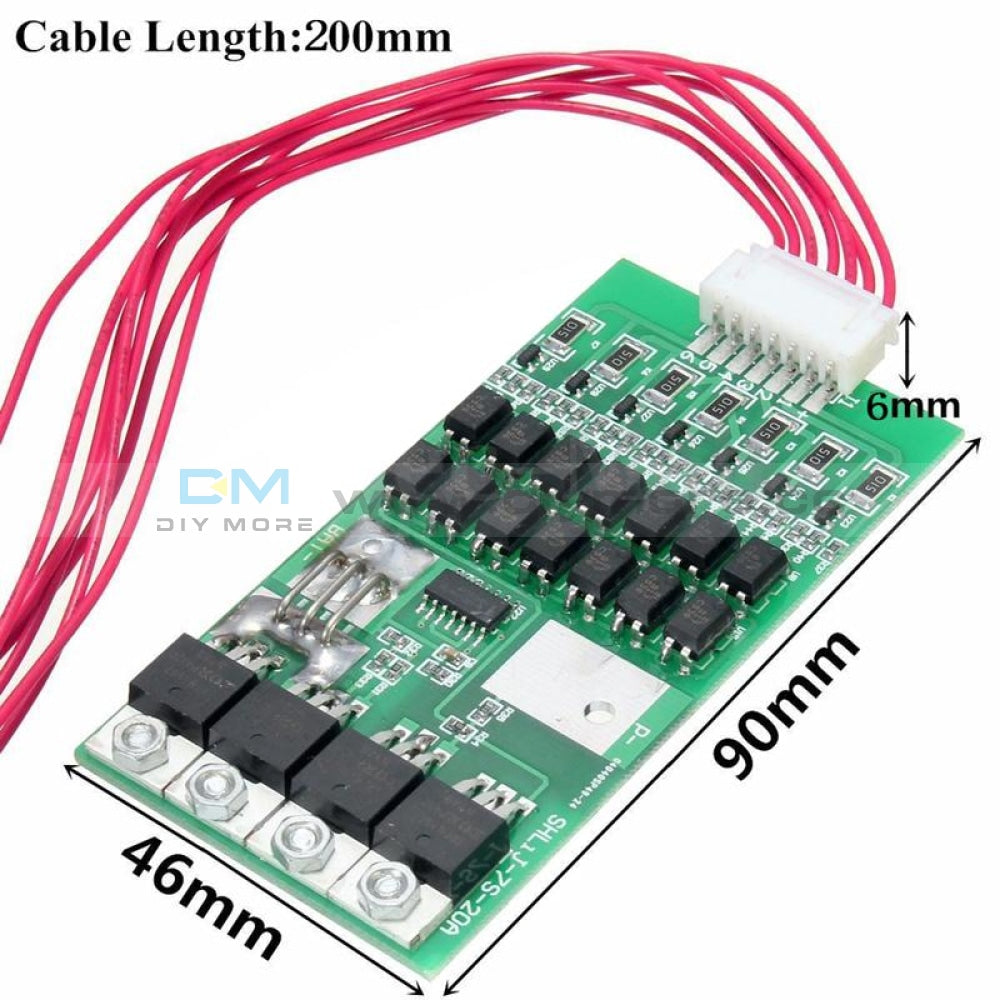

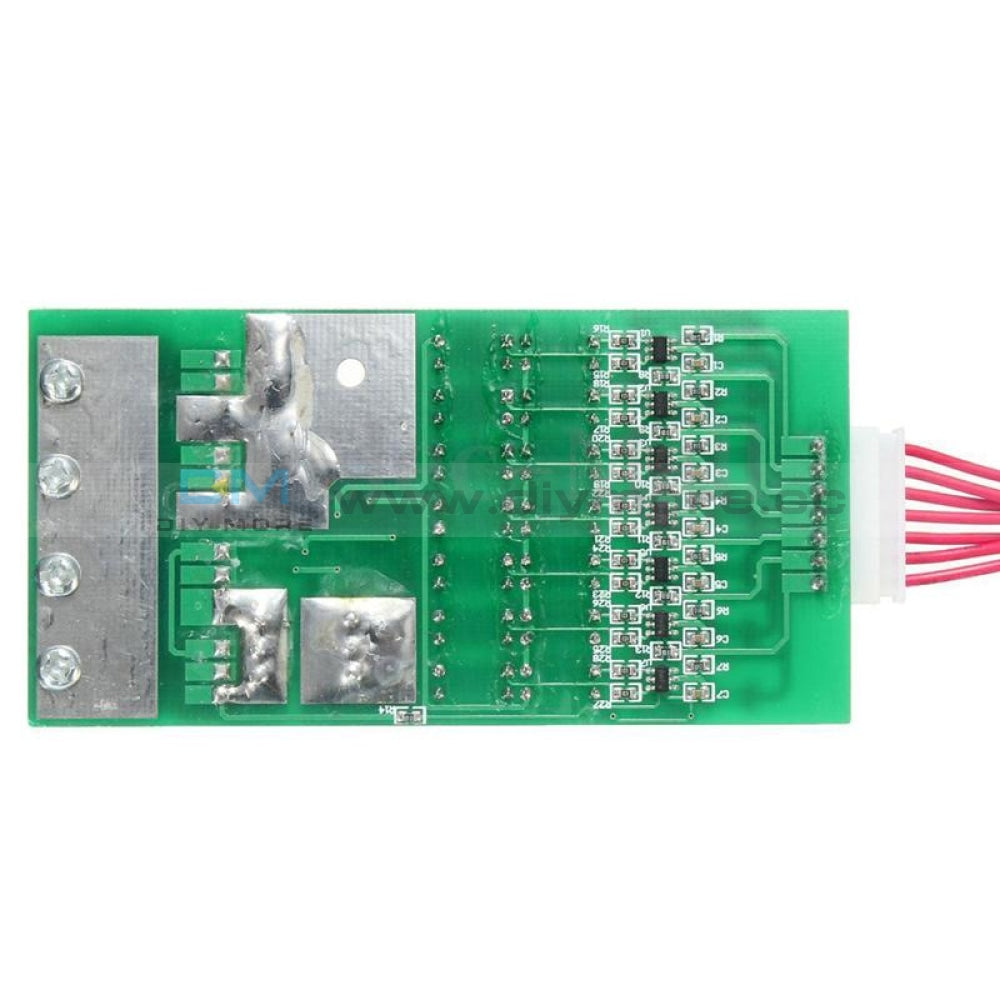

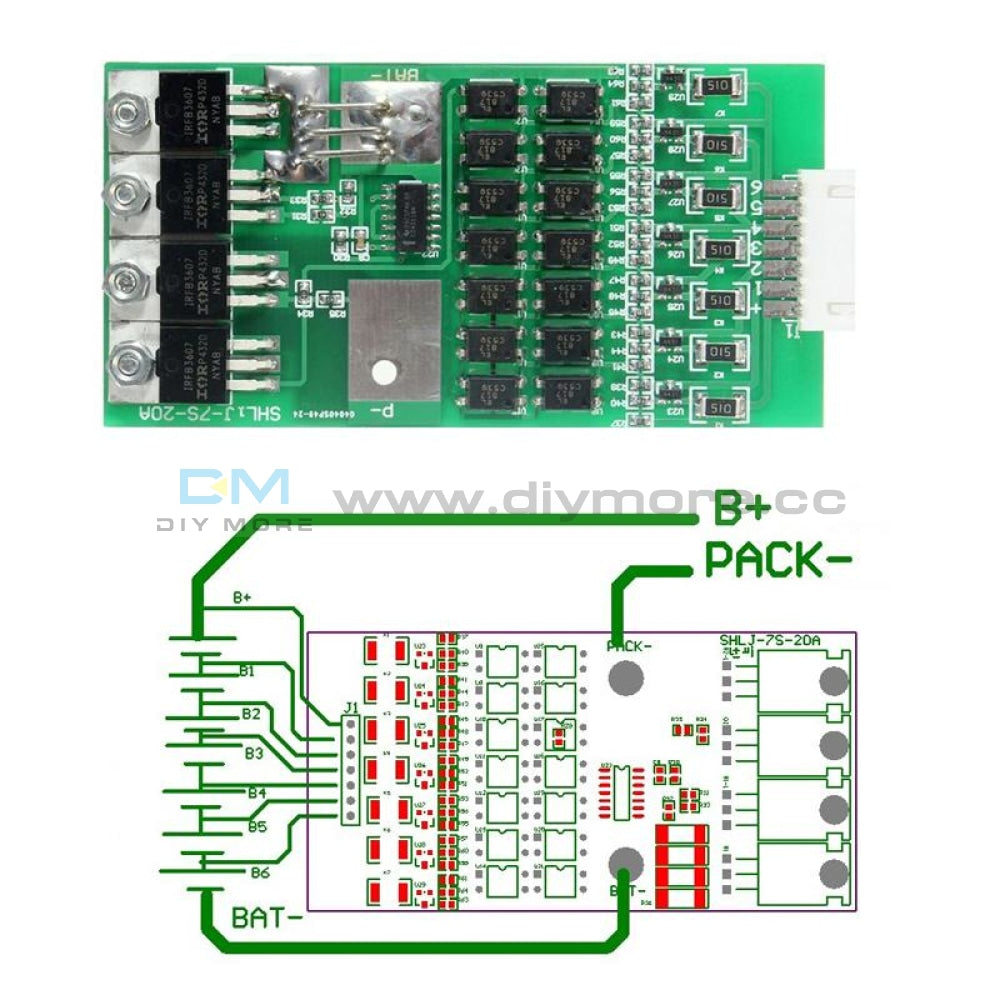

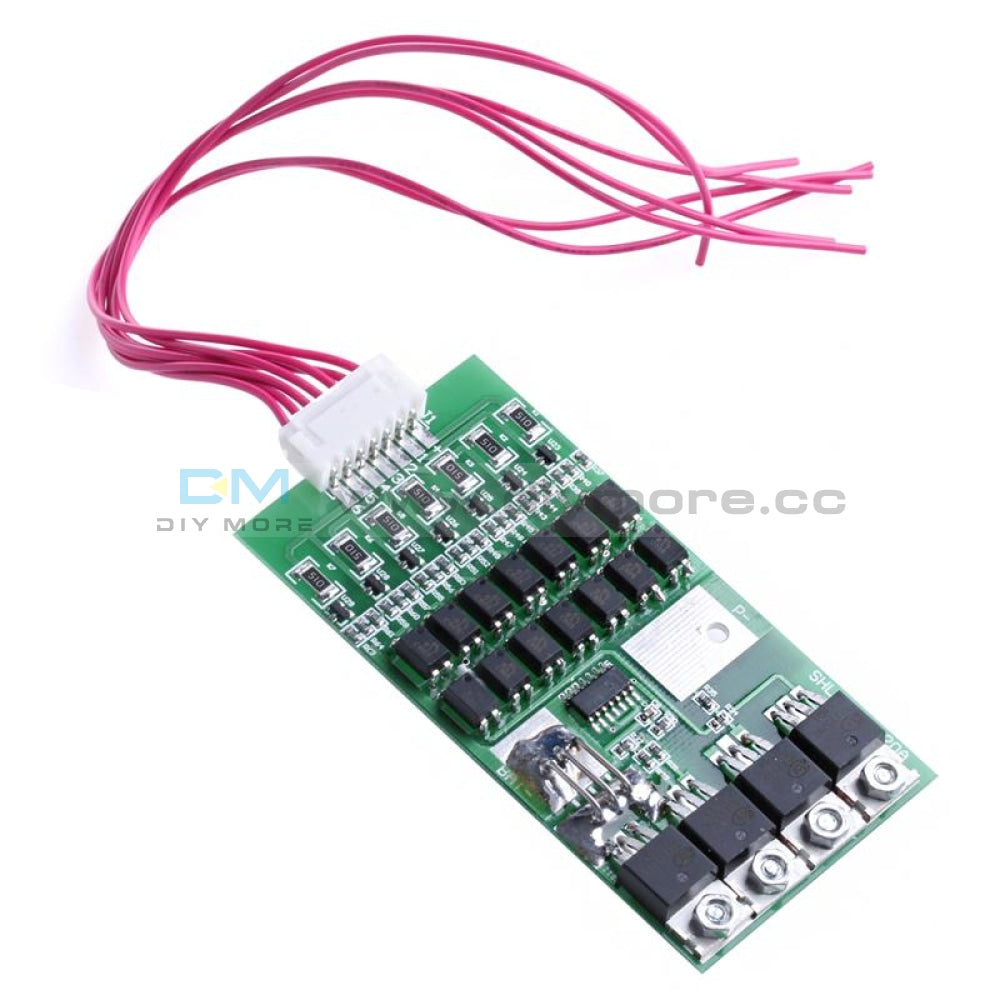

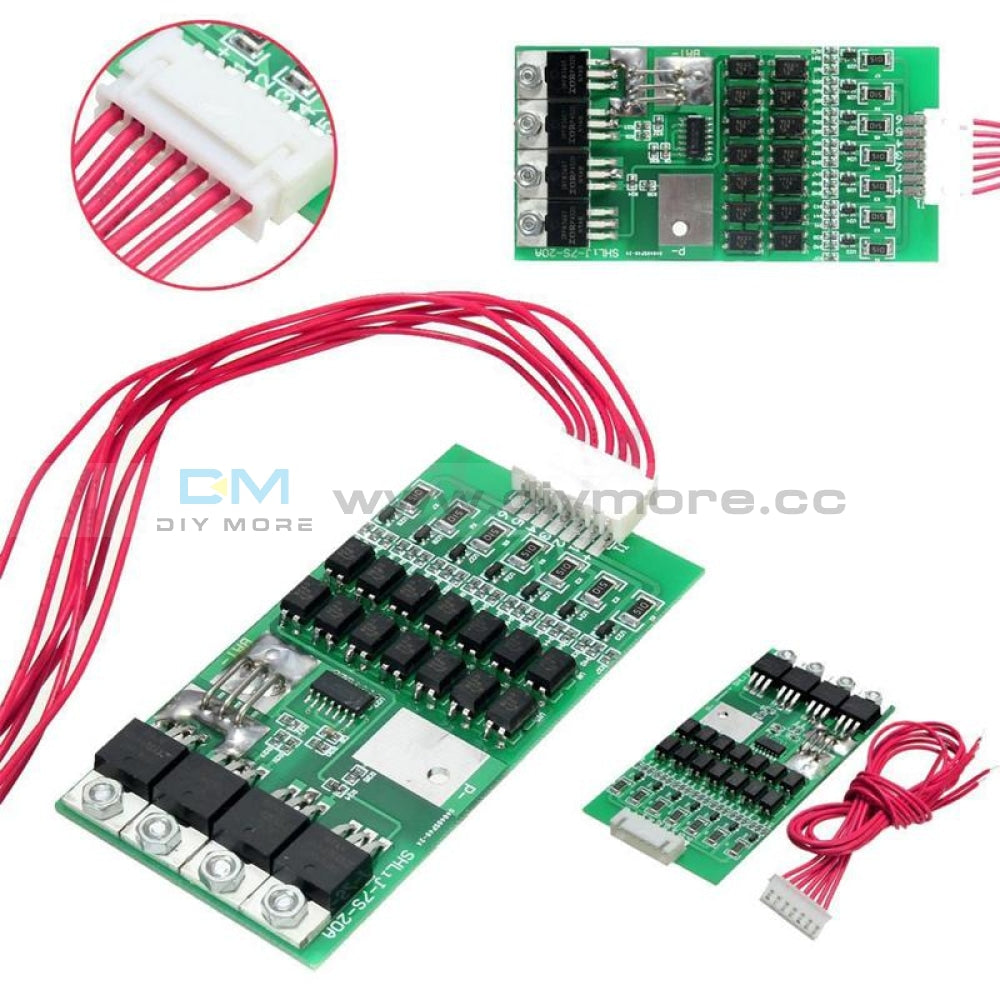

7s Cells 24V 20A W/Balancing Lithium 18650 Battery BMS Protection Board
7s Cells 24V 20A W/Balancing Lithium 18650 Battery BMS Protection Board
SKU:011947
Regular price
$8.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Description:
Features:
This Lithium ion battery protection PCB protect single Lithium ion batteries.20A continous current.
Suitable for electric drills,motors,or aircraft models which require heavy current load.
Package Included:

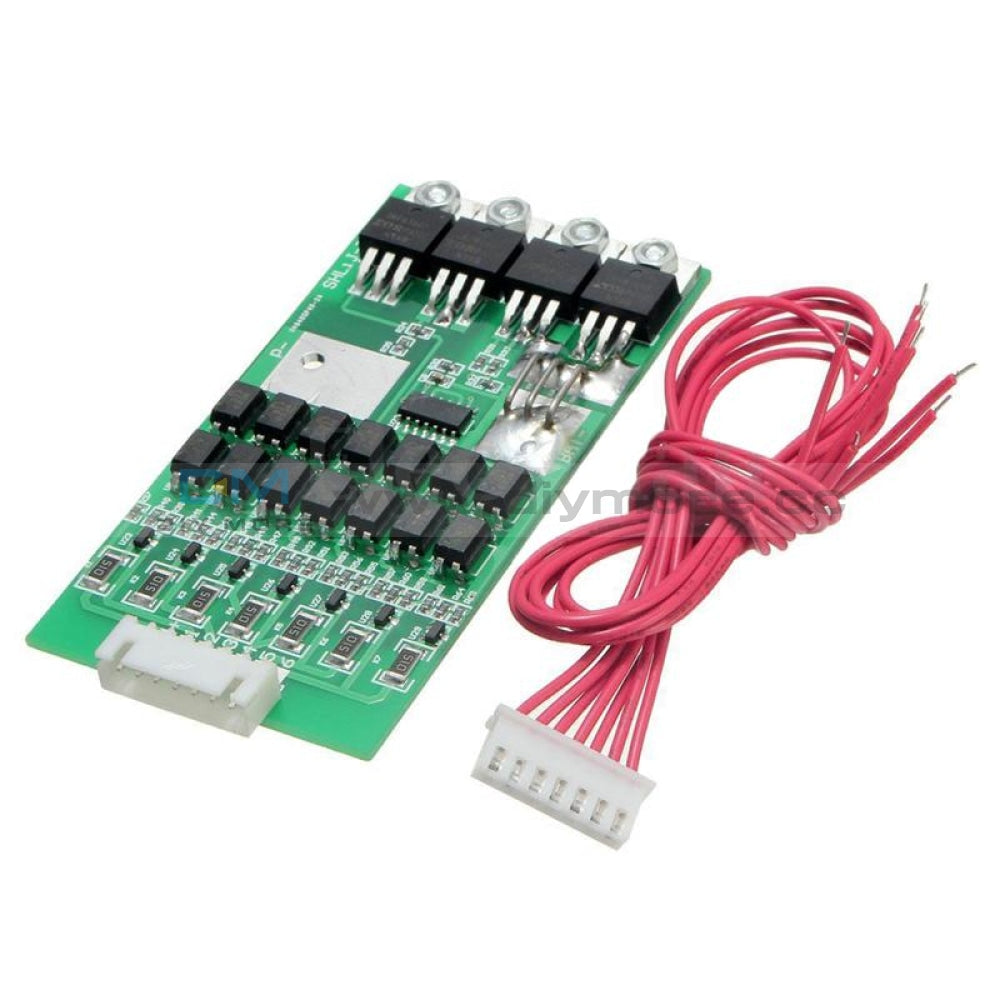

1x Protection Board With Cable
- Material: Electrical components
- Equilibrium current: 80 mA（VCELL=4.20V）
- Supported battery type: 7 cells 4.2V Lithium ion battery
- Balancing the locus of control: 4.18±0.03 V
- Overcharge threshold: 4.3±0.05 V
- Overcharge time delay: 75mS
- Overcharge release: 4.1±0.05 V
- Discharge threshold: 2.4±0.08 V
- Discharge delay: 5mS
- Working current: 20 A
- Over current threshold: 30 A
- Static power: ＜500uA
- Overcharge protection function:Yes
- Discharge protection function:Yes
- Over current protection function:Yes
- Balanced protection function:Yes
- Over-current release: Disconnect the load release
- Short circuit protection function: Yes（Disconnect the load can be recovery.）
Features:
This Lithium ion battery protection PCB protect single Lithium ion batteries.20A continous current.
Suitable for electric drills,motors,or aircraft models which require heavy current load.
Package Included:
1x Protection Board With Cable
