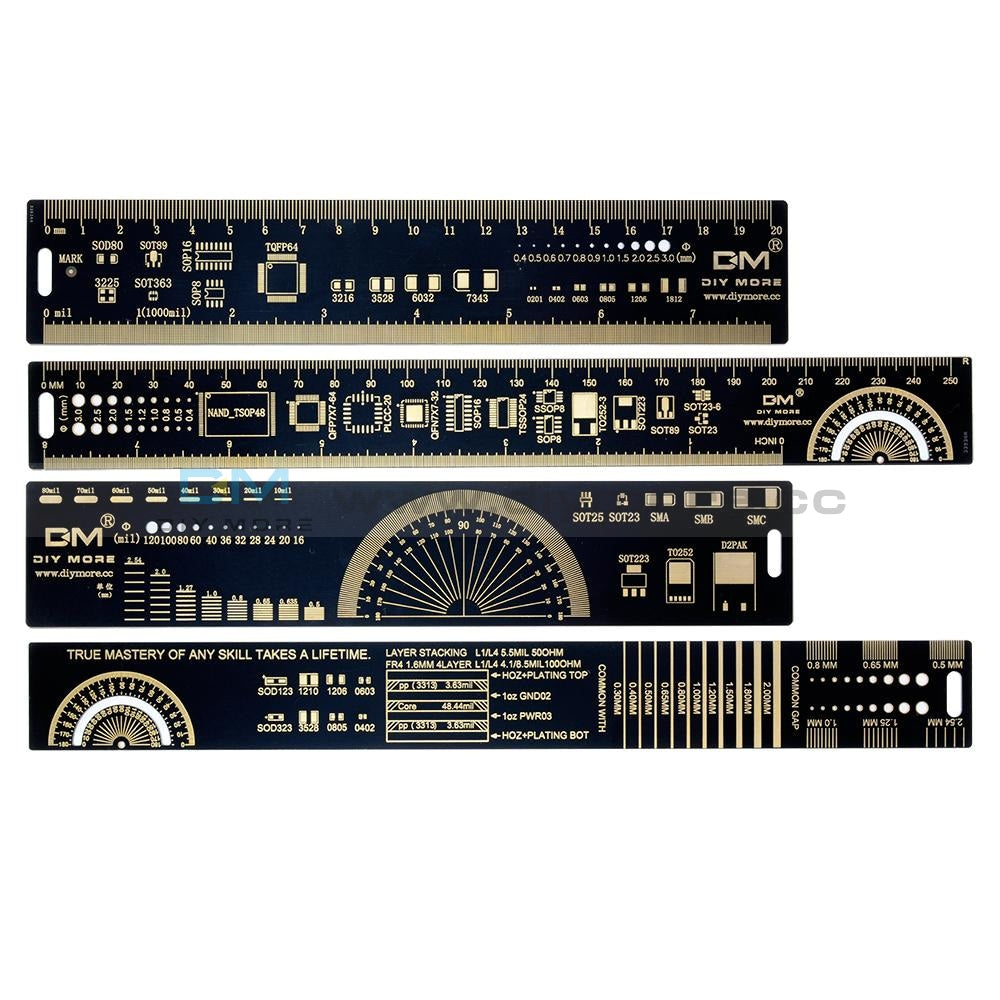

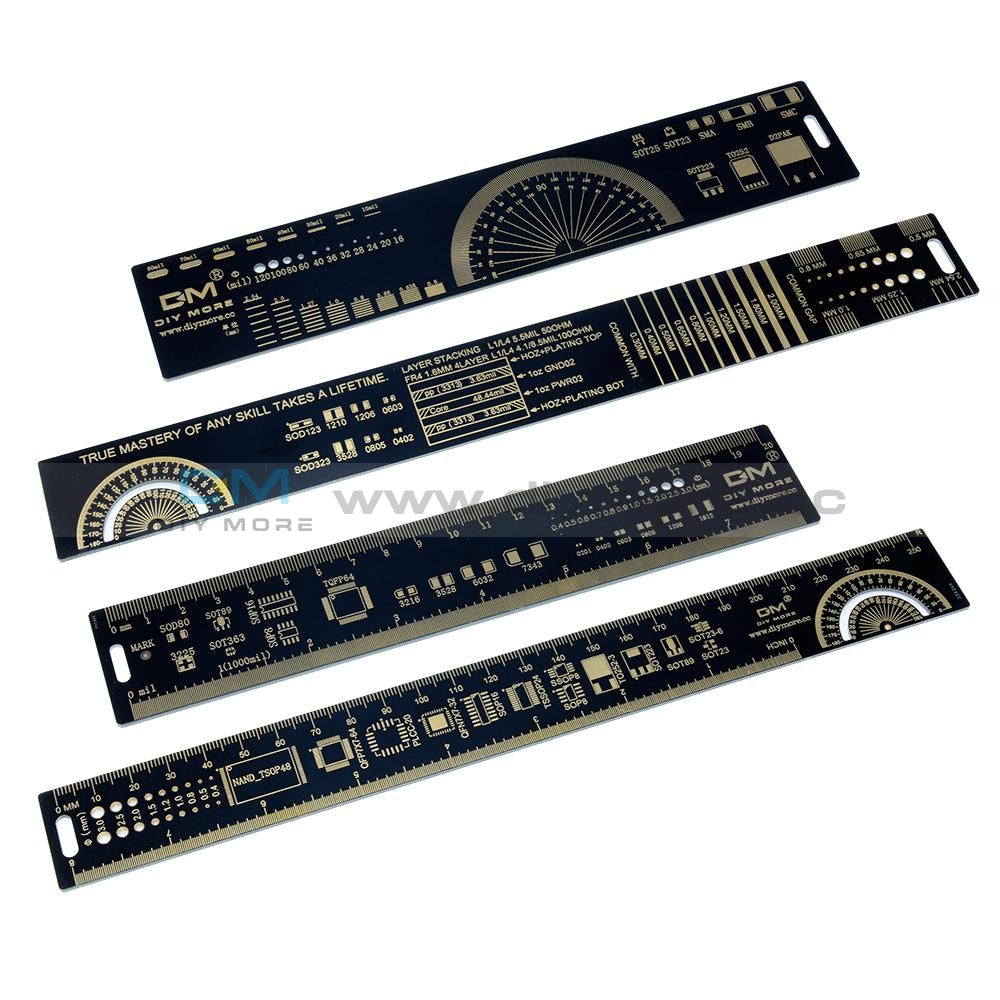

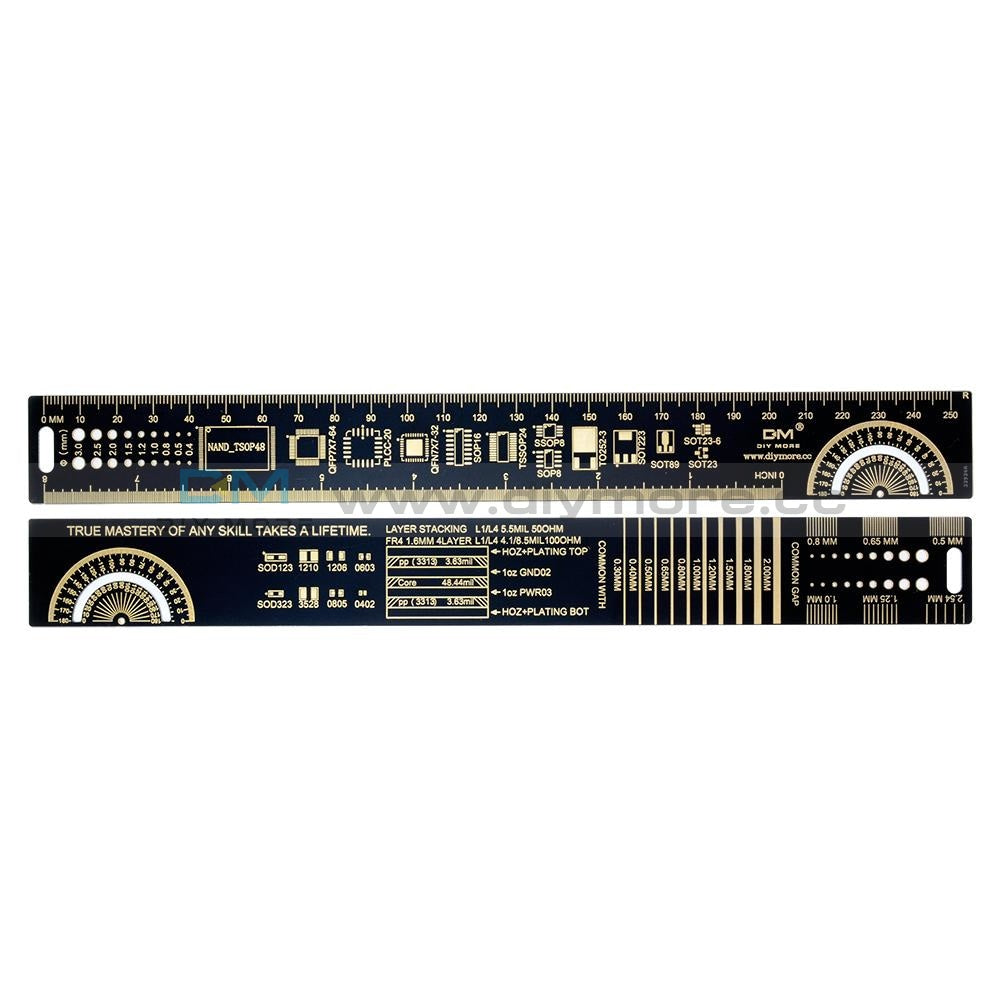

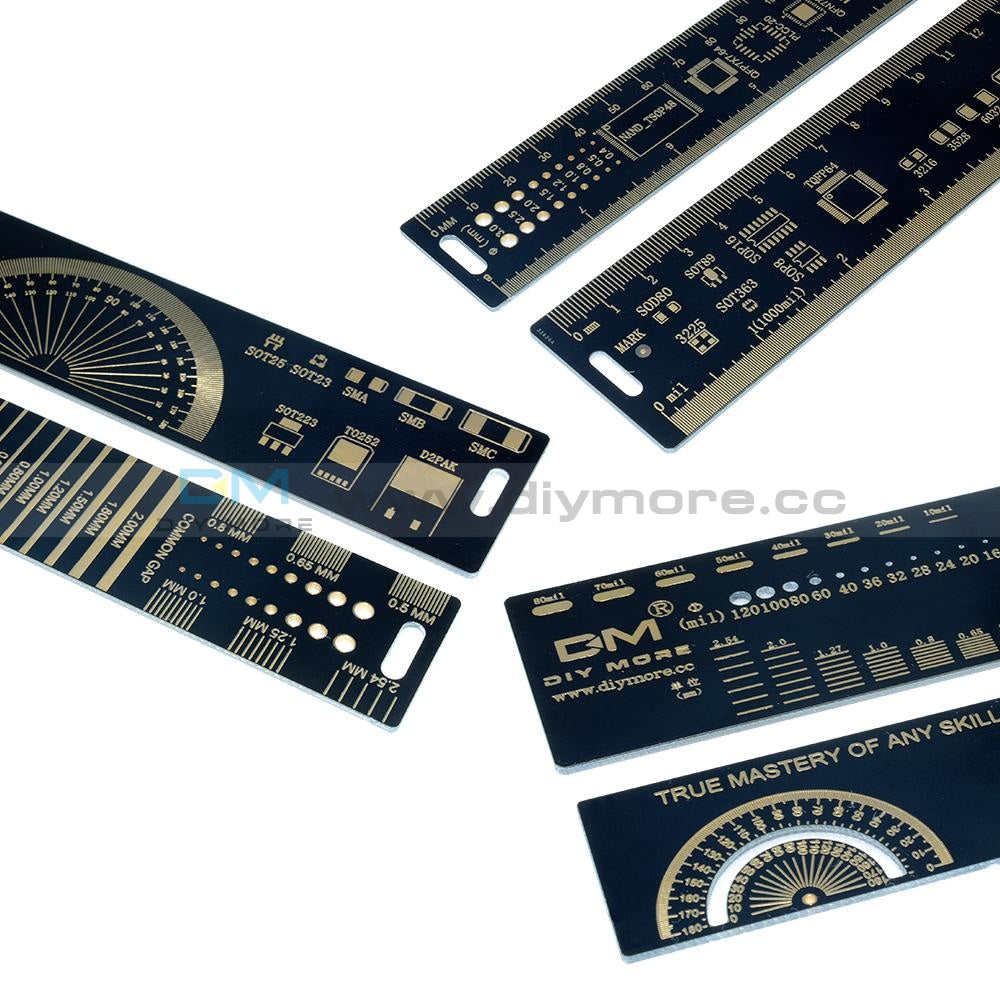

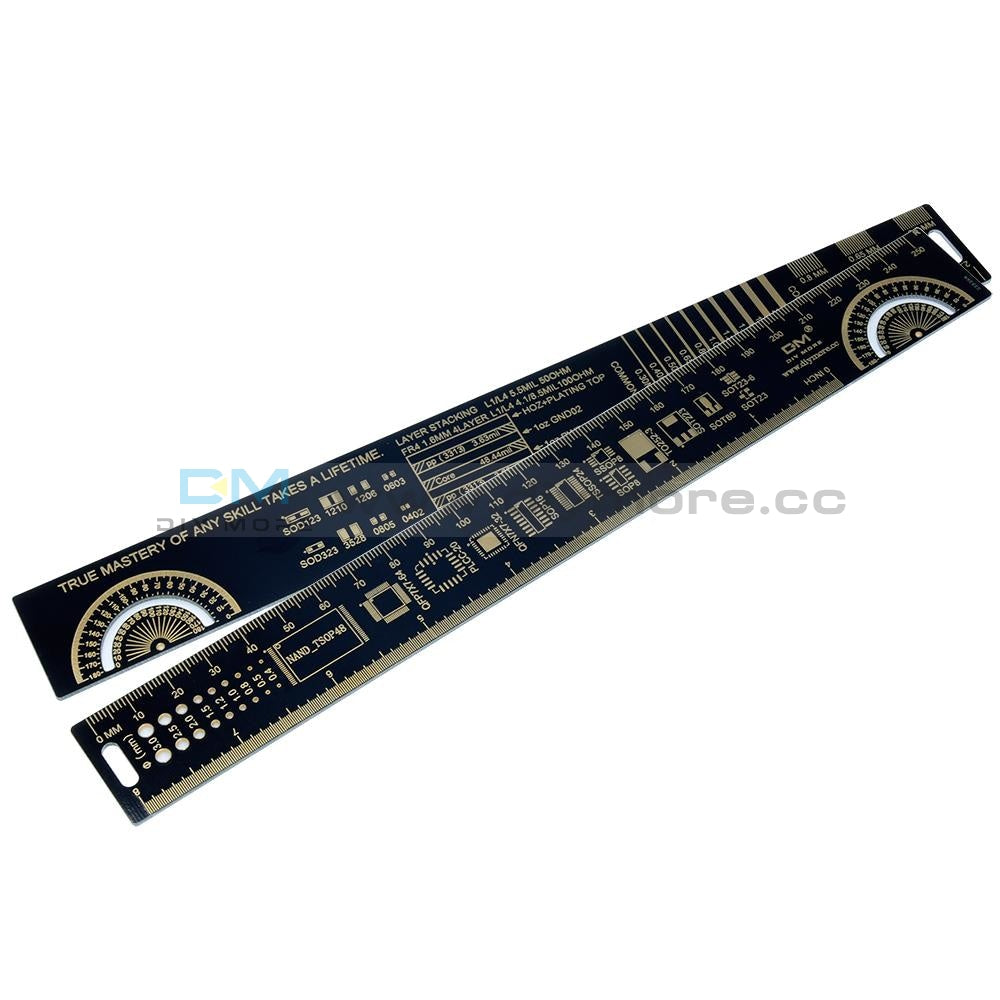

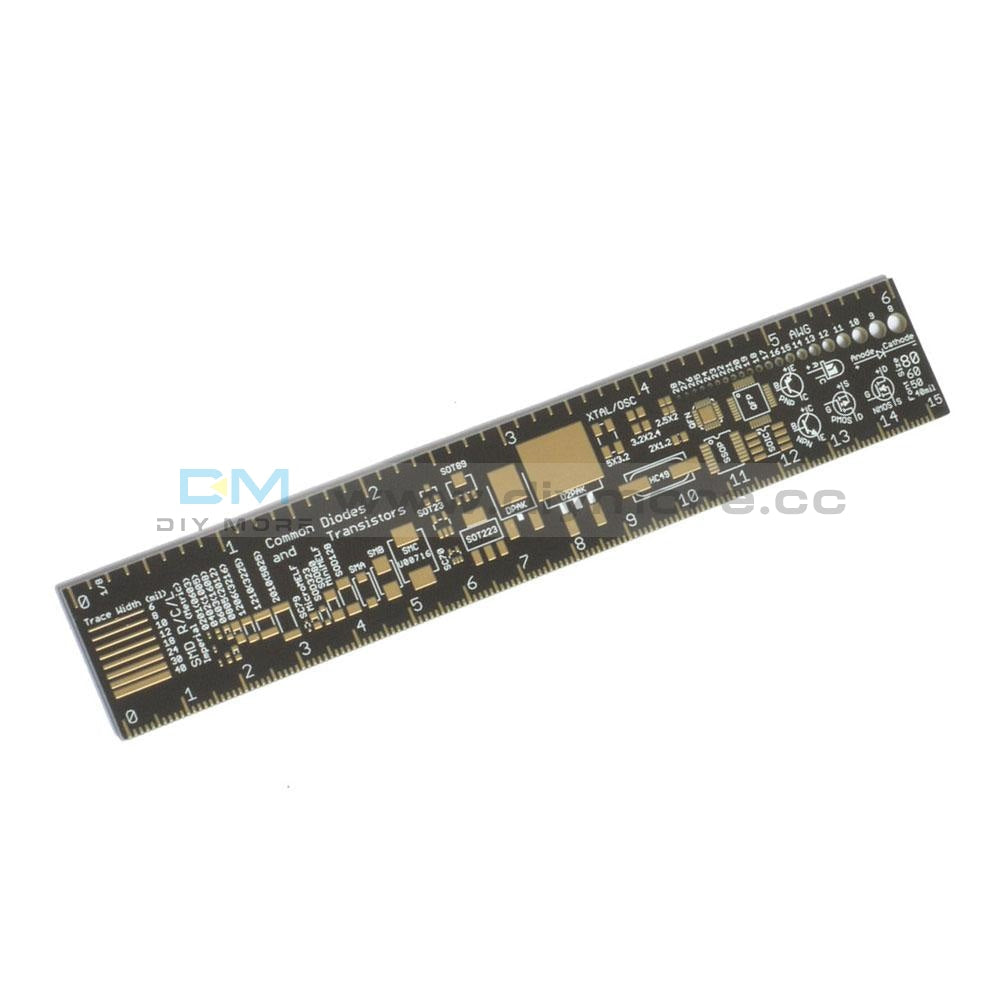

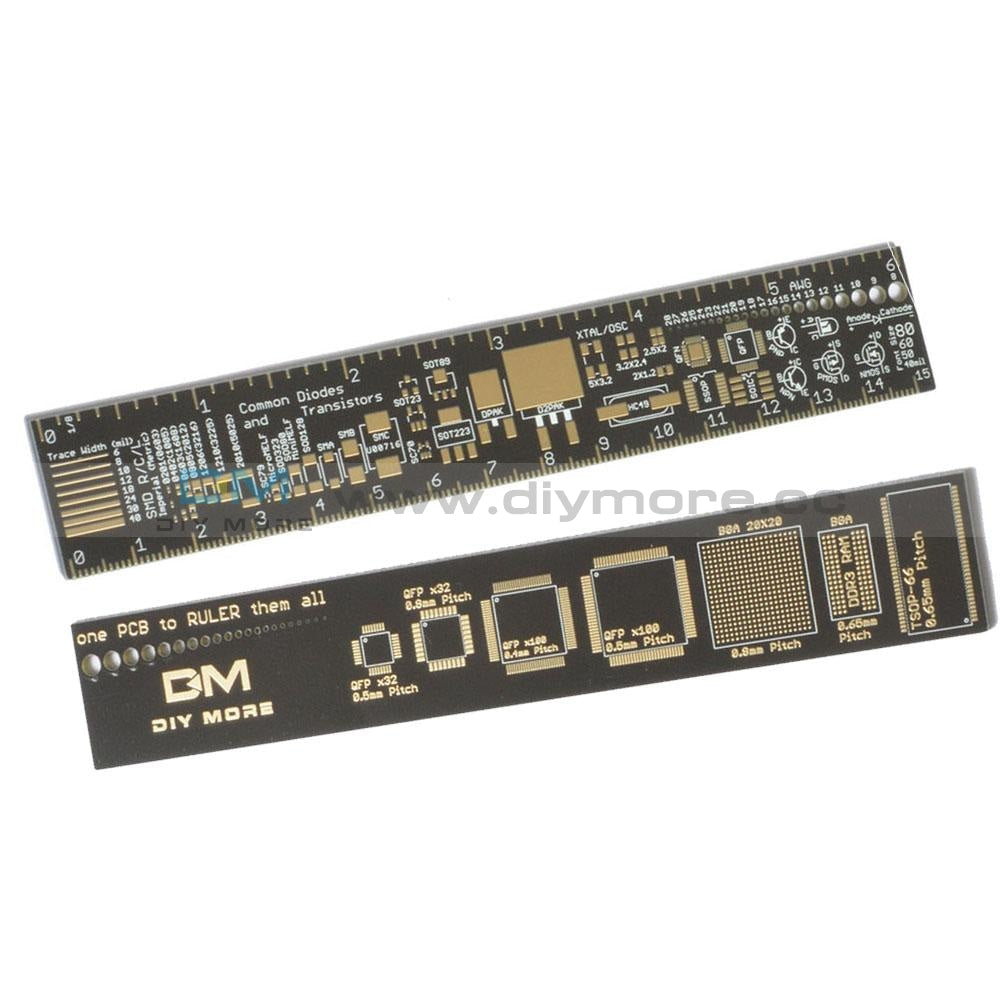

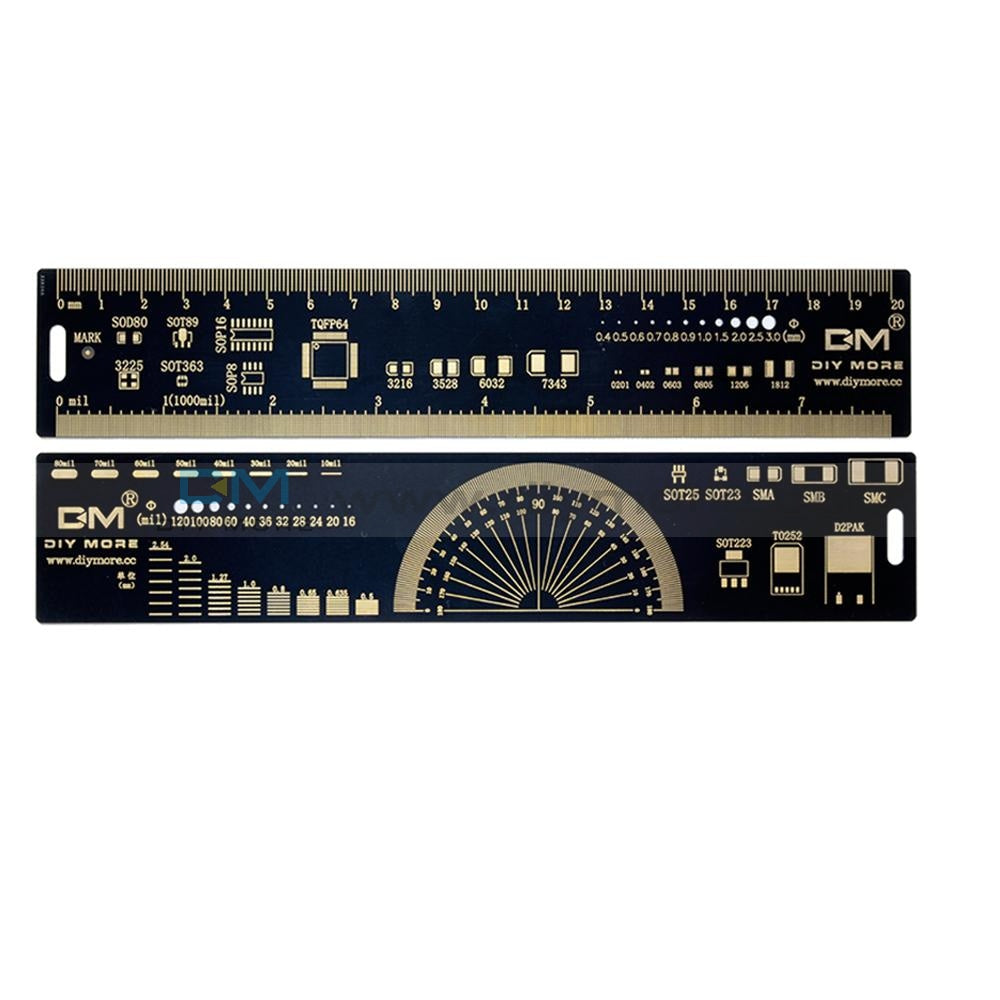

15/20/25cm Multifunctional PCB Ruler Measuring Tool Resistor Capacitor Chip IC Black
15/20/25cm Multifunctional PCB Ruler Measuring Tool Resistor Capacitor Chip IC Black
SKU:020098
Regular price
$5.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Description:

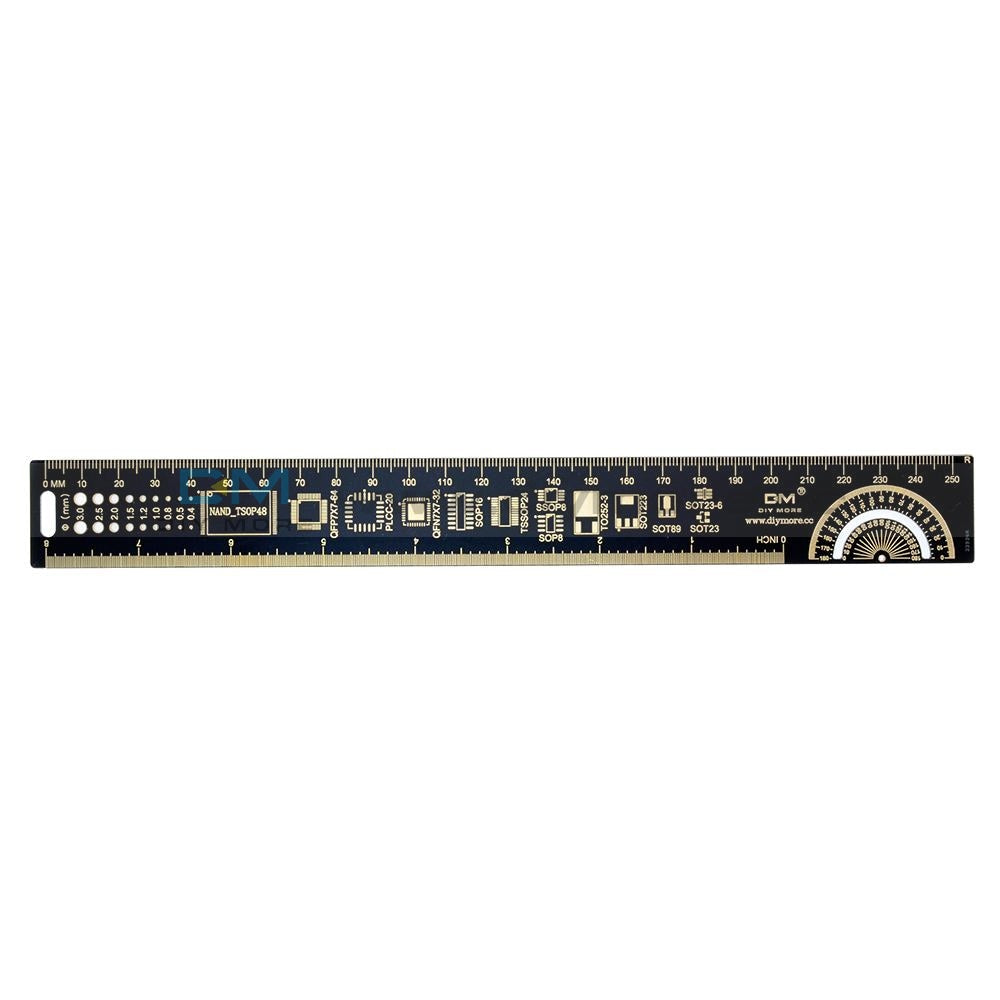

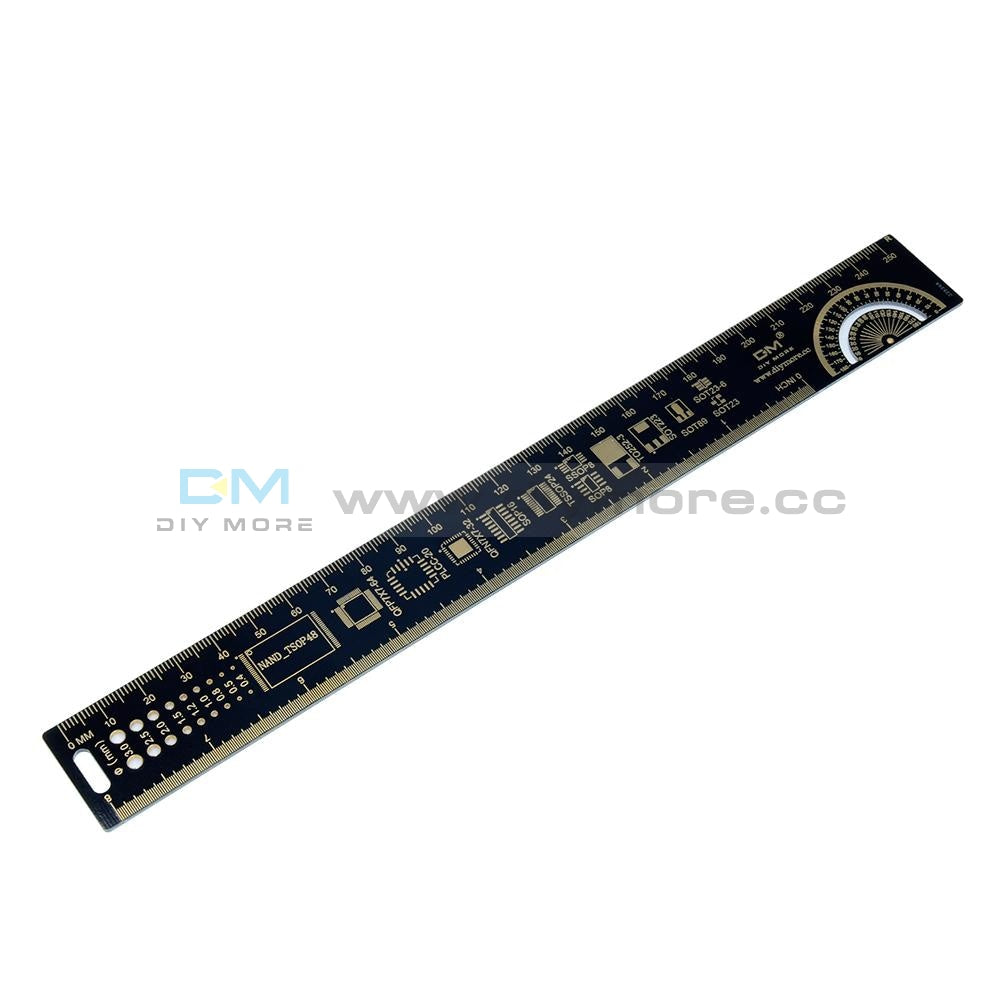

Positive Specifications:
The measurement length: 25 cm / 20 cm / 15 cm
Measuring length: 10 in / 7.8 in / 6 in
Commonly used IC package: 1.NAND_FLASH_TSOP48 2.QFP7X7-64 3.PLCC-20 4.SOP16 5.TSSOP24 6.SSOP8 7.SOP8
Commonly used CHIP component: 1.TO252-3 2.SOT223 3.SOT89-3 4.SOT23-6 5.SOT23-3 6.SOD123 7.SOD323 8.1210 9.3528 10.1206 11.0805 12. 0603 13. 0402 14.TO92
Common bore diameter reference dimensions (unit: mm): 3.0 2.5 2.0 1.5 1.0 0.8 0.5 0.4
Slot for hanging straightedge

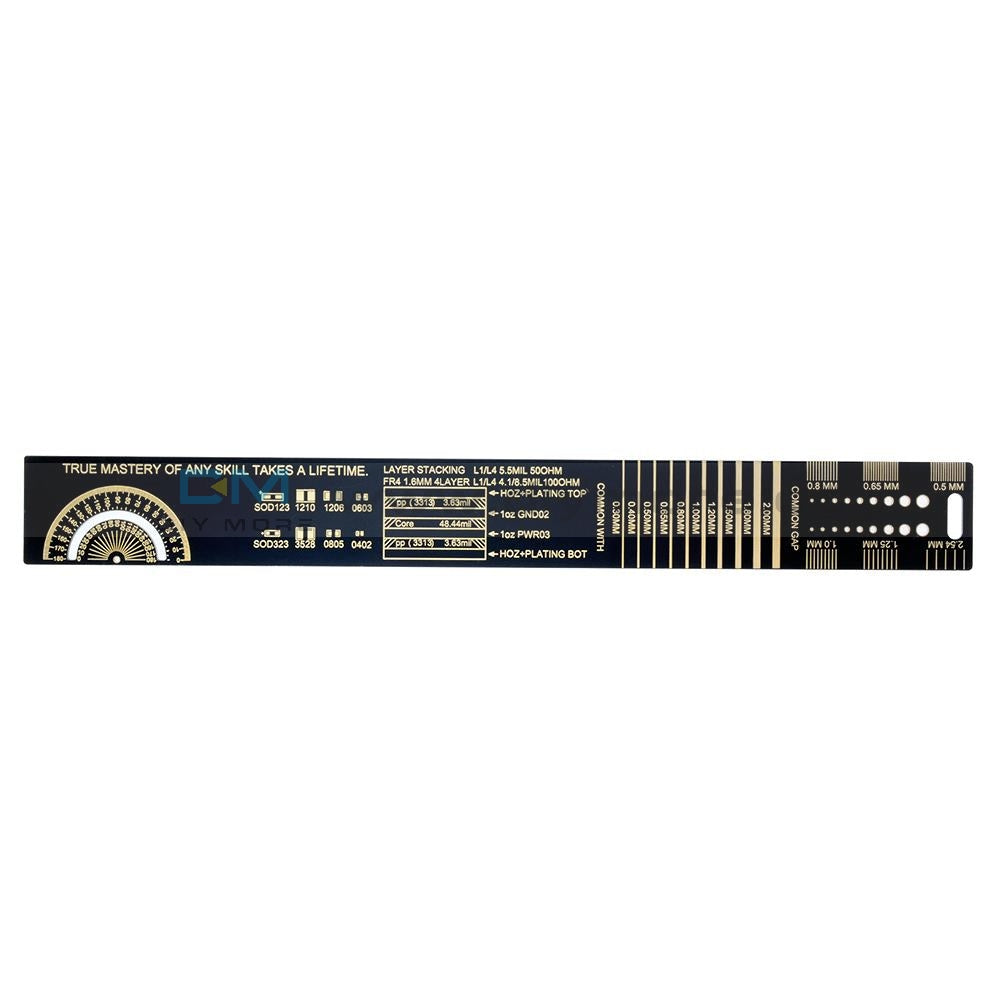

Back Specifications:
Commonly used line width reference (unit: mm)
Angle measurement: 180 degrees
Device, IC pin spacing table: 0.5 mm, 0.65 mm, 0.8 mm, 1.0 mm, 1.25 mm, 2.54 mm;
Common bore diameter reference dimensions (unit: mm): 3.0 2.5 2.0 1.5 1.0 0.8 0.5 0.4
Package included:
1 x Multifunctional PCB Ruler
- This versatile PCB ruler, also integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables, and more.
- Electronic enthusiasts in the design process in urgent need of a measurement tool can be set all the necessary functions.
- In addition to measuring the basic functions of millimeter and inch sizes, it also integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables, Resistor and capacitor chip package, the commonly used diameter reference drill, line width size reference
- We printed this information on FR-4 gold-plated PCBs.
- R-4 gold-plated PCB, high-end atmosphere, high hardness, wear resistance
Positive Specifications:
The measurement length: 25 cm / 20 cm / 15 cm
Measuring length: 10 in / 7.8 in / 6 in
Commonly used IC package: 1.NAND_FLASH_TSOP48 2.QFP7X7-64 3.PLCC-20 4.SOP16 5.TSSOP24 6.SSOP8 7.SOP8
Commonly used CHIP component: 1.TO252-3 2.SOT223 3.SOT89-3 4.SOT23-6 5.SOT23-3 6.SOD123 7.SOD323 8.1210 9.3528 10.1206 11.0805 12. 0603 13. 0402 14.TO92
Common bore diameter reference dimensions (unit: mm): 3.0 2.5 2.0 1.5 1.0 0.8 0.5 0.4
Slot for hanging straightedge
Back Specifications:
Commonly used line width reference (unit: mm)
Angle measurement: 180 degrees
Device, IC pin spacing table: 0.5 mm, 0.65 mm, 0.8 mm, 1.0 mm, 1.25 mm, 2.54 mm;
Common bore diameter reference dimensions (unit: mm): 3.0 2.5 2.0 1.5 1.0 0.8 0.5 0.4
Package included:
1 x Multifunctional PCB Ruler
