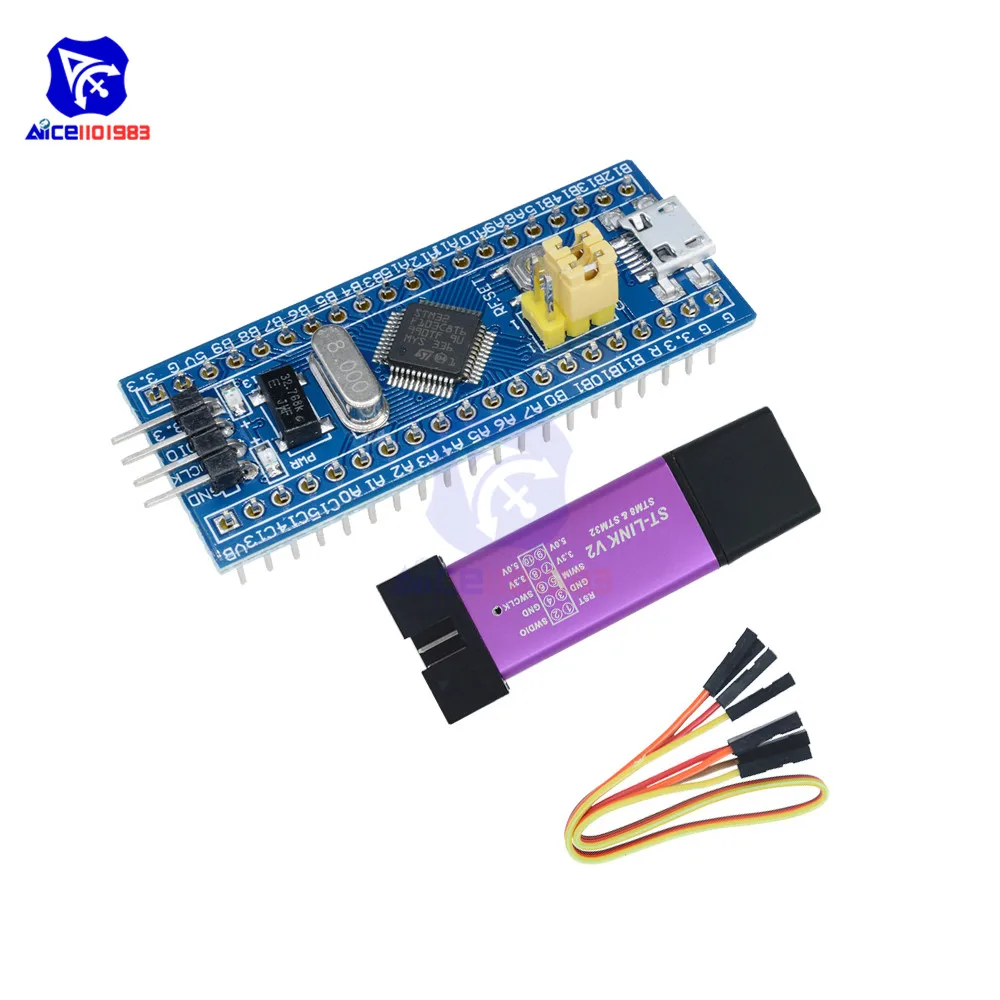

STM32F103C8T6 ARM STM32 Minimum System Development Board+ST-Link V2 Downloader
prev
next
STM32F103C8T6 ARM STM32 Minimum System Development Board+ST-Link V2 Downloader
SKU:011044
Regular price
$8.99 USD
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155

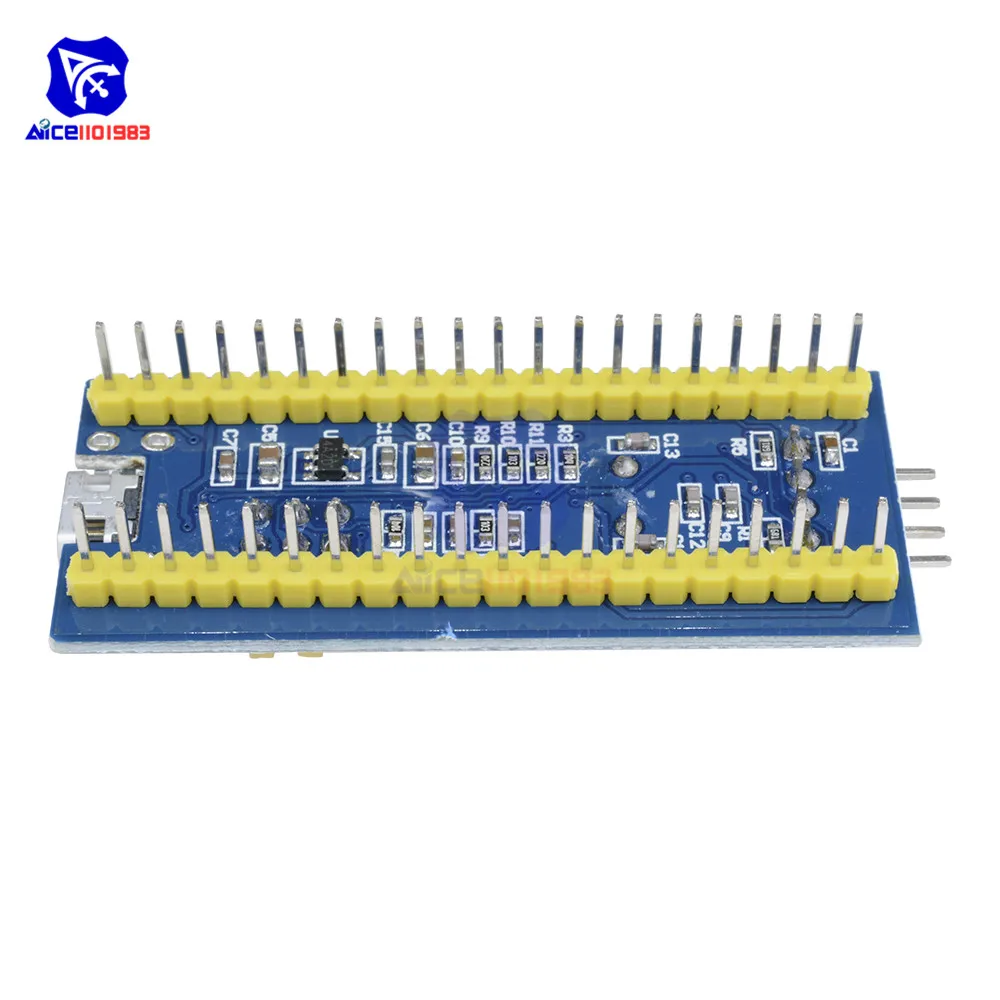

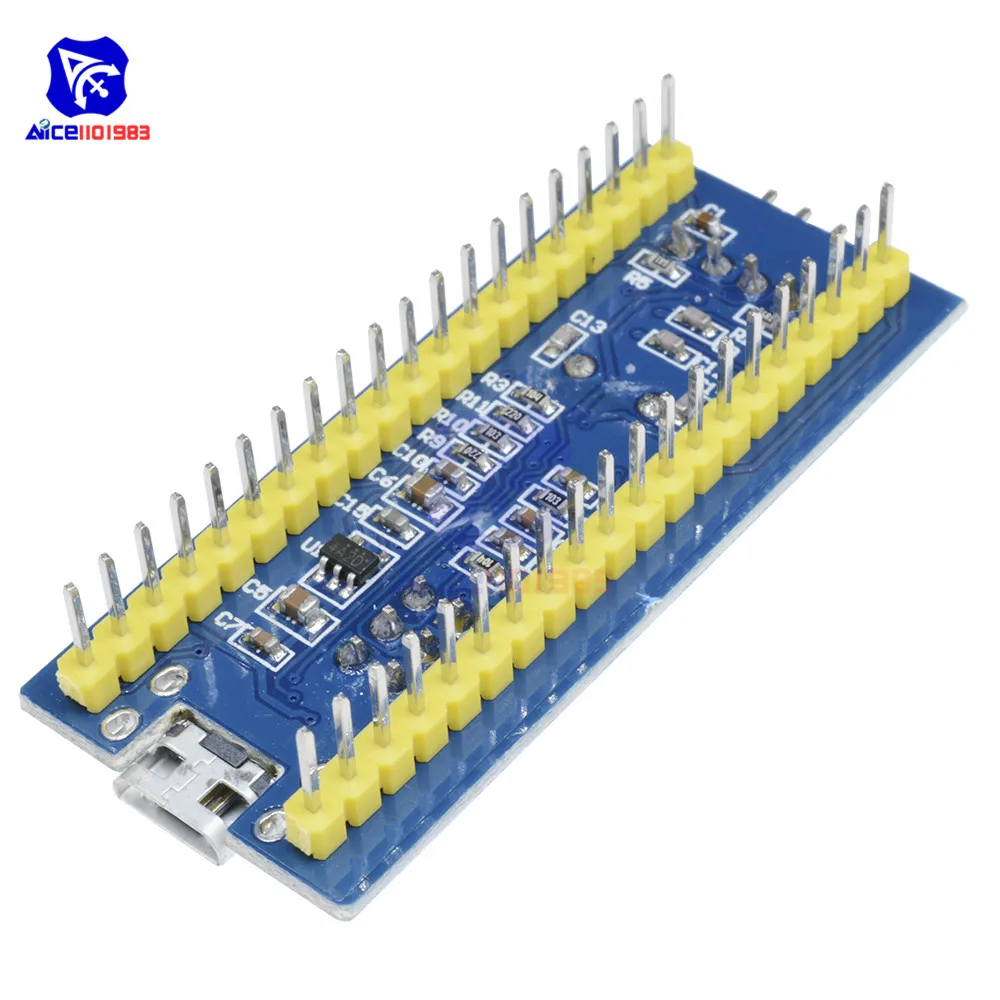

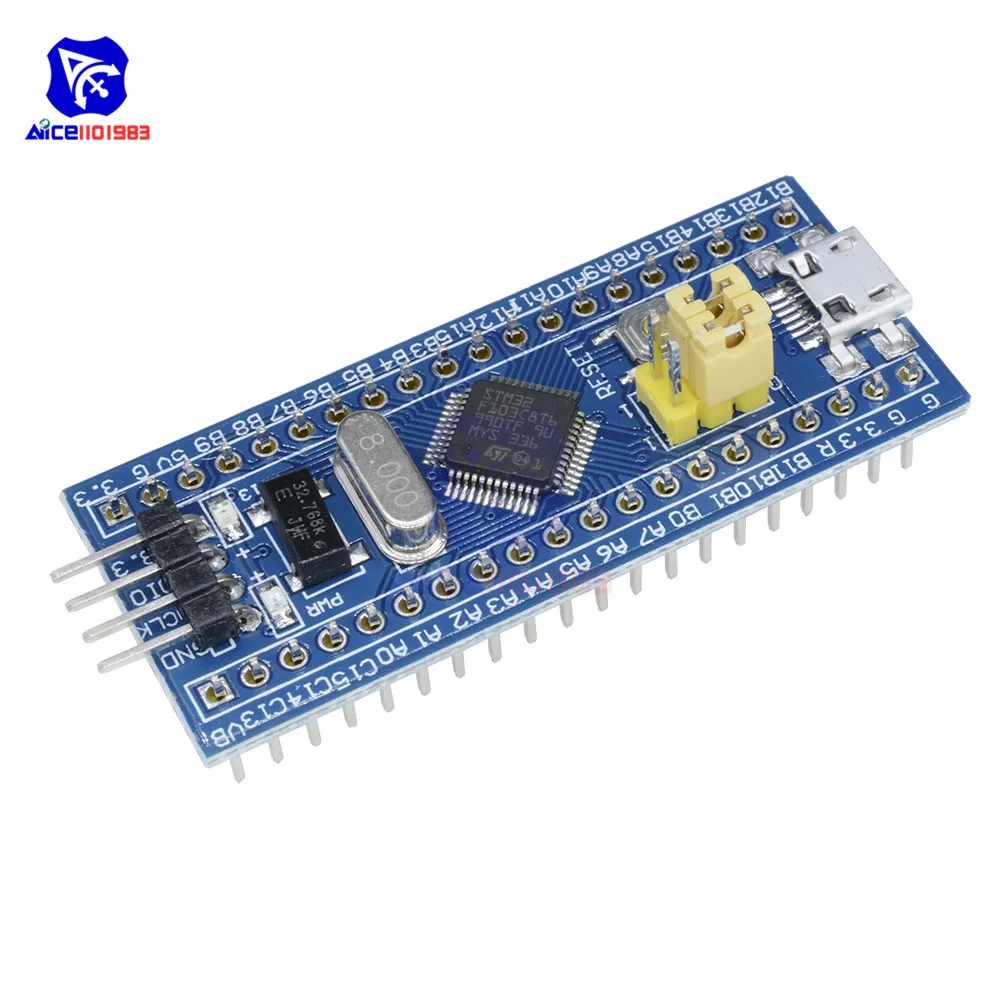

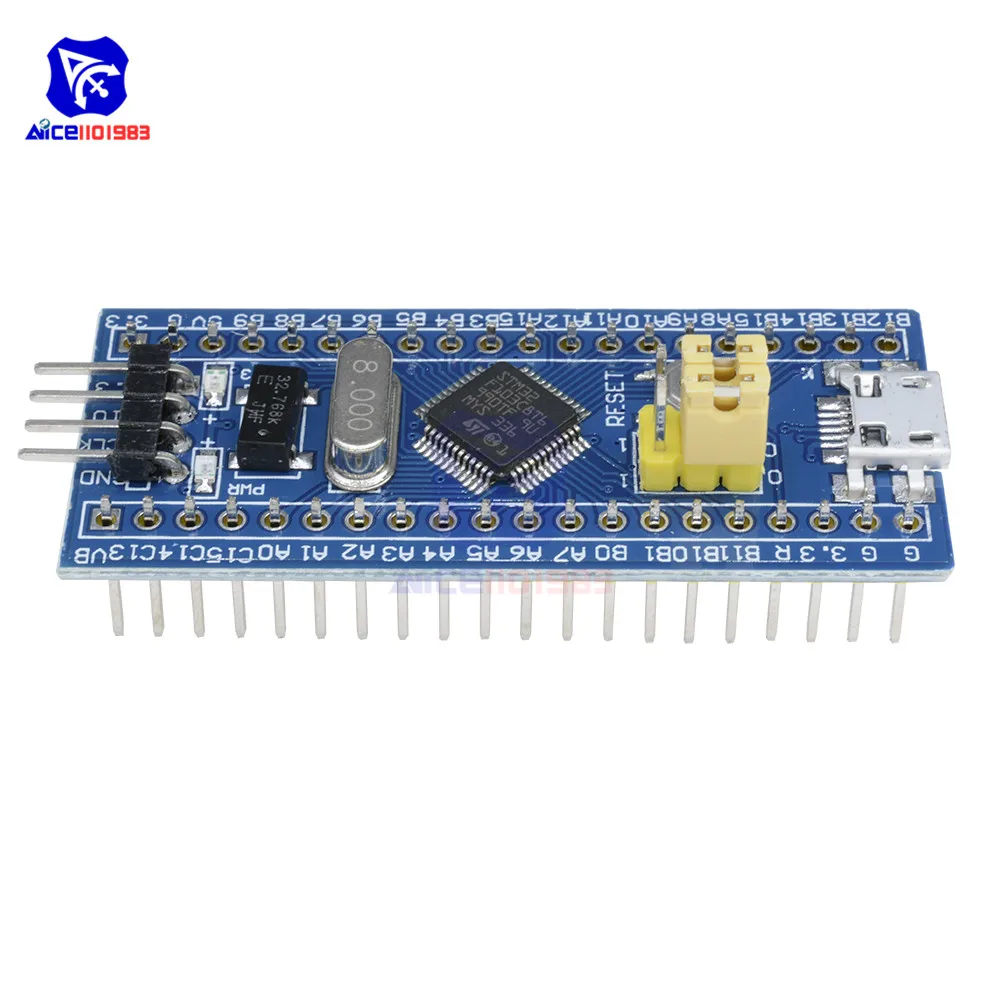

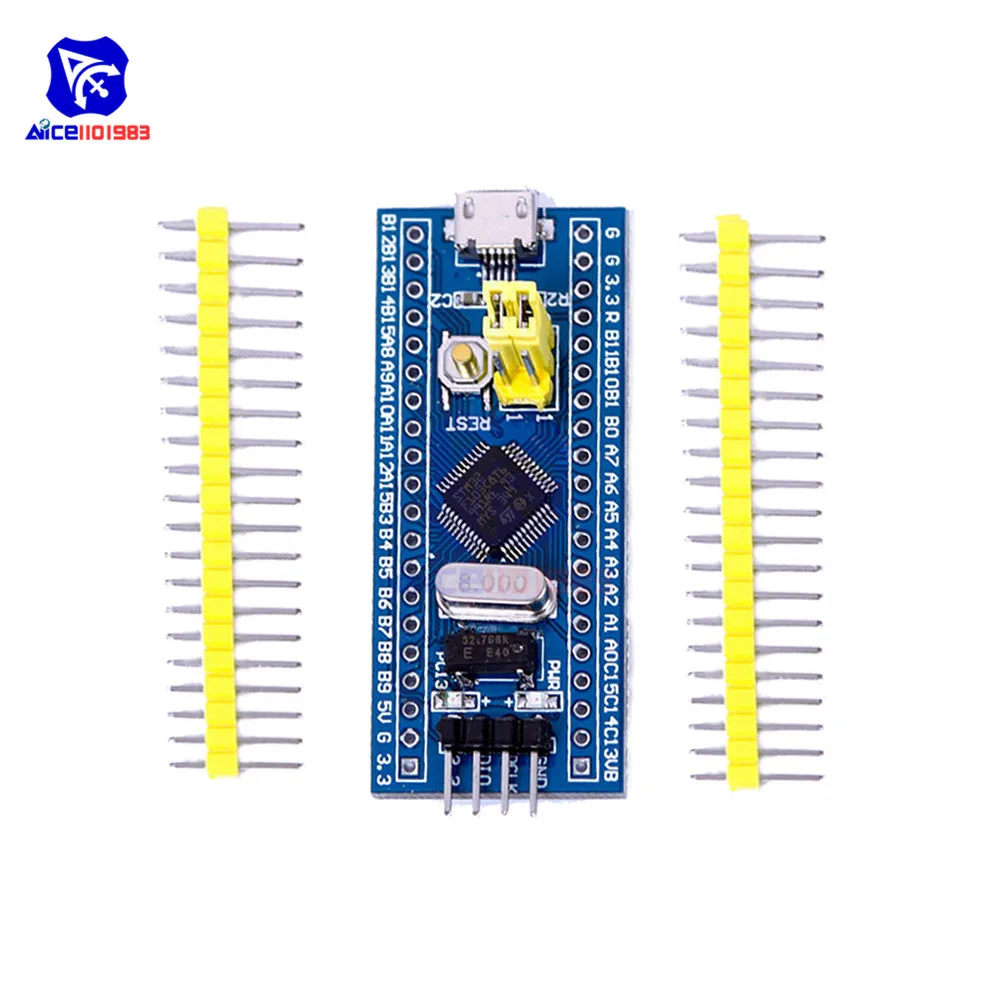

[STM32F103C8T6 Development Board]
Specification: Model: STM32F103C8T6 Core: ARM 32 Cortex-M3 CPU. Debug mode: SWD. 72MHz work frequency. 64K flash memory, 20K SRAM. 2.0-3.6V power, I/O. Reset(POR/PDR). 4-16MHz crystal. On-board Mini USB interface, you can give the board power supply and USB communication. Size: 5.3cm x 2.2cm

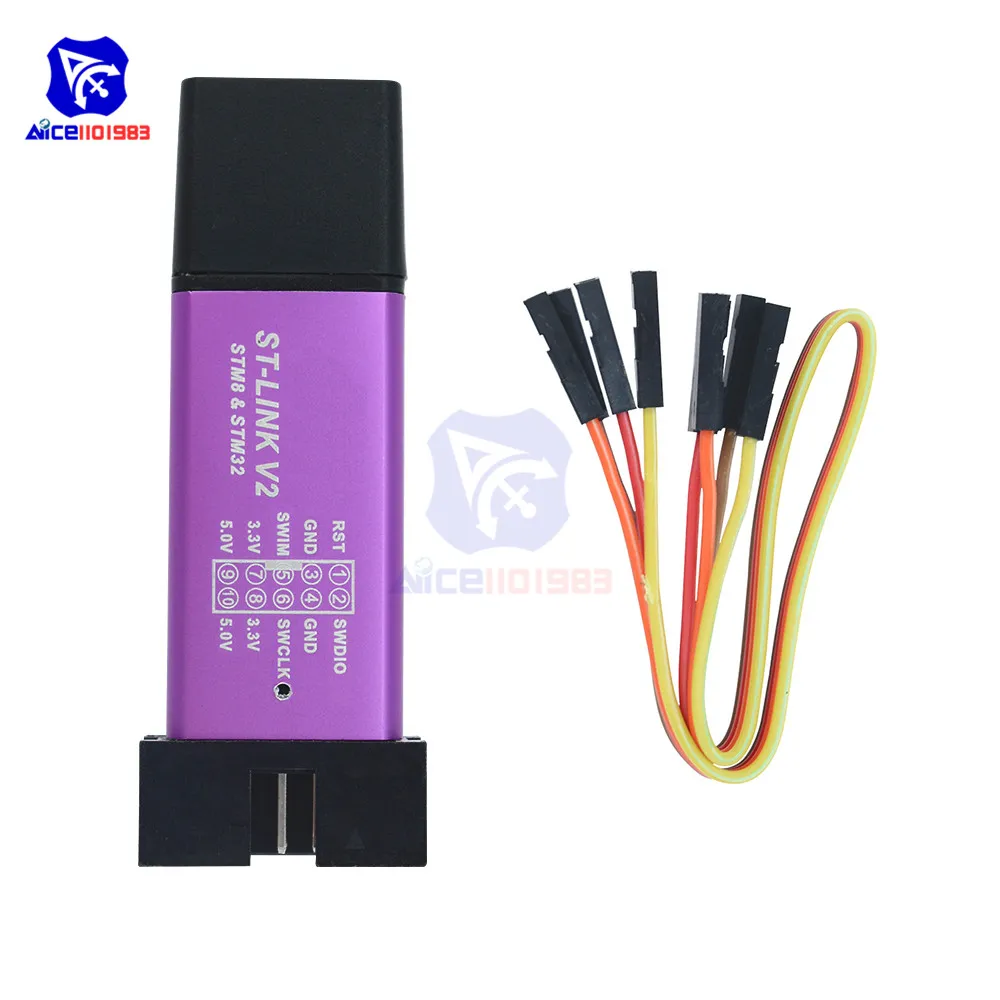

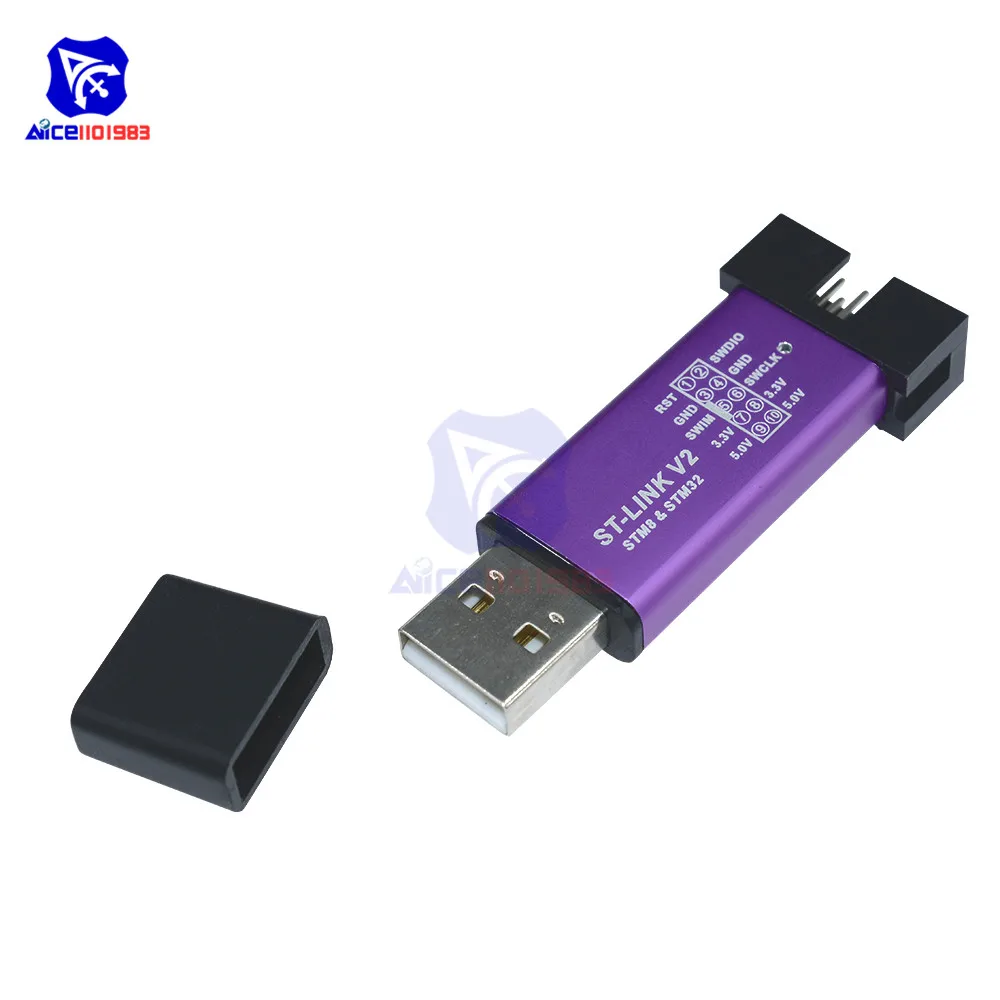

[ST-Link V2 Emulator]
Mini ST-LINK / V2 is fully consistent with the official functions Support automatic upgrades, full range of STM32 SWD & full range of STM8 SWIM download Support the full range of STM32 SWD debugging interface A simple 4-wire interface (including power), fast, & stable Interface definition marked on the casing! Do not need to refer to the manual Supported software versions as follows: ST-LINK Utility 2.0 and 4.2.1 above STVD and above STVP 3.2.3 and above IAR EWARM V6.20 and above IAR EWSTM8 V1.30 and above KEIL RVMDK V4.21 and above The factory firmware has been upgraded to the latest V2.J17.S4 Support for both 3 Volt and 5 Volt Power I/O ports are protected in case of operational errors caused by ST-LINK V2 The interface easy to use copper gilded horns seat pitch is 2.54 mm Comes with 20CM Dupont Lines to easier connection
