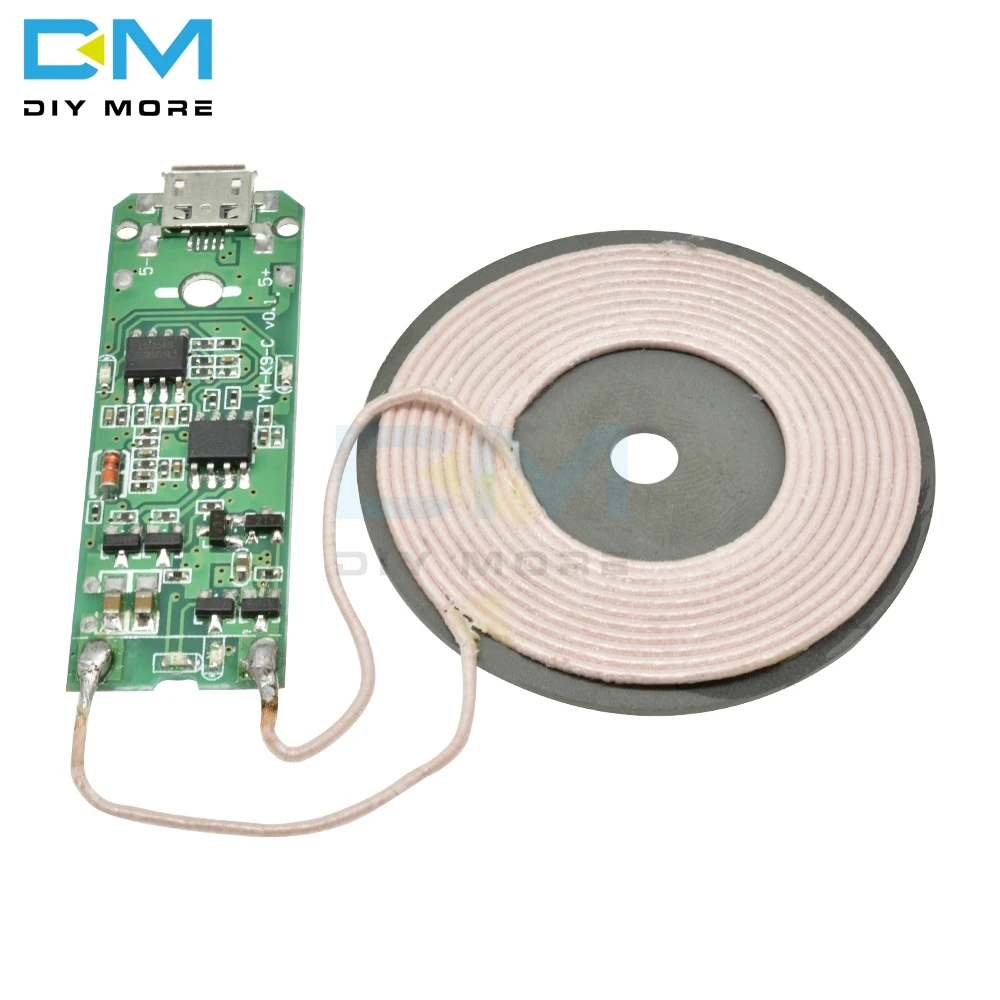

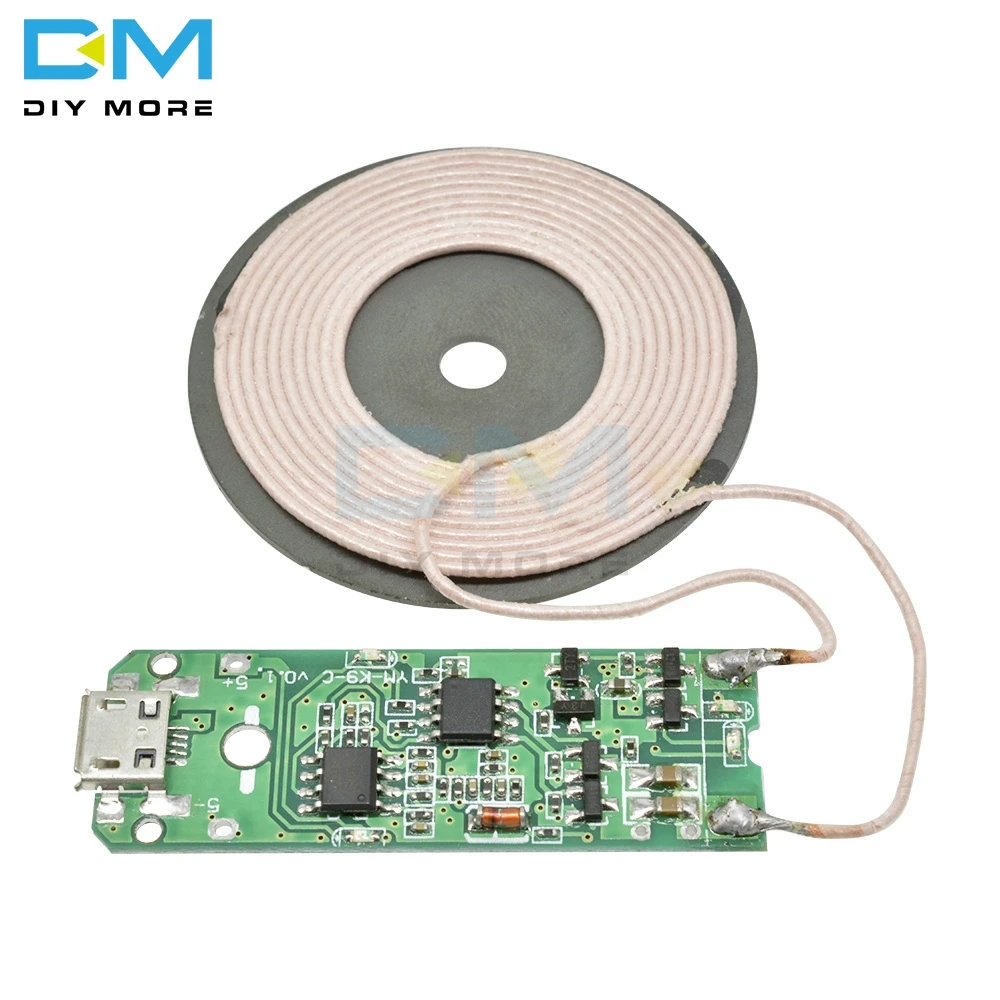

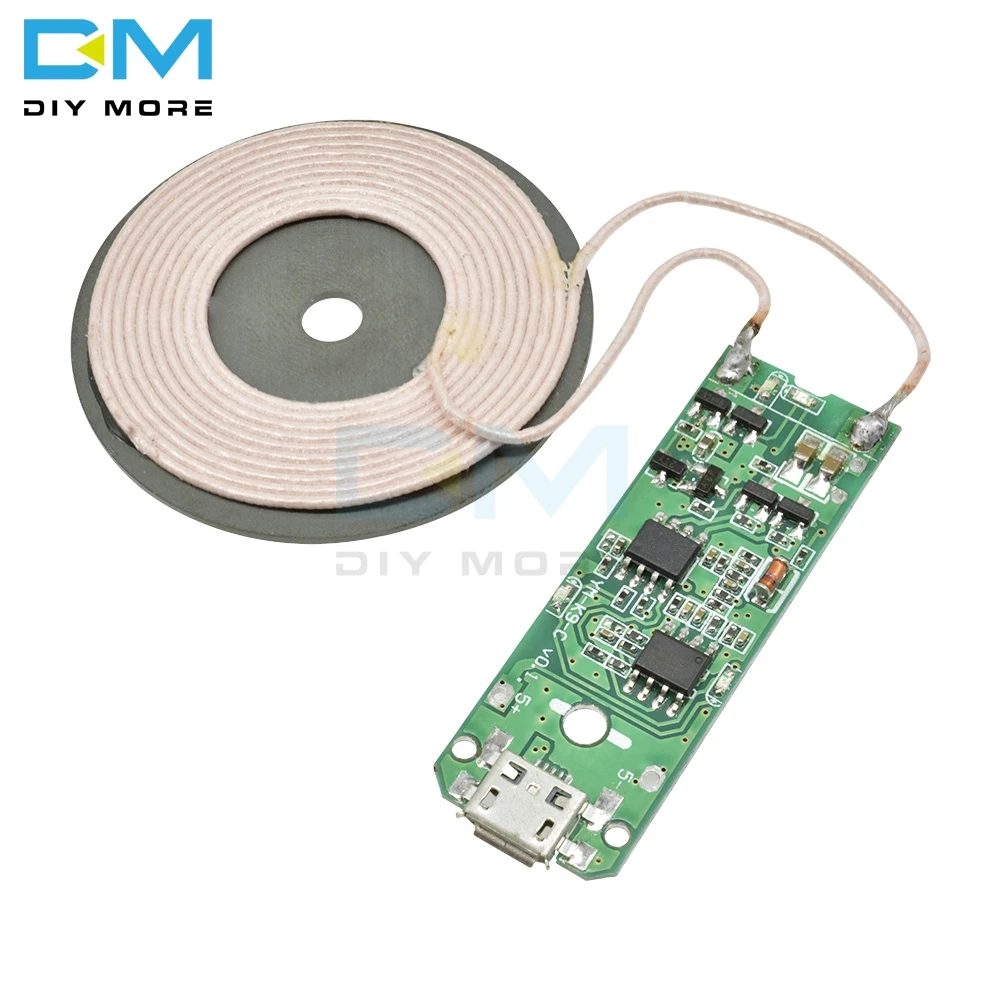

Qi Standard Wireless Charger Transmitter Module Micro USB Cell Phone Unmanned Charge Electronic Coil Charging Diy Board 5W
Qi Standard Wireless Charger Transmitter Module Micro USB Cell Phone Unmanned Charge Electronic Coil Charging Diy Board 5W
SKU:X13307
Regular price
$4.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Specification:
100% brand new and high quality
Size: approx. 11*5.8cm
Product Certification: CE/FCC, compatible with QI certified standards;
Standards: Qi wireless charging standard
Standby power: average power is less than 50 mW;
Conversion efficiency: greater than 73 %
Transfer distance: maximum 10mm, recommended transceiver distance 2 mm~4 mm
The led indicator will be green when charging, and be red when standby.
5W Qi Wireless Charger PCBA Circuit Board with Coil Wireless Charging Pad DIY,
allows to charge for any Qi-enabled device.
Input voltage: DC4.3V~5.5V/1.5~2A, over this range of voltage alarm and stop charging;
Output voltage: 5V±0.1V; Charging current: 500mAh-1000mAh;Charging power: maximum can reach 5 W
Over temperature protection: when the temperature is higher than 60 degrees,
it will automatically stop charging for 1 minute, and then the temperature is lower, it will re-charge.
Over current protection: when the current is over 1.5A, it will automatically stop charging to avoid damage the electrical devices.
Package Includes:
1x Wireless Charger PCBA Circuit Board with Coil DIY
