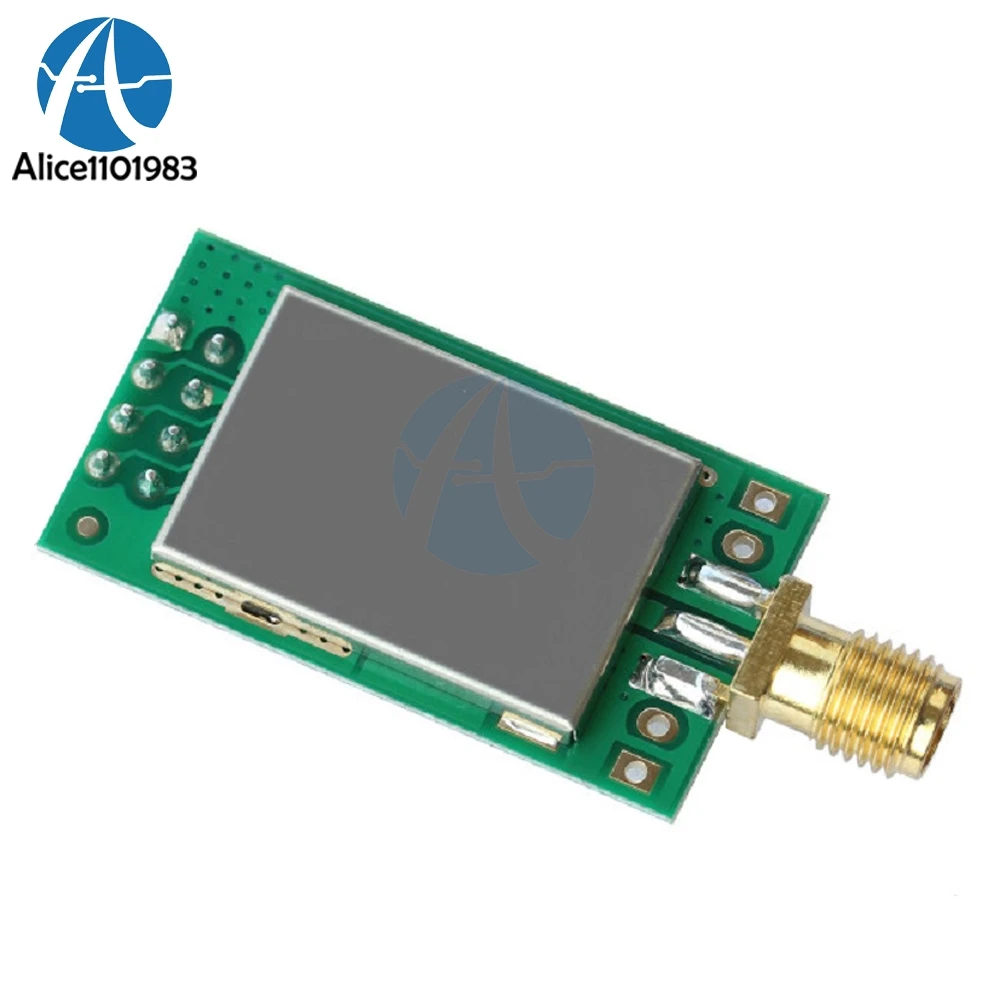

nRF24L01P PA LNA 2.4G 22dBm 100mW Wireless Transmission Diy Kit Electronic PCB Shield Board Module Shielding Case 2.0V 3.6V DC
prev
next
nRF24L01P PA LNA 2.4G 22dBm 100mW Wireless Transmission Diy Kit Electronic PCB Shield Board Module Shielding Case 2.0V 3.6V DC
SKU:040259
Regular price
$7.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Center frequency:2.4GHz
Measured distance:2300M
Max power :100mW
Component source:imported components
Features:With shielding cover, Strong anti-interference force
Performance parameters:
Module Size:18*33mm
Interface method:2*4*2.54mm(can use universal board or Dupont Line)
Power Supply:2.0V——3.6VDC
Maximum power:20dBm(about 100mW)
Gbps:250k,1M,2M, Adjustable
Emission current:95mA
Sinks current:20mA
Communication interface:Standard SPI mode
Transceiver length:single packet:1—32 bytes,3 FIFO buffer
Operating frequency:2400MHz-2525MHz(1MHz step )
Receiving Sensitivity:-106dBm/250Kbps -96dbm/1Mbps -92dbm/2Mbps
Package Include:
1*100mW 2.4G Wireless Transceiver 2300M RF Communication NRF24L01P+PA+LNA Module
