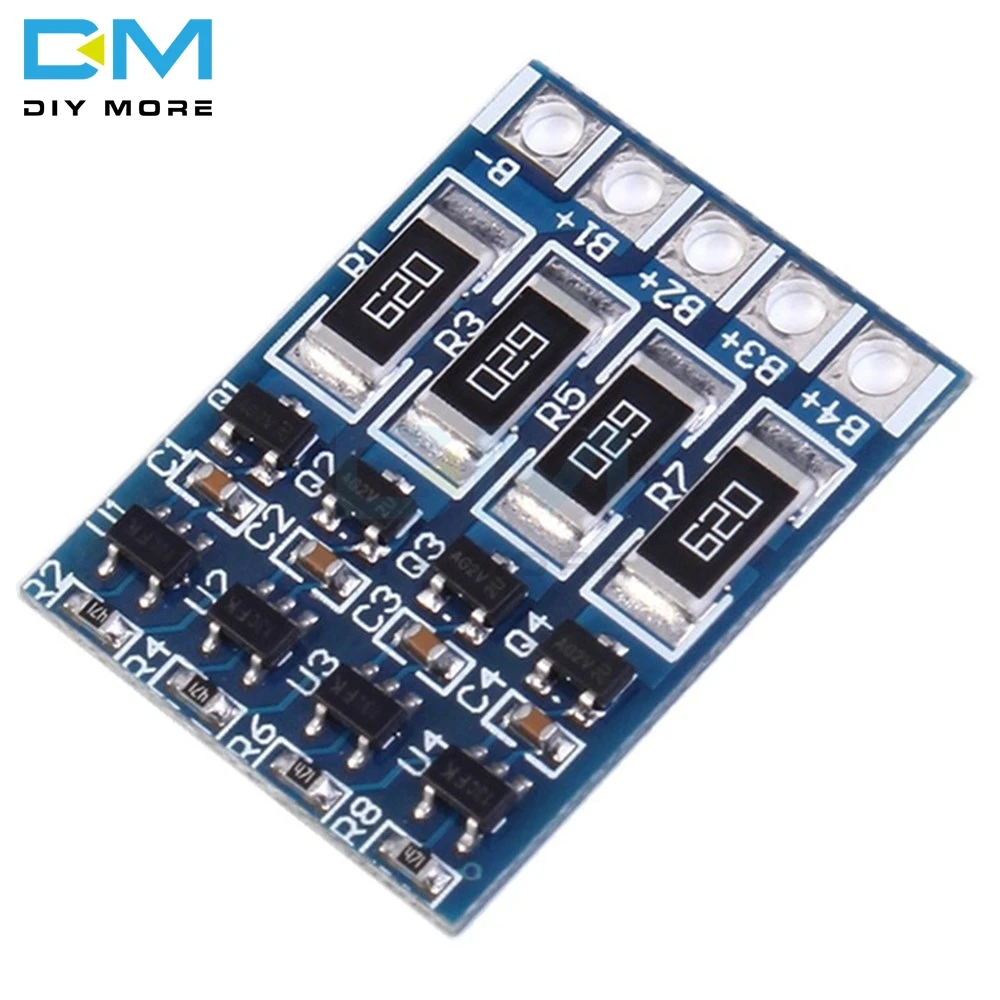

4S Li-ion Lipo Lithium Battery 18650 Charge Balance Protection Board 4S 68mA Polymer Charging Balance Module BMS

4S Li-Ion Lipo Lithium Battery 18650 Charge Balance Protection Board 68Ma Polymer Charging Module

4S Li-ion Lipo Lithium Battery 18650 Charge Balance Protection Board 4S 68mA Polymer Charging Balance Module BMS

SKU:012227
Regular price $5.99 USD







1. Features: 4.2V Balance function
2. Operating Current: 68mA
Welding Point Introduction:
1. B4 +: connect with a positive battery
2. B3 +: connect with junction between battery 1 and battery 2
3. B2 +: connect with junction between battery 2 and battery 3
4. B1 +: connect with junction between battery 3 and battery 4
5. B-: Connect with negative battery




notice:


1. This balanced border is adaptable to lithium battery which has no charge charge function, can be added charging and balanced function to ensure the full battery of electric power
2. This balanced board has no charge or discharge function, and can not replace the security board. When the battery is fully charging, it is discharged from resistance to the first fully charged battery, ie shunt and balance





Package Include:


1 x 4S 4.2V 3.668mA 18650 Lithium Polymer Batteries Charge Balance Protection Board
