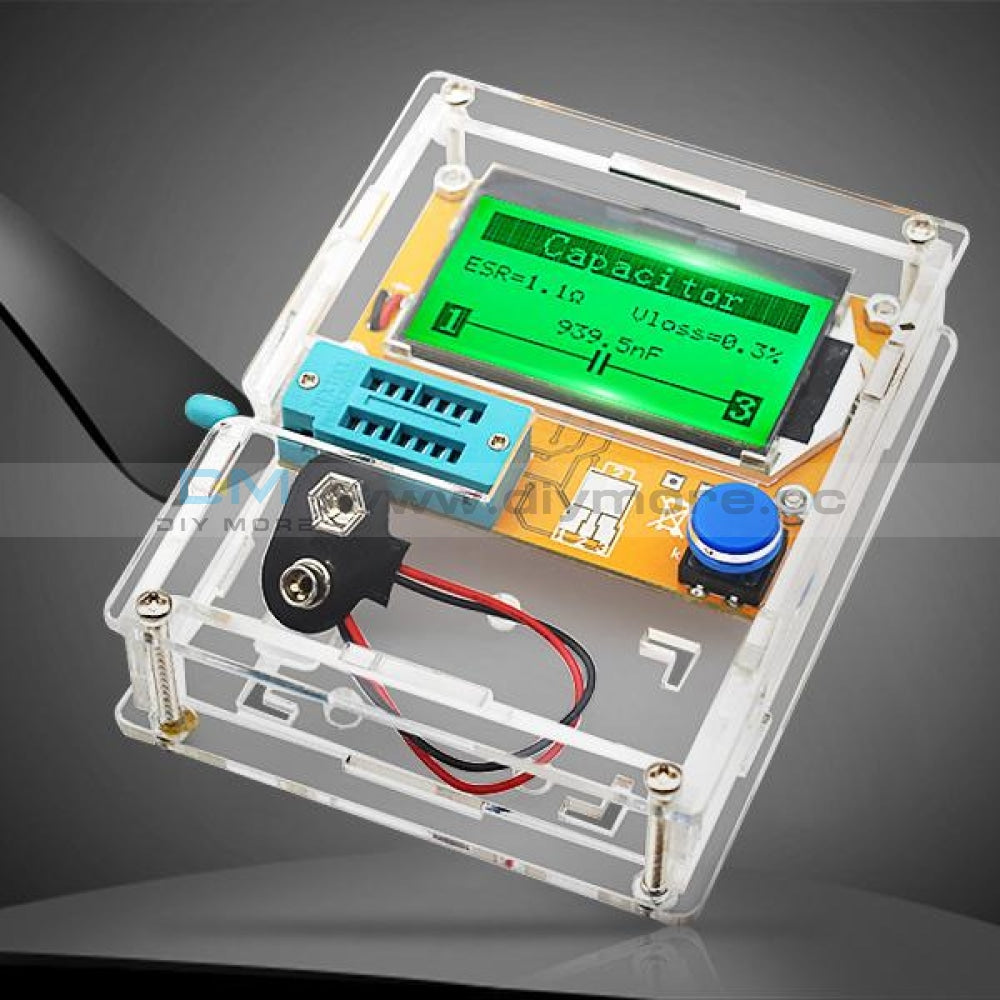

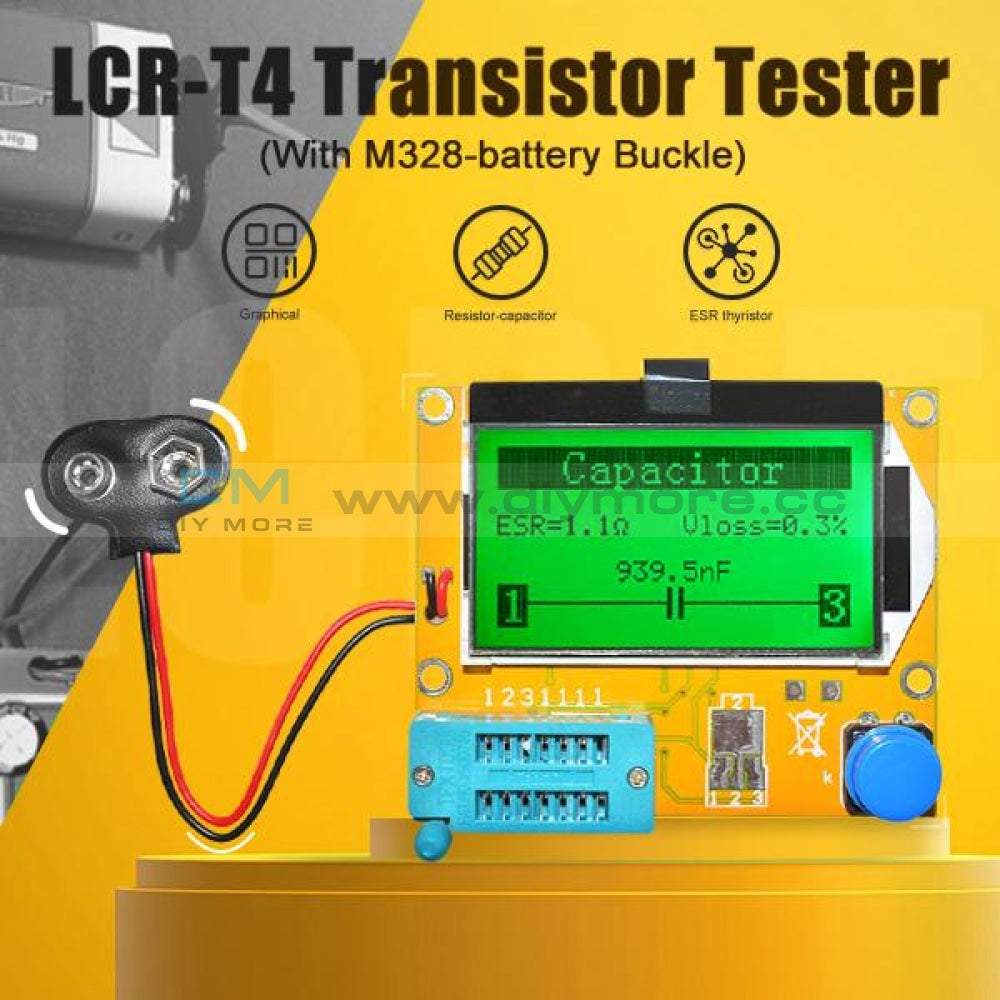

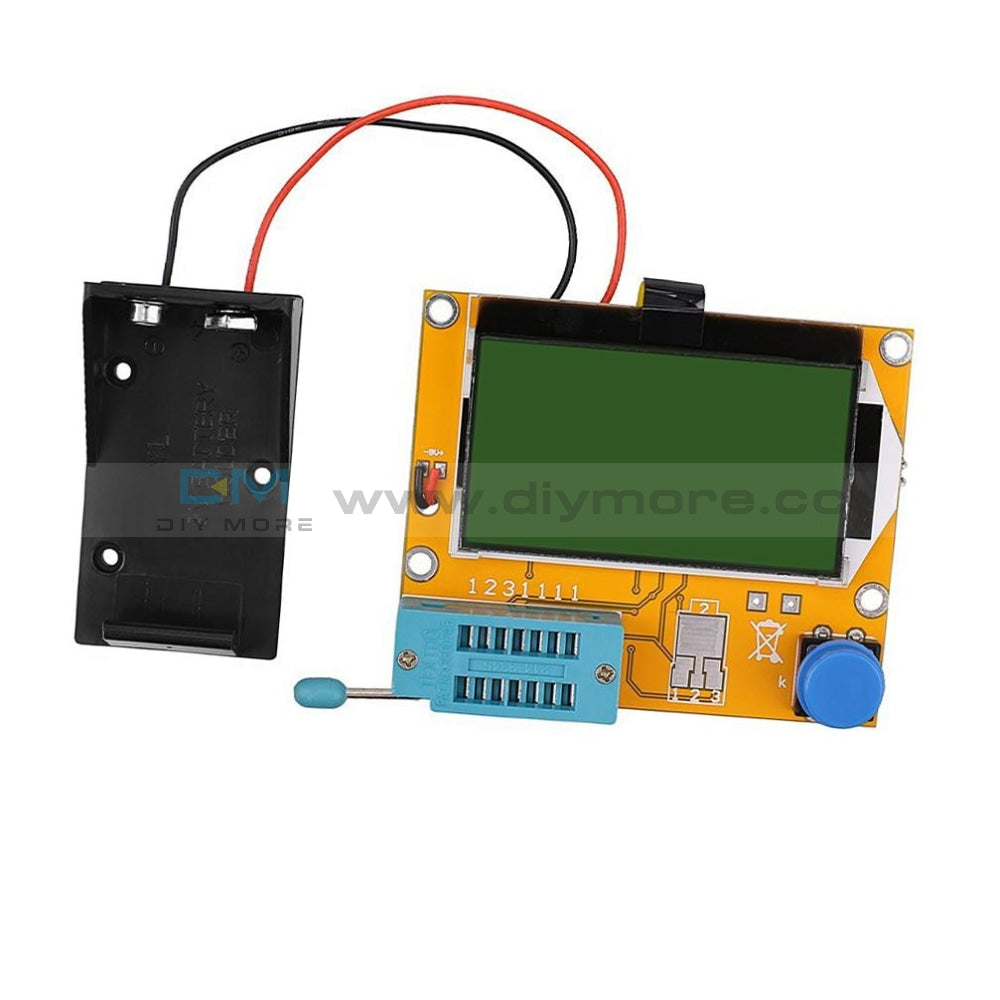

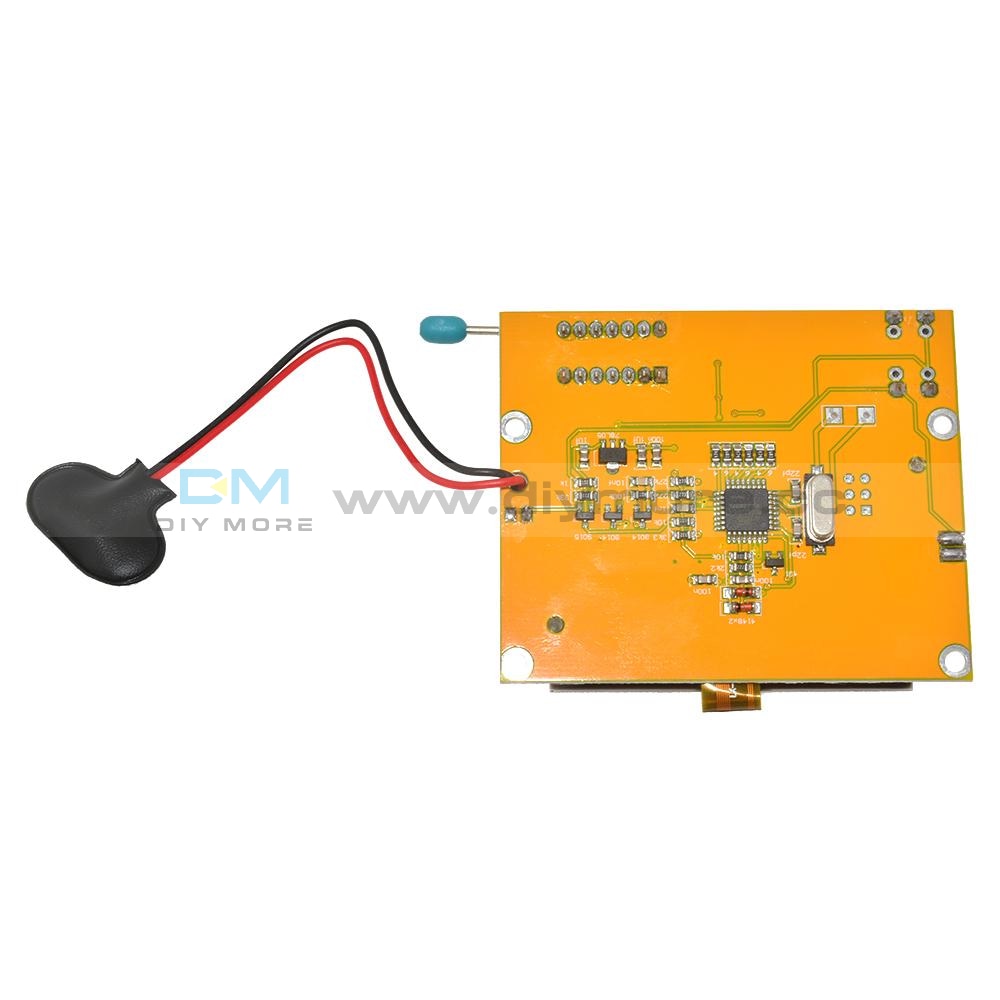

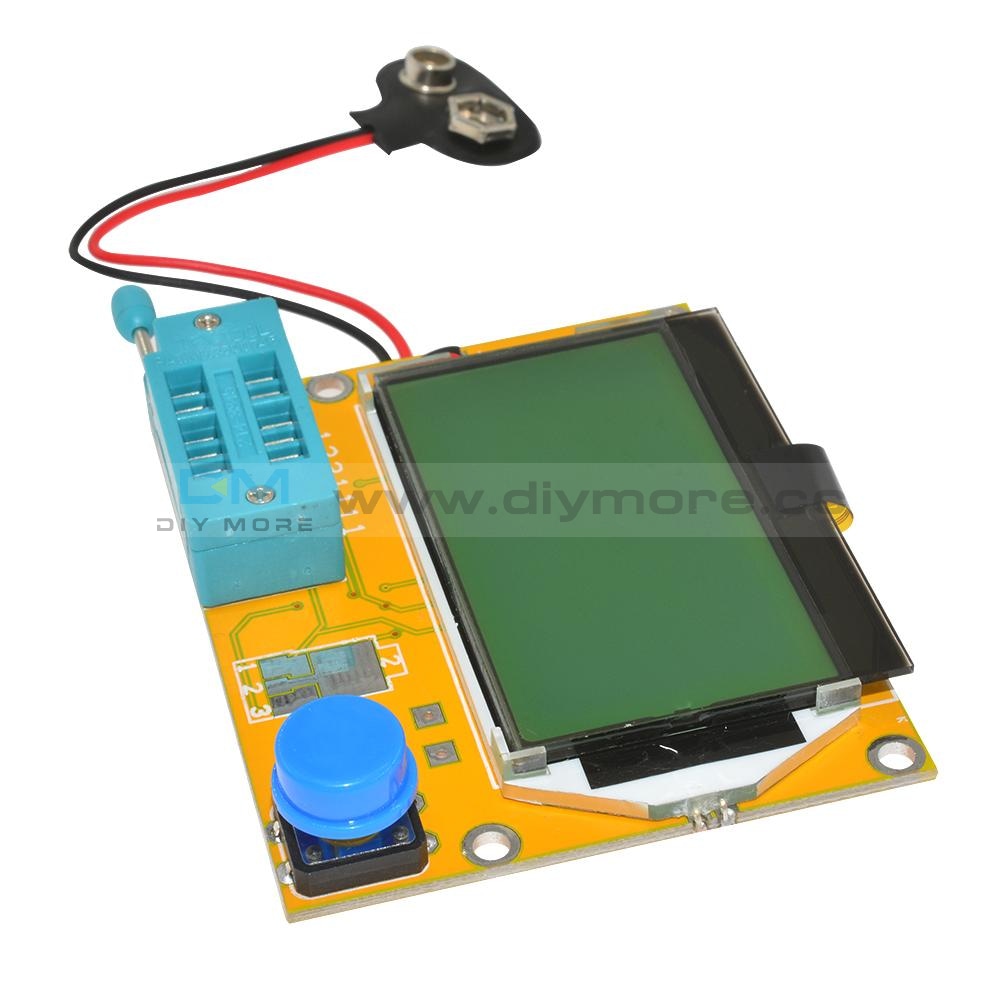

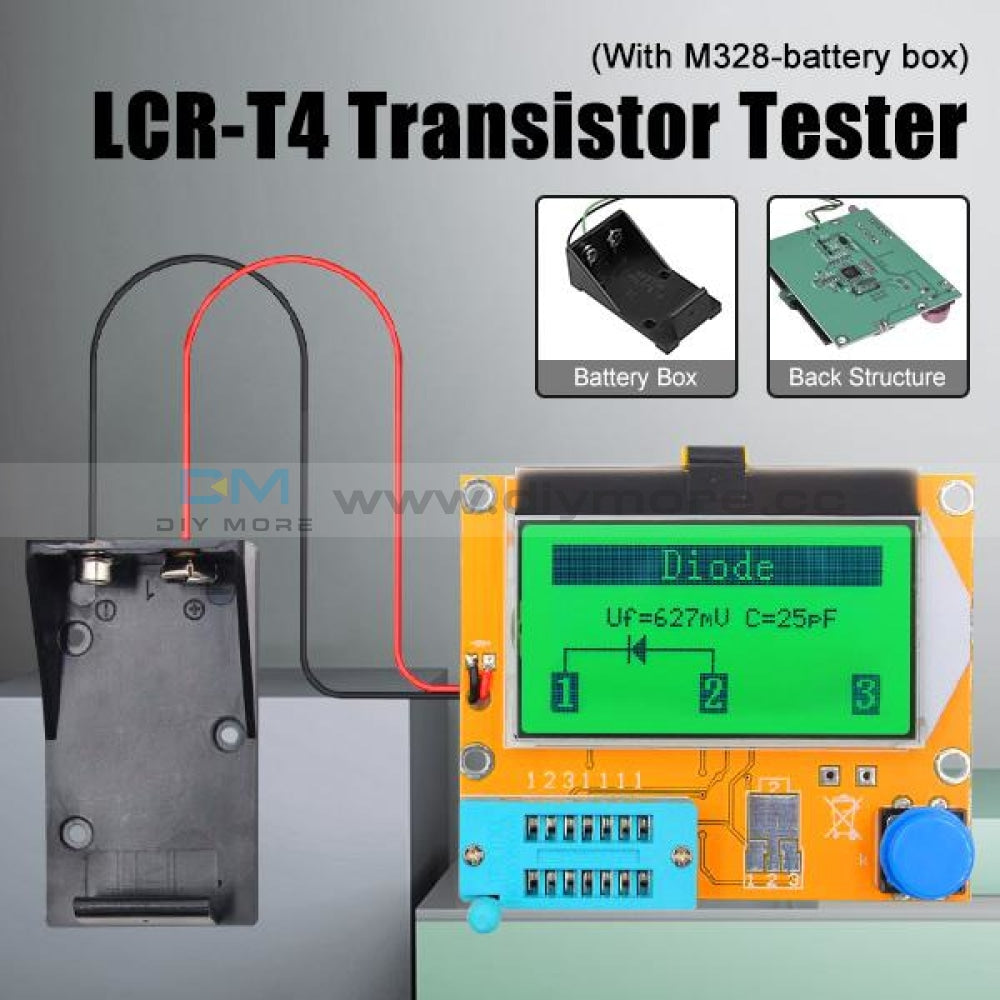

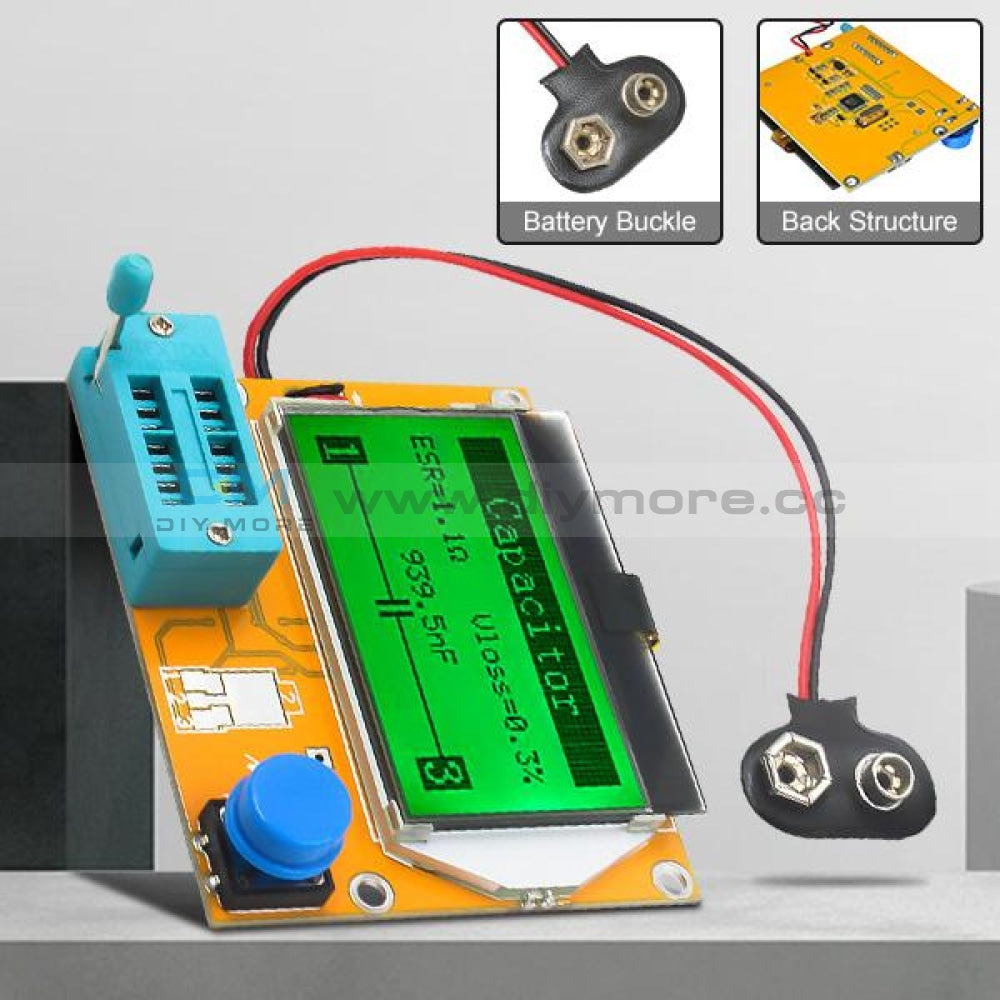

LCR-T4 LCD Display Transistor Tester Triode Capacitance ESR Meter M328 MOS
SKU:050303
Regular price
$17.99 USD
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
- Latest M328 version of the software ,more functions.Chip: Atmega328
- 128*64 big Backlight LCD display,only 2mA when stand by
- Test ranges:Inductors, capacitors , diodes, dual diode , mos, transistor, SCR , the regulator, LED tube , ESR, Resistance,Adjustable potentiometer
- Can detect the transistor, MOSFET protection diode amplification coefficient and the base to determine the emitter transistor forward biased voltage
- Measure the gate and gate capacitance of the MOSFET threshold voltage
- 2013 latest M328 version of the software ,more functions.Chip: Atmega328
- 128*64 big Backlight LCD display,only 2mA when stand by.

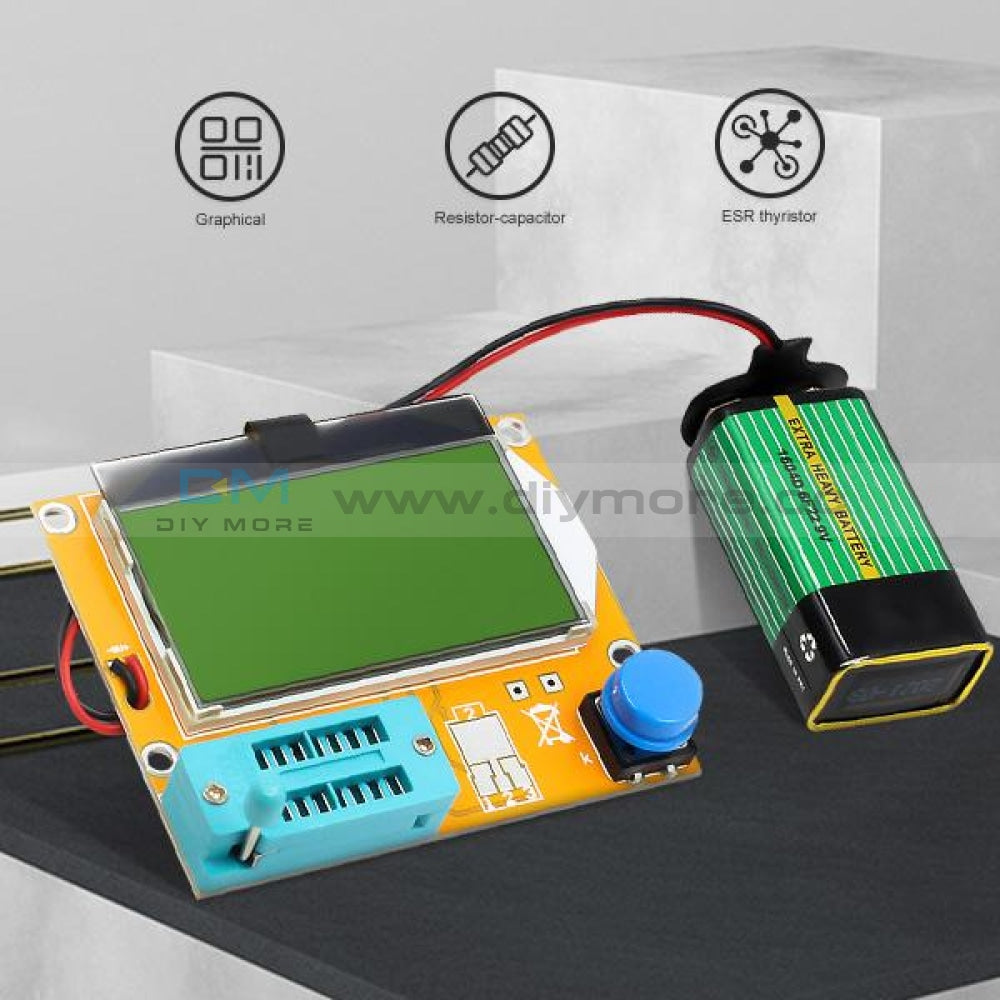

- Using 9V battery (Not included)
Test ranges:
- Inductors, capacitors , diodes, dual diode , mos, transistor, SCR , the regulator, LED tube , ESR,
- Resistance,Adjustable potentiometer
- Resistance :0.1 ohm resolution, maximum 50M ohm
- Capacitor :25pf -100,000 uf
- Inductors : 0.01mh-20H
Function:
- Automatic detection of NPN and PNP transistors, n-channel and p-channel MOSFET, diode (including double diode), thyristor, transistor, resistor and capacitor and other components
- Automatic test the pin of a component, and display on the LCD
- Can detect the transistor, MOSFET protection diode amplification coefficient and the base to determine the emitter transistor forward biased voltage
- Measure the gate and gate capacitance of the MOSFET threshold voltage
- Use 12864 liquid crystal display with green backlight
Specifications: For you reference
- One -button operation, automatic shutdown .
- Only 20nA shutdown current.
- Automatically detect NPN, PNP bipolar transistors , N -channel and P -channel MOS FET, JFET , diodes , two diodes, thyristors small power unidirectional and bidirectional thyristor.
- Automatic identification components pin arrangement .
- Measuring bipolar transistor current amplification factor and base - emitter threshold voltage.
- Via the base - emitter threshold voltage and high current amplification factor to identify Darlington transistors.
- Can detect bipolar transistors and MOS transistors protection diodes.
Package Included:
- 1PCS * Transistor Tester
