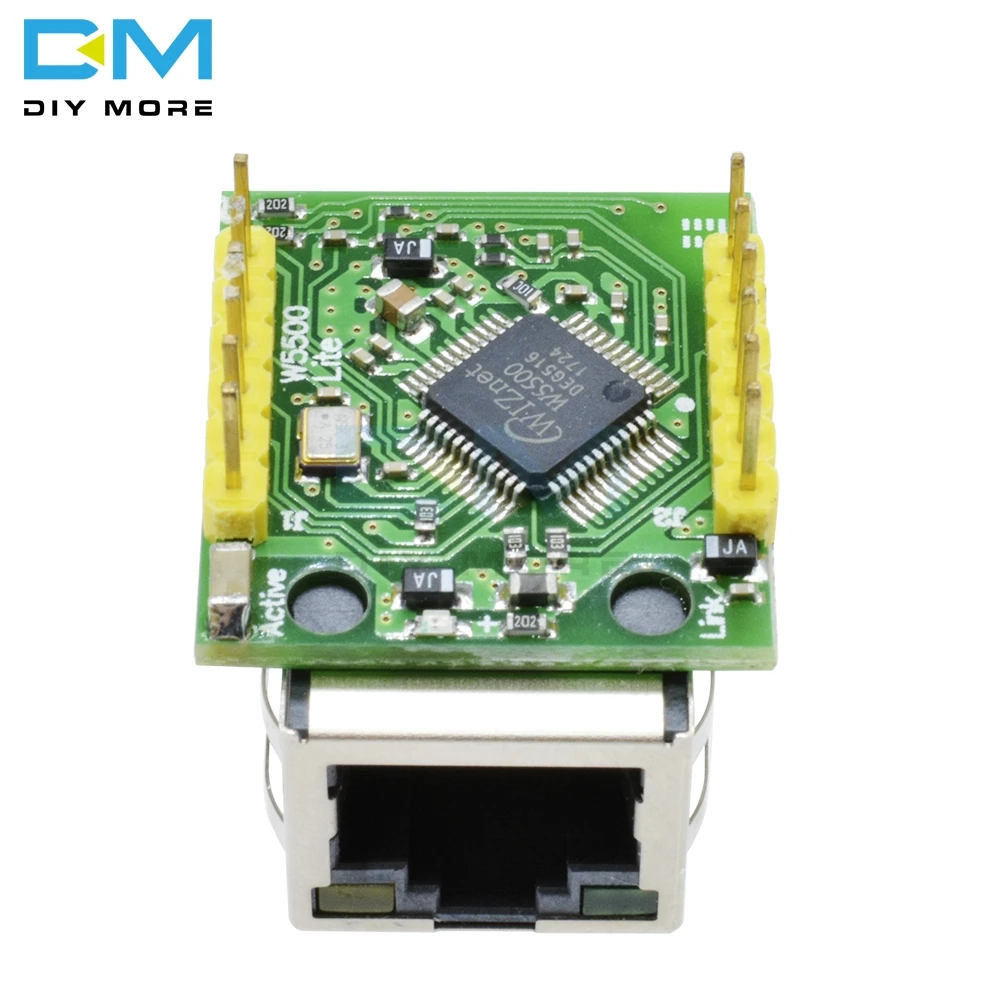

W5500 ENC28J60 USR-ES1 Chip New SPI to LAN/ Ethernet Converter TCP/IP

W5500 Enc28J60 Usr-Es1 Chip New Spi To Lan/ Ethernet Converter Tcp/ip Mod Module Interface Green

W5500 ENC28J60 USR-ES1 Chip New SPI to LAN/ Ethernet Converter TCP/IP Mod Module SPI Interface Green Board

SKU:011236

$14.98 $7.99

Description:

High speed SPI interface 80MHz

Hardware-TCPIP-protocol stack user built in, almost without understanding the complex network protocol knowledge

Supports up to 8 Socket

Support TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocol

Integration of the data link layer, physical layer

Support the wakeup

Support high speed serial peripheral interface (SPI model 0, 3)

Internal 32K bytes receive buffer

The embedded 10BaseT/100BaseTX Ethernet physical layer (PHY)

Support auto negotiation (10/100-Based full duplex or half duplex)

Does not support the IP patch

The working voltage of 3.3V, I/O and 5V voltage signal

LED display (full duplex or half duplex, network connection, network speed,active)

Pin type package ultra small, convenient for embedded applications

Application of C sample project

Product Characters

Power supply mode:3.3V external power supply, current should be more than 200mA;

Control interface:The TTL level, 3.3V SPI interface;

PCB size:23 * 25 mm;

Mechanical Dimensions:28.5 * 23 * 24;

Package:

1 X USR-ES1 ENC28J60 W5500 Chip SPI to LAN/ Ethernet Converter TCP/IP Module

Quantity

guaranteeQuality checked
Special gift cardsSpecial gift cards
Free return Within 60 days
Consultancy86-0755-85201155

Description:

High speed SPI interface 80MHz

Hardware-TCPIP-protocol stack user built in, almost without understanding the complex network protocol knowledge

Supports up to 8 Socket

Support TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocol

Integration of the data link layer, physical layer

Support the wakeup

Support high speed serial peripheral interface (SPI model 0, 3)

Internal 32K bytes receive buffer

The embedded 10BaseT/100BaseTX Ethernet physical layer (PHY)

Support auto negotiation (10/100-Based full duplex or half duplex)

Does not support the IP patch

The working voltage of 3.3V, I/O and 5V voltage signal

LED display (full duplex or half duplex, network connection, network speed,active)

Pin type package ultra small, convenient for embedded applications

Application of C sample project

Product Characters

Power supply mode:3.3V external power supply, current should be more than 200mA;

Control interface:The TTL level, 3.3V SPI interface;

PCB size:23 * 25 mm;

Mechanical Dimensions:28.5 * 23 * 24;

Package:

1 X USR-ES1 ENC28J60 W5500 Chip SPI to LAN/ Ethernet Converter TCP/IP Module
