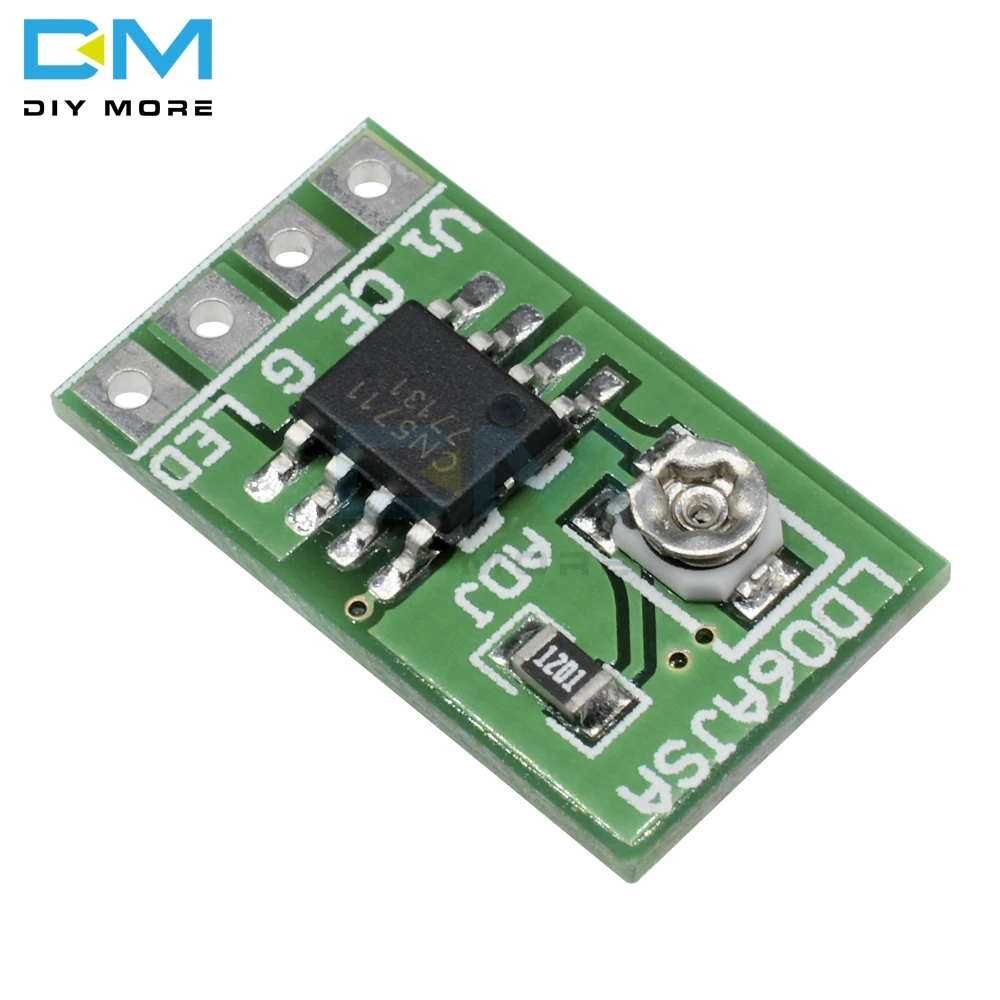

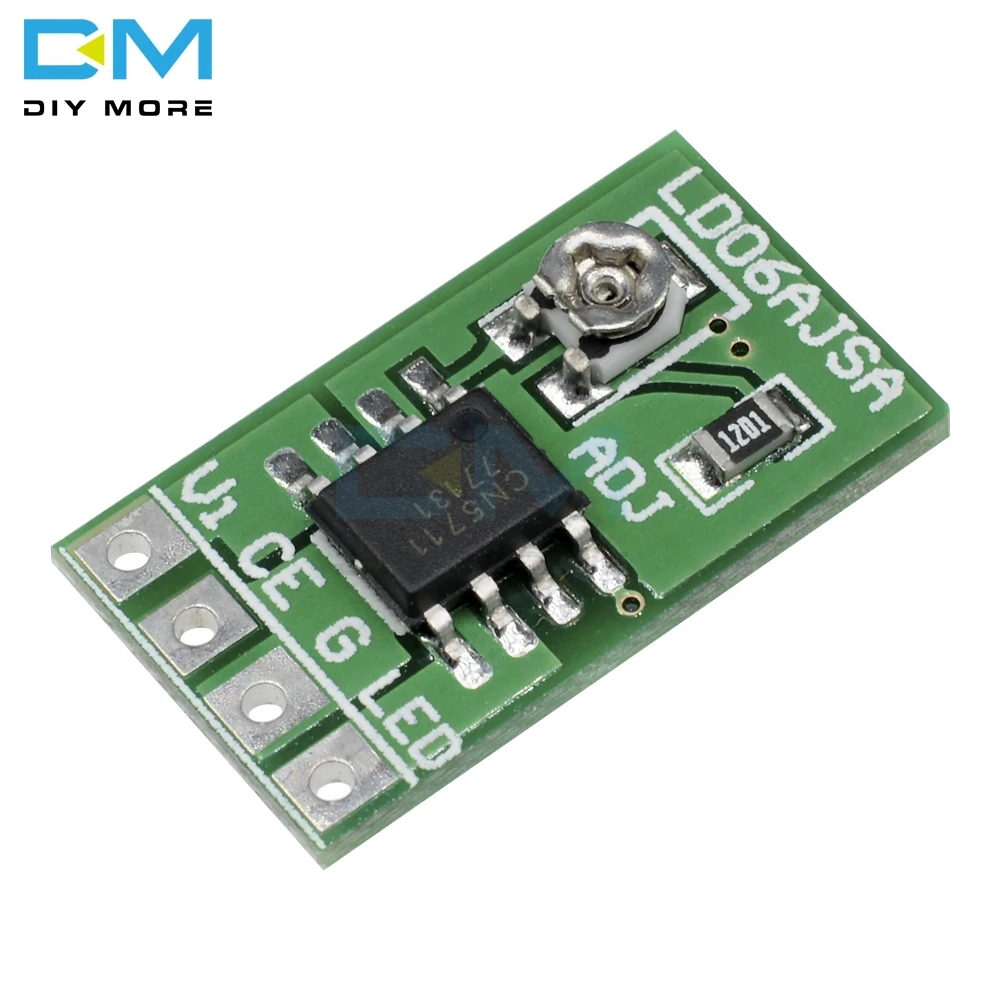

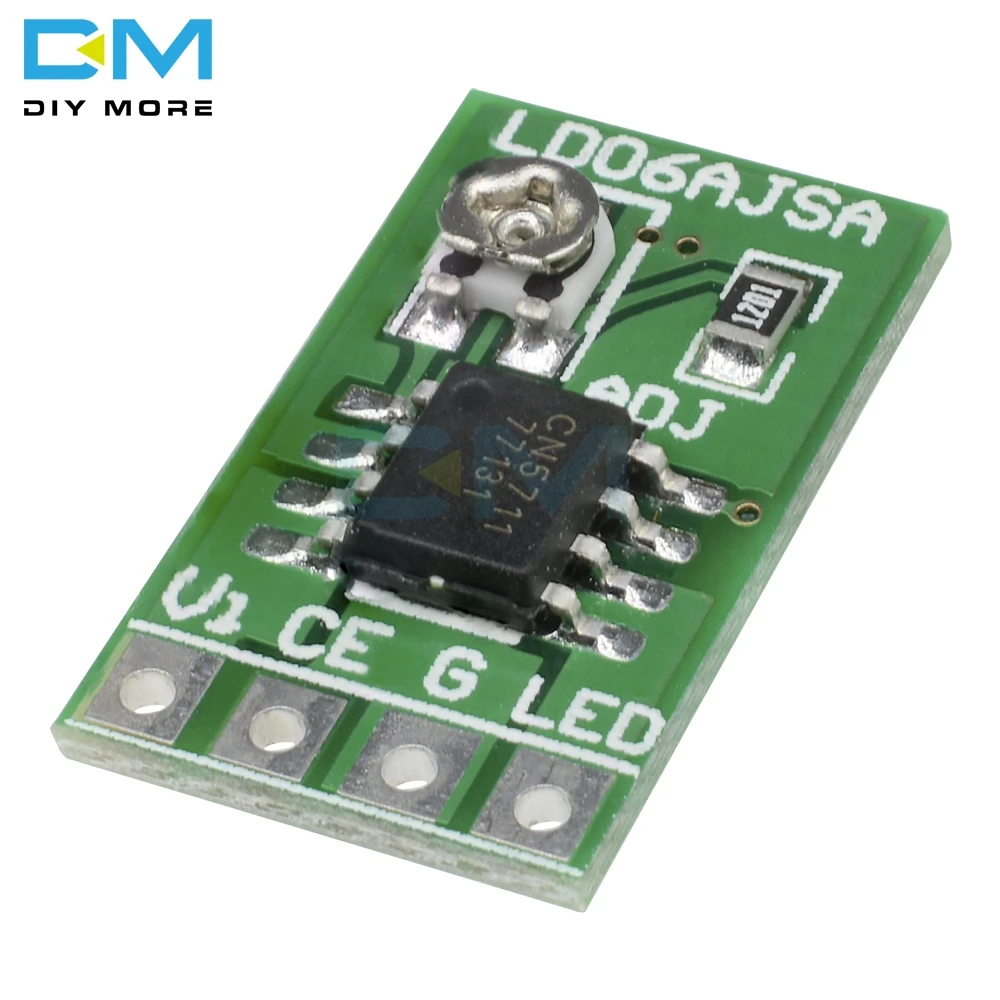

DC 3.3V 3.7V 5V LED Driver 30-1500MA Constant Current Adjustable Module PWM Control Board For USB LED flashlight 18650 Li-ion
DC 3.3V 3.7V 5V LED Driver 30-1500MA Constant Current Adjustable Module PWM Control Board For USB LED flashlight 18650 Li-ion
SKU:012808
Regular price
$4.99 USD
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Working voltage : DC 2.8-6V(Perfect for 3V 3.3V 3.7V 4.5V 5V 6V LED Driver)
Output Current: 30-1500MA
Maximum output power: 9W
Can drive 1-16pcs 2.8-6V LEDs (maximum current does not exceed 1.5A)
Current regulation: 1 through adjustable resistance; 2 through PWM signal control
Chip Temperature Regulation
Over LED Current Protection
Operating Temperature Range
Size : 18mm x 10.3mm x 2.8mm
Weight : 0.56g
LD06AJSA/B is a current regulation integrated circuit operating from an input voltage of 2.8V to 6V, the constant
output current can be set up to 1.5A with an external resistor. The LD06AJSA/B consists of high precision reference
voltage, amplifier, current mirror, etc. The on-chip power transistor and current sense block greatly reduce the
external component count, which makes the LD06AJSA/B ideal for LED driver.
When the CE pin is high, the input voltage is greater than 2.8V, and is larger than the LED forward voltage plus
the required voltage drop, LD06AJSA/B functions normally to deliver constant current from the LED pin.
The LD06AJSA/B adopts the temperature regulation instead of temperature protection function, the temperature
regulation can make the LED being turned on continuously in case of high ambient temperature or high voltage
drop. When the LD06AJSA/B junction temperature reaches about 135 ° C, the internal temperature regulation block
reduces the LED current so that the junction temperature will not rise any more. This feature allows the users to
maximize the use of the power handling capability of the chip, do not worry about the chip overheating and
damage to the chip or external components.
The LD06AJSA/B also has the chip enable function, which can shutdown the whole chip to limit the current
consumption within 1uA.
The LD06AJSA/B also adopts the over current protection block. When LED current approaches 1.9A(Typical), the
over current protection block begins to function to prevent the LED current from increasing further.
