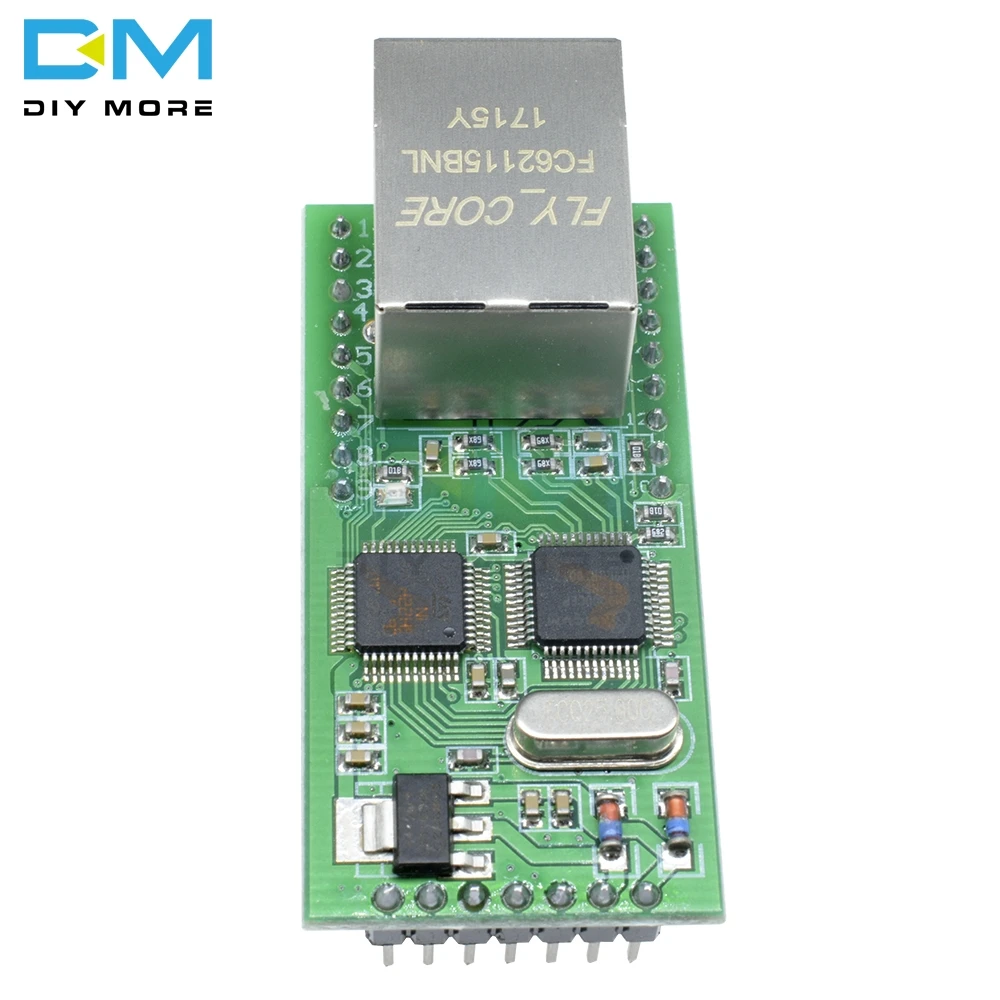

Top Ethernet to TTL RS232 Serial TTL to TCP / IP RJ45 Converter Transmission 18 IO Network Control Board Module 100M LAN
Top Ethernet to TTL RS232 Serial TTL to TCP / IP RJ45 Converter Transmission 18 IO Network Control Board Module 100M LAN
SKU:011522
Regular price
$24.30
Sale price
$11.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
This is the stable performance, cost-effective industrial grade embedded networking terminal, which uses eight processors,
has a wealth of storage and management capabilities to provide TTL serial port to TCP / IP networks smooth bidirectional
physical transmission channel, can easily pair networking original equipment upgrades.
8-bit processor, automatically detect 10M / 100m Ethernet, work TCP Client, UDP, TCP Sserver, UDP server, MODBUS TCP, MODBUS-RTU, MODBUS-ASCII other models. Support cross-, across routing traffic. TCP SERVER mode supports four
TCP link.
It supports 18 IO network control,Bidirectional serial server conversion module.
Features:
- 100M high speed network card, 10/100M auto-adaption ethernet interface
- Support Auto MDI/MDIX, could use parallel/cross network connection
- UART baud rate 1200bps-4.6Mbps adjustable
- Work mode: TCP Client, TCP server, UDP, etc
- Support virtual serial port work mode
- Could across , interchanger, router
- Work work in LAN, or WEB
- Work terminal, target IP address and terminal adjustable
- Auto cut-off connection
- Flexible serial port frames setting to need different needs
Parameters:
- LAN Ethernet: 10 / 100M bps;
- Protection: Built 2KV electromagnetic isolation;
- UART serial port * 1: TXD, RXD, GND;
- Baud rate: Baud rate from 110bps to 115200 bps can be set.
- network protocols: ETHERNET, ARP, IP, UDP, TCP, ICMP;
- tools: module configuration software, TCP / UDP test tools, serial debugging software;
- configurations: cable, serial port;
- supports 18 network IO control;
- dual power mode: 3.3V or 5V (both can only pick one)
Application:
- networked fire systems
- intelligent grid monitoring
- elevator monitoring system
- temperature and humidity measurement and control system
- intelligent engine room monitoring
- industrial control systems
Package Included:
1x Ethernet to TTL Serial TCP/IP RJ45 Converter
