Anet ET4 Pro 3D Printer Ultra Silent Aluminum Frame TMC2208 Driver AC 100-120V 200-240V Photoelectric Induction Auto Leveling

Anet Et4 Pro 3D Printer Ultra Silent Aluminum Frame Tmc2208 Driver Ac 100-120V 200-240V

Anet ET4 Pro 3D Printer Ultra Silent Aluminum Frame TMC2208 Driver AC 100-120V 200-240V Photoelectric Induction Auto Leveling

SKU:XK0015
Regular price $499.99

Anet ET4 Pro 3D Printer Ultra Silent Aluminum Frame TMC2208 Driver AC 100-120V 200-240V Photoelectric Induction Auto Leveling

Specification:
Model: ET4 PRO
Color: Black
Structure: Aluminum frame +sheet metal
Extruder quantity: 1
Printing size: 220*220*250mm
Printing resolution: ±0.1mm
Layer Thickness: 0.1-0.3mm
Connection mode: Online/Offline Printing
LCD Display: 2.8 inch color touch screen
Movement speed: 10~300mm/s
Printing speed: 20-150mm/s
Standard nozzle diameter: 0.4mm
Extruder working temperature(Max): 250℃
Hotbed temperature(Max): 100℃
Hotbed Material: Aluminum Plate and Tempered Glass and PC Stickers
XY Axis Position Presicion: 0.012mm
Z Axis Position Presicion: 0.004mm
Printable Filaments: ABS,PLA,HIPS ect.
Filament Diameter: 1.75mm
Recommended Filament: PLA
Control software language: English/Chinese/French / Korean
Data Input Format: STL、OBJ、JPG
Data Output Format: Gco、Gcode
Moulding Suppport Automatically: YES
Continued power failure: YES
Broken material detection: YES
Automatic leveling: YES
Automatic feeding and returning: YES
Machine size: 440*340*480mm
Power Supply/Maximum power: Input:AC 100-120V/6.8A 200-240V/3.4A 50/60Hz Output:DC 24V 350W
Operating System: Windows,MAC
Printing Software: Cura
Working Condition: Temp:0-40℃,Humidity:5-80%

Feture:
1. Factory pre assembly, modular installation, can be installed and used in 10 minutes, saving time and heart;

2. The newly upgraded automatic leveling is changed to the photoelectric induction type, which makes the leveling more accurate;

3. It supports the function of power-off and continuous calling, and continues to print after calling, without fear of accidental power-off;

4. With material break detection function, material shortage alarm and Pause Printing; support automatic feeding and returning function, easy to solve with one key of feeding and refueling;

5. Adopt 2.8-inch color touch screen, easy to operate, good human-computer interaction experience;

6. The motor driver chip is upgraded to tmc2208, replacing a4988256 micro step subdivision, ultra quiet, low resonance, and more delicate printing; the new industrial level chip control motherboard, with fast operation, strong function, with over-current protection, overload protection, temperature out of control protection (directly disconnect the heating switch) and other functions;

7. The printing platform is equipped with aluminum substrate hot bed + toughened glass + PC film. The hot bed heats up rapidly to 100 degrees in 5 minutes. The glass platform makes the model printing smooth and easy to stick and take;

8. Optimized extrusion mechanism, more stable and reliable structure;

9. Optimize the hot bed mechanism: larger size of hand nut, manual leveling is easier and more accurate; use screws to fix the hot bed line to ensure stable and safe heating of the hot bed.

10. Offline upgrade function. Copy the upgrade file into the memory card and plug it into the 3D printer to complete the program upgrade.

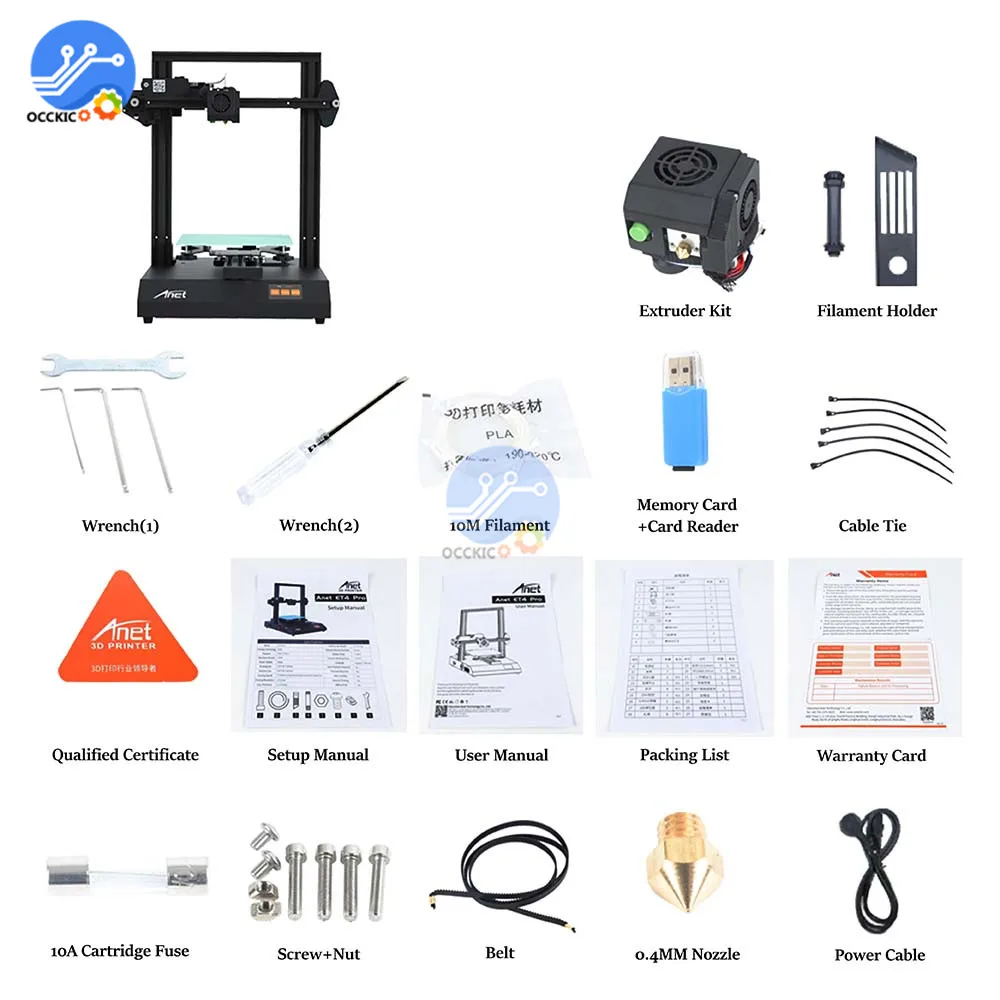

Package:
1 set Anet ET4 Pro 3D Printer
