DC5V~30V 150W High Power PWM DC Motor Speed Controller LED Dimming Module
SKU:XI0011
Regular price
$8.99 USD
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155

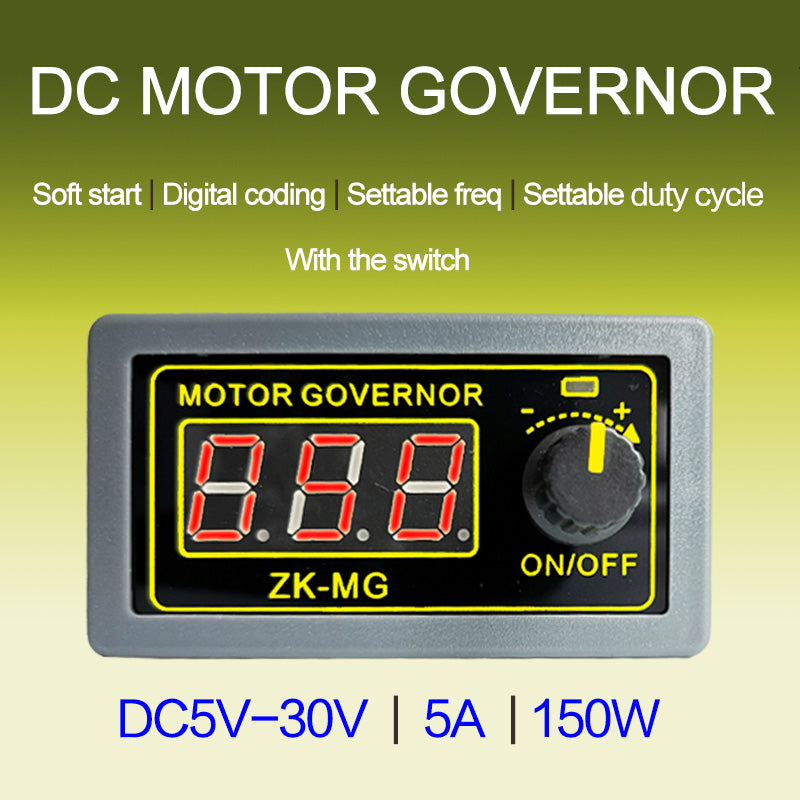

Product highlights:

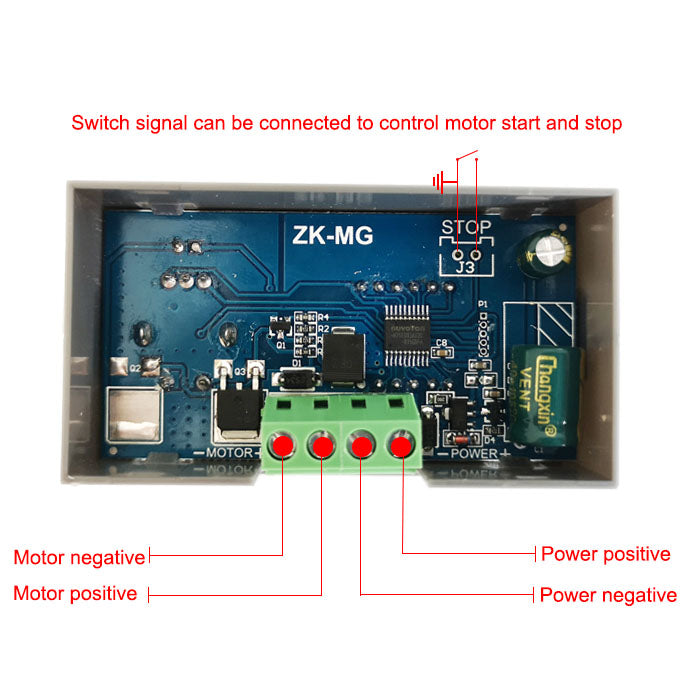

- It comes with a start-stop button and can be controlled by an external switch to meet customers' various control needs;
- The motor soft start function, the current increases slowly when starting the motor, there is no impact current, which effectively protects the motor and extends the service life;
- The duty cycle, the upper and lower limits of the duty cycle and the working frequency can be set to facilitate the operation and use of the customer according to the working characteristics of the motor;

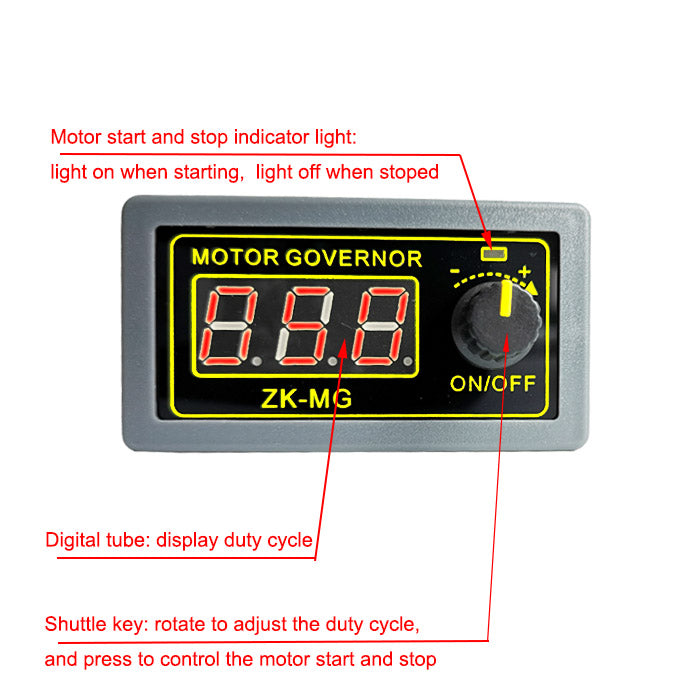

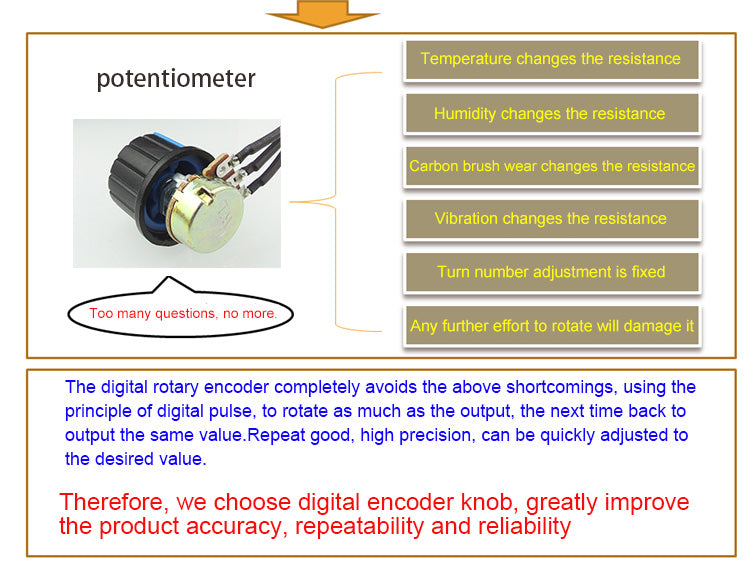

- The digital encoder knob adjusts the motor speed, which has higher precision and better consistency than ordinary potentiometers;
- With standard 5135 instrument housing, it is convenient for customers to install.
Technical parameters:
- Working voltage: DC5V~30V, input anti-reverse connection protection;
- Rated current: 5A Maximum current 15A;
- Maximum power: 150W;
- Working frequency: 1KHz~99KHz adjustable, 1KHz stepping, default frequency 20KHz, accuracy around 1%;
- Duty cycle: 0-100%, 1% step;

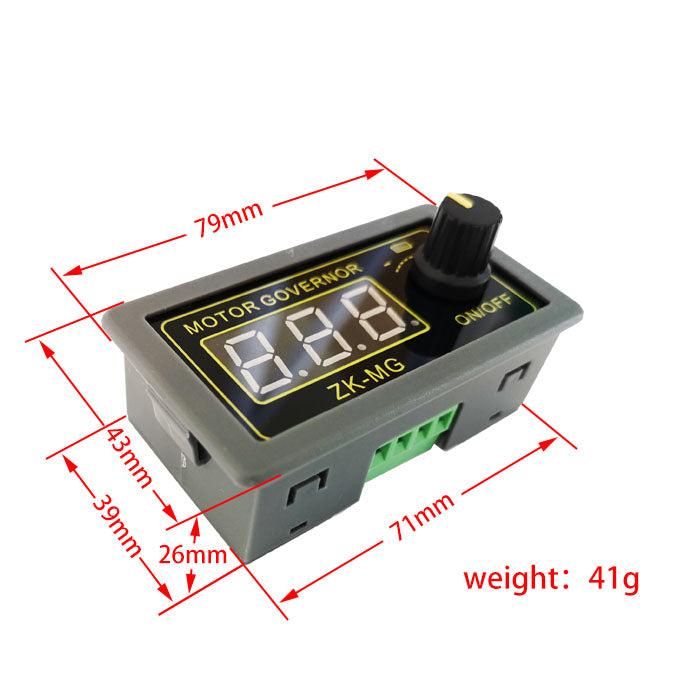

- Product size: 79mm*43mm*26mm
- Product weight: 41g
- Packaging form: carton packaging
3. Package include:
- 1x DC5V~30V 150W High Power PWM DC Motor Speed Controller LED Dimming Module
