TK15 Battery Coulometer Battery Capacity Tester 80V 50A/100A/350A for E-bike
SKU:XH0030
Regular price
$32.99 USD
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Description:

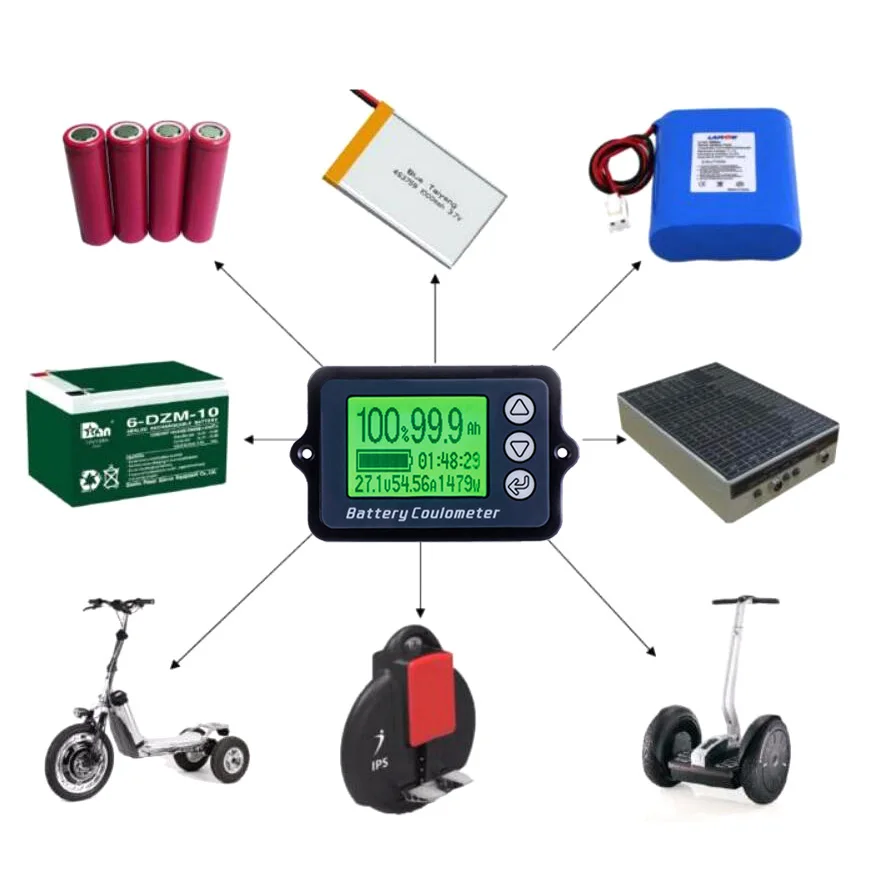

- TK15 is a kind of high precision current type battery capacity tester(also known as coulometer)，which can test the voltage，current and capacity of battery to help users know the state of battery in time. TK15 has memory function. It is suitable for mobile and portable equipment、e-bike、balance car、cleaning machine、instrument、ups and so on.
- TK15 is suitable for lithium battery，lithium iron phosphate battery ,lead-acid battery and nickel-metal hydride battery, which working voltage is from 8V to 100V.
Desciption:
- Type: Battery tester
- Model: TK15
- Operating voltage range: DC8-80V
- Current: 50A/100A/350A

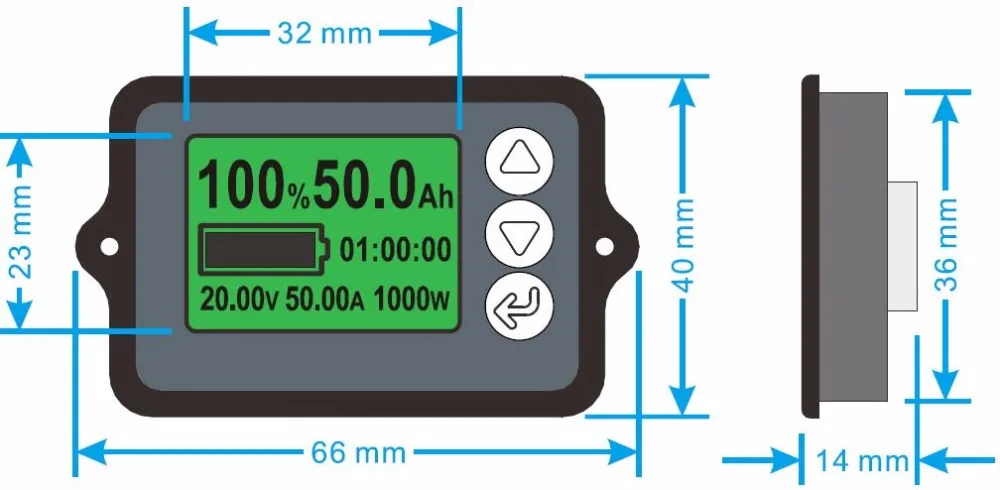

- Overall Size: 66x40x10mm
- Display area size: 32x23mm
- External normal Sampler Size:23x18x5mm
- Technical Parameters:
- Working power consumption: 8.0mA (Max:10.0mA)
- Standby power consumption: 0.5mA (Max:0.8mA)
- Sleep power consumption: 50uA (Max:60uA)
- Voltage acquisition accuracy: +/-1.0%
- Current acquisition accuracy: +/-1.0%
- Using ambient temperature rang: 0-35C
- Backlight on current: 40mA (Max:50mA)
- Backlight off current: 30mA (Max: 40mA)
- Battery capacity setting value: 0.-590A
- External normal sampler working current:30.0A (Max:50A)
- External big sampler working current:50.0A (Max:100A)
- Attention:The min voltage of the battery pack should higher than the min working voltage of the coulometer.
- The empty and full voltage of battery can be adjusted
- The backlight automatic open when using
- Automatic memory function when power down
- Fast response rate
- Low power consumption, automatic wake-up
- Residual capacity of battery (Ah or mAh)
- Capacity percentage and totem pole display
- Battery voltage
- Battery current
- Powe output
- Remaining time of charge and discharge
Sketch：
Connection diagram of 50A sampler：
Connection diagram of 100A/350A sampler：
Application:
Fix the coulometer with tapping
screws from the front of the panel. As shown below:
Attention:The "Panel" in the picture refers to the location where you install it, the product don't include it.
Package Included:
- 1 x 80V Battery Tester
