diymore Mini 1 Channel 5V 12V DC DPDT Relay Board Double Pole Double Throw Switch Module HK19F DC PCB for Arduino Raspberry Pi
SKU:X13489
Regular price
$4.99 USD
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Description:

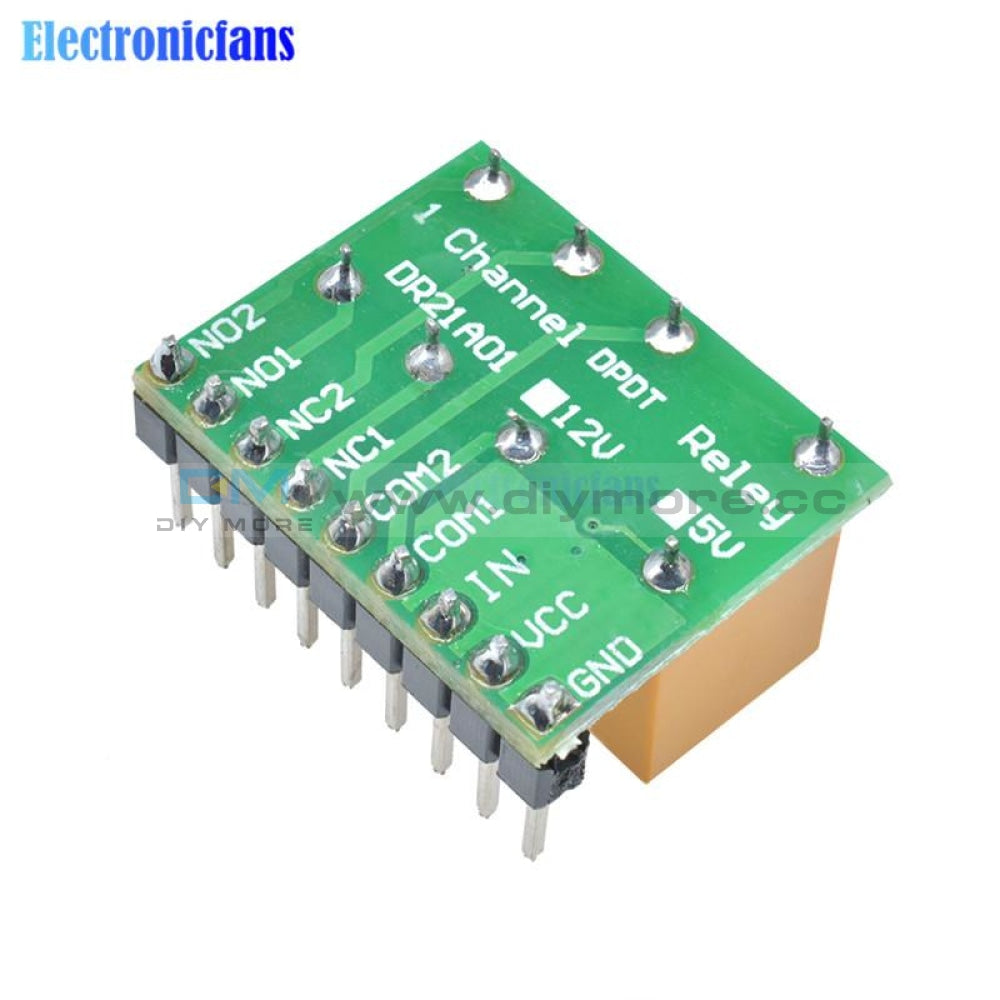

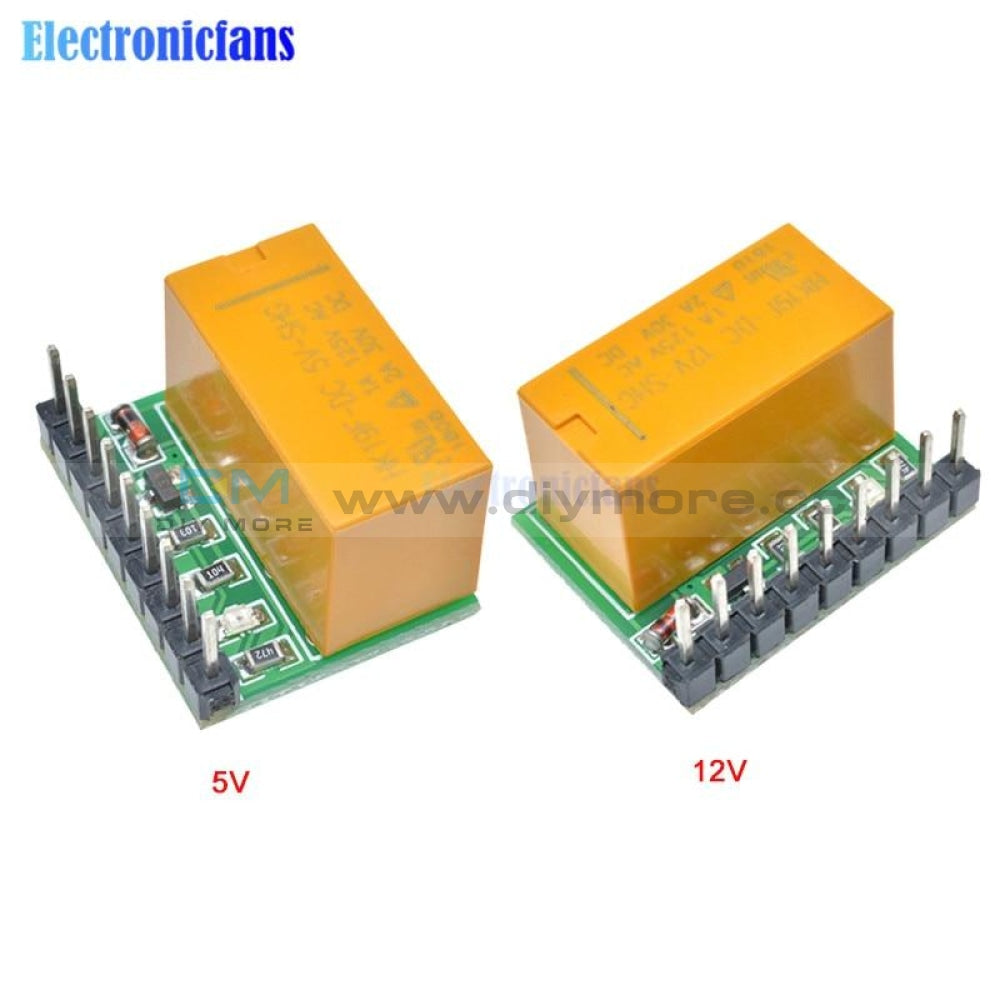

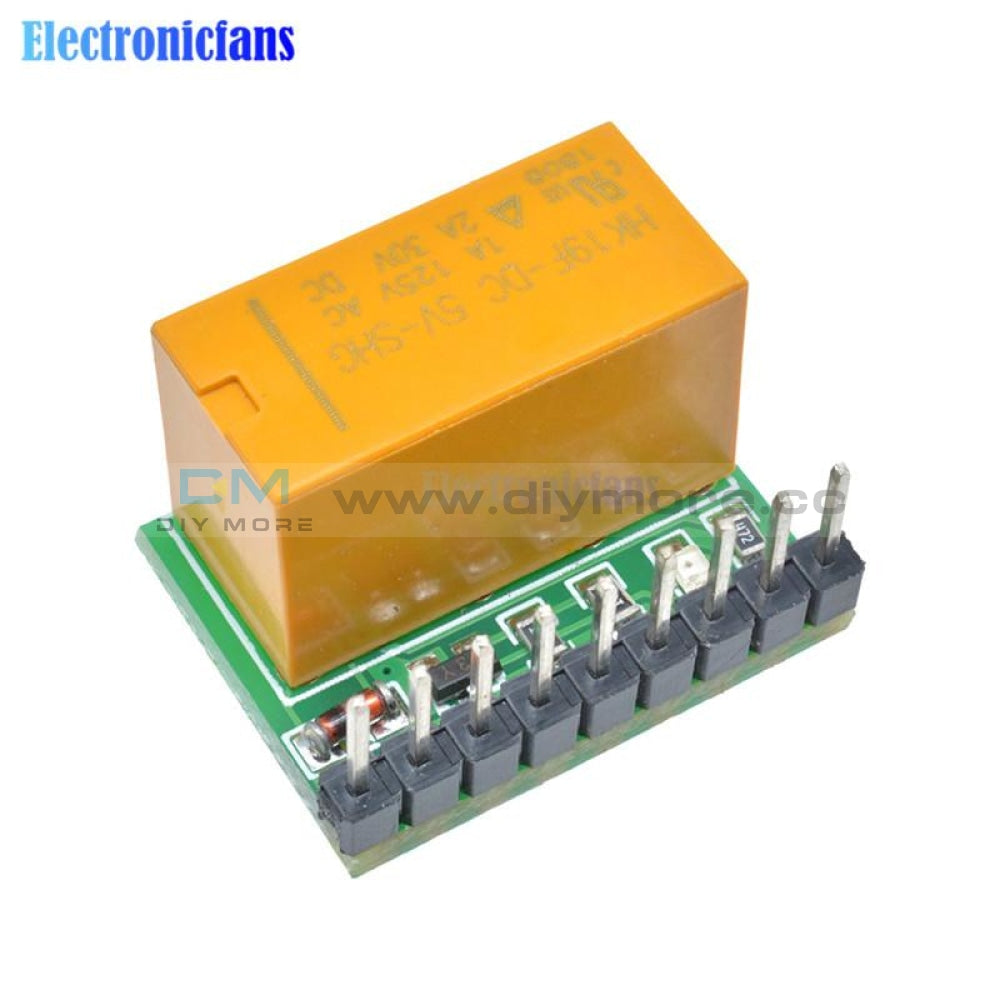

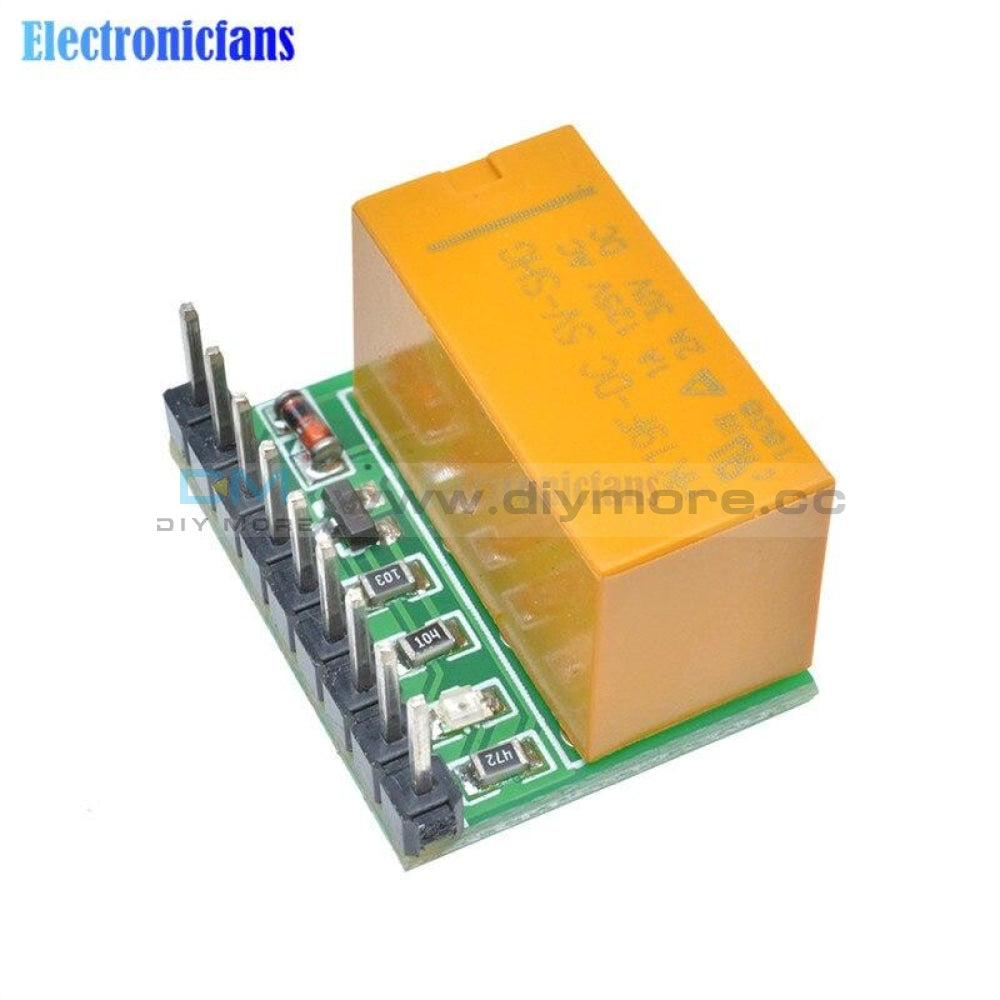

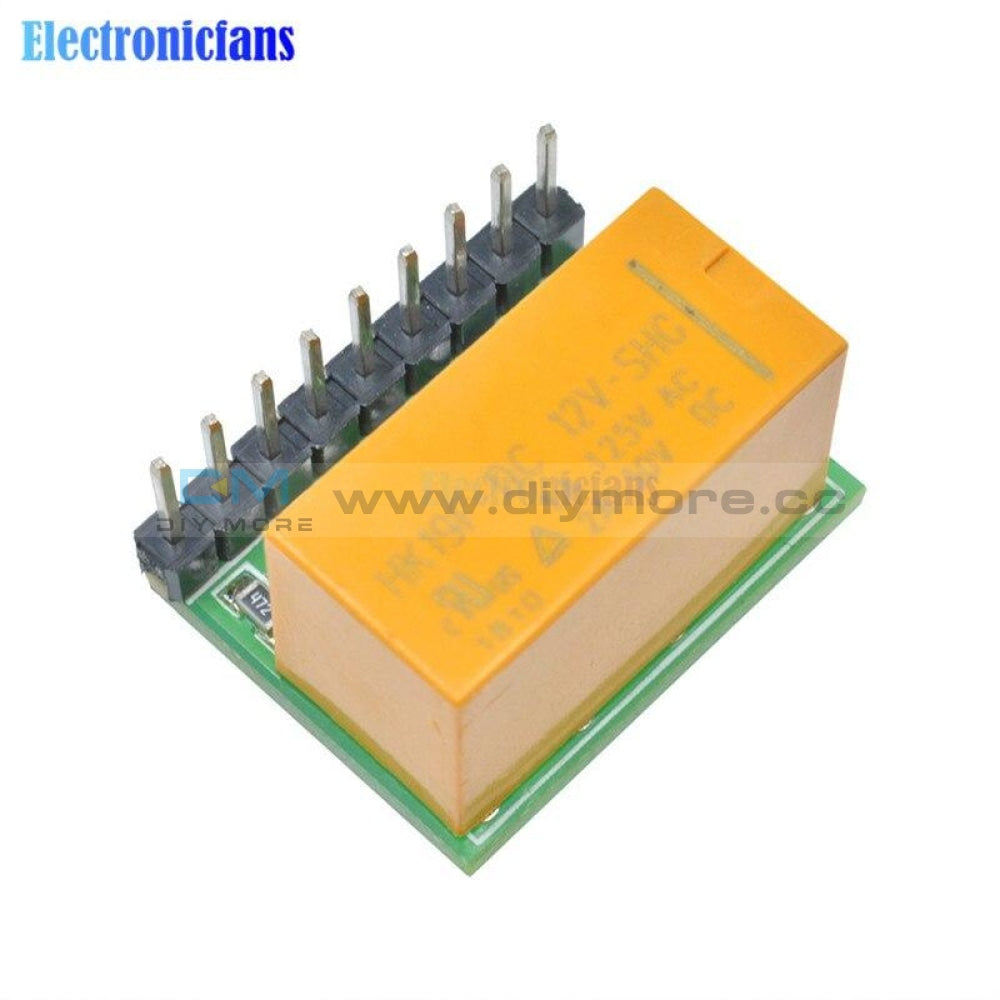

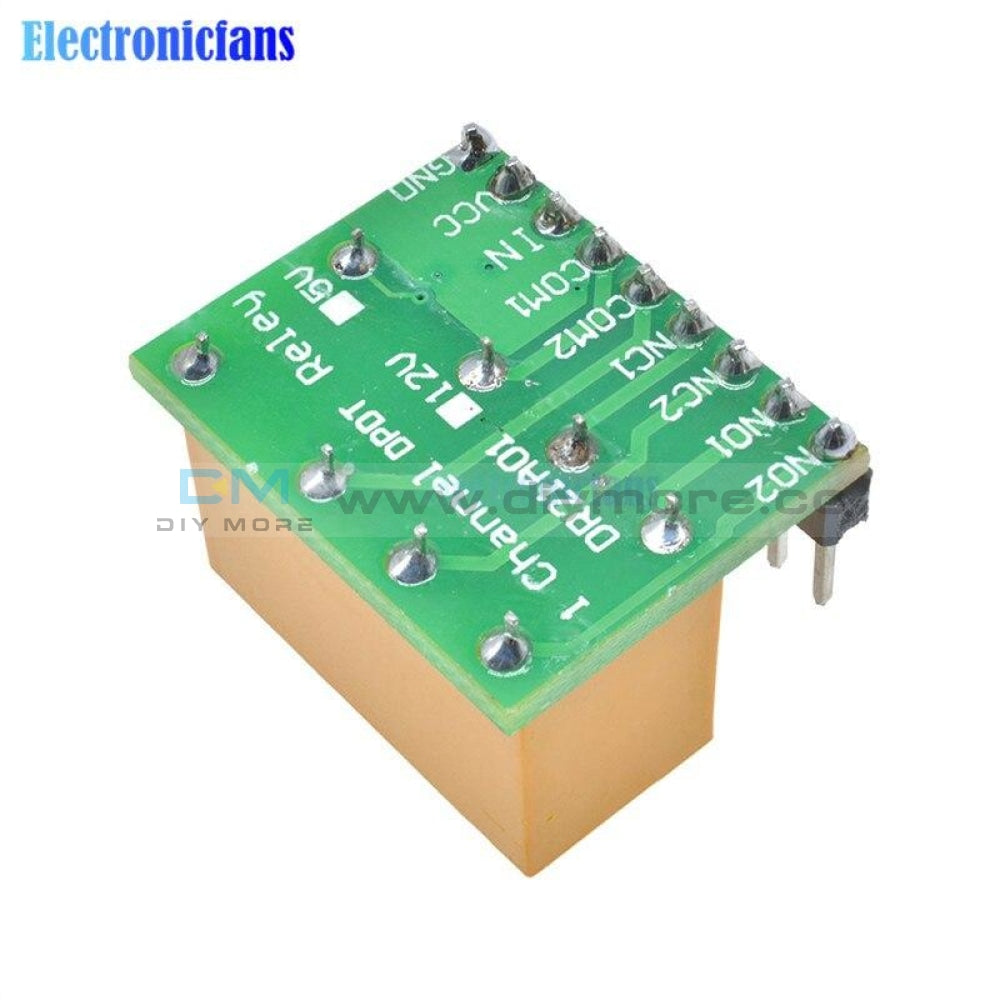

DR21A01 5VDC 1 Channel DPDT Relay Board
Operating Voltage : DC 5V
Operating Current(Relay ON): 35MA
Standby Current(Relay OFF) : <1MA
Input control signal voltage:
0V - 0.6V Low stage (relay is OFF),
0.6V – 2.4V (unknown state).
2.4V - 24V High state (relay is ON).
Input control signal high state current:
2.4V: 0.15mA
5V: 0.4mA
12V: 1.2mA
20V: 2mA
Relay Load : 1A 125VAC;2A 30VDC
