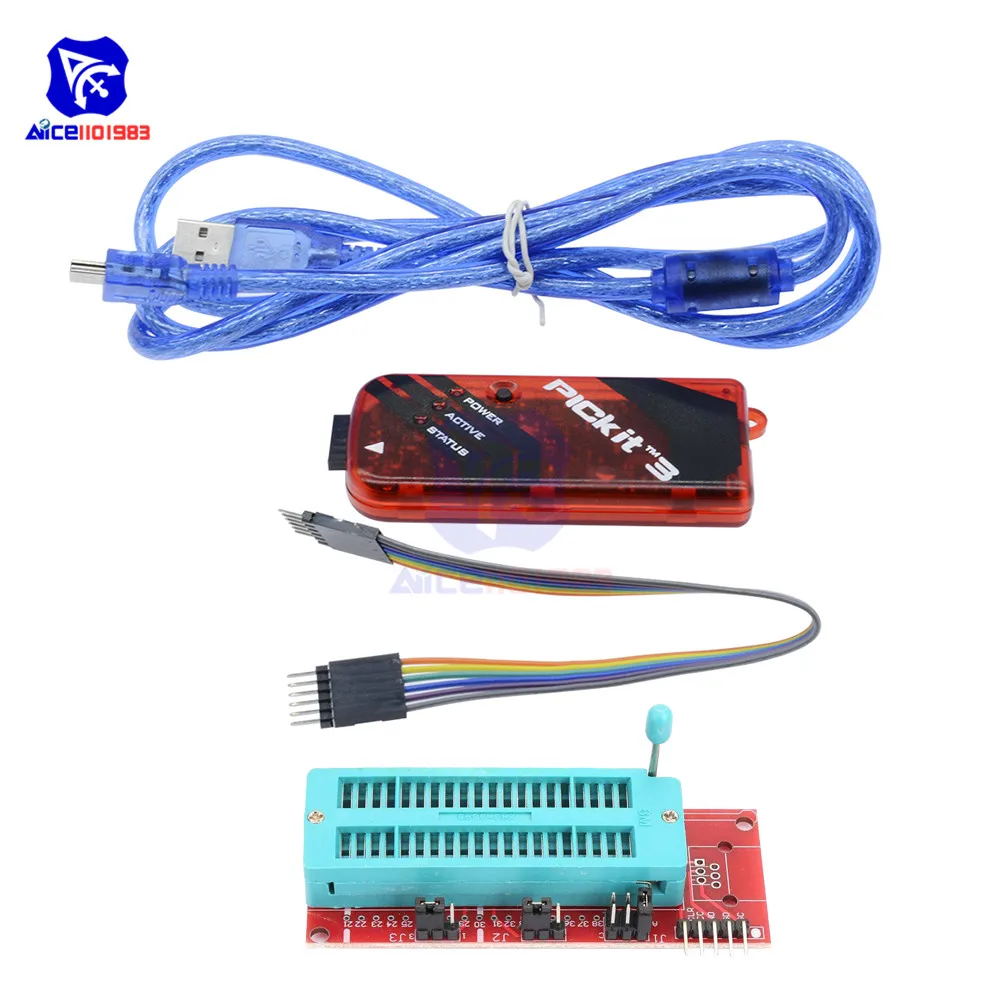

diymore PICKIT3 Emulator Programmer Debugger Jumper Wire Mini USB Cable with PICKIT3 Programmer Adapter Board
prev
next
diymore PICKIT3 Emulator Programmer Debugger Jumper Wire Mini USB Cable with PICKIT3 Programmer Adapter Board
SKU:ZH0149
Regular price
$25.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155

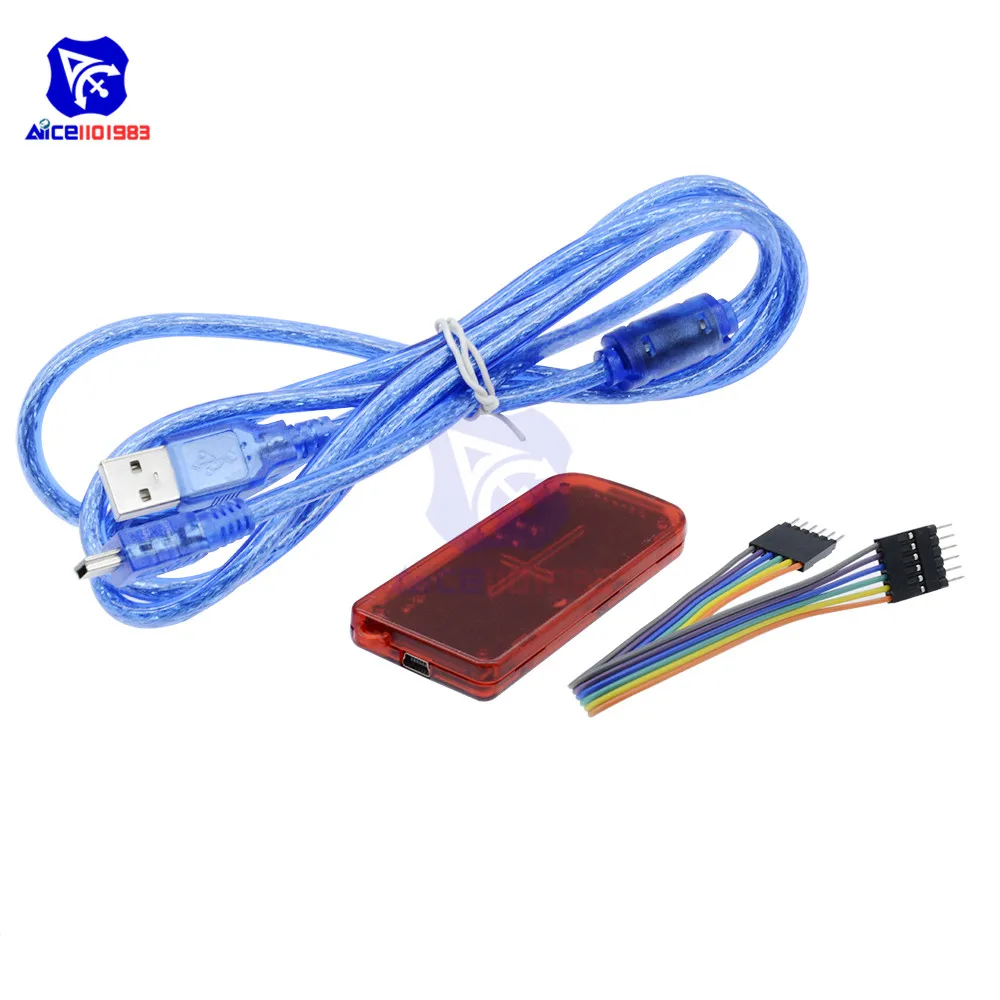

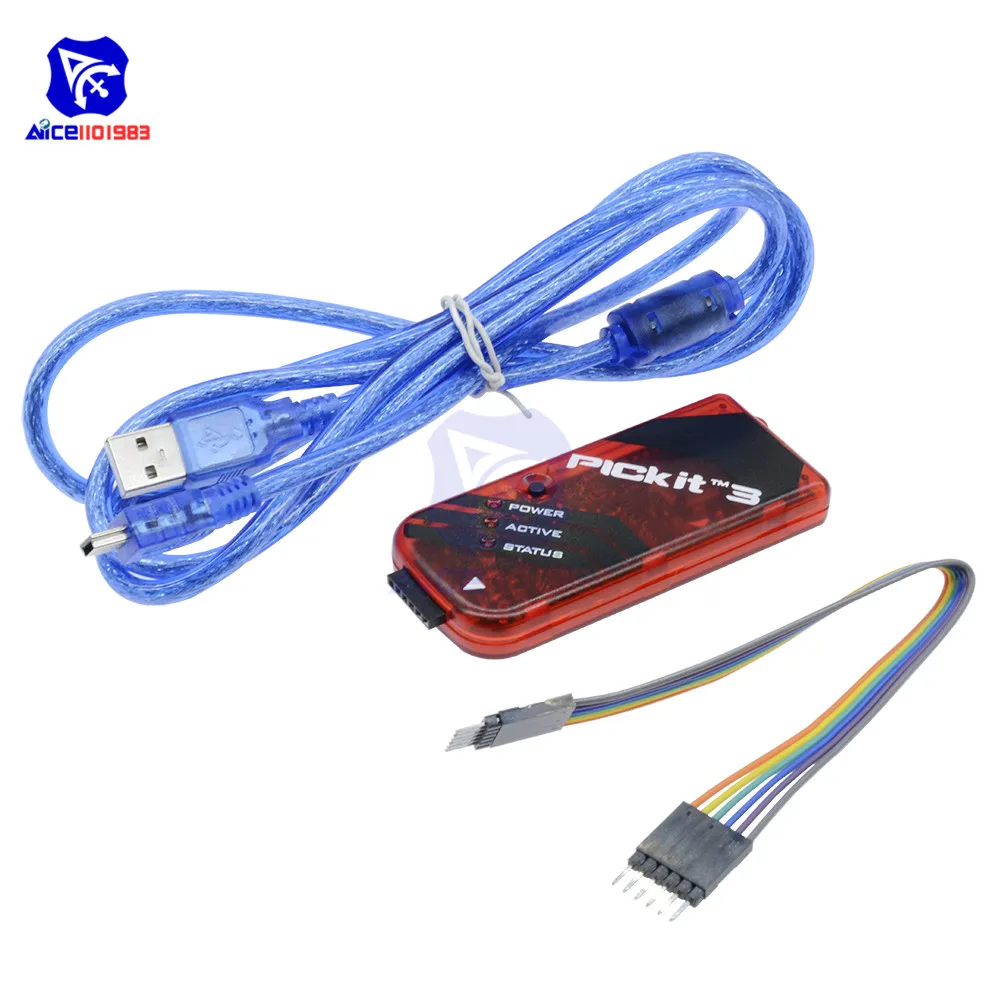

[PICKIT3 Electronic Chips Emulator]
Description: PICkit3 is a development tool that can simulate and download PIC online! The PIC family of microcontrollers is connected to the PICkit3 via the ICSP interface. PICkit3 is capable of in-circuit programming and debugging of Microchip's PIC10/12/16/18/24/32, dsPIC30/dsPIC33 and other full-scale PIC FLASH microcontroller chips. PICkit3 can program Microchip's KEELOQ HCS family of chips, MCP250xx CAN family of chips, and EEPROM memory chips. Specification: Programming function: can burn FLASH ROM, EEPROM, etc. Simulation function: support various debugging methods such as full speed operation, single step debugging, breakpoint debugging, etc. Simulation performance: using USB interface for simulation debugging, single-step debugging, breakpoint debugging, fast response Programming performance: USB interface, ICSP download, fast download speed Connect PC with USB interface PICkit3 development tools embed drivers for high-speed USB communication Connection interface with the target board ICSP standard interface specified by PICkit3 The firmware can be upgraded (the upgrade method is automatic upgrade, and Microchip will provide an upgrade program.) PICKIT3 supported IC can be viewed through MPLAB IDE v8.92, open the software, configure->select device PICKIT3 is supported by a green light. 8-bit Devices - PIC10F/12F/16F PIC10F/12F/16F5X 8-bit Devices - PIC18F PIC18CXX/FXX 16-bit Devices dsPIC30F/33F, PIC24F/H 32-bit Devices PIC32MX Since the PIC's ICSP interface has only one row of 6PIN connectors, you need to pay attention to the left and right direction of the connection when the PICkit3 is connected to the PIC target board. Do not plug it in to avoid burning the PICkit3 downloader. Status of the PICkit3 LED indicator: Power: Green, lights up when power is turned on or connected to the target board. Active: Blue, lit when the PICkit 3 has established a communication or send/receive command with the PC. Status: Green, lights up when the debugger is working normally (standby). Yellow, lights up when the operation is busy. Red, lights up when the debugger fails.

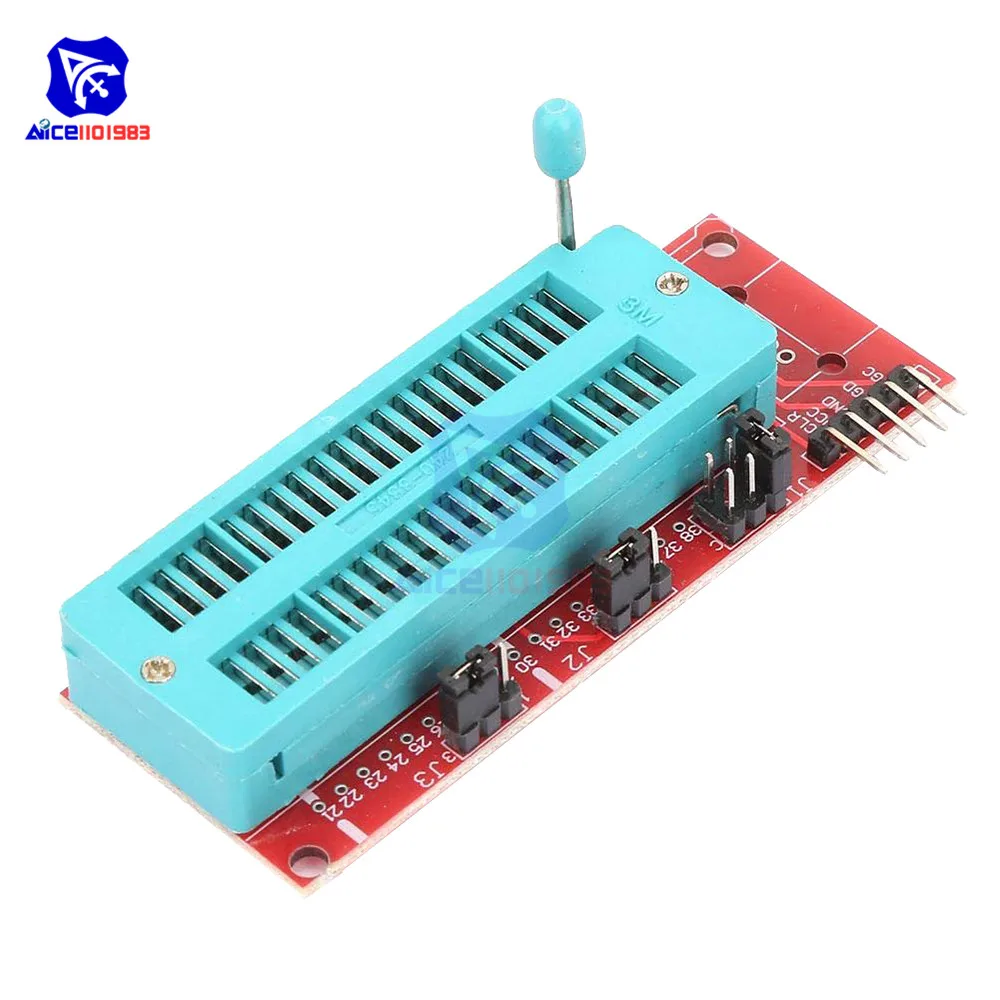

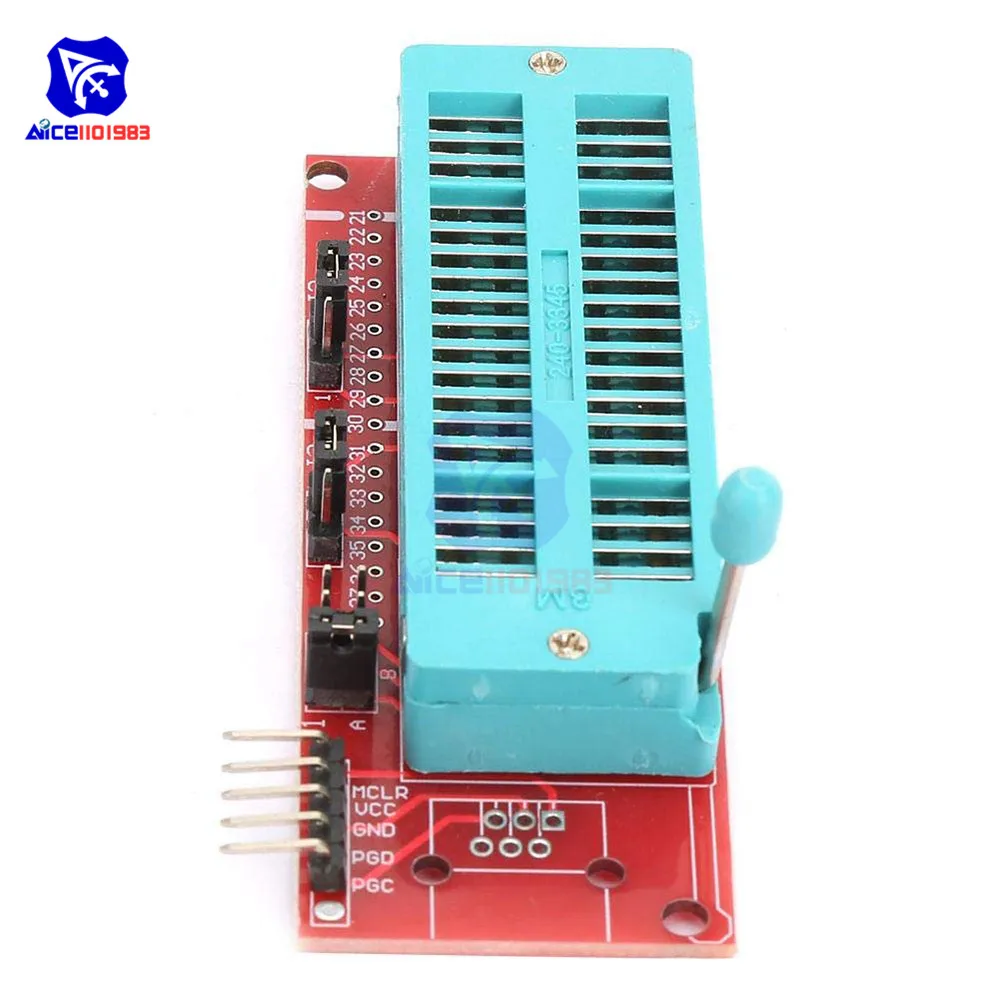

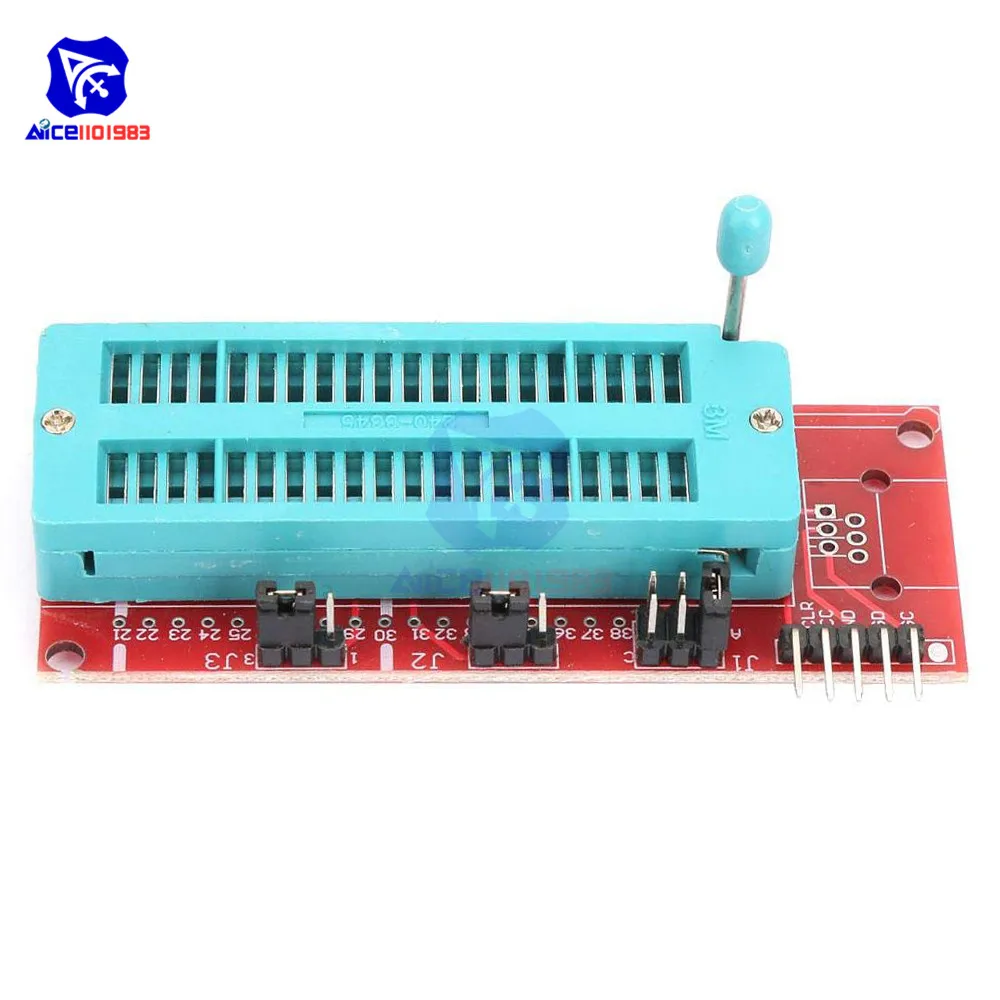

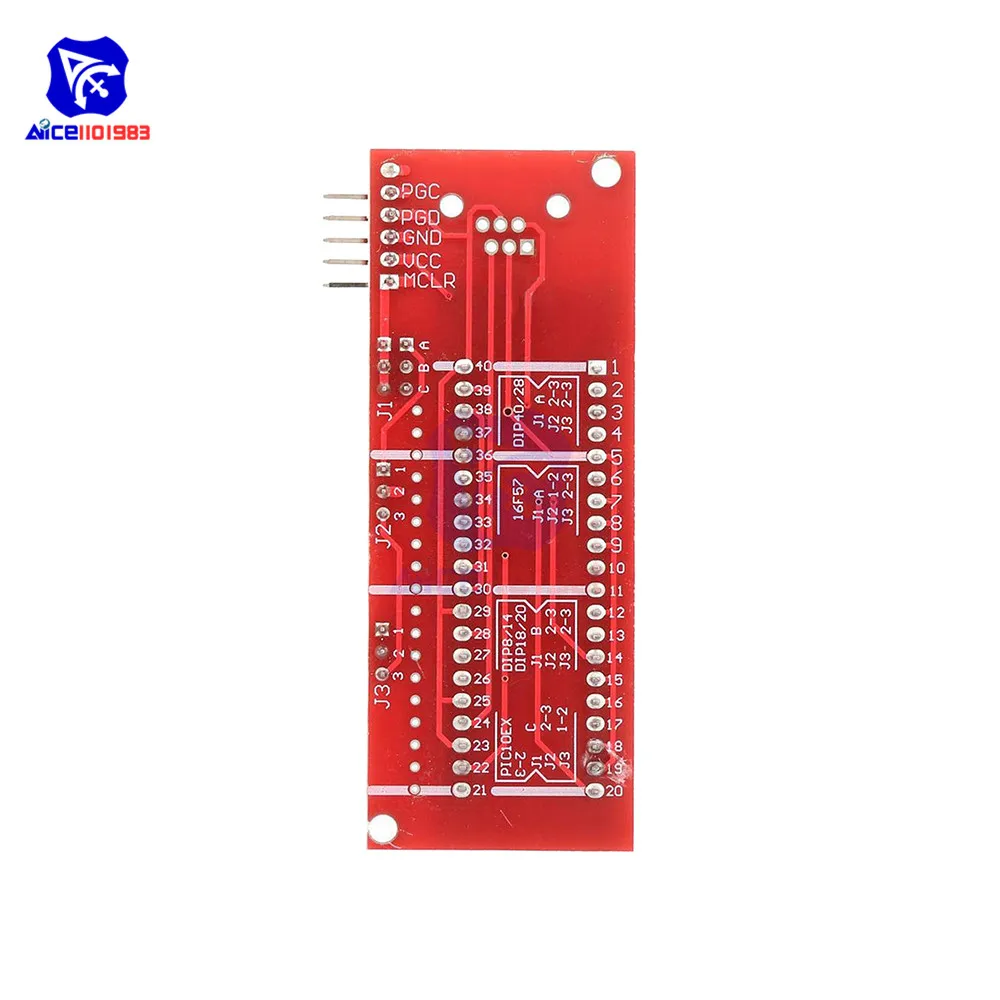

[PICKIT 3 Programming Adapter Universal Programmer]
Description: Installing the microcontroller, 28-pin, 40-pin microcontroller left aligned 28/40P (A) This flag line short-circuit cap on the A position. The 8,14,18,20-pin microcontroller aligned on the left 8P/14P/18P/20P flag line (B), shorting cap on the B position. The ICD2, KIT2, KIT3 crystal head or 6Pin Block programming connection for programming the programming operation. (Note: a separate program of the seat can not be programmed the chip is programmed functions) The seat supports the following programming microcontroller: PIC16/18XX 40PIN Series devices (except 16F59) PIC16/18XX 28PIN Series devices (except 16F57) PIC16/18XX 18PIN Series devices The PIC 8PIN/14PIN/20PIN family of devices (except 10FXX)
