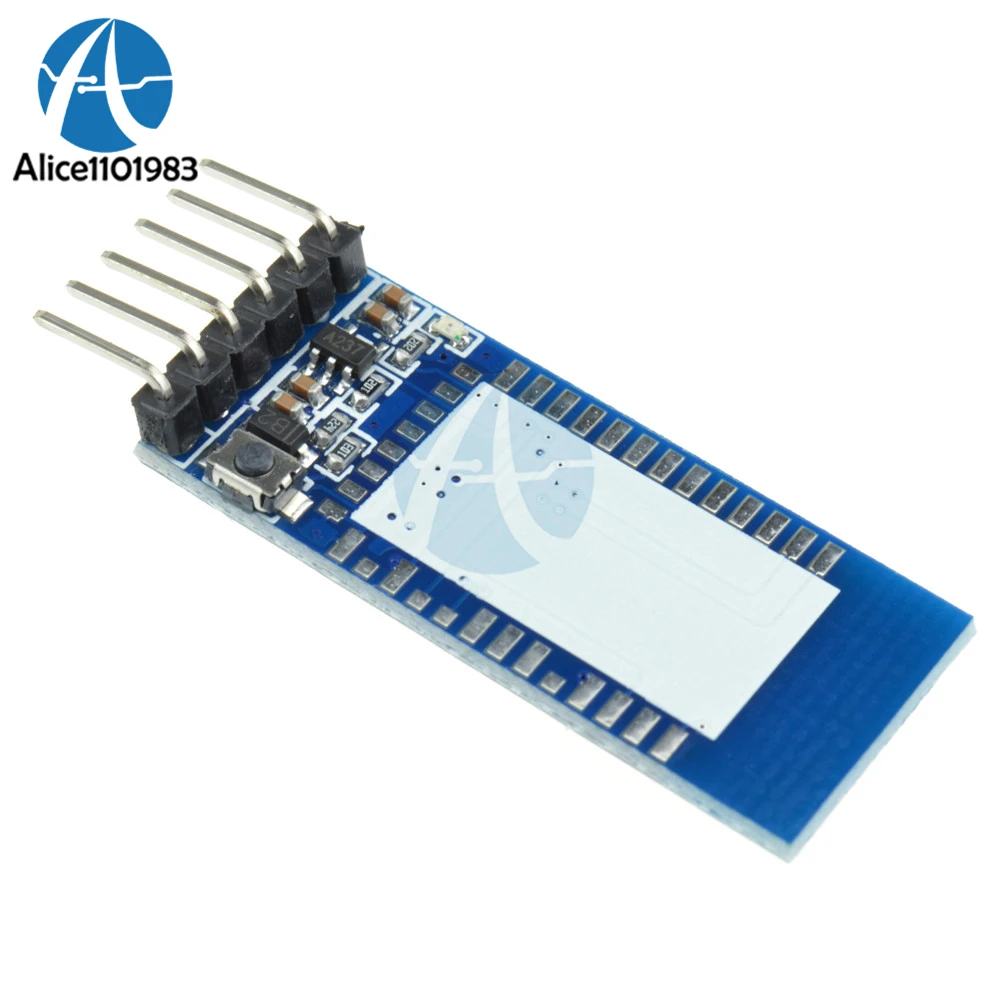

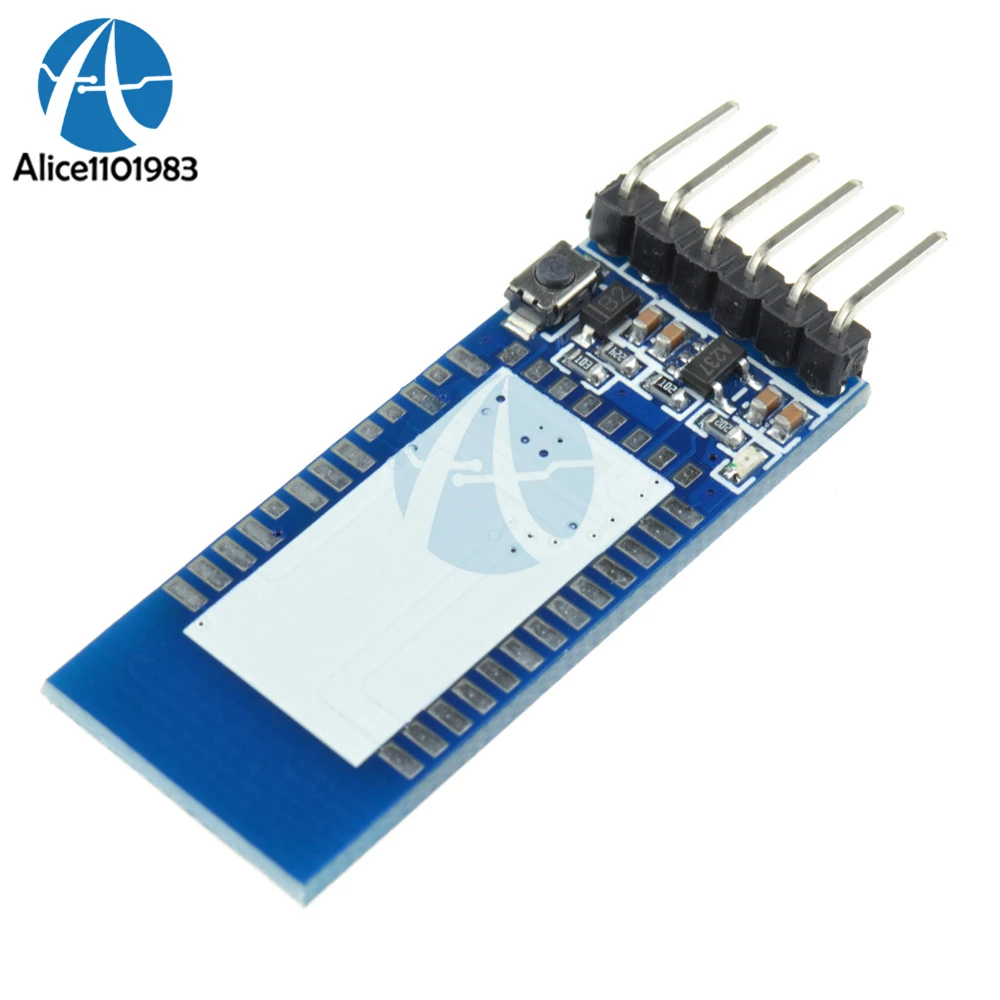

Bluetooth Serial Transceiver Module Base Board Enable Clear Button For Arduino With LED 3.3V 6V Re Seach Free Shipping
prev
next
Bluetooth Serial Transceiver Module Base Board Enable Clear Button For Arduino With LED 3.3V 6V Re Seach Free Shipping
SKU:010114
Regular price
$6.99 USD
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Specification:
- Commercial Series: Bluetooth module board Series
- With LED indicator light, use 150mA and 3.3V regulation chip.
- With VCC.GND.TXD.RXD foot for the Bluetooth.
- With "Re-seach" button(ON/OFF/WAKE foot for it , external MCU outinput "High level" can control module to re-seach).
- Compatible with bluetooth master module".slave module"or master-slave(whole) module.
- Input voltage: 3.3~6V.
- Size: 1.55cm*3.98cm.
Note:
- Input power supply 3.3~6V, Prohibit more than 7V
- No "Automatically prevent power supply peversing func", so please correctly connect power supply
- We advise to install "Bluetooth master module"
- The "State" is output foot for LED status, when bluetooth "Unconnected", output "Pulse" ; when bluetooth "connected", output "High level", we can determine the states from "MCU"
- If only the board , No any "Bluetooth Function "
Package Included:
- 1PCS*Bluetooth Serial Transceiver Module Base Board Enable clear button For Arduin
