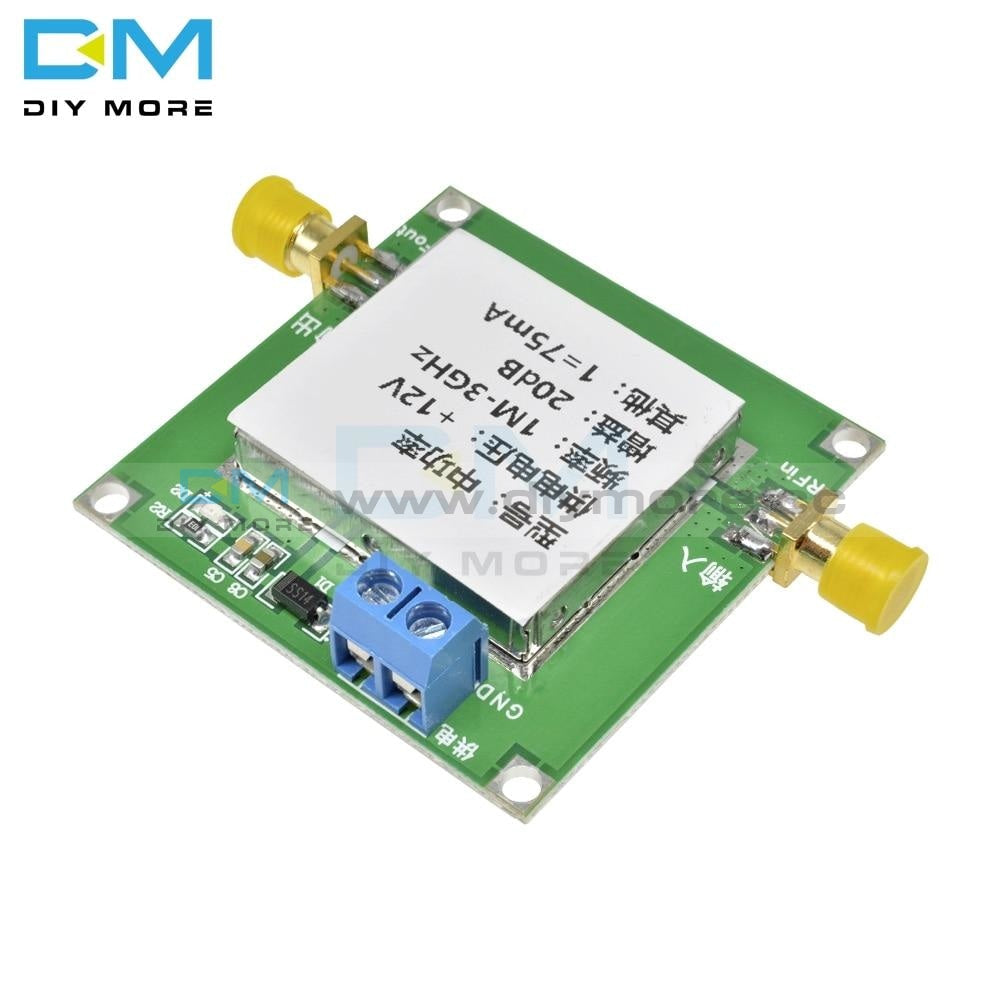

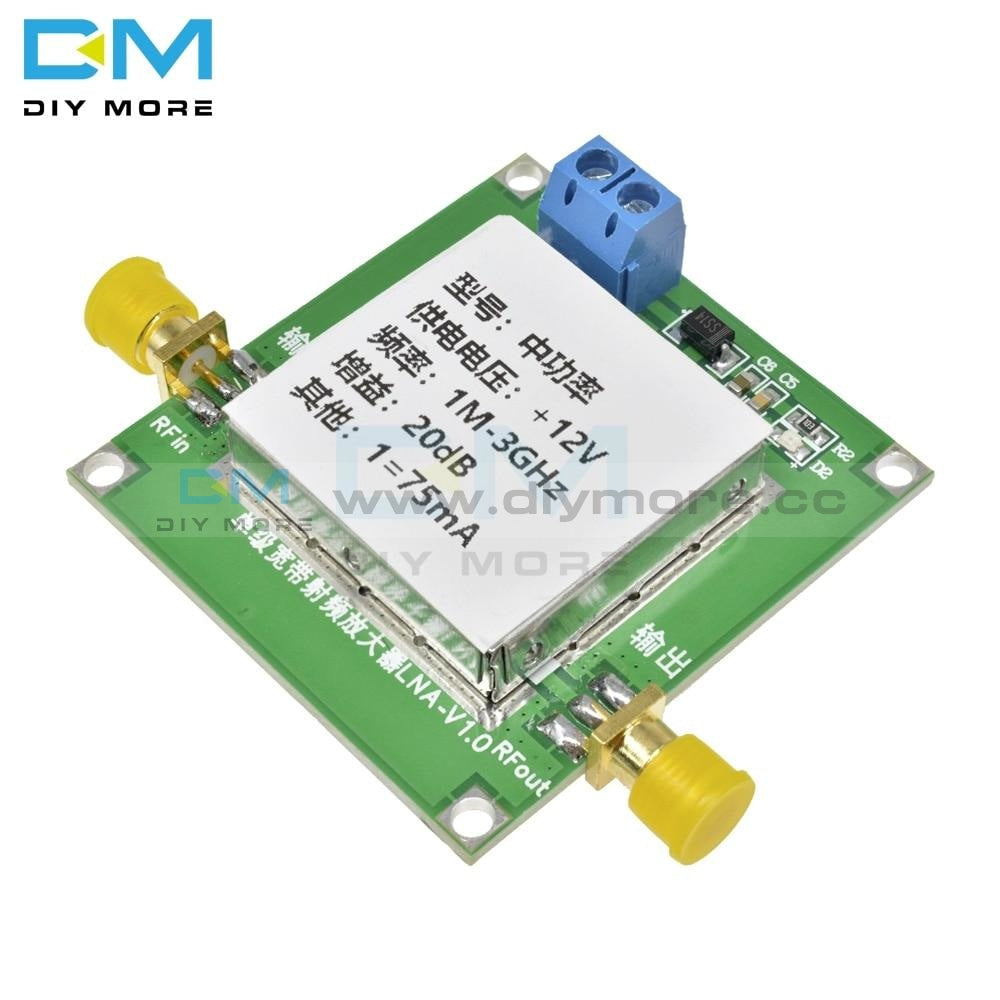

1-3000MHz 2.4GHz High Gain 20dB LNA RF Broadband Low Noise Amplifier ModuleDC 12V 75mA UHF HF VHF with Shielded Enclosure
1-3000MHz 2.4GHz High Gain 20dB LNA RF Broadband Low Noise Amplifier ModuleDC 12V 75mA UHF HF VHF with Shielded Enclosure
SKU:X13779
Regular price
$8.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Specifications:
Power supply voltage: DC 12V (Current 75mA) with shielded enclosure
Input Output Impedance: 50 Ohm
Max output power: 19.5dBm(2VPP\50Ohm load)
Input signal: ≤0 DBM(＞0 DBM Input, the output signal has been distorted.)
Bandwidth: 1 MHZ ~3GHZ (gain is different under different frequency, specific please refer to the curve of S21 indicators.)
Noise factor: 2dB (1.5 GHz case measurement)
With metal casing shield.
Other: Whenever you need a different gain value, can reduce the supply voltage.
Noise figure:
F=15.2MHZ GAIN=17.99DB
F=345.2MHZ GAIN=19.55DB
F=945.2MHZ GAIN=18.09DB
F=1.500GHZ GAIN=16.16DB
F=1.955GHZ GAIN=15.77DB
F=2.295 GHZ GAIN=14.11DB
F=2.610 GHZ GAIN=13.60DB
F=2.895MHZ GAIN=12.56DB
Dimensions: 50x70x12mm/1.97x2.76x0.47inch
Color: Green
Quantity: 1 Pc
Note: 1.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package includes:
1 x Low Noise Amplifier Module
