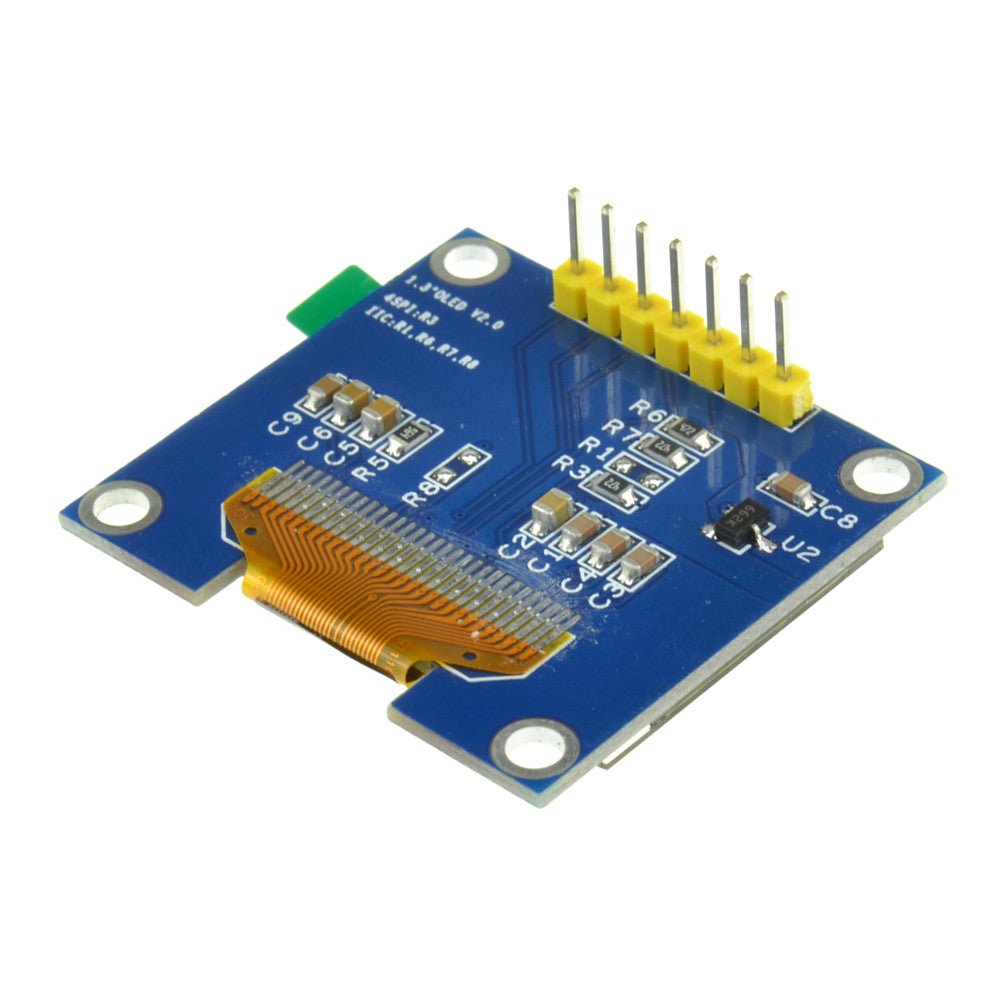

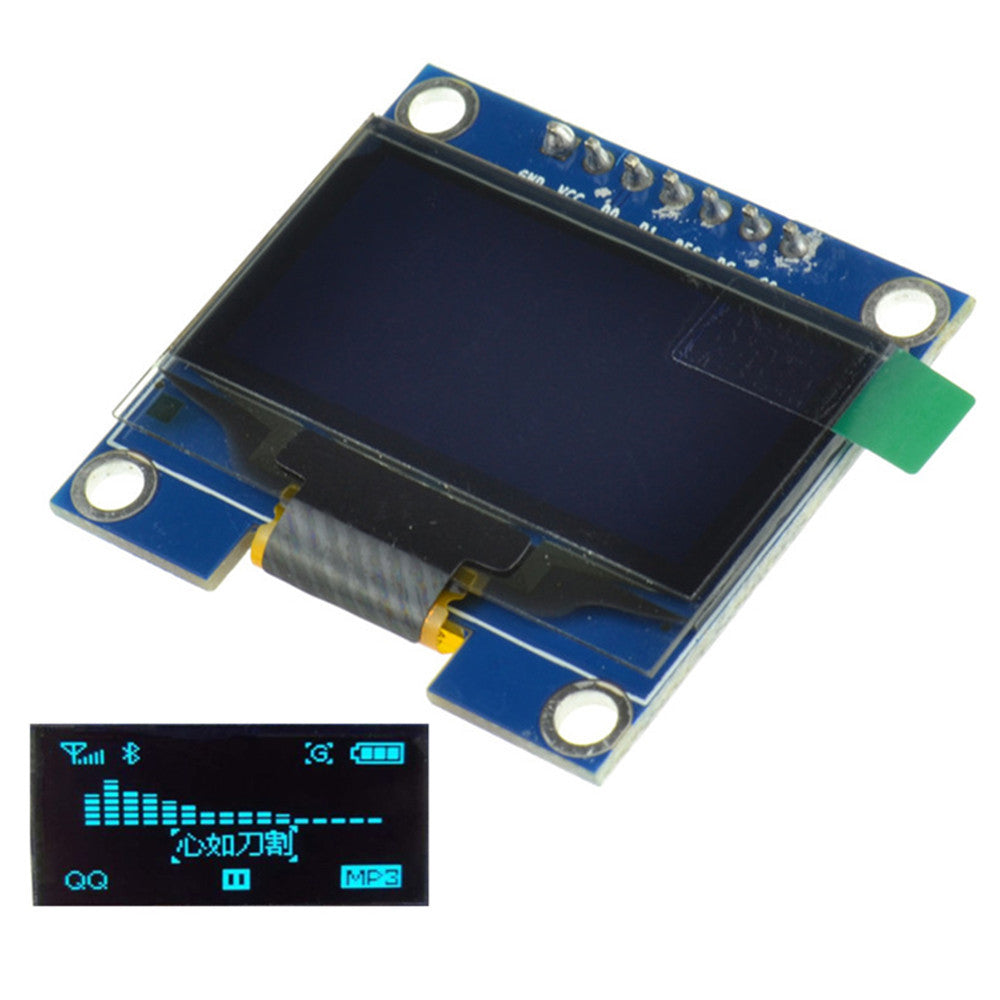

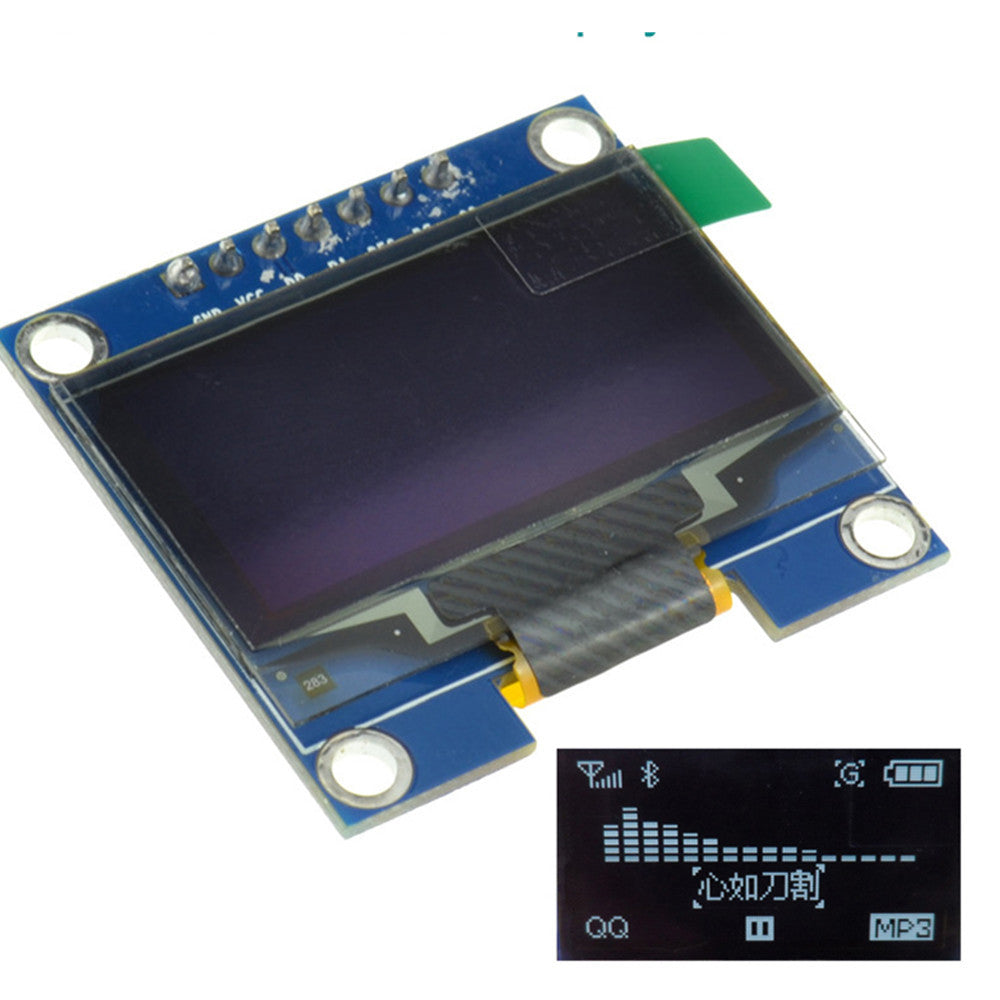

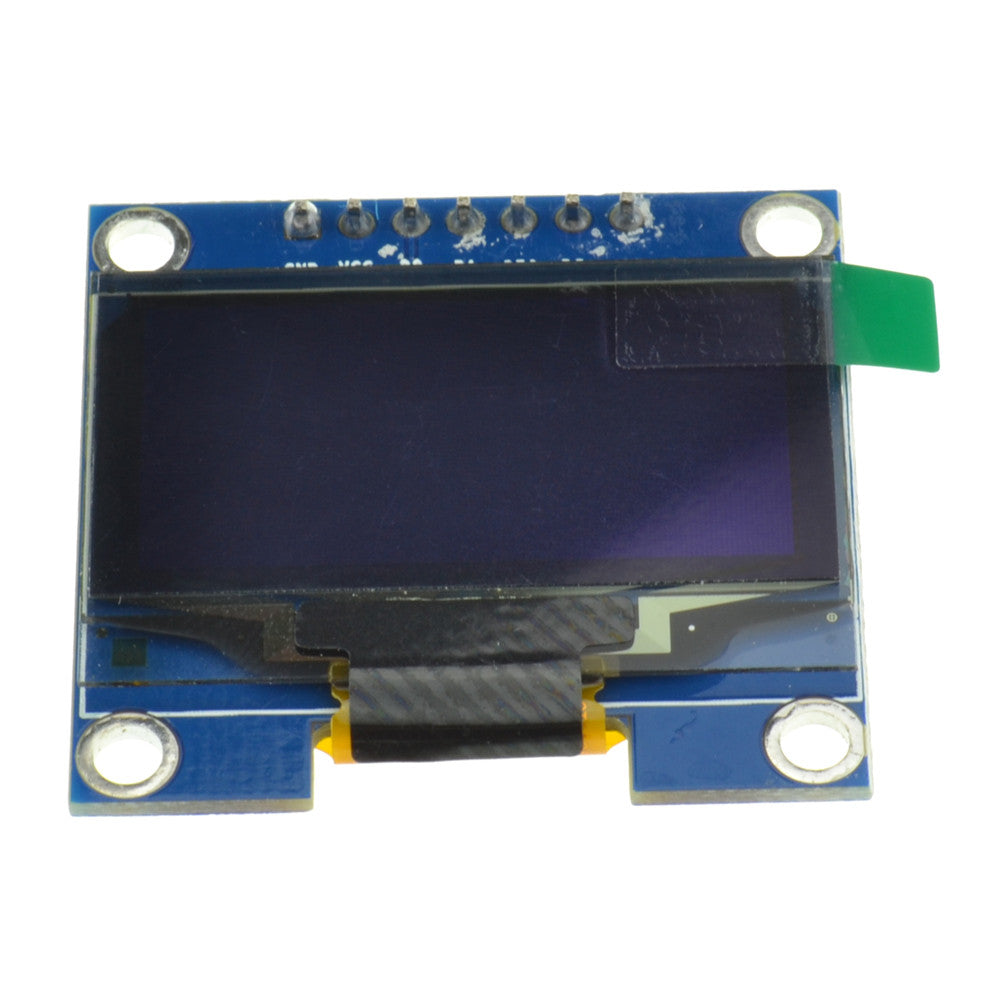

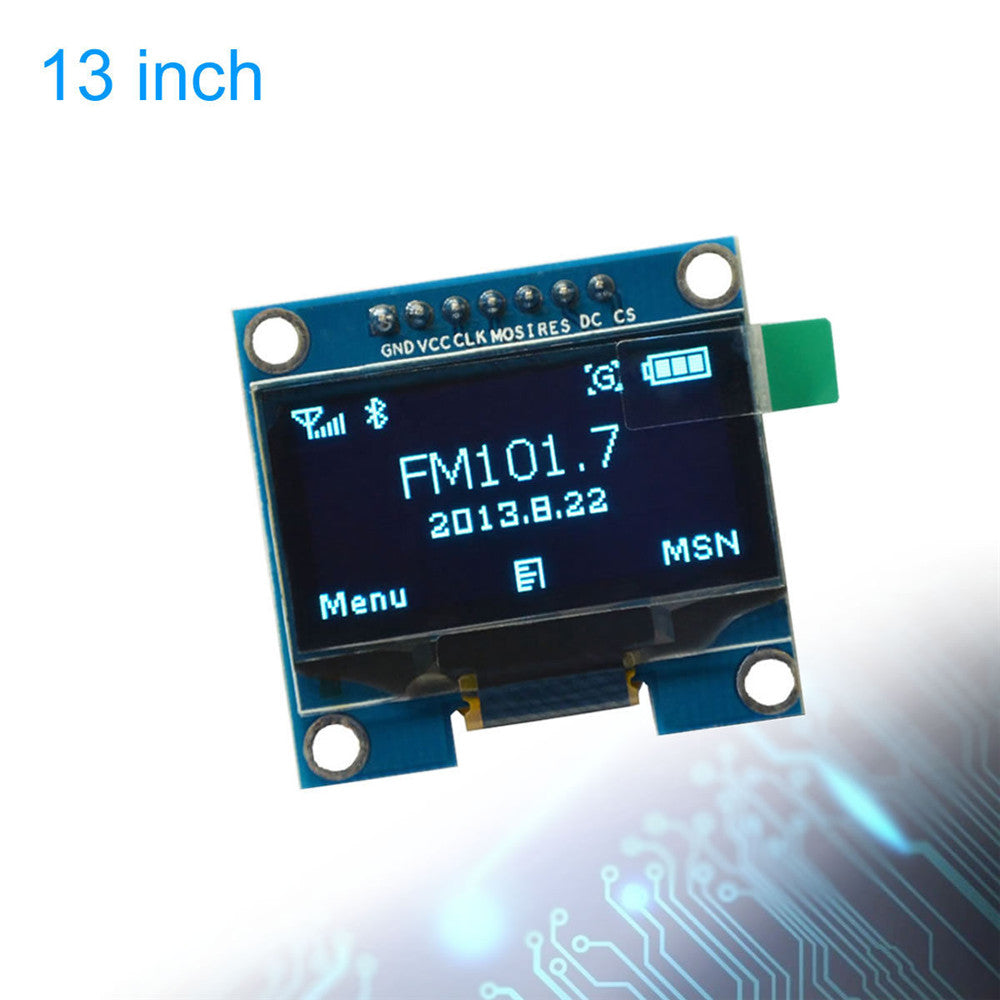

1.3"Inch White SPI Serial OLED LCD Display 128X64 SSH1106 Module for Arduino UNO
SKU:030071LA
Regular price
$7.99 USD
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Specifications:
- Neednt backlight the display unit can self-luminous
- High resolution:128*64
- Viewing angle:>160
- OLED screens inside the driver chips : SSH1106
- Supports many control chip : fully compatible with Arduino 51 series,msp430 series , stm32/2 CSR IC , ETC
- Ultra-low power consumption:full screen lit 0.08w
- Voltage 3v-5vdc
- Work temp : -30c-70c
- Spi interface
- The color of word : blue
- GND: Power ground
- VDD:2.8-5.5V power supply
- SCK: CLK clock
- SDA: MOSI data
- RES: Reset
- DC: data / command
- CS: chip-select signal
Package included:
- 1x OLED Display Module for Arduino
