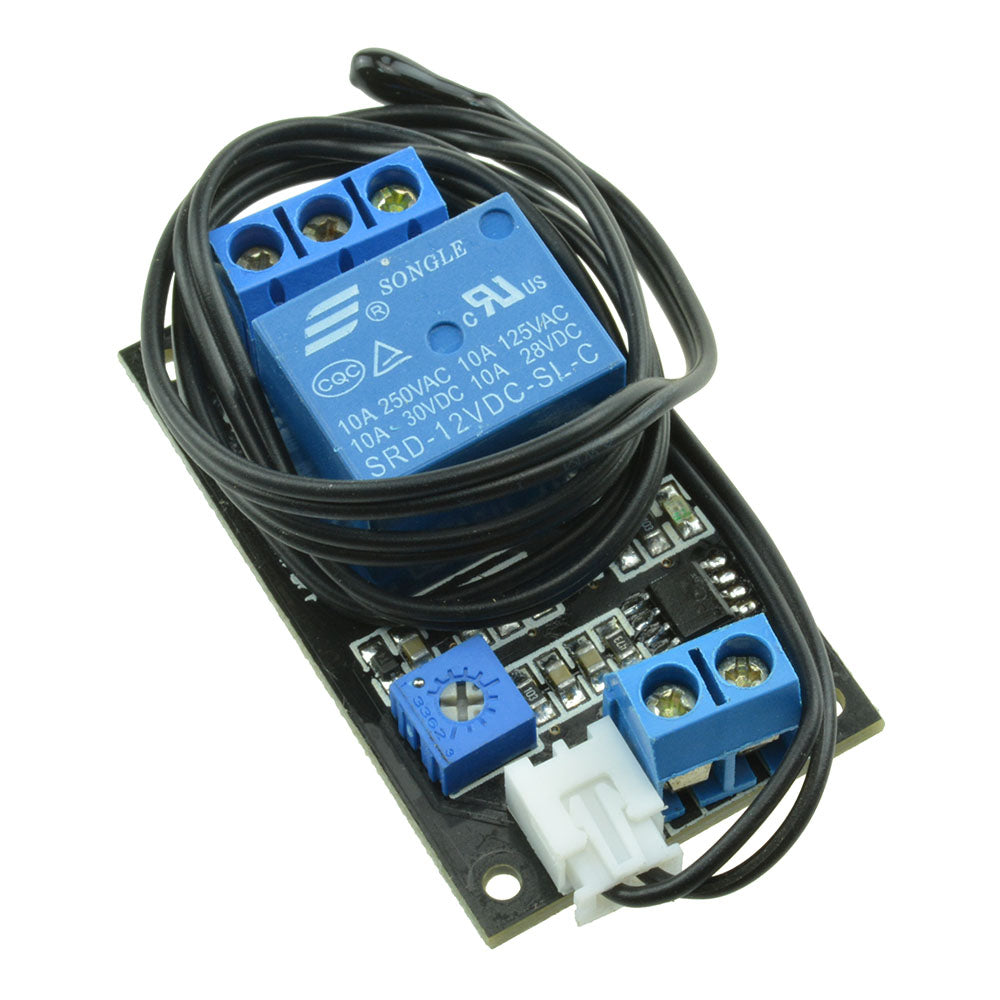

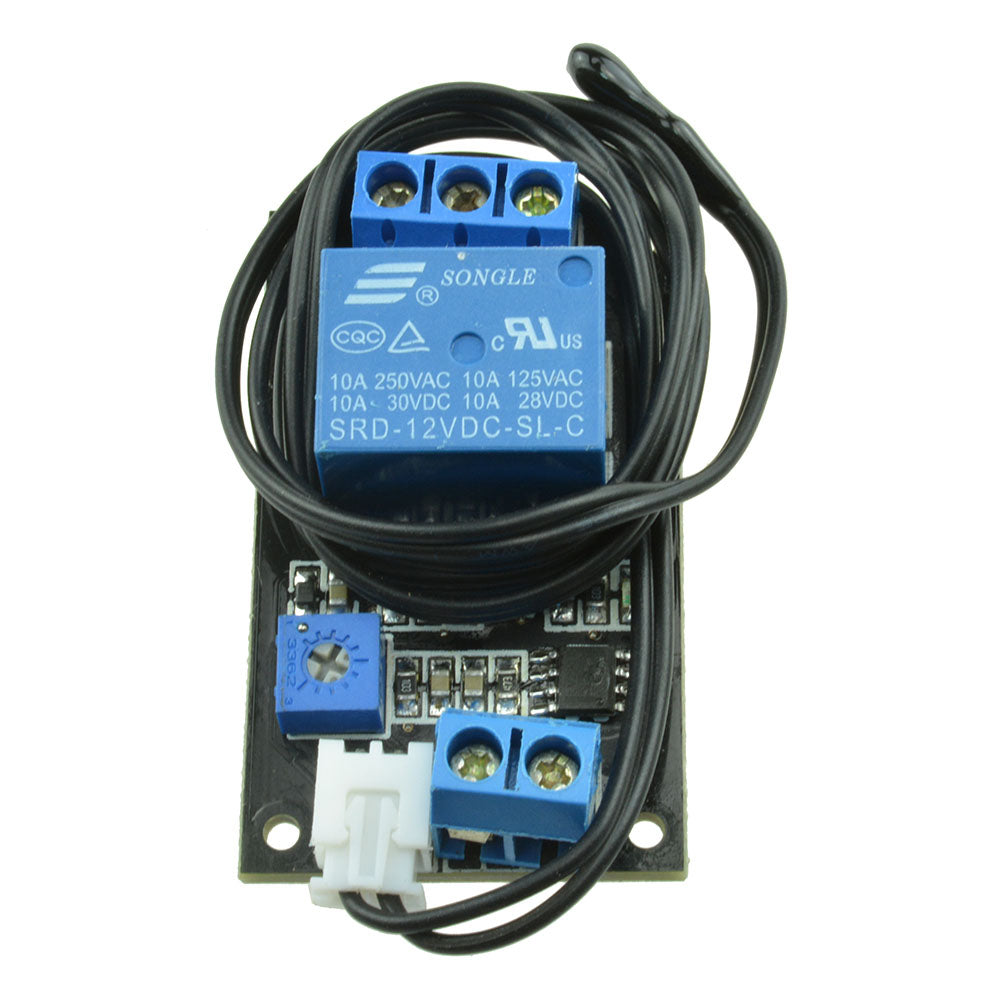

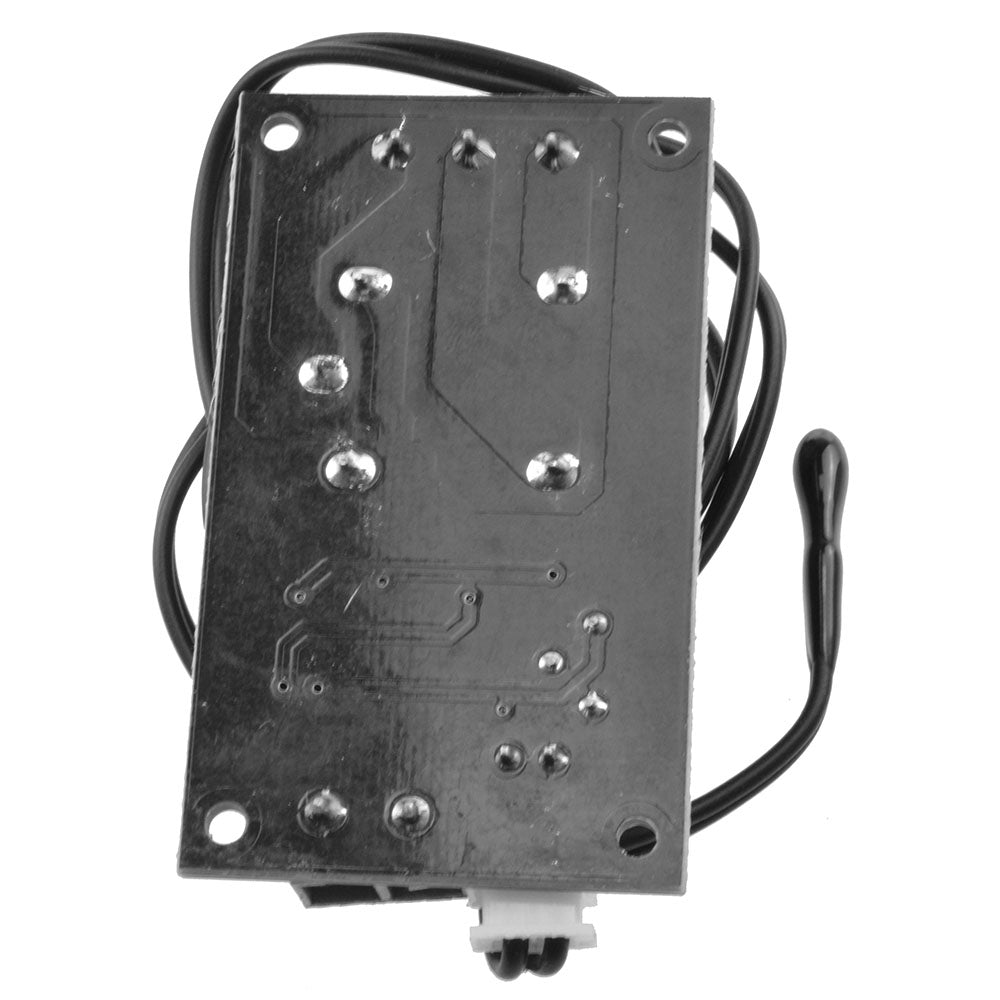

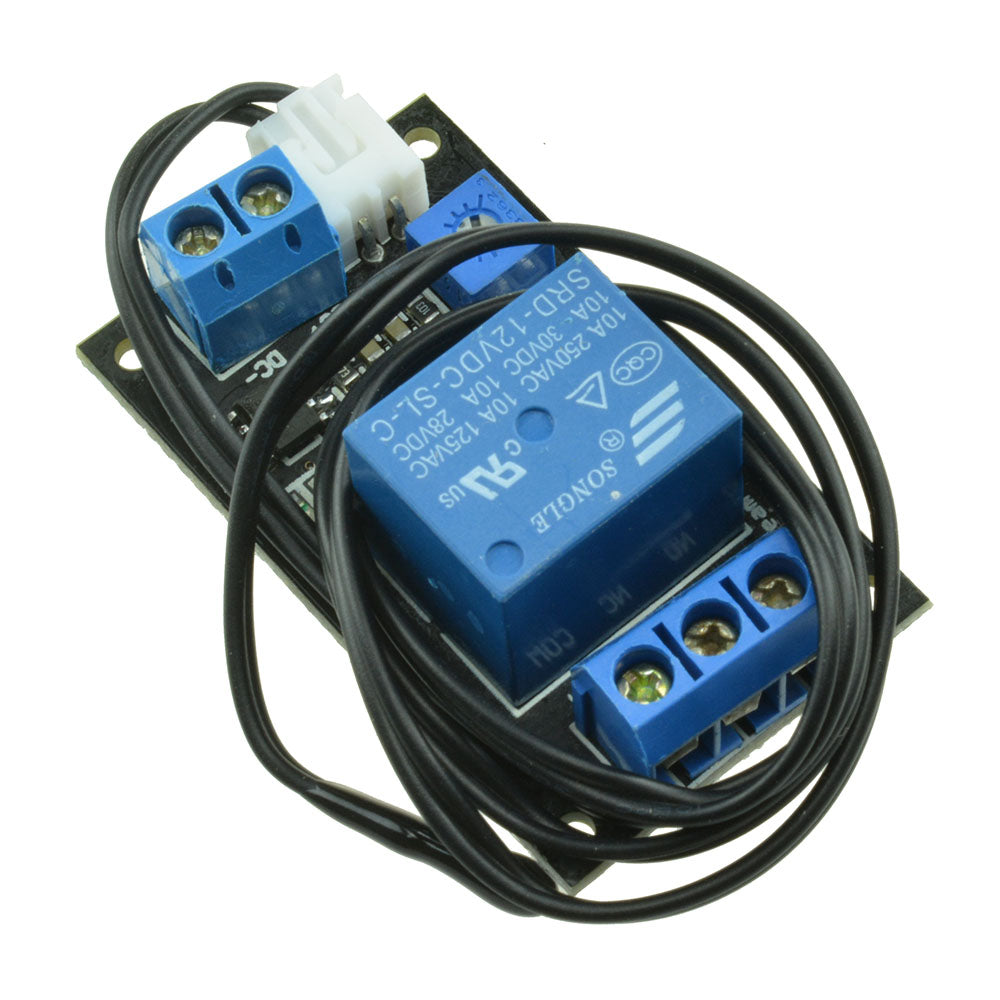

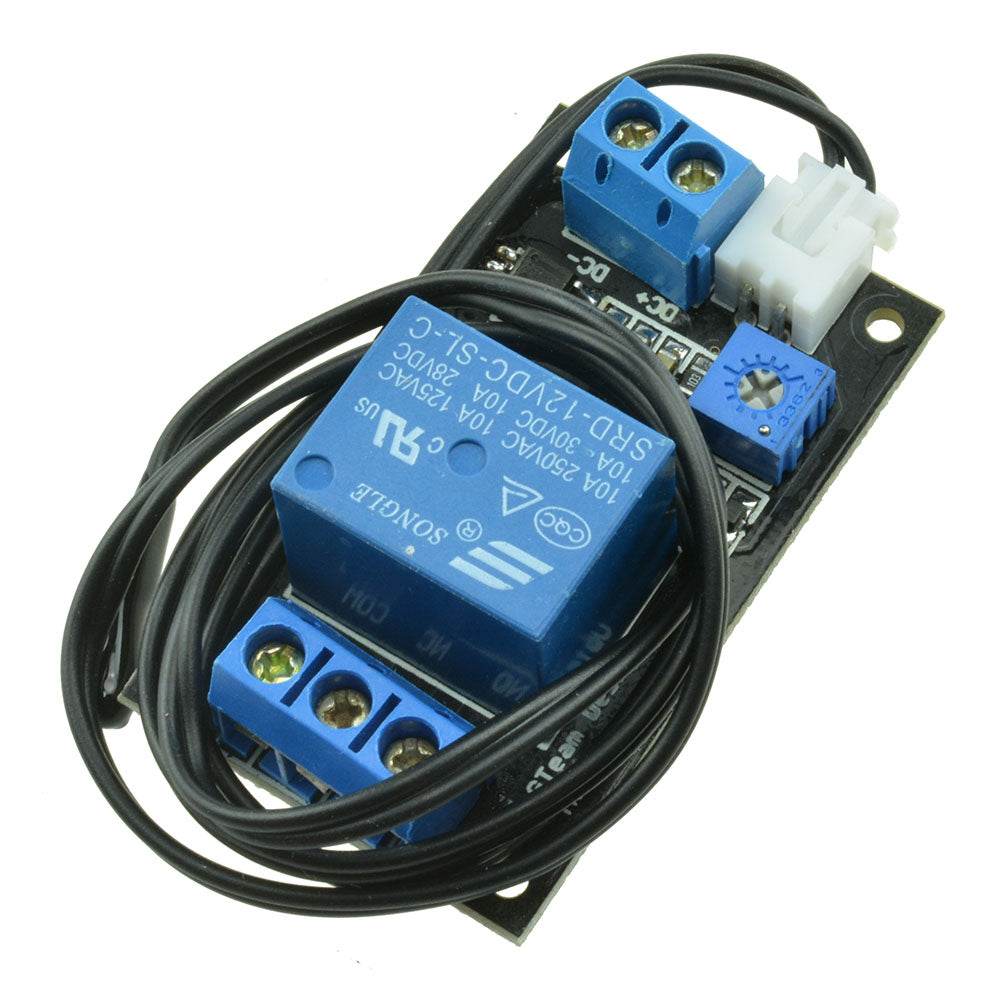

1 Channel 12V Thermistor Relay Sensor Temperature Control Switch Module
1 Channel 12V Thermistor Relay Sensor Temperature Control Switch Module
SKU:010944
Regular price
$5.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Features:
- Modules can be used for ambient temperature detection,
- detection temperature threshold can be adjusted
- by potentiometer, relays, can do a variety of temperature switches,
- such as temperature monitoring, temperature monitoring,
- automotive chassis temperature monitoring.
- the use of highly sensitive thermistor detected ambient temperature,
- comes with genuine quality relay can directly control AC or DC loads,
- Normally open interface maximum load capacity: AC 0V--250V/10A DC 0V--30V/10A;
- Temperature can be adjusted by potentiometer threshold,
- when the ambient temperature is above this threshold, relay,
- when the temperature falls below this threshold, the relay releases;
- Design, smart regulation, when after the relay will automatically fine tune threshold,
- solves the problem of critical values over;
- Module has a counter function, reverse polarity will not damage the power supply module;
- Equipped with power indicator light (red), the relay status led (blue);
- Operating voltage 12V;
- With 4 fixing bolt holes for easy installation;
- Module dimensions: 5.0CM*3.0CM*1.8cm;
- Modules free with the 50cm fuse thermal sensor;
Instructions:
- Module ambient temperature-sensitive thermistor, typically used to detect changes in ambient temperature;
- Module when the ambient temperature is higher than the set threshold,
- relay to pull-in, beginning public side and often connected (disconnected from the normally closed-end),
- when the outside temperature drops below a set threshold,
- the relay disconnect, and common Terminal disconnected from the beginning
- (with normally closed-end connected);
- The common Terminal, normally open, normally closed three ports is equivalent to a double control switch,
- relay coil current, common Terminal and start turn-on, no power,
- common Terminal and the normally closed-end of conduction;
Electrical parameters:
- Working voltage: DC 12V
- Operating current: relay after pull-in: 12V module is less than 50mA
- Before the relay actuation: less than 5mA
- Load capacity: AC 0V--250V/10A, DC 0V--30V/10A;
- temperature range - 20℃ to 100℃
Package Included:
- 1 x 12V 1 Channel Control Switch Thermistor Relay Sensor Temperature Detection Module
