10A 1S 2S 4.2V PCB PCM Charger Charging Module 18650 Li-ion Lipo BMS Lithium Battery Protection Circuit Board 1 2 Cell Serials
SKU:X12945
Regular price
$4.99 USD
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155

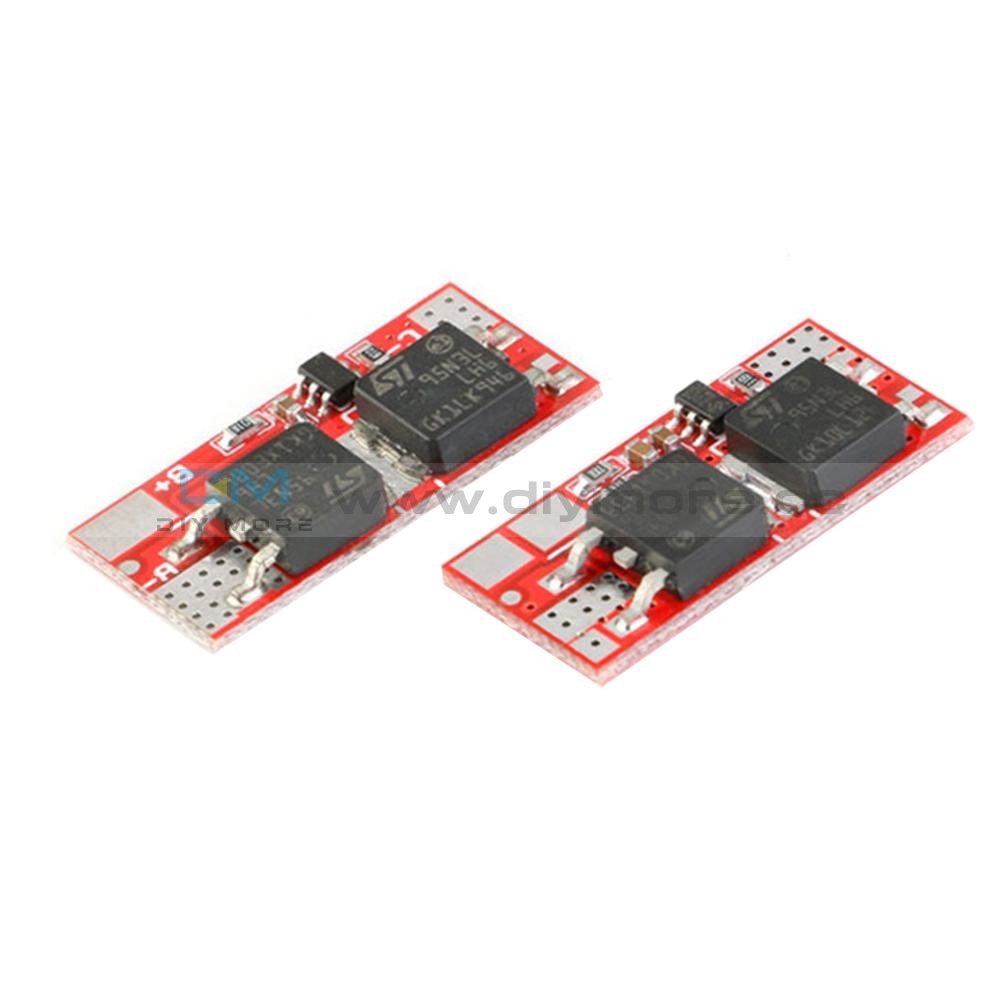

This protection board adopts mature protection circuit, special IC, imported high current ultra low internal resistance MOS (single MOS internal resistance as low as 3 milliohms), and has perfect and stable charging and discharging protection functions.
Small volume and large current can be used in high current applications such as power tools and aircraft models.

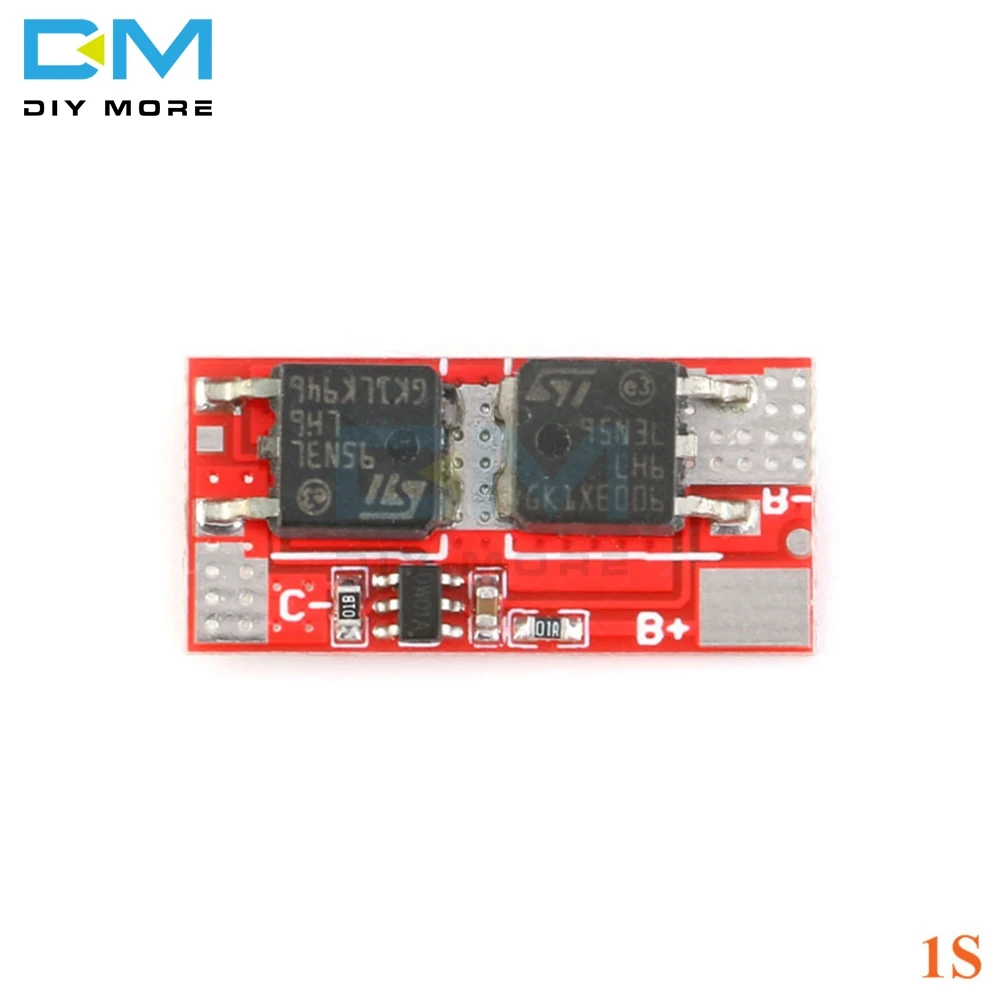

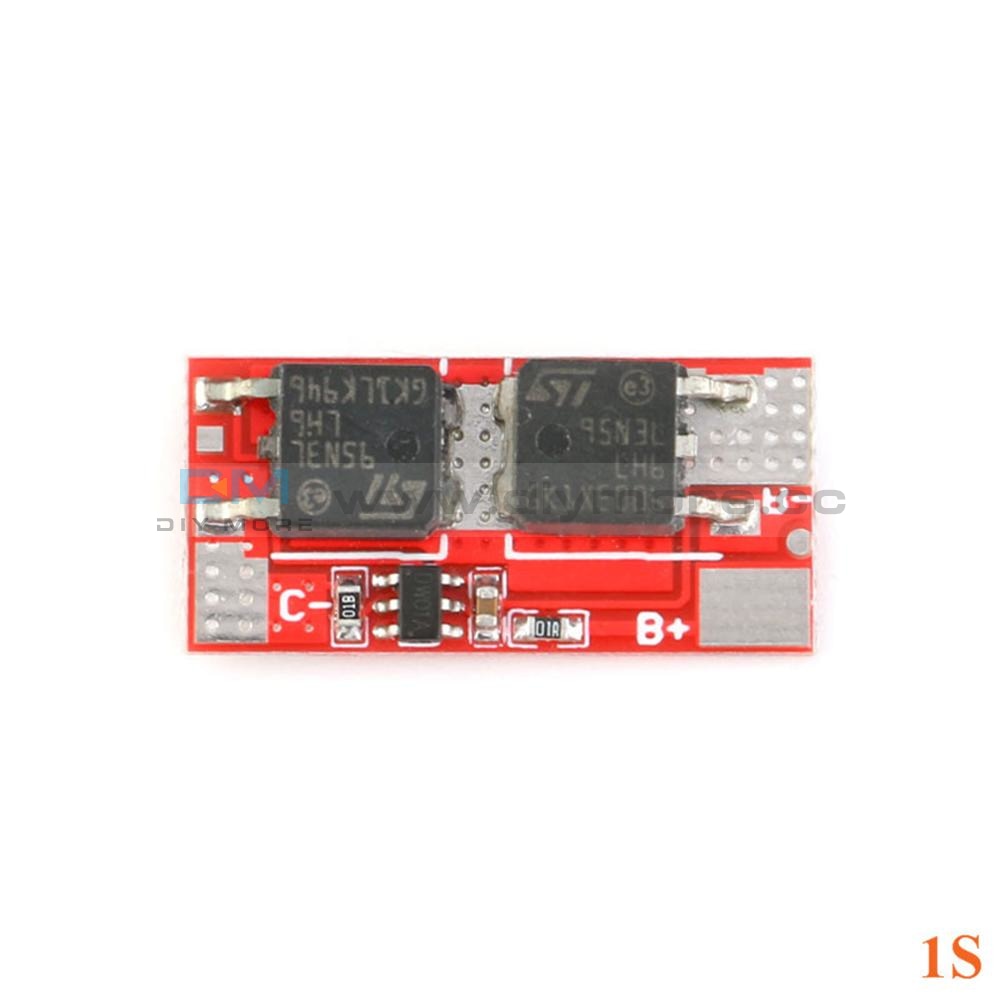

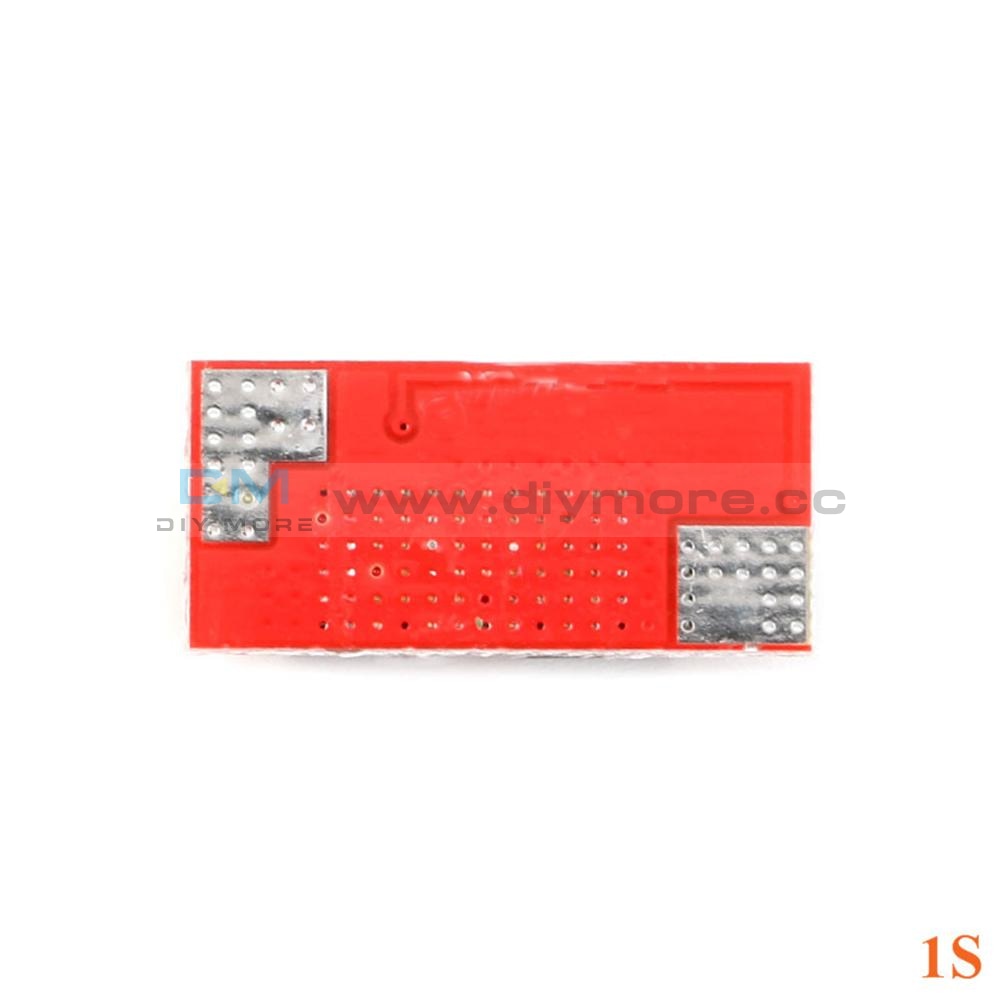

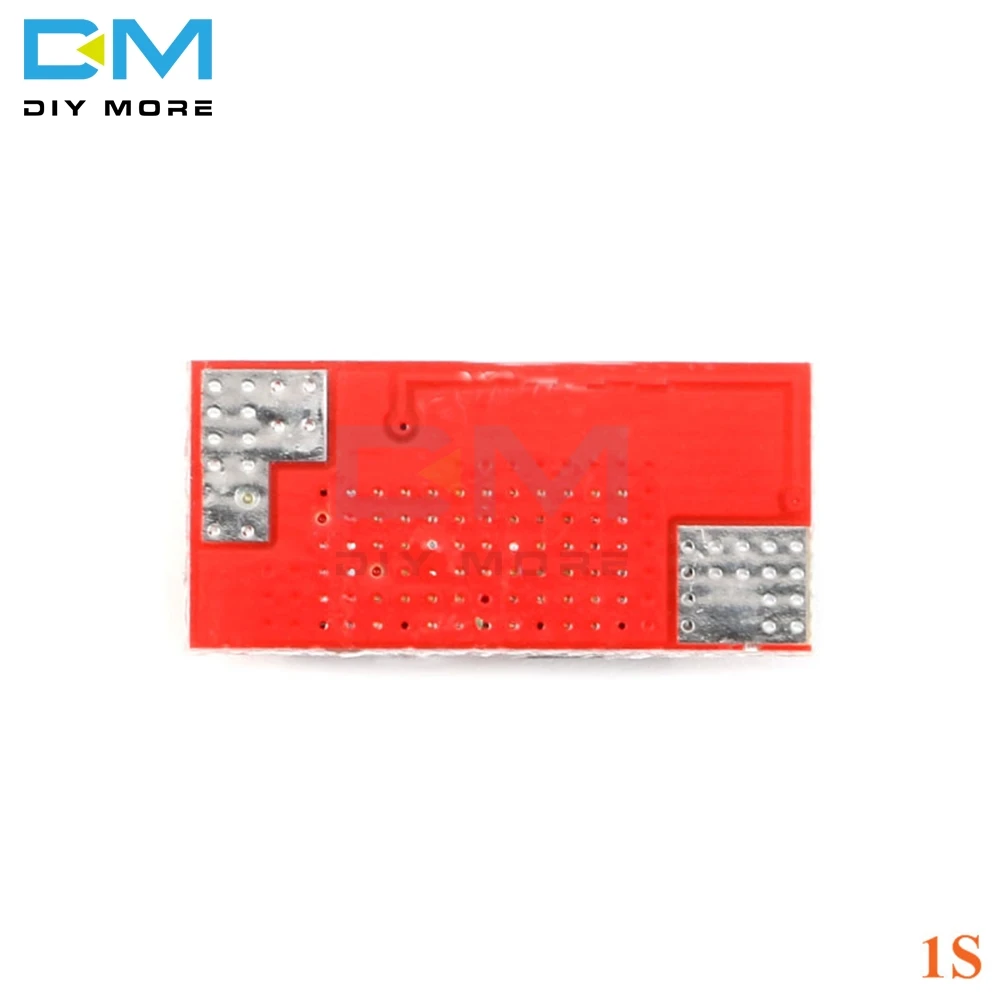

1S Technical Parameters
1. Single-section overcharge protection voltage: 4.25V-4.35V
2. Single-section overcharge protection recovery voltage: 4.05V-4.15V
3. Overcharge protection delay: 1000mS
4. Single-section over-discharge protection voltage: 2.30V-2.50V
5. Single-section over-discharge protection recovery voltage: 2.9-3.10V
6. Over-discharge protection current: 16A
7. Overcharge protection current: 16A
8. Over-discharge protection delay: 50-200mS
9. Temperature protection: none
10. Wire break protection: Yes
11. Short circuit protection: Yes
12. Short circuit protection recovery mode: disconnect the load release
13. Split discharge current: none
14. Same port discharge current: 10A
15. Charging current: 10A

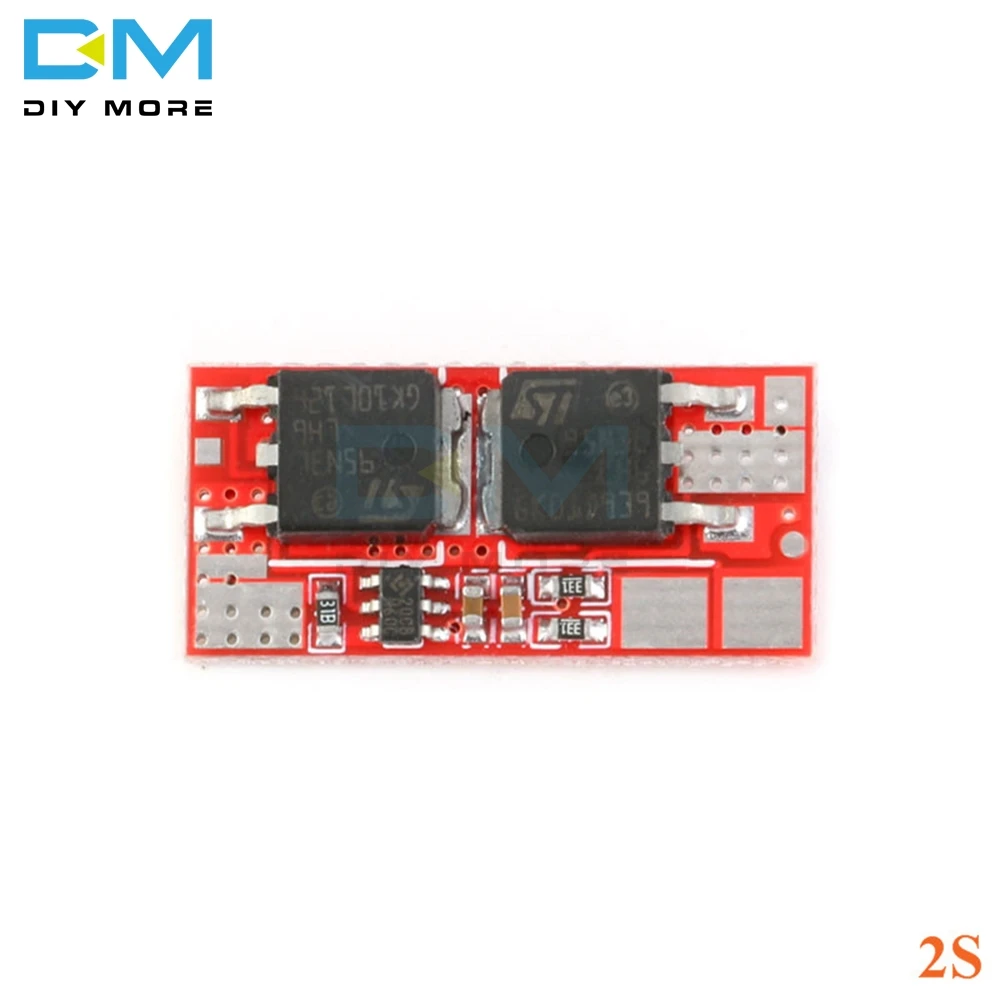

2S Technical Parameters
1. Single-section overcharge protection voltage: 4.26V-4.31V
2. Single-section overcharge protection recovery voltage: 4.03V-4.13V
3. Overcharge protection delay: 700-1300mS
4. Single-section over-discharge protection voltage: 2.82V-2.98V
5. Single-section over-discharge protection recovery voltage: 2.9-3.10V
6. Over-discharge protection current: 25A
7. Overcharge protection current: 25A
8. Over-discharge protection delay: 70-150mS
9. Temperature protection: none
10. Wire break protection: Yes
11. Short circuit protection: Yes
12. Short circuit protection recovery mode: disconnect the load release
13. Split discharge current: none
14. Same port discharge current: 10A
15. Charging current: 10A
You could choose:
1 x 1S Module
1 x 2S Module
