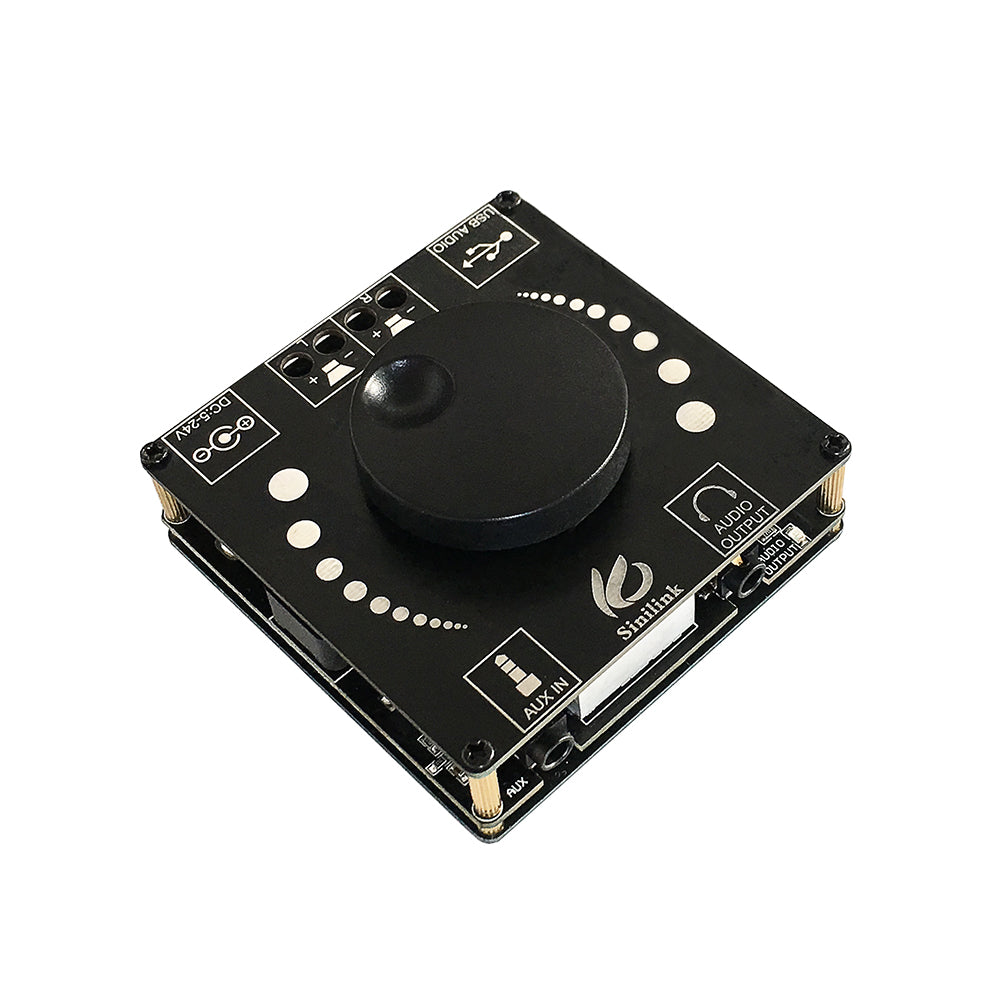

10W/15W/20W Stereo Bluetooth Power Amplifier Board 12V/24V High Power Digital Power Amplifier Module XY-AP15H

10W/15W/20W Stereo Bluetooth Power Amplifier Board 12V/24V High Power Digital Power Amplifier Module XY-AP15H

10W/15W/20W Stereo Bluetooth Power Amplifier Board 12V/24V High Power Digital Power Amplifier Module XY-AP15H

SKU:XF0076
Regular price $9.99 USD

Product parameter:
  • Product name: 20W+20W stereo bluetooth digital power amplifier
  • Product model: XY-AP15H
  • Supply voltage: DC: 8-24V (the higher the voltage, the greater the output power)

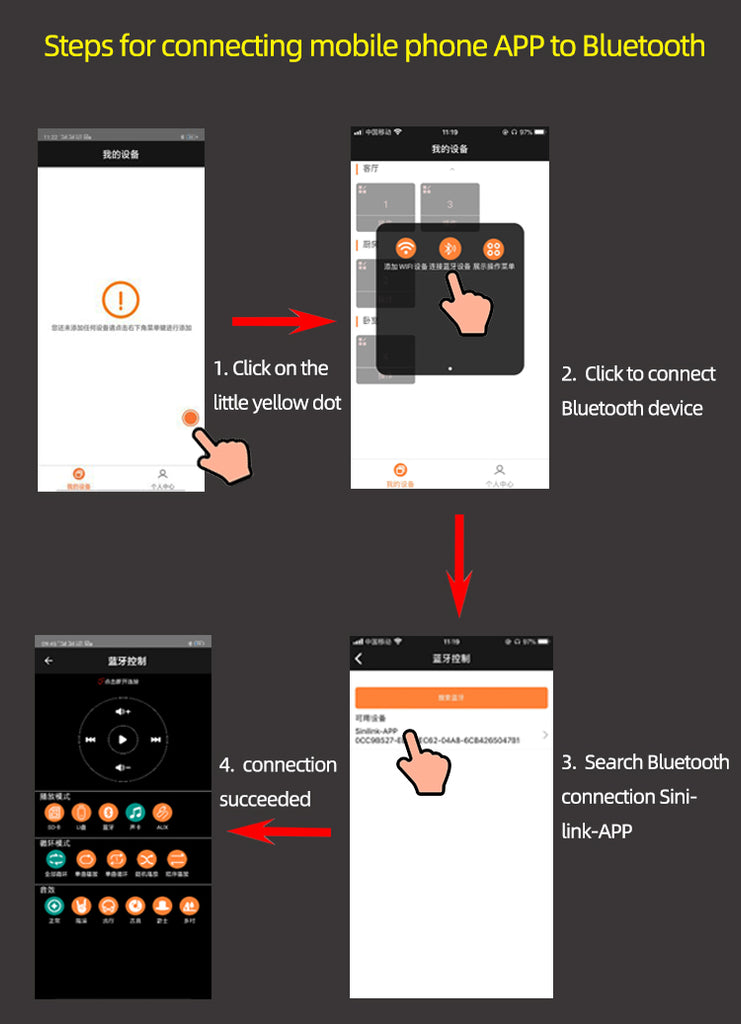

  • Bluetooth version: 5.0
  • Transmission distance: 15 meters (unobstructed)
  • Number of channels: left and right dual channels (stereo)
  • Adapted speaker: 30W-200W4Ω8Ω16Ω
  • Protection mechanism: power supply reverse connection protection, short circuit protection, self-recovery overheating protection
  • Note: The output power of the power supply must be greater than the output power of the amplifier, otherwise it will affect the sound
  • Quality, the output power is greater than 20W+20W to add heat sink
  • 12V→8Ω/10W+10W, 4Ω/16W+16W
  • 16V→8Ω/15W+15W, 4Ω/more than 20W+20W
  • 20V→8Ω/20W+20W, 4Ω/more than 20W+20W
  • 24V→8Ω/30W+30W, 4Ω/more than 30W+30W
Precautions for use:
  • Use the power amplifier board as far away as possible from the WIFI signal (router)
  • The recommended power supply voltage is DC 8~24V. If it exceeds 26V, the chip will burn.
  • The power supply does not exceed 12V when connected to a 4Ω speaker, and does not exceed 24V when connected to an 8Ω speaker
  • The power supply current is recommended to be above 2A.
  • The working power of the module exceeds 20W*2, and a heat sink is required
  • The speaker wire should not be too long, and ensure that it is suitable within 1 meter
  • Pay attention to static electricity protection. Before touching the power amplifier board, you must first release the static electricity on your hands to prevent static electricity from breaking down the chip.
  • The Bluetooth chip is sensitive to static electricity.
  • It is recommended to adapt the speaker with a rated power of 30W and above to avoid the speaker from heating and burning
