I.5 inch 128X128 RGB OLED Screen Display Module SSD1351 SPI I2C IIC for Arduino Raspberry Pi STM32
I.5 inch 128X128 RGB OLED Screen Display Module SSD1351 SPI I2C IIC for Arduino Raspberry Pi STM32
SKU:X30637
Regular price
$16.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155

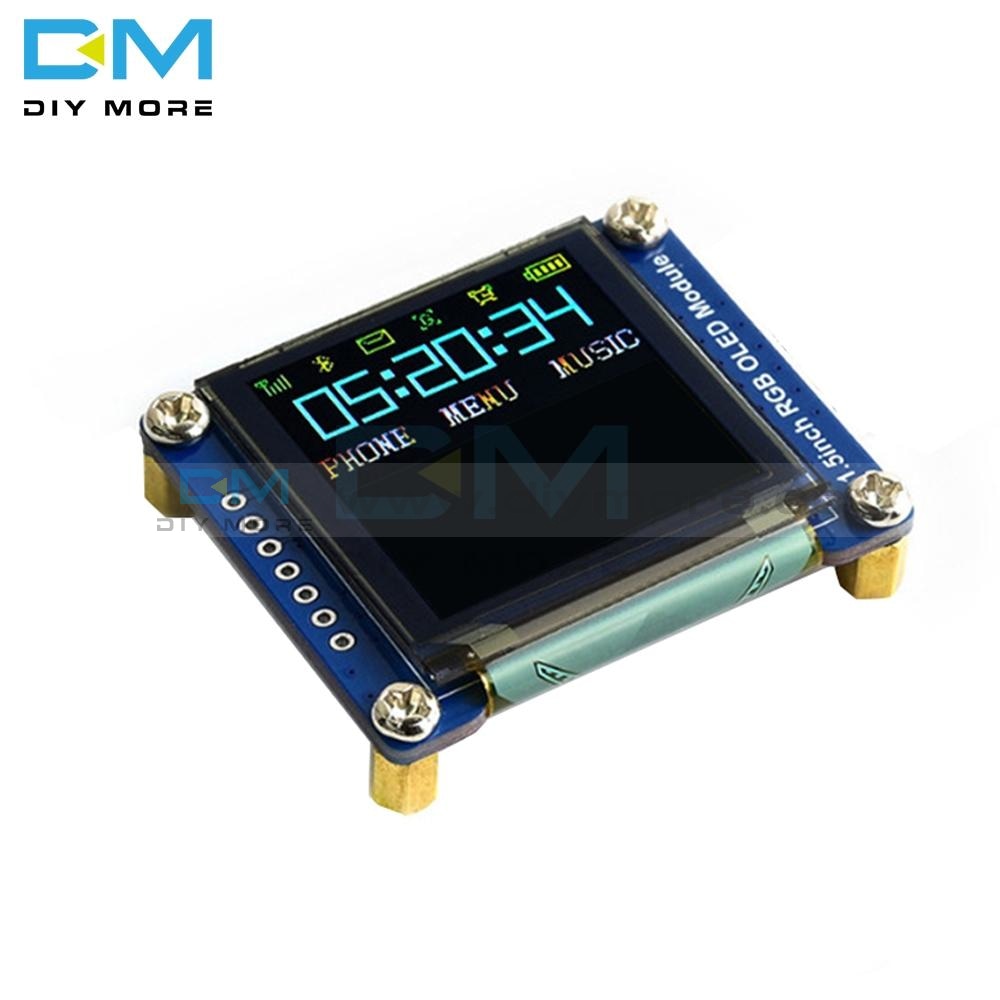

This is a general RGB OLED display Module, 1.5inch diagonal, 128x128 pixels, 16-bit high color (65K colors), with embedded controller, communicating via SPI interface.
Features:
128x128 high resolution, 65K colors, clearly displays colorful images
Supports 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor
Specifications:
Driver: SSD1351
Interface: 4-wire SPI, 3-wire SPI
Display color: RGB, 65K colors
Resolution: 128x128
Viewing angle: >160°
Operating voltage: 3.3V / 5V

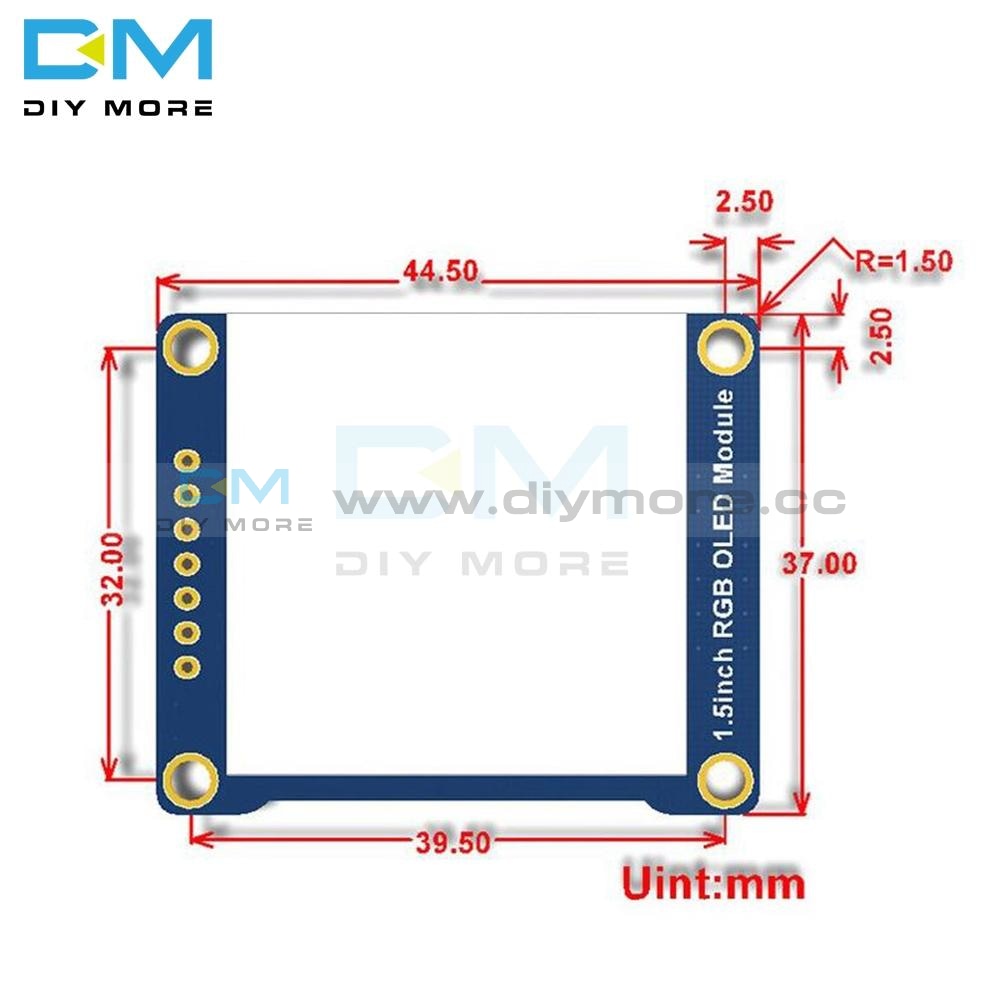

Dimension: 44.5 x 37 (mm)

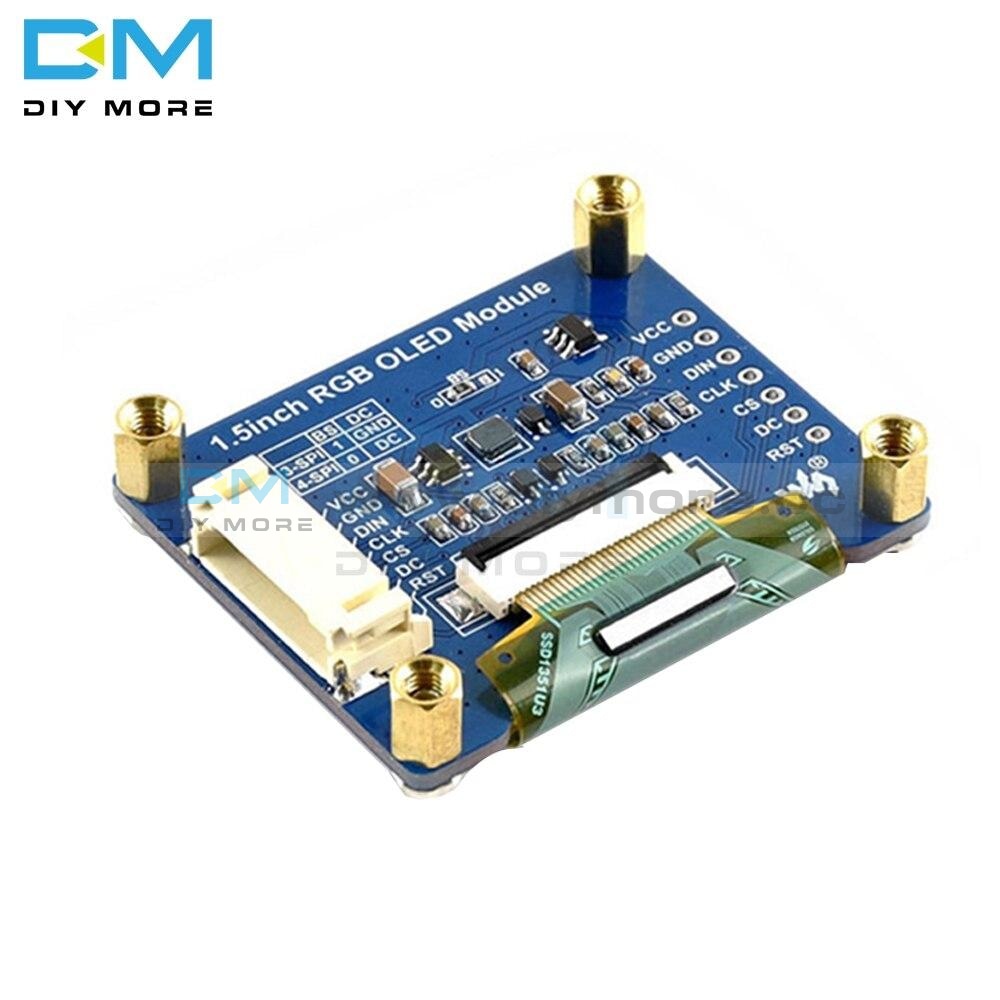

Interface:
Port Description
VCC Power (3.3~5V input)
GND Ground
DIN Data input
CLK Clock data input
CS Chip selection, low active
DC 4-wire SPI: Data/Command selection (high for data, low for command)
3-wire SPI: Connects to GND, keeps low
RST Reset, low active
There are two available drive interfaces for this RGB OLED module: 4-wire SPI (default) and 3-wire SPI:
BS DC
4-wire SPI 0 DC
3-wire SPI 1 Connects to GND
Package Includes:
1 X 1.5inch OLED Display Module
1 X PH2.0 7P dupond cable
