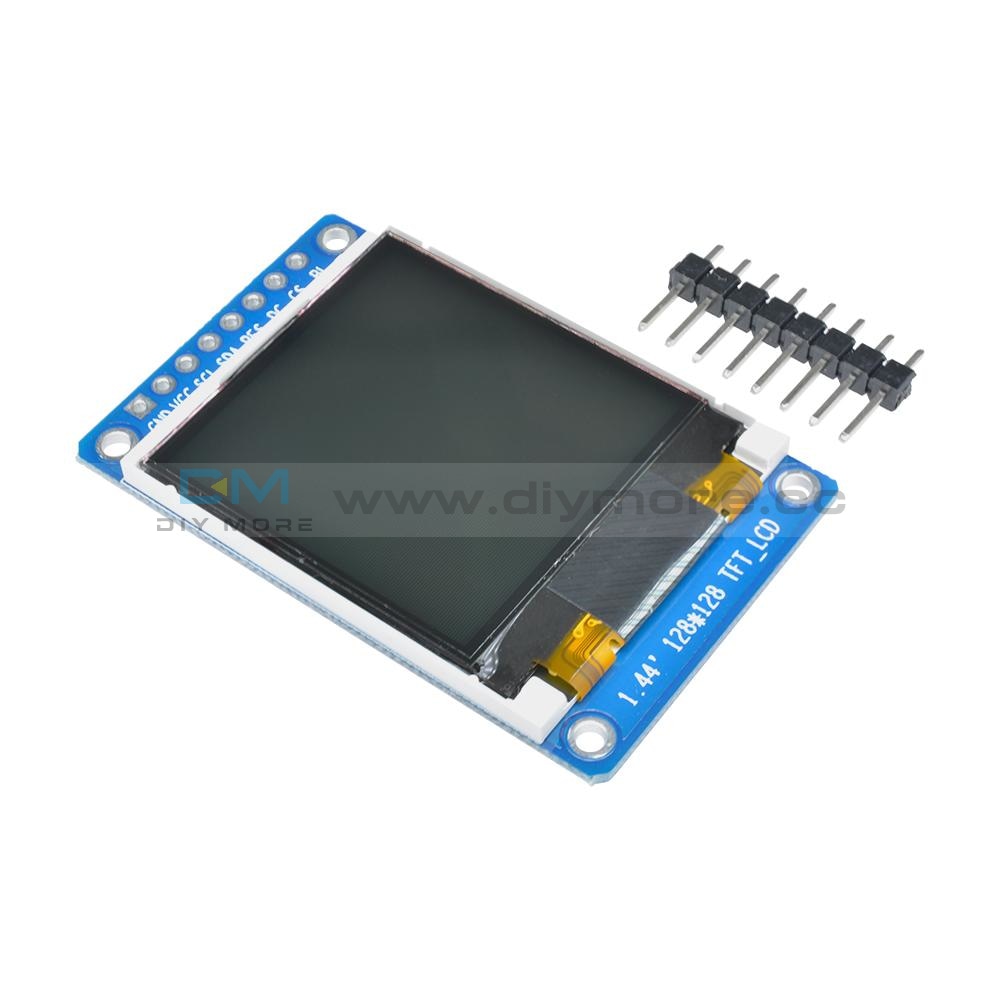

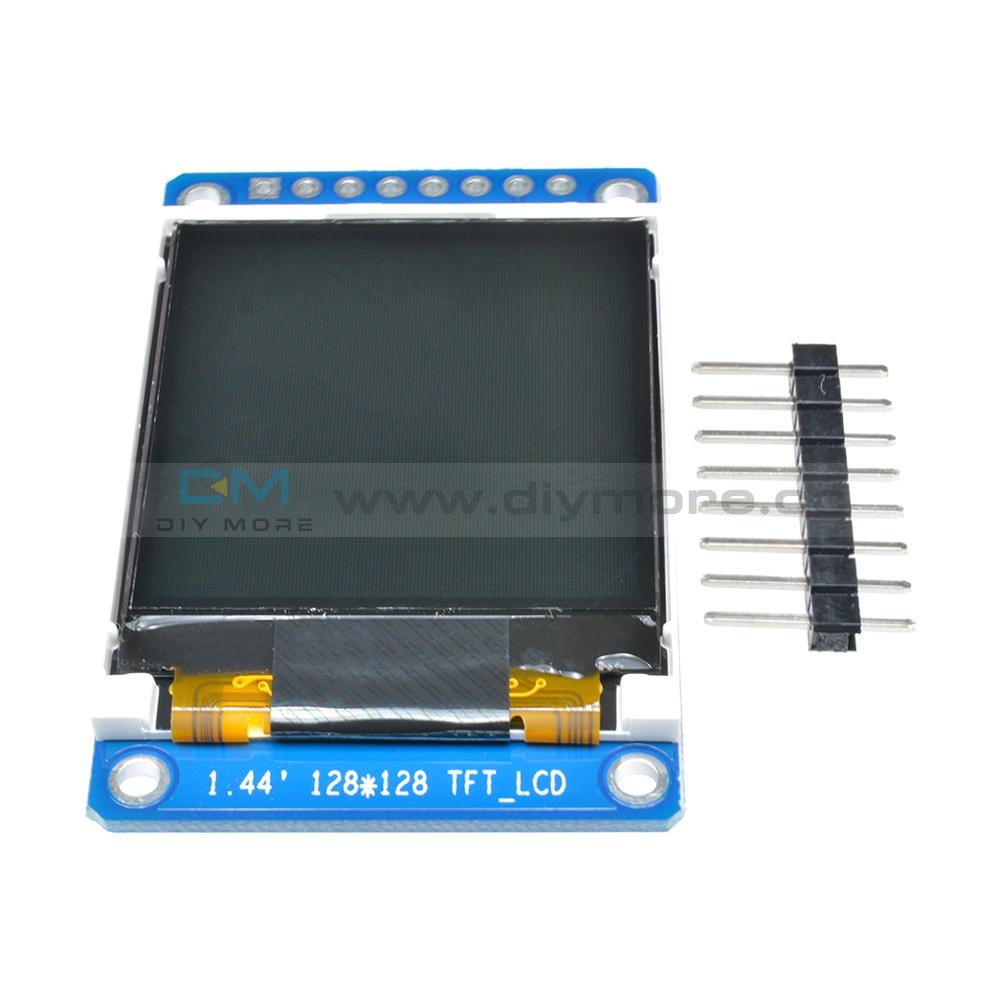

128x128 ST7735S Full Color TFT LCD Display Module 8 Pin SPI Serial Interface
128x128 ST7735S Full Color TFT LCD Display Module 8 Pin SPI Serial Interface
SKU:030529
Regular price
$7.99
Sale price
$5.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
LCD Panel: CPT

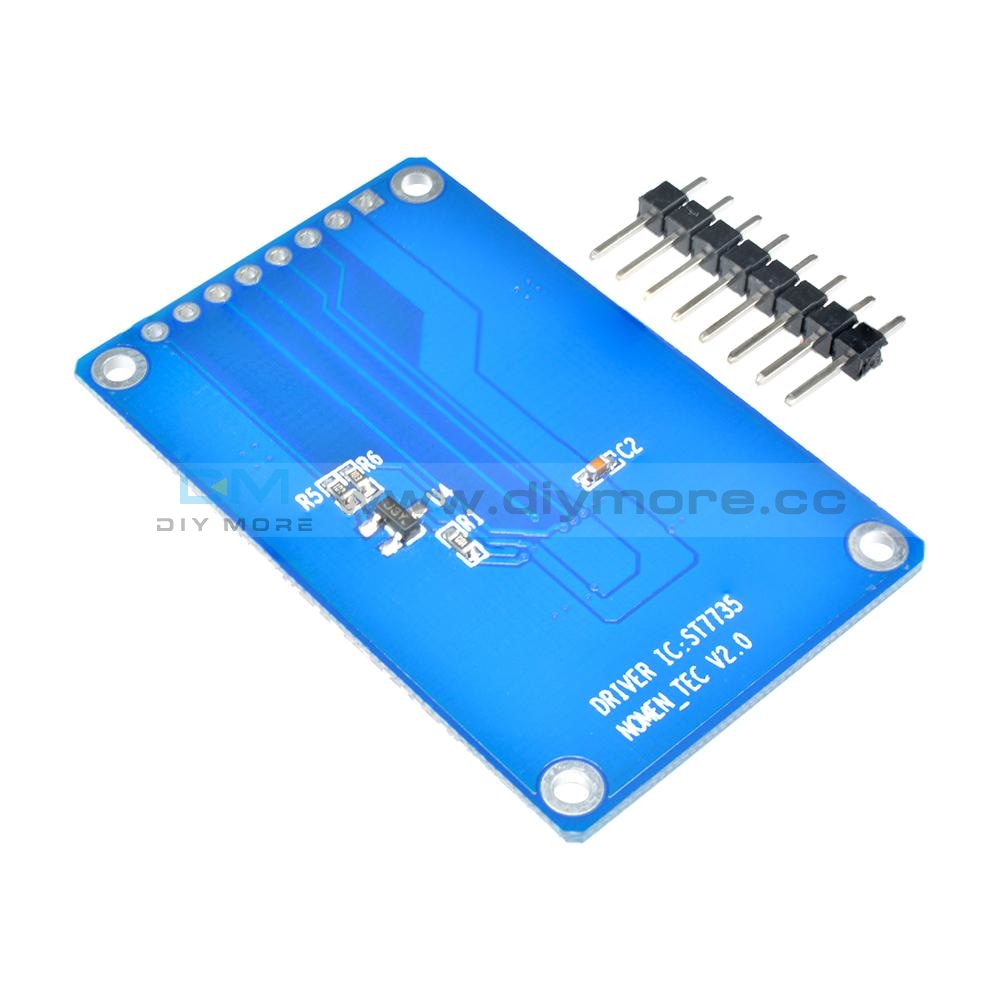

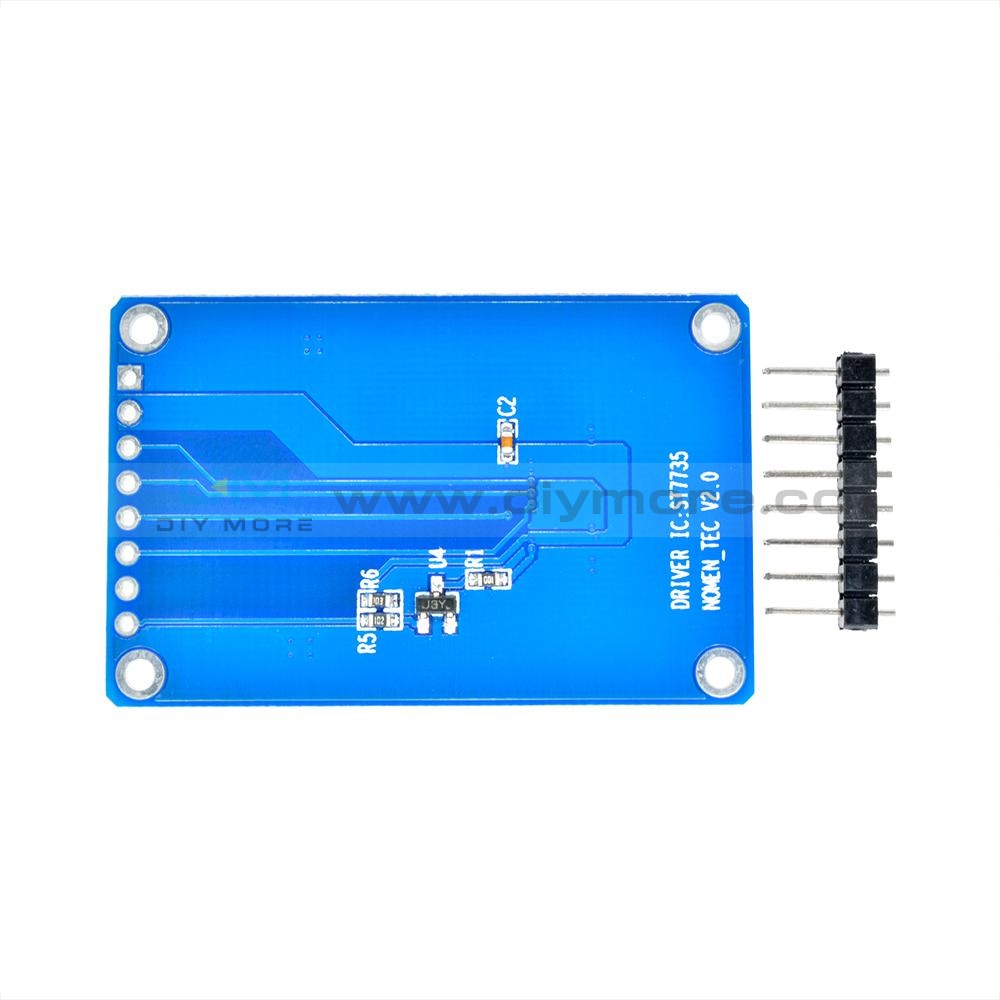

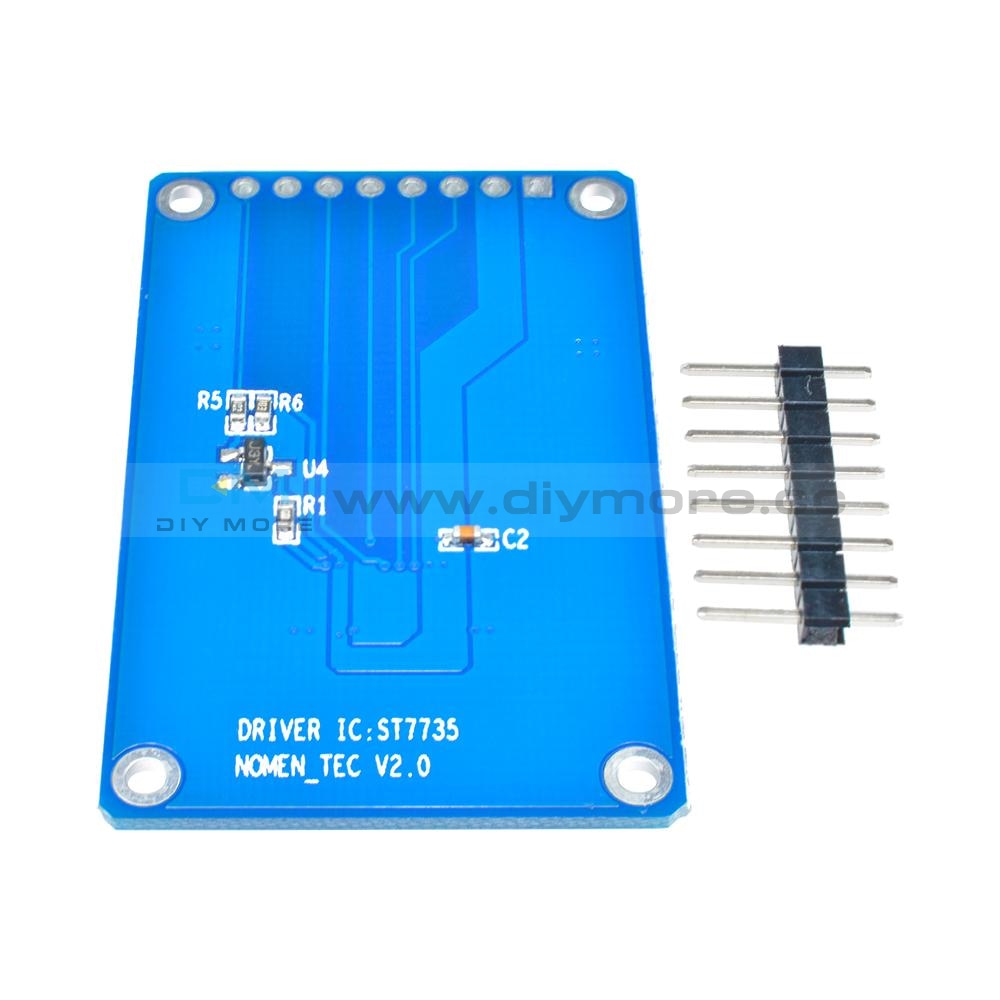

Driver IC: ST7735S
Resolution: 128*RGBX128
PIN feet: 8 pin (SPI serial interface)
PIN feet spacing: 2.54mm
Connection mode: Row needles
3V3: 3.3V POWER INPUT
GND: Grounding power communication system
SDI: SPI DATA input
SCL: spi clock signal input
CS: spi chip select signal input
RST: reset
RS: command /data signal input selection
BLK: Backlight control signal input
Resolution: 128*RGBX128
PIN feet: 8 pin (SPI serial interface)
PIN feet spacing: 2.54mm
Connection mode: Row needles
3V3: 3.3V POWER INPUT
GND: Grounding power communication system
SDI: SPI DATA input
SCL: spi clock signal input
CS: spi chip select signal input
RST: reset
RS: command /data signal input selection
BLK: Backlight control signal input
Package included:
1Pcs x 1.44 inch 1.44" 128x128 128*128 65K SPI Full Color TFT LCD Display Module Board LCD Screen SPI IC Replace OLED
Connected to the microcontroller
