18650 Battery Shield V8 Mobile Power Bank 3V/5V For Arduino ESP32 ESP8266 Wifi
18650 Battery Shield V8 Mobile Power Bank 3V/5V For Arduino ESP32 ESP8266 Wifi
SKU:X131292
Regular price
$15.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Feature:
Input overvoltage protection, output overcurrent/short circuit protection, charging timeout/overvoltage protection
Output current up to 3A, efficiency up to 95%
With LED identification percentage electricity metering
Parameter:
This power bank supply has a built-in lithium battery protection IC with overcurrent, overvoltage, undervoltage, etc.
USB port output and mobile power board have extended port 3V and 5V output ports to facilitate customer needs and use, greatly reducing the problem of fewer ports
The 4-level LED light shows the power. The default power-on is always working. It needs to be manually turned off. (If you need to change to the non-working state automatic shutdown mode, just cut the middle line of the “NC” bit or remove the “ROUT” resistor. can)
1.8A charging 3A discharge high integration mobile power IC
Motherboard size: 99.98 * 96.24 * 21mm (L*W*H)
Input port: MICRO USB, type-C, wide voltage, up to 6.5V input
Input requirements: 5V constant voltage power supply can be used as charging power input, matching charger 5V1A or above
Output port: USB or expansion port
Output parameter 5V/3A or 3V/1A
Conversion efficiency up to 95% (high conversion rate)
Working temperature: -20 -70 °C
Usage Instruction:
Click to boot
Long press the button to shut down
4 way LED power status indication, automatically turn off the lights after 3 seconds, the battery is less than 3V alarm 6 under protection, less than 2.4 V full stop, no action
Battery current is as low as 3μA after standby
Intelligent input and output, don't worry about charging time is too long
Application:
Power Bank
Other battery powered devices
Precaution:
Do not reverse the positive and negative, human factors cause damage at your own risk, do not reverse
The battery voltage works normally at 3.2V-4.2V. Do not connect the batteries in series. The series connection will increase the voltage. If the battery capacity is increased, the battery can be connected in parallel. Do not connect in series.
When the battery is reinstalled, the chip may detect the power-off protection mechanism. It needs to be recharged and activated. This is normal!
Package Included:
2 * ESP32S WeMos 4 PCS 18650 Lithium Battery Charging Shield Board
This module is a portable mobile power supply that supports 3V / 1A and 5V / 2.2A two voltage outputs.
The nominal 5V voltage output current is 2.2A, maximum current capacity of 3A (not recommended for overload, easy to damage the module, speed up the service life), the current output depends on the quality of the battery 18650
MICRO USB 600mA-800mA charging current,
Supports up to two 18650 batteries. It is recommended to use two 18650 batteries, which may be longer.
Package:
2pcs* 18650 Battery Shield V8
Special attention: the battery installation must be positive and negative, the plate has been clearly marked positive and negative. Installation errors will burn the module.
Battery protection (over charge or over discharge)
Micro USB input port
USB type A output
0.5A current load
1 USB output control switch
5 ~ 8V input voltage
3V and 1A output
5 V output and 2A
LED indicates (green means full, red means charging)
3V output Port x3
5V output Port x3
Be careful with "+" and "-", you must follow the "+" - "address on the PCB.
If you put an incorrect address, the loading chip will be destroyed.
This item does not include 18650 battery.
Size: 9.8 x 2.9 cm / 3.86 x 1.14 inches
Quantity: 1 Set
1. There may be 1-2cm error due to manual measurement. Make sure you don't mind before you bid.
2. Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package:
2pcs* 18650 Battery Shied V3
Description:
USB 2.0 high speed cable
Compatible with mobile phones, GPS systems, PDAs, OTG devices and digital cameras
Cable Length: 30 CM
Meets cable specifications fully rated using braid and foil shielding protection
30 CM USB A Micro USB B 5pin Cable provides a USB a male connector and a Micro USB B connector to create a simple way to connect mobile devices to a computer with USB capability for daily tasks such as data synchronization and file transfers.
The micro-USB connector is smaller and thinner than the previous USB Mini-b standard and offers better performance.

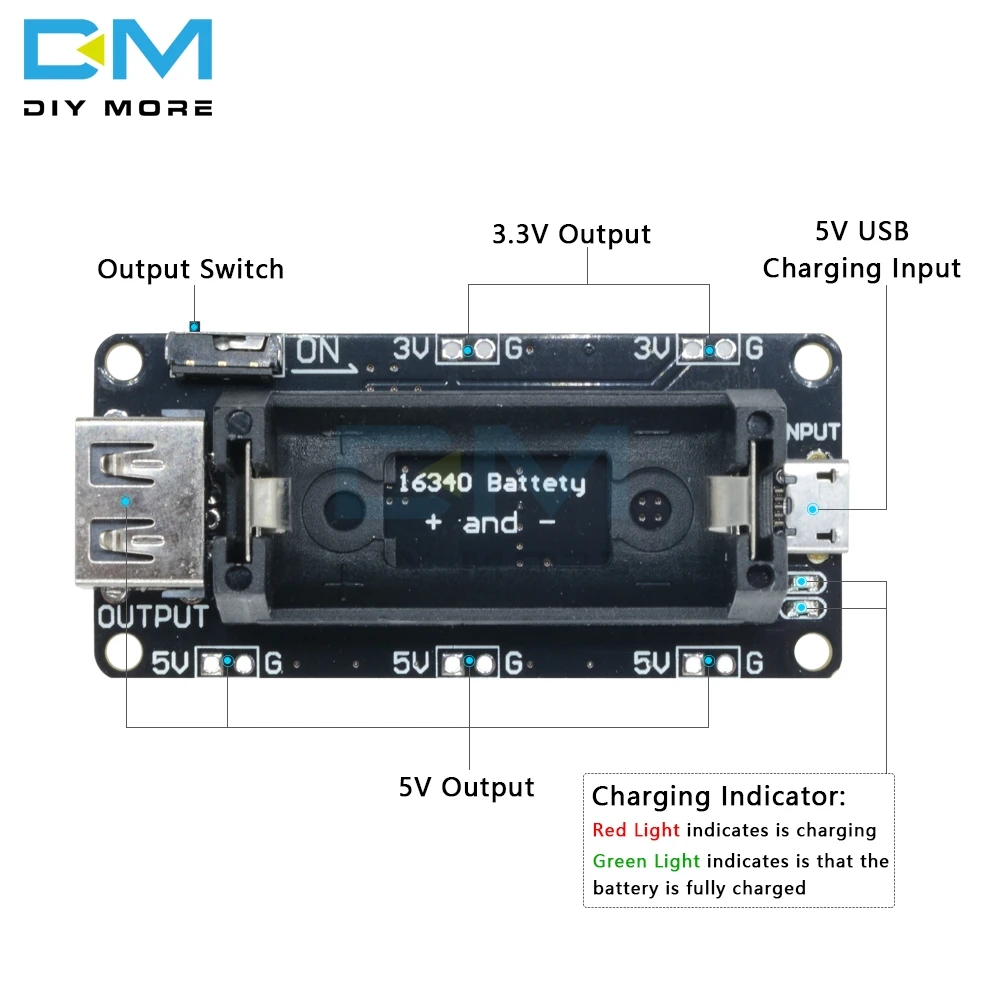

16340 Power Bank
Product characteristics:
1. 16340 lithium battery adapter;
2.5V and 3.3V dual output;
3. Lithium battery protection integrated circuit with overcurrent, overvoltage, under voltage and short circuit protection;
4. Integrated battery anti-reverse protection;
5. The toggle switch can freely rotate the output.
Technical Parameters:
Charging interface: MicroUSB (Android port)
Charging voltage: 4.5V ~ 5.5V
Charging current: 580mA max.
Output interface: 2.5mm male connector and standard USB plug
5V output current: 1.3A max.
3.3 V output current: A max.
Charge indicator: red light during charging, full green light
Product size: length 60mm * width 28mm * height 16mm.
Dual 16340 rechargeable lithium charging card
Our engineers have carefully designed an arduino mobile power supply. Our design can eliminate the independence of the adapter. You can take out your artwork and share it with your friends anytime, anywhere. Isn't it great?
The mobile power is stacked on the Arduino board and works through the 5 V / GND pin. We also offer a USB-A output interface that you can use to connect to other devices with a USB cable. The charging interface is micro USB, and the charging tool is very convenient to obtain (such as: for Android mobile phone adapter). When it stops, it is recommended to turn off the power output and allow the mobile power source to enter the standby state, thus saving limited battery power.
We use a 16340 lithium battery (you need to buy it yourself), you can only use one battery, you can also use 2 batteries to get a longer life. Two 16340 lithium batteries (depending on battery capacity) Capacity of approximately 1500 mAH.
Lithium battery model: 16340
Charging current: 500mA
Discharge current: 1000mA
