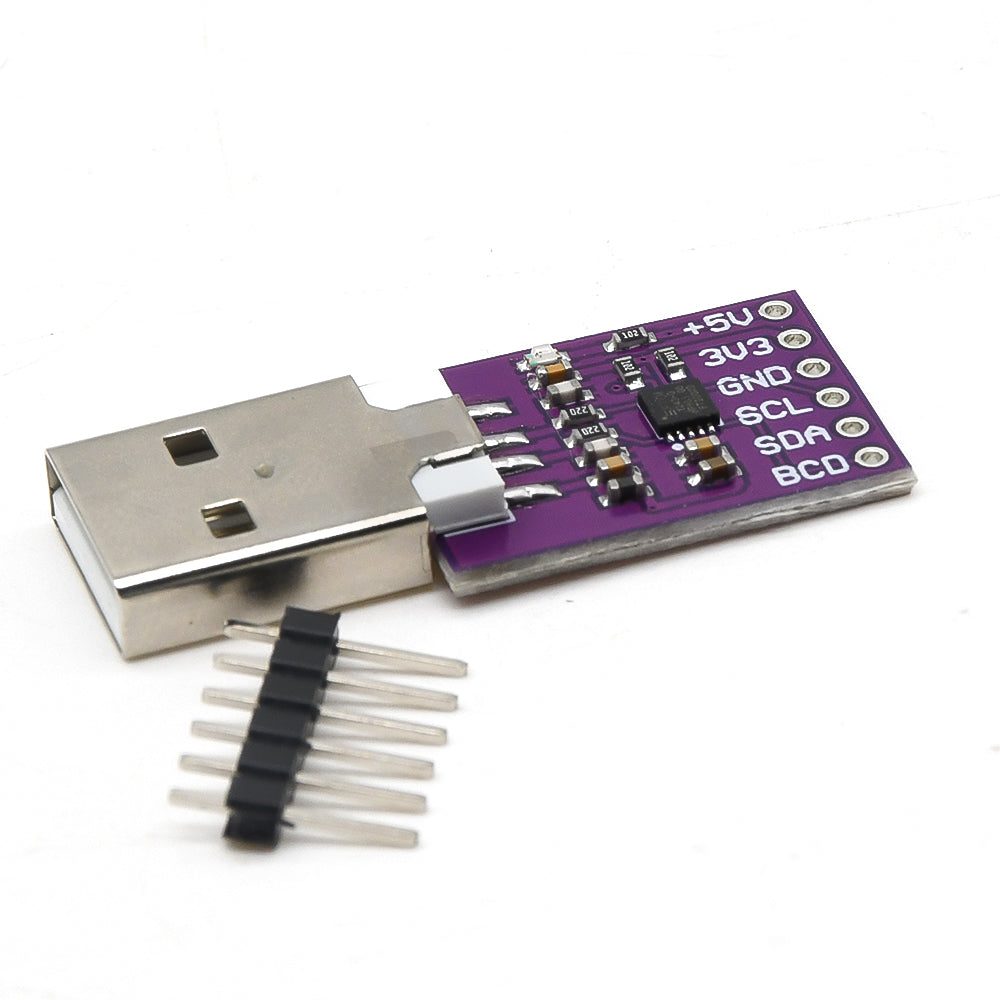

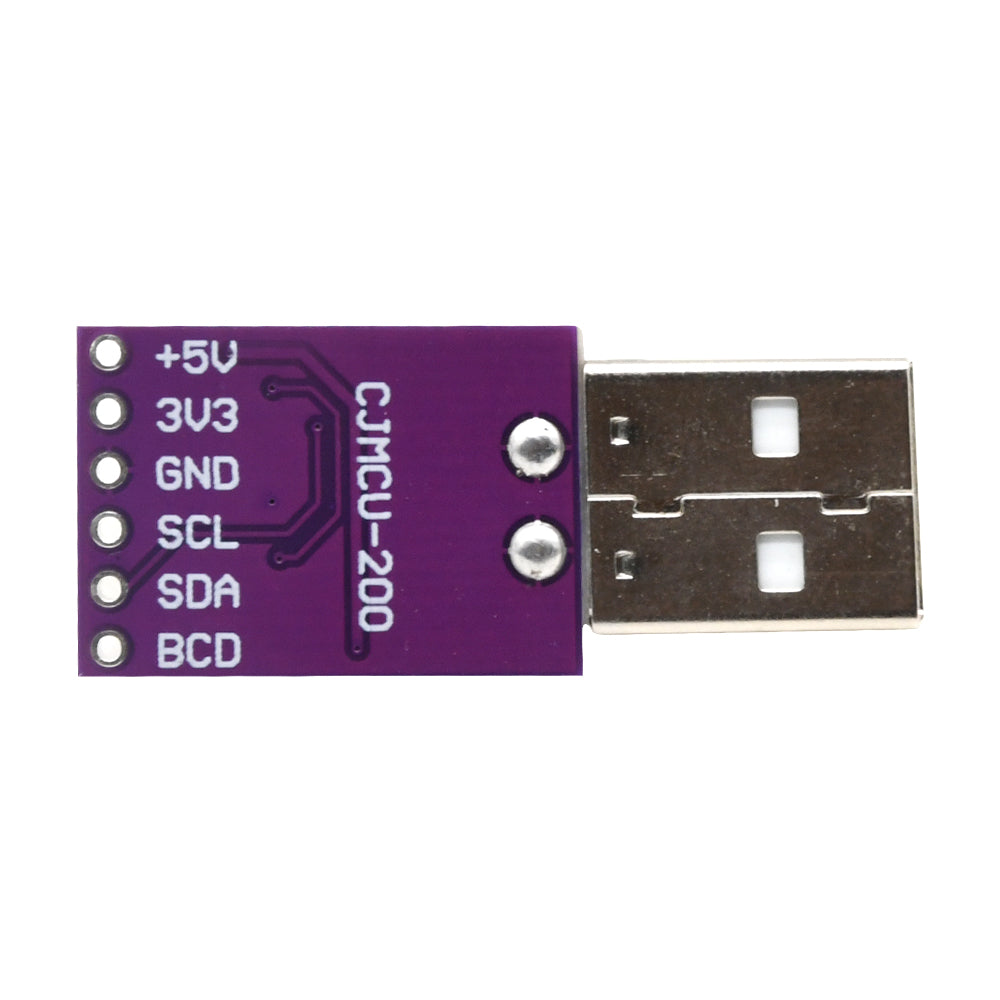

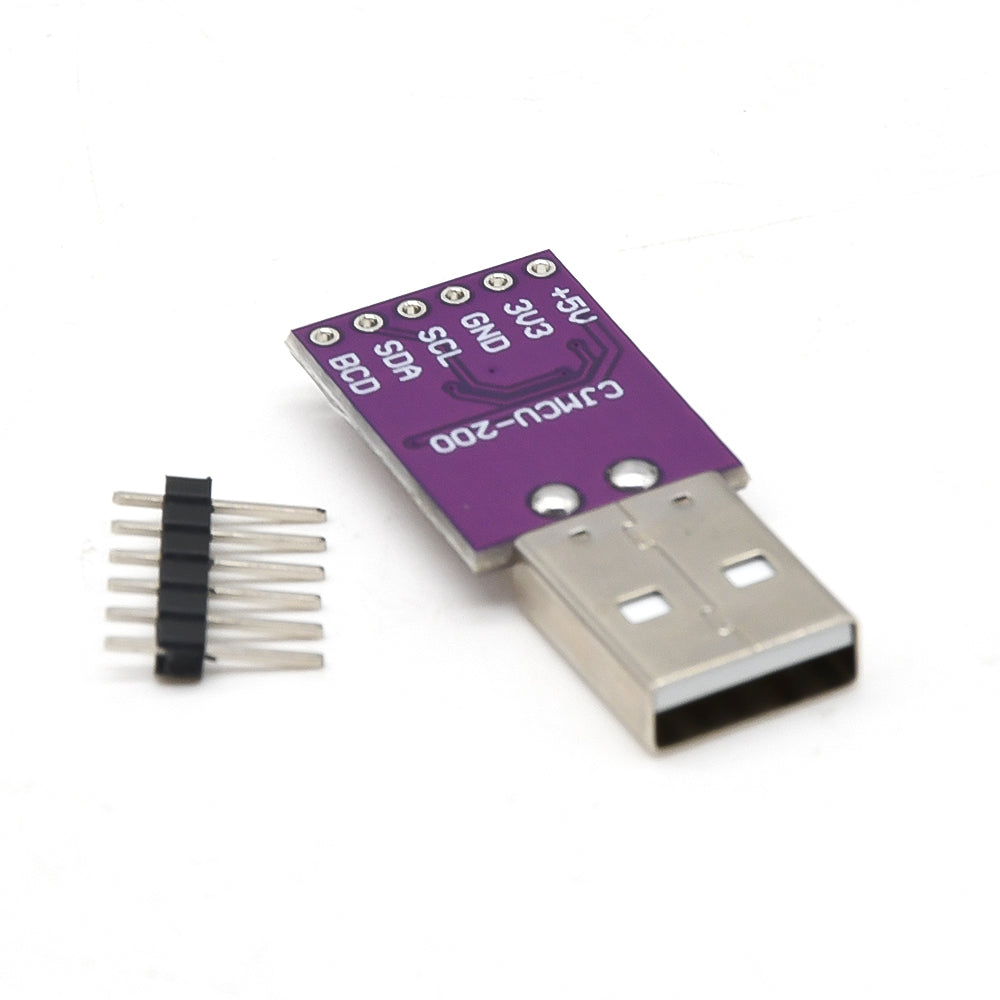

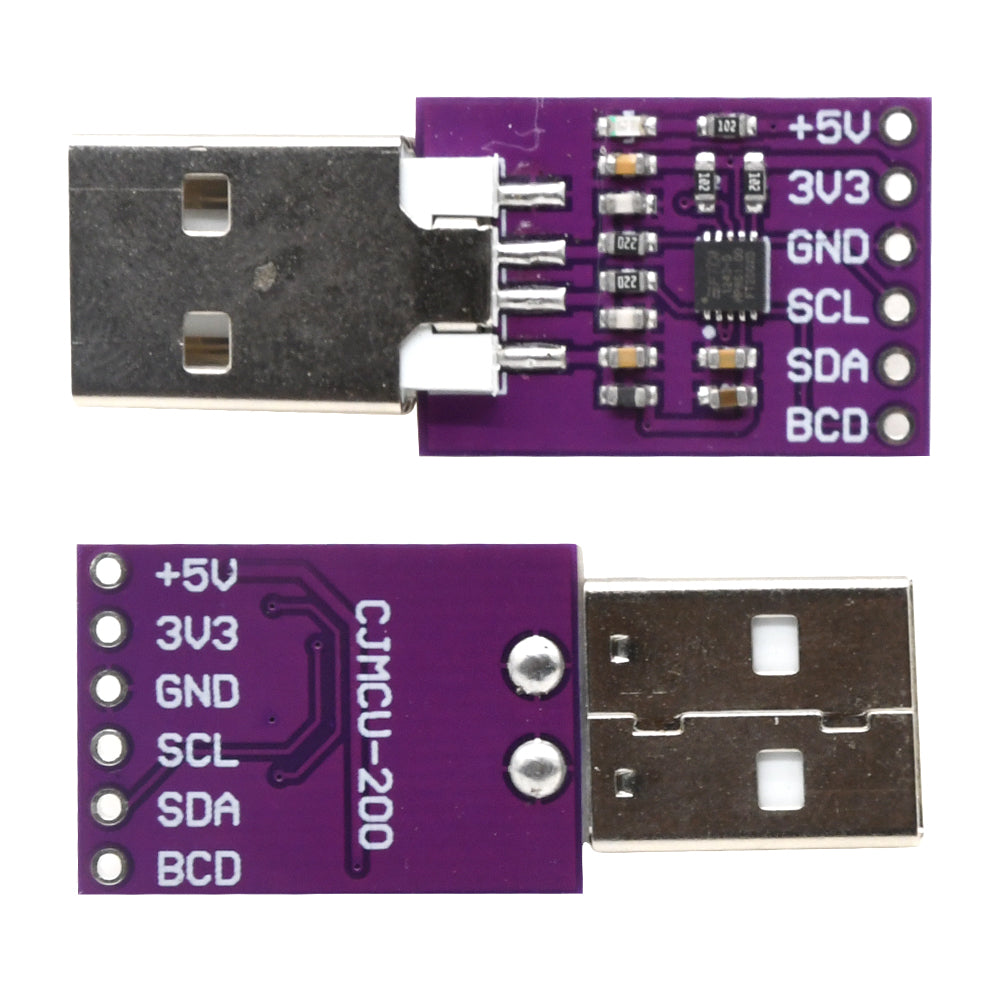

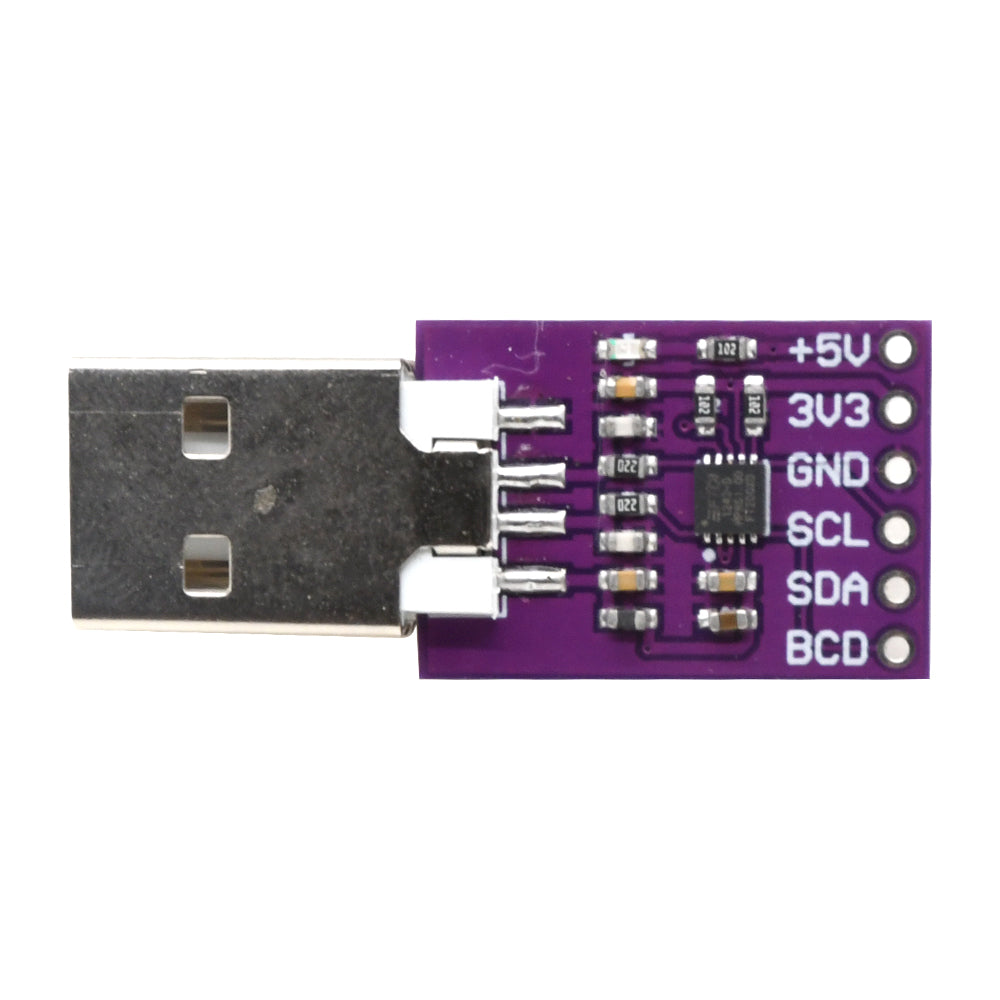

1PC CJMCU-200 FT200XD USB to I2C module Full Speed USB to I2C Bridge L4X3
1PC CJMCU-200 FT200XD USB to I2C module Full Speed USB to I2C Bridge L4X3
SKU:XF0056
Regular price
$7.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Description:
- The FT200XD is a USB to I2C interface with the following advanced features:
- Single chip USB to I2C interface.
- Up to 3.4 MHz, high speed mode, I2C compliant.
- All USB protocol is handled on the chip, no USB specific firmware programming required.
- Fully integrated 2048-byte multi-time memory storage device (MTP) descriptors and CBUS I / O configuration
- Fully integrated clock generation without the need for external crystal and optional clock output selection allowing a glue-free interface for external MCU or FPGA
- 512-byte receive buffer and 512-byte transmit buffer
- USB power configuration, bus-powered, self-powered, and bus-powered with power switching
- Integrated + 3.3V level converter for USB I / O
- True 3.3 VCMOS drive output and TTL input, runs up to 1 V8 with external pull-ups, 5V input tolerance.
- Configurable I / O pin output power, 4 mA (min) and 16 mA (maximum).
- Integrated ignition and reset circuit.
- Fully integrated AVCC supply filtering, no external filtering required.
- +5 V single supply operation
- Internal 3V3 / 1V8 LDO regulators
- Infos download from here!
Package include:
- 1 x 200 FT200XD USB to I2C module.
