2S 10A 8.4V 7.4V 18650 Lithium Protection Board BMS PCM PCB Li ion Lipo 2 Cell Pack with Balance Function Charger Protect Module
SKU:012759
Regular price
$4.99 USD
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155

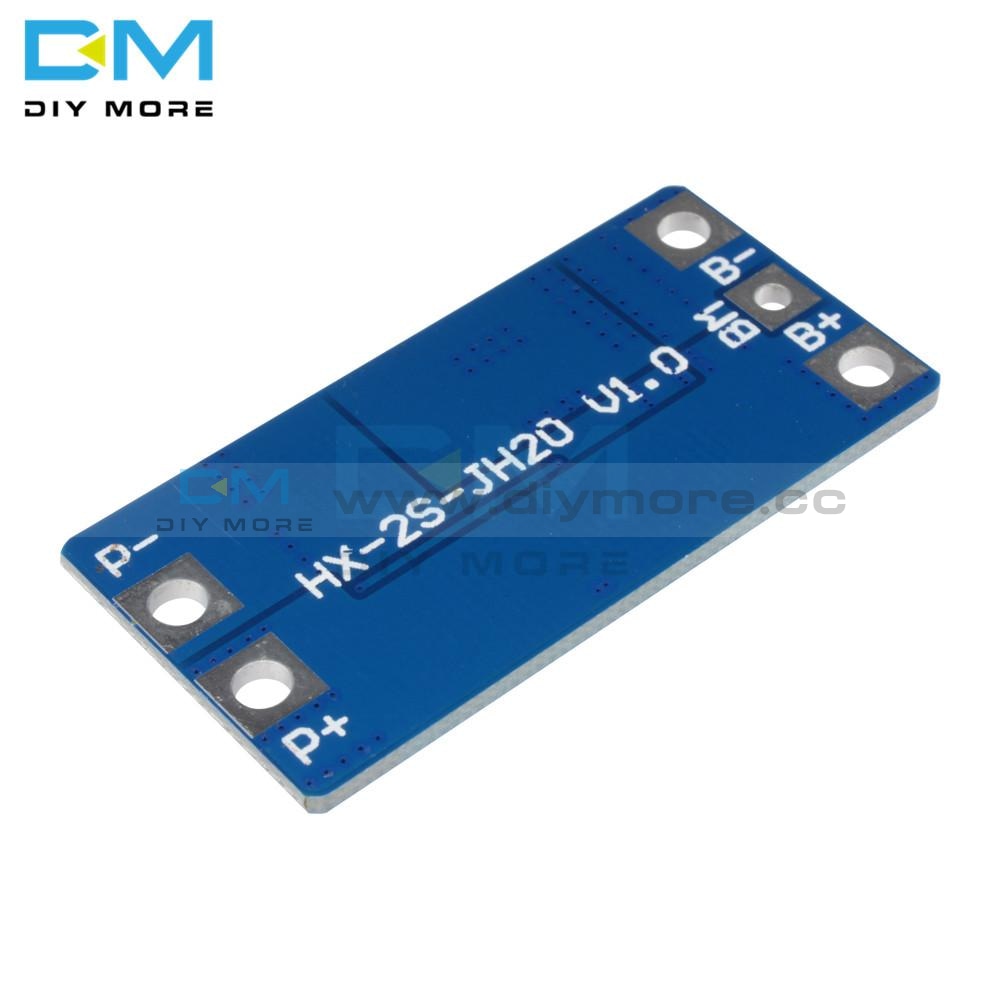

Model: HX-2S-JH20 overcharge voltage range: 4.25-4.35v ± 0.05v
Size: 46.7 * 23 * 3.15mm Over discharge voltage range: 2.5-3.0v ± 0.05v
Upper working current: 10A Operating temperature: -40 --- +50 °
Upper limit instantaneous current: 20A Storage conditions: -40-- +80 °
Quiescent current: less than 10uA Effective life: more than 50,000 hours
Internal resistance: less than 300mΩ Short circuit protection: can be protected, need to charge recovery
Charging voltage: 8.4V-9V

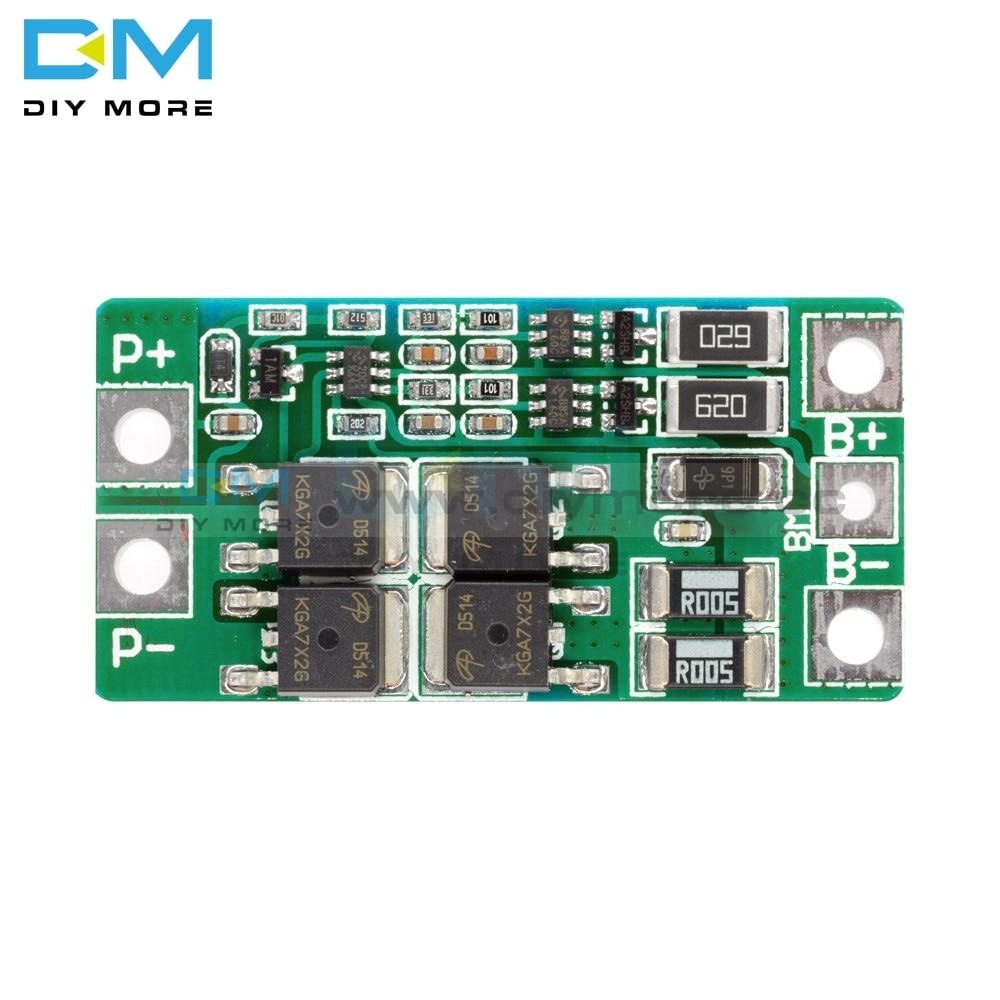

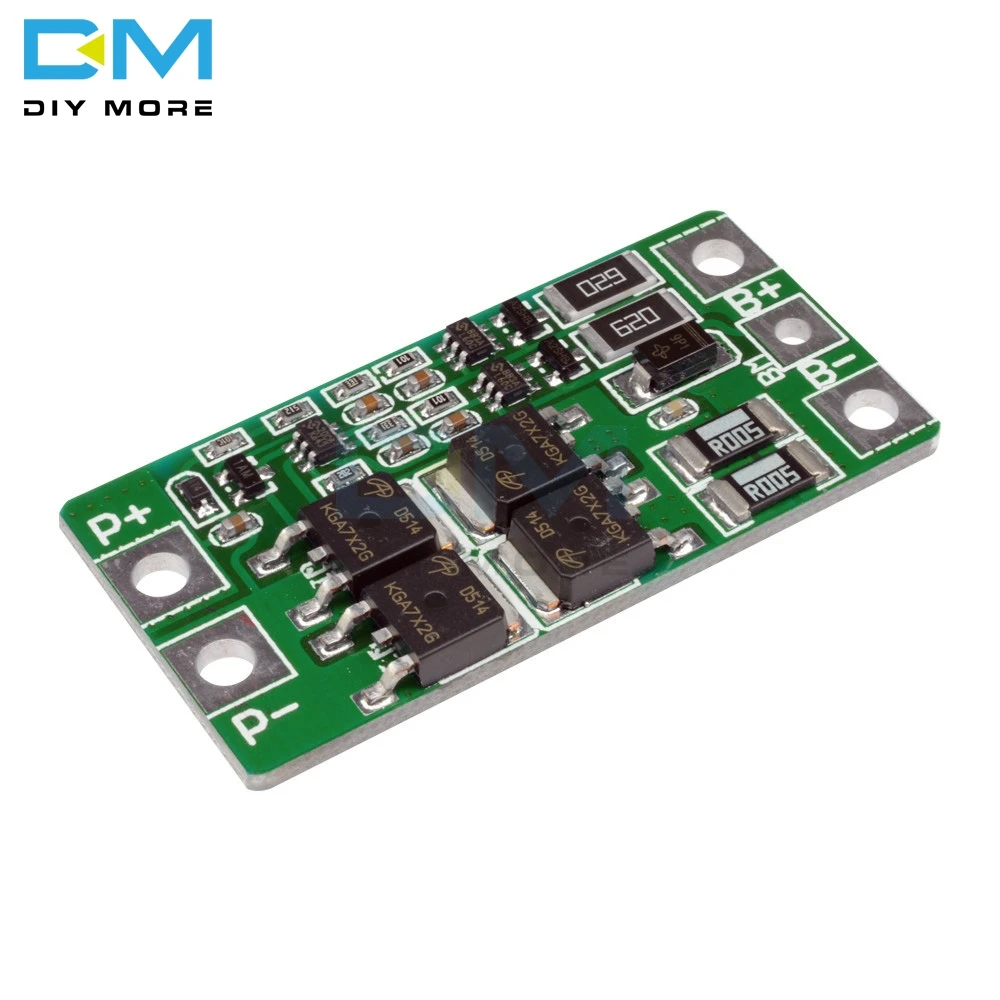

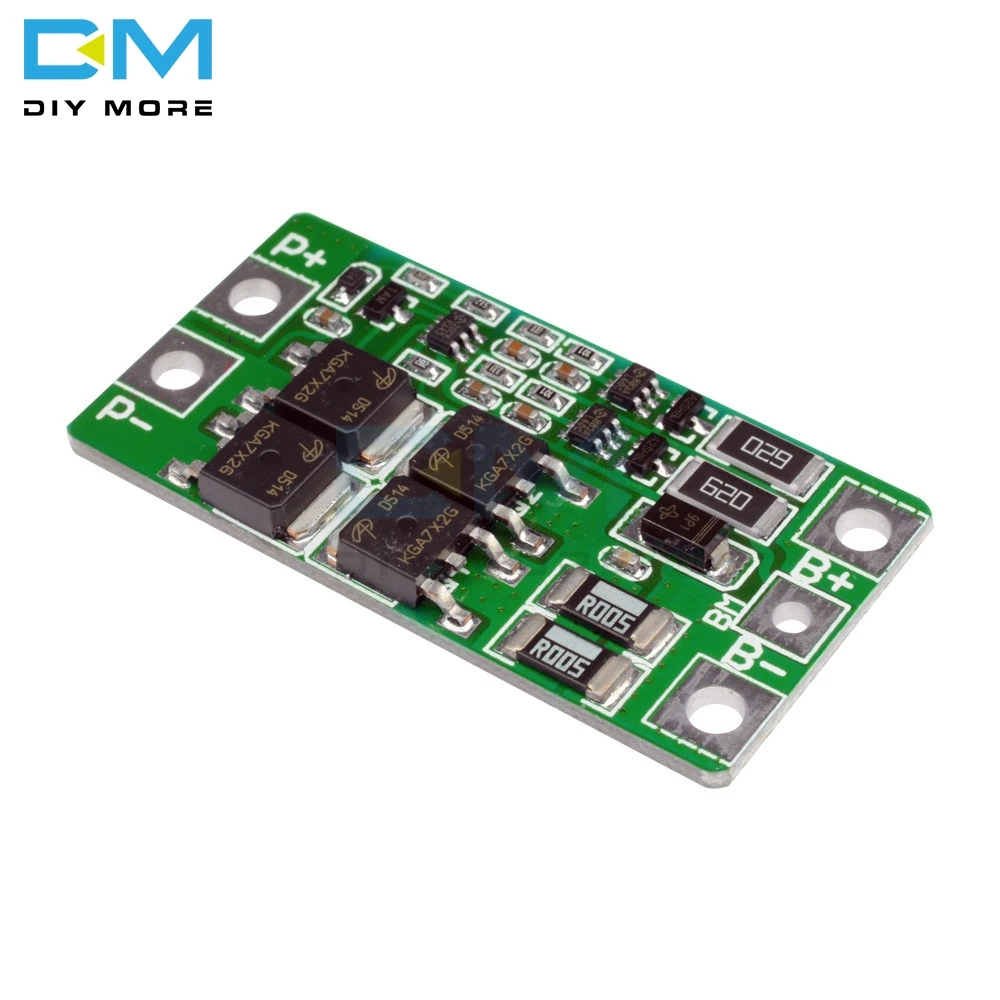

The protection board size and device description;

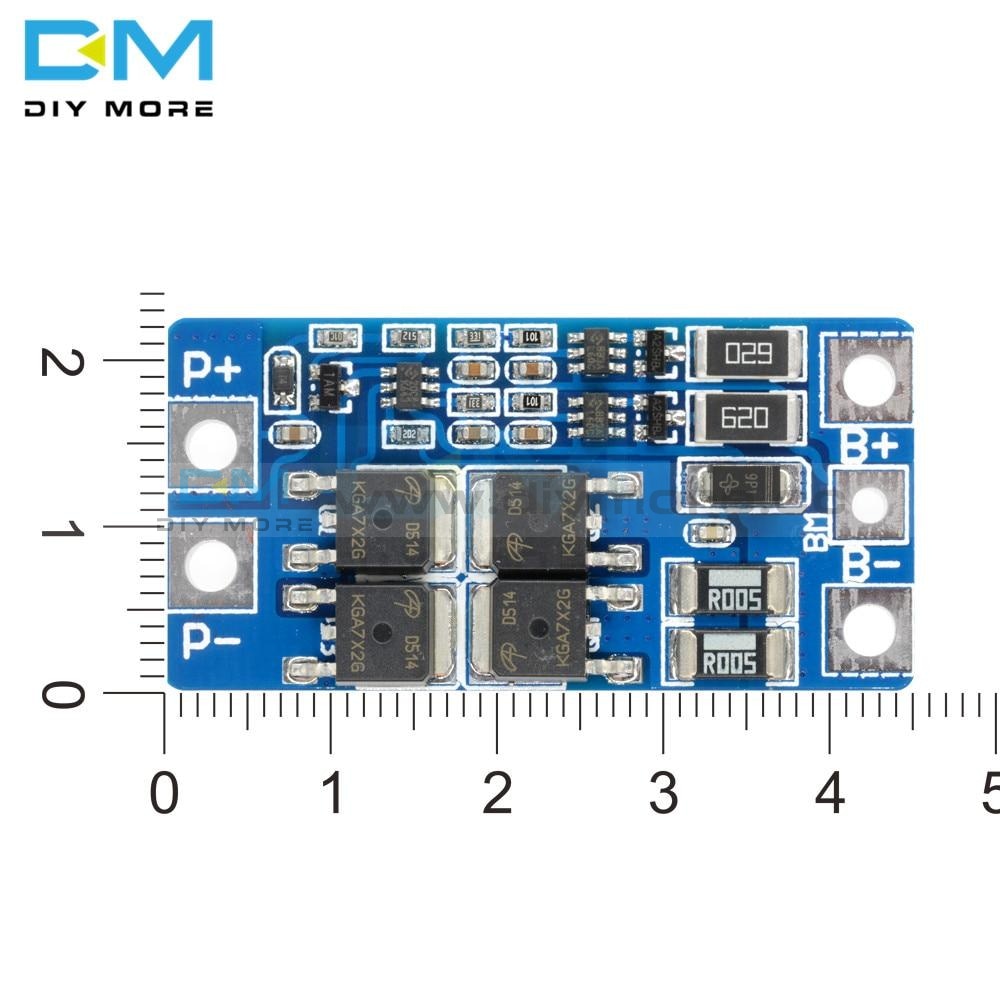

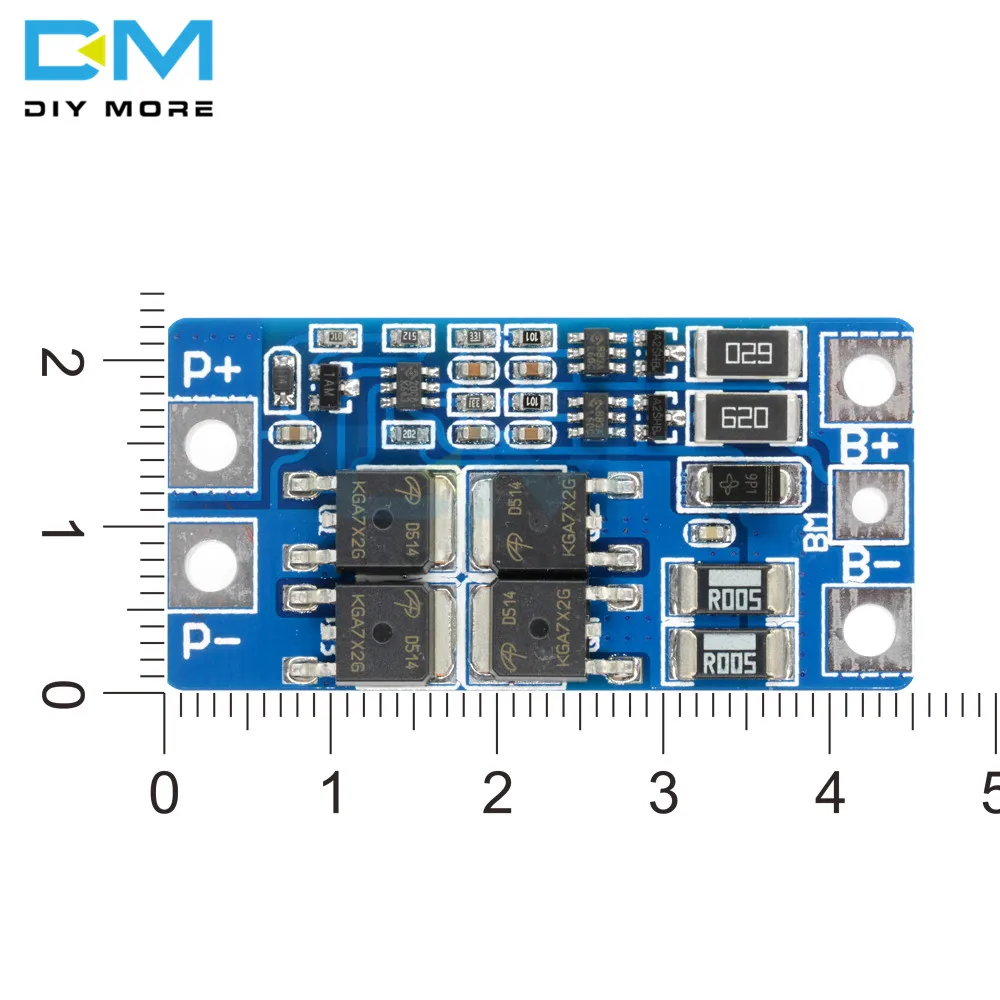

The size of the protective plate is 46.7 * 23 * 3.15mm

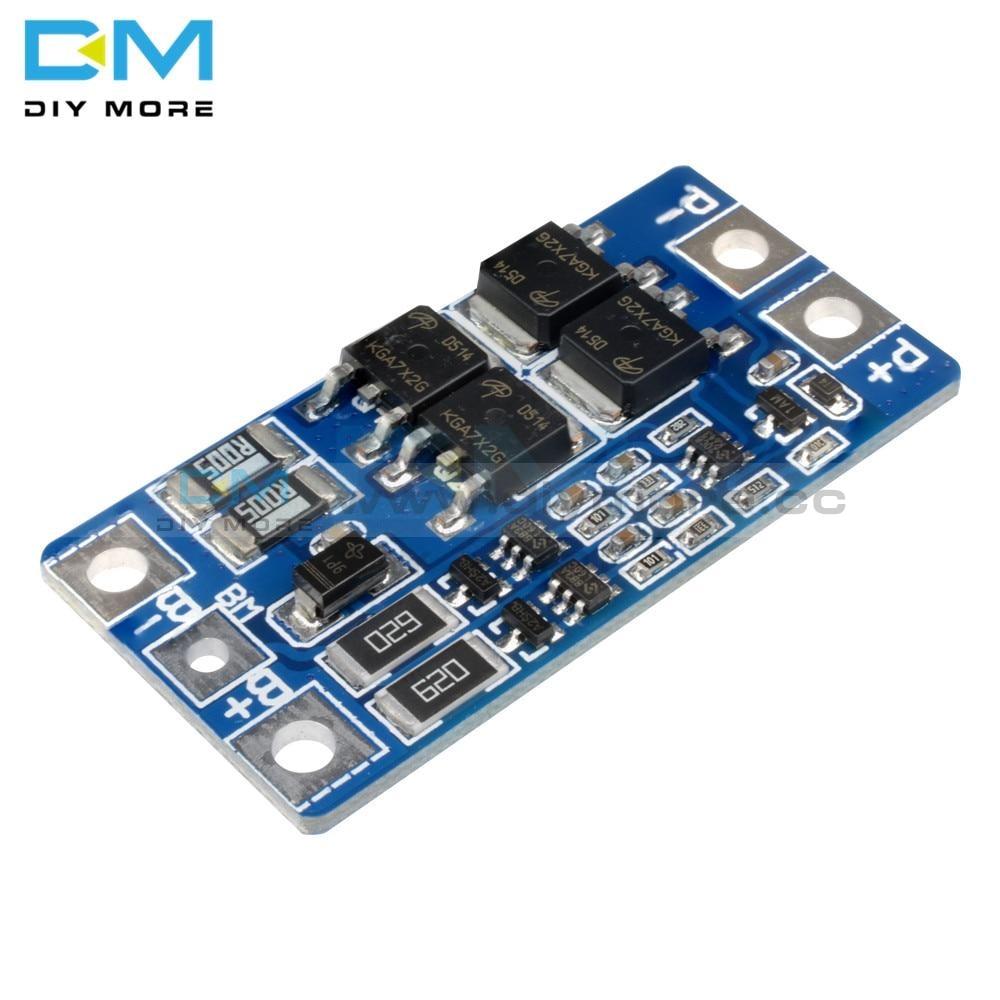

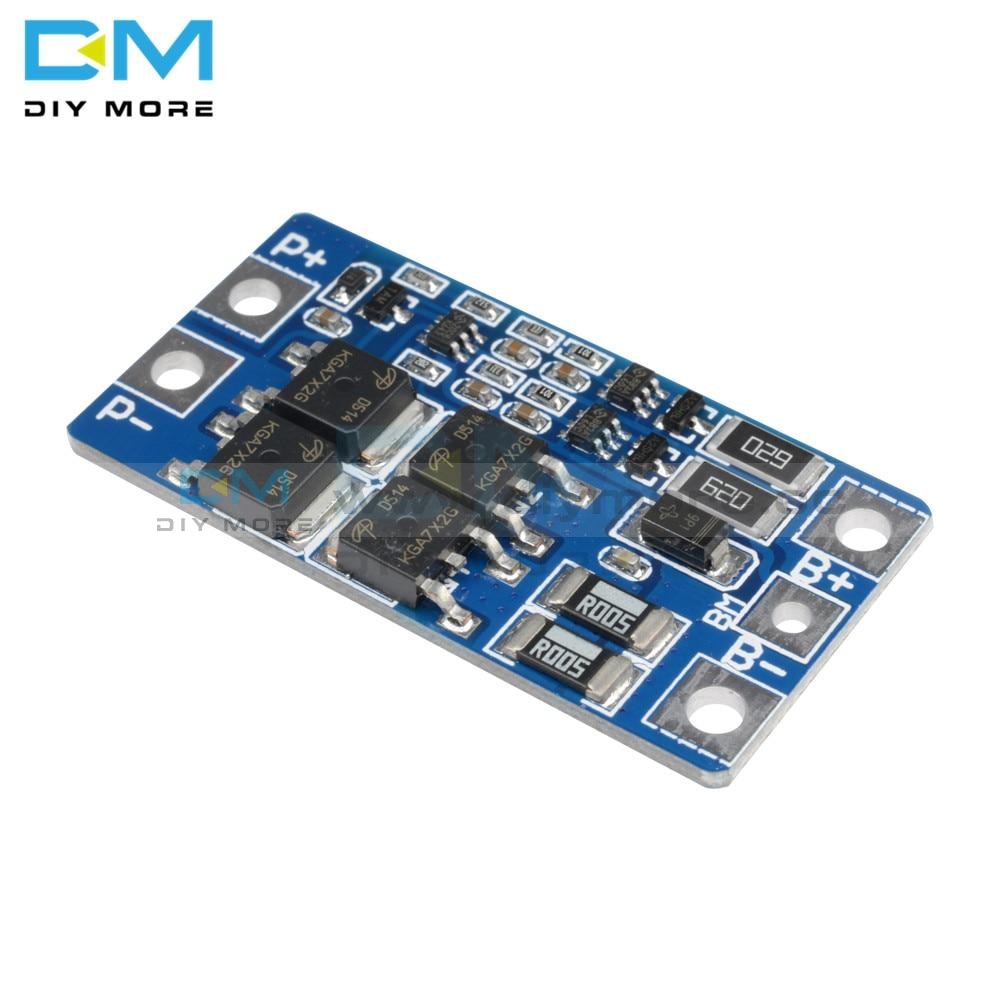

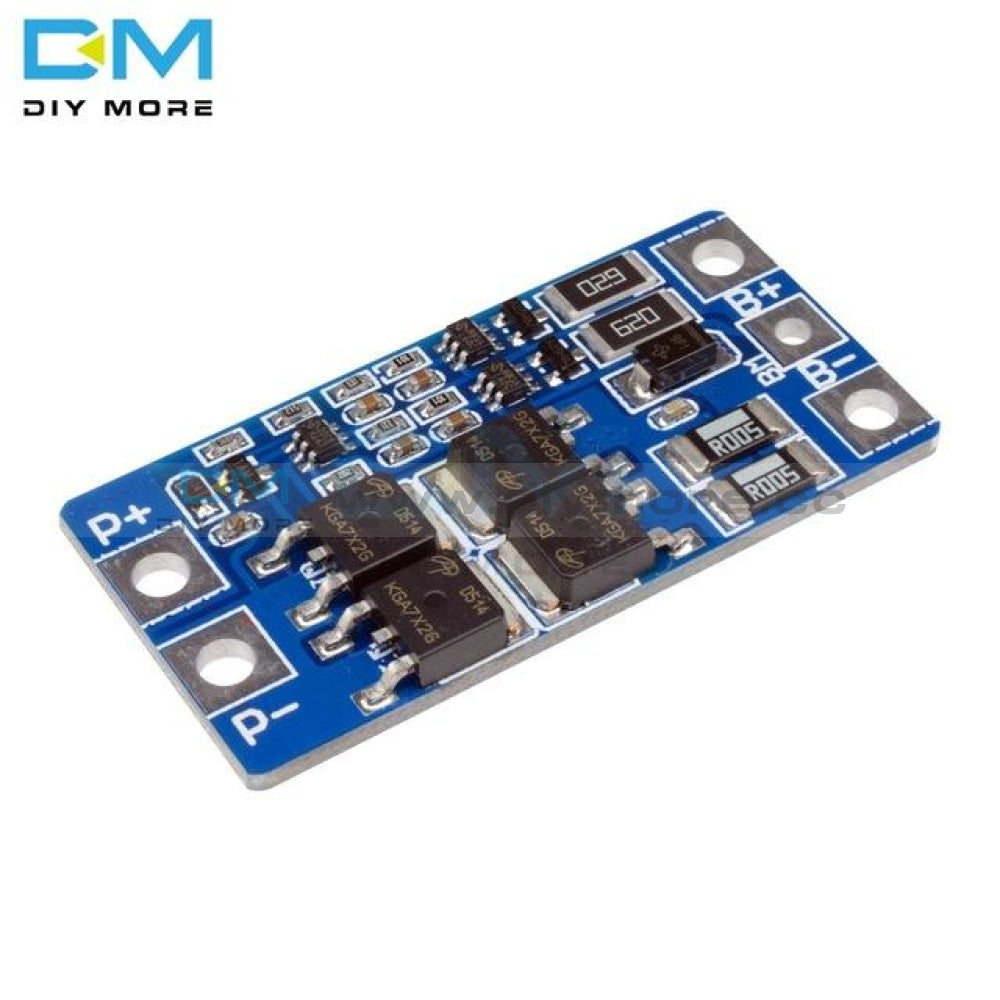

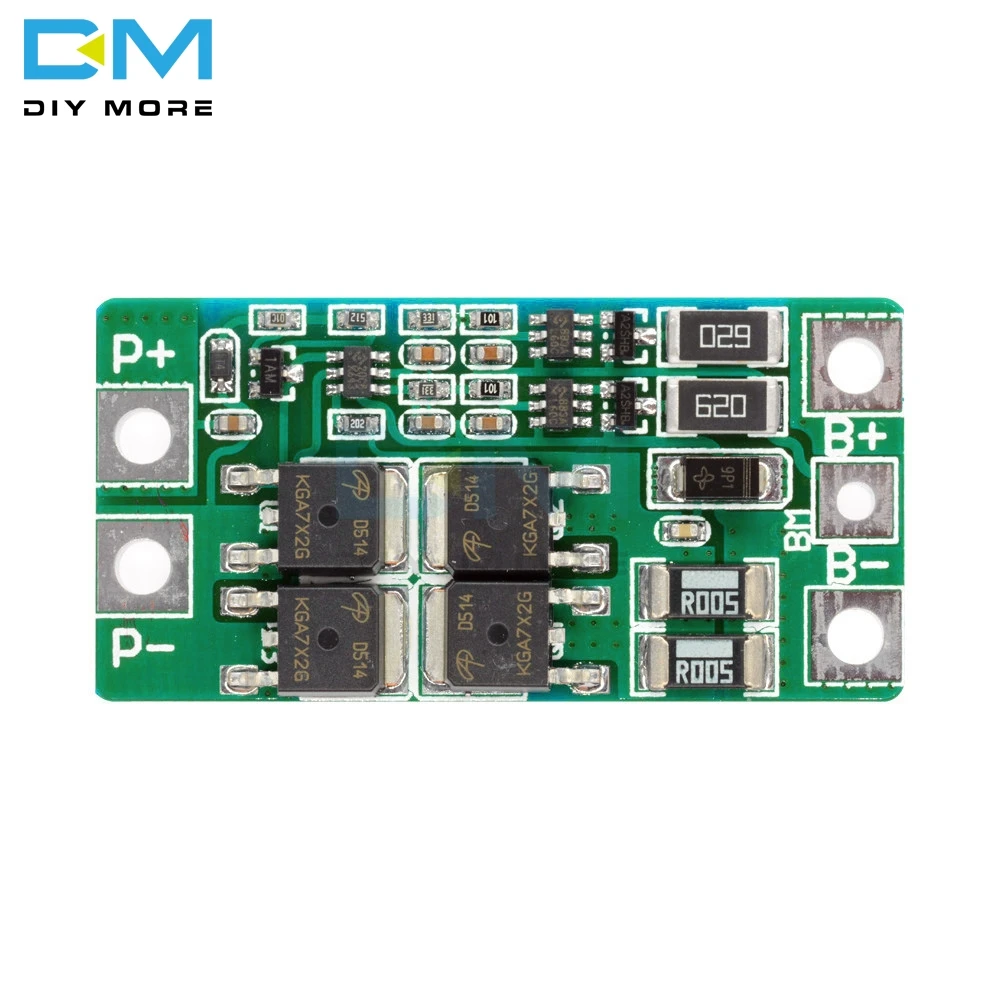

Welding point Description:
· B + connected to the battery positive;
· B-connected battery negative;
· MB connects the battery 1 to the connection point before the battery 2;
· P + connected to the charge / discharge side of the positive (charge side / discharge side shared);
• P-connect / discharge terminal negative (shared with charge / discharge).
