3S 10A PCB Li-ion 18650 Lithium Battery Protection Charger Board 11.1V 12.6V
3S 10A PCB Li-ion 18650 Lithium Battery Protection Charger Board 11.1V 12.6V
SKU:X13014
Regular price
$4.99
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Product description

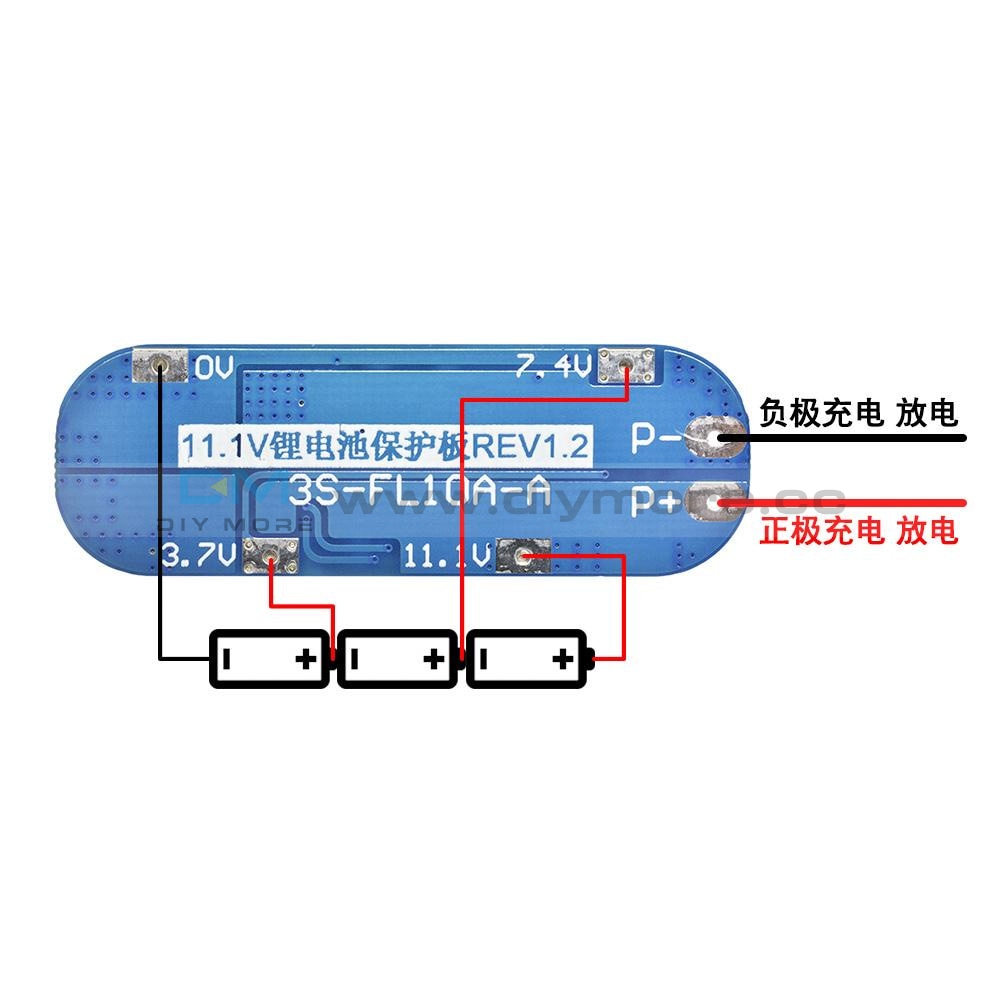

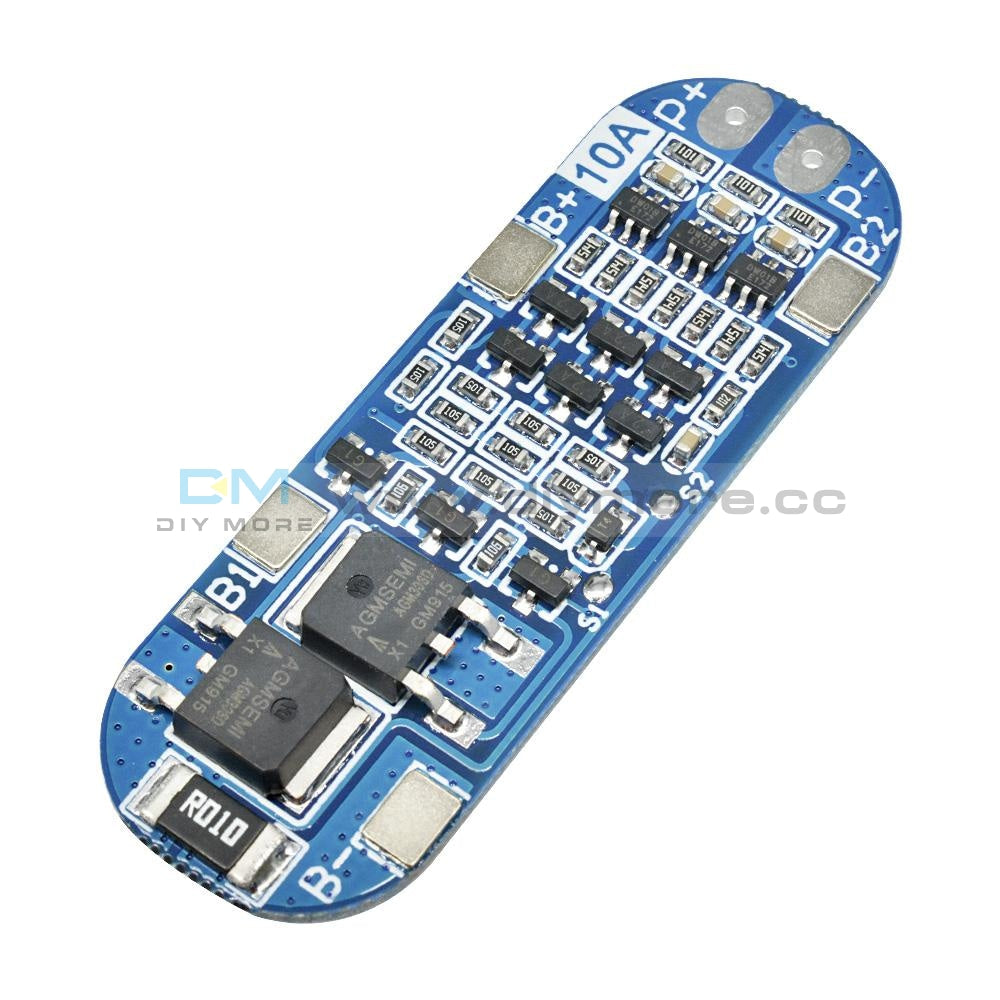

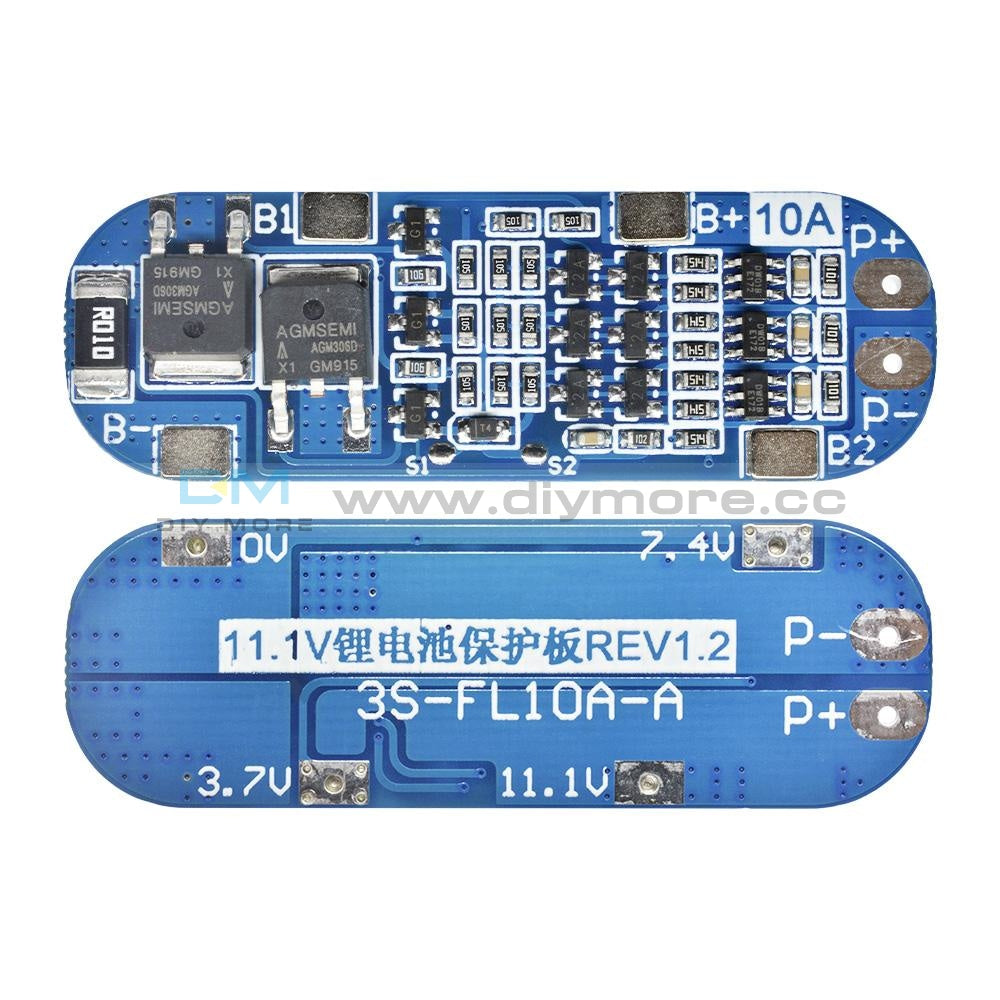

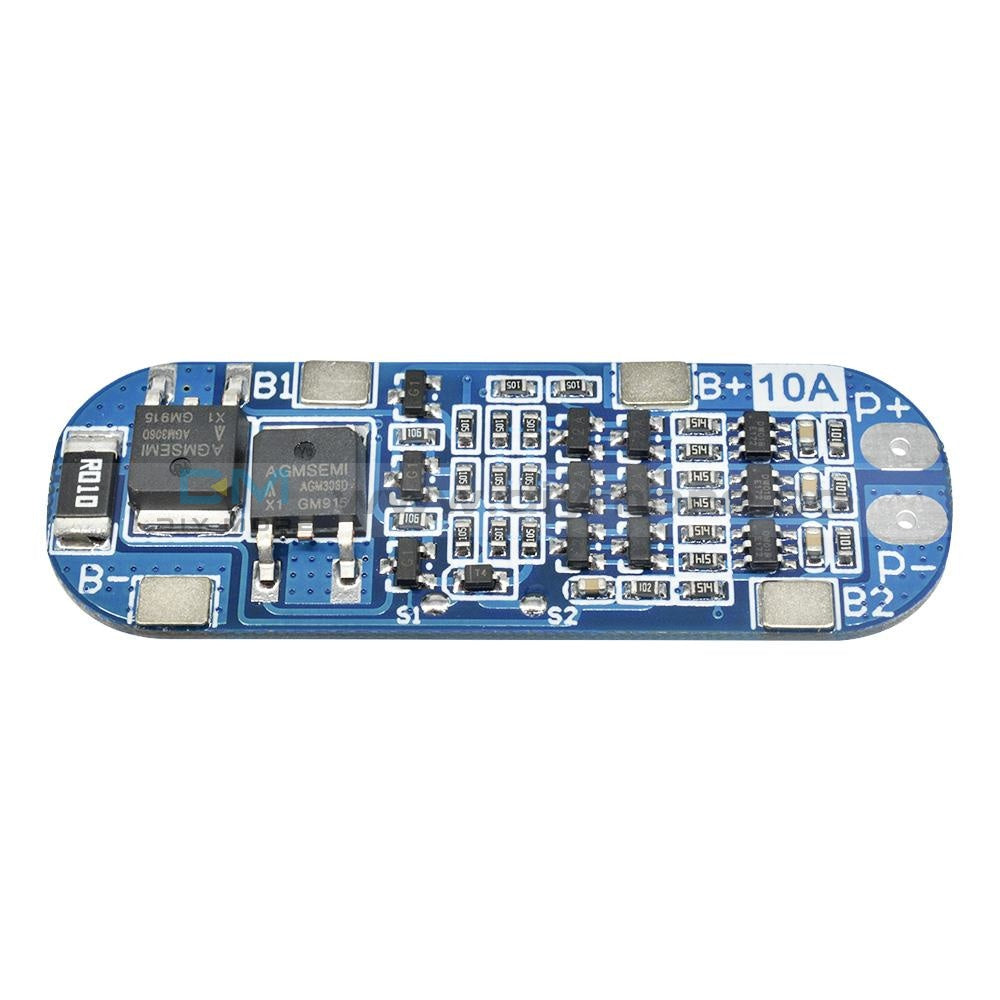

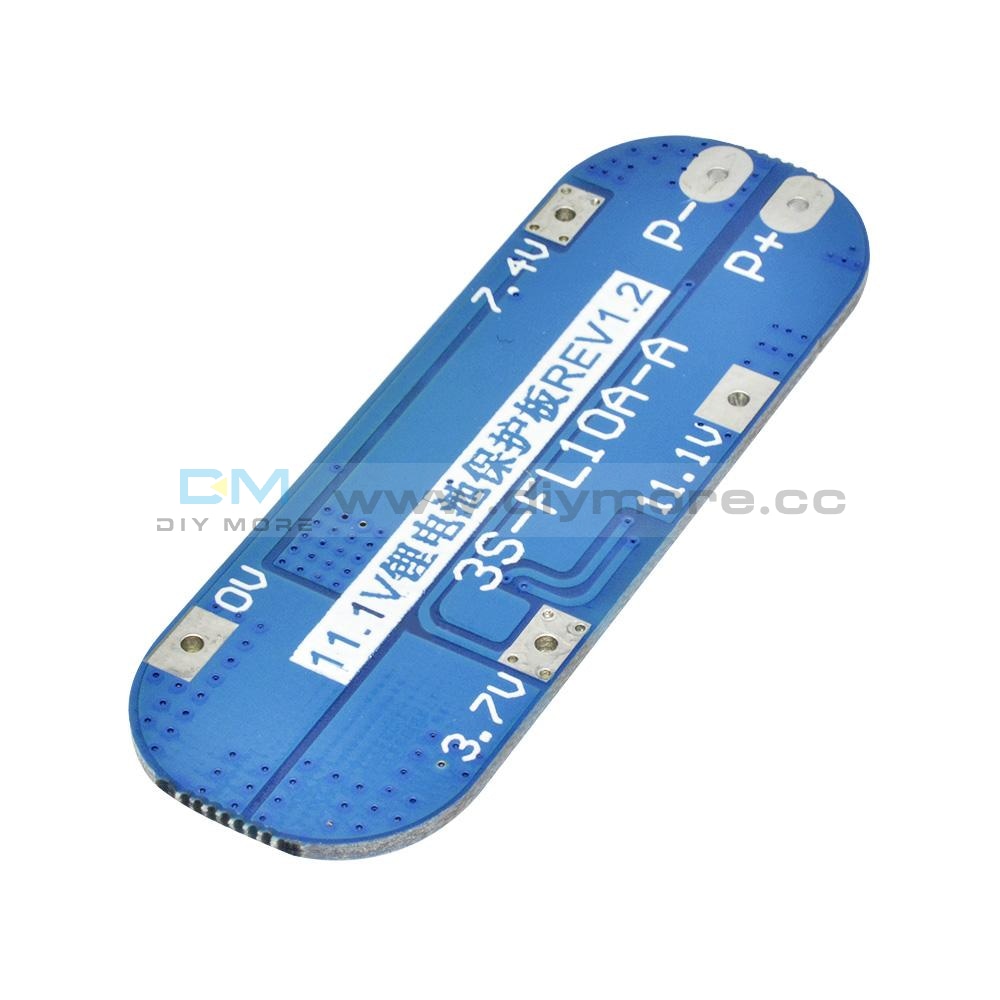

3 s 10A Li-ion 18650 lithium battery protection charger Board 11.1 V 12.6 V
The attribute of the protection board of the lithium battery:
Model: HX-3 S-FL10-a load voltage range of 4.25 +/- 0.05 V to 4.35 V
Size: 53 * 17 * 4.0mm discharge voltage range: 2.3 +/- 0.05 V to 3.0 V
Maximum working current: 6-8 at working temperature: -40- + 50 ℃
Maximum instantaneous current: 10 to 13 storage conditions: -40- + 80 ℃
Static electricity: less than 30 ua life: more than 30000 hours
Resistance: less than 100 m Ω short circuit, can protect, delay recovery.
Load voltage: 12.6 V-13 v
Size: 53 * 17 * 4.0mm discharge voltage range: 2.3 +/- 0.05 V to 3.0 V
Maximum working current: 6-8 at working temperature: -40- + 50 ℃
Maximum instantaneous current: 10 to 13 storage conditions: -40- + 80 ℃
Static electricity: less than 30 ua life: more than 30000 hours
Resistance: less than 100 m Ω short circuit, can protect, delay recovery.
Load voltage: 12.6 V-13 v
Package Included:
1 x lithium Battery Protection Board
