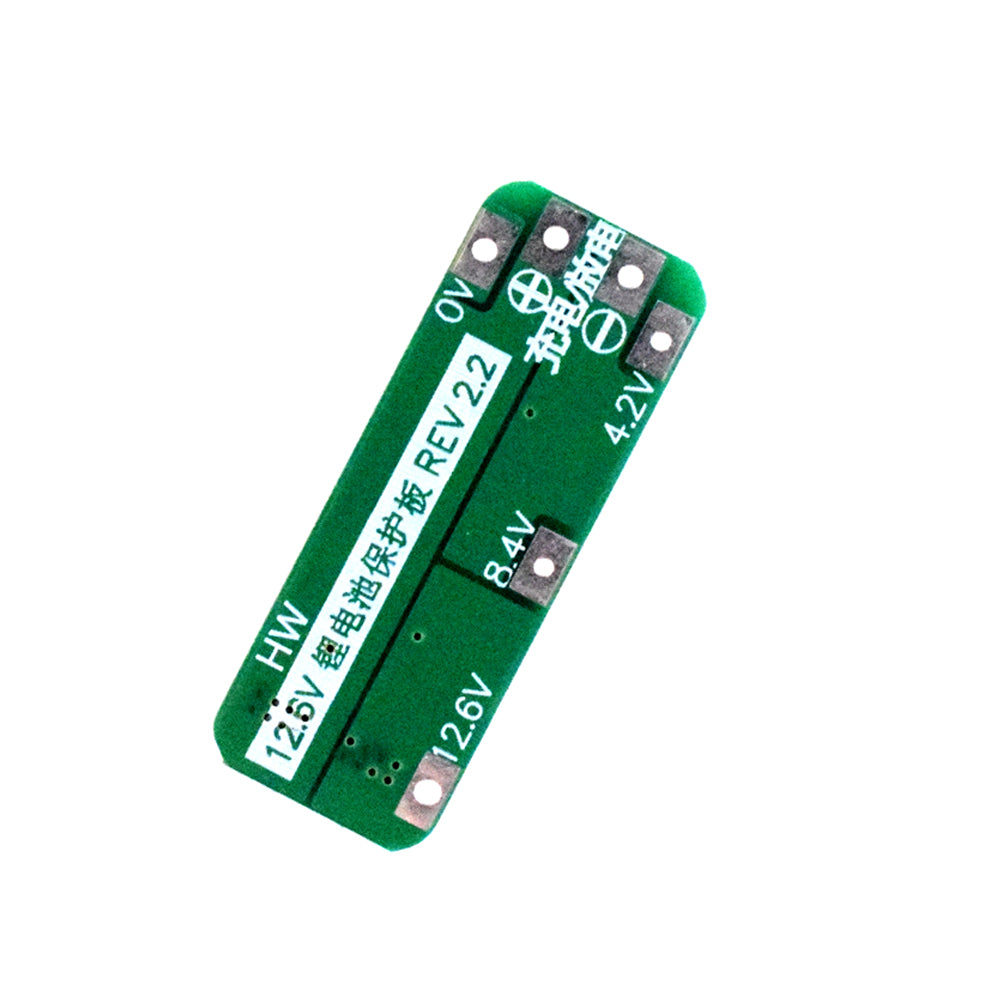

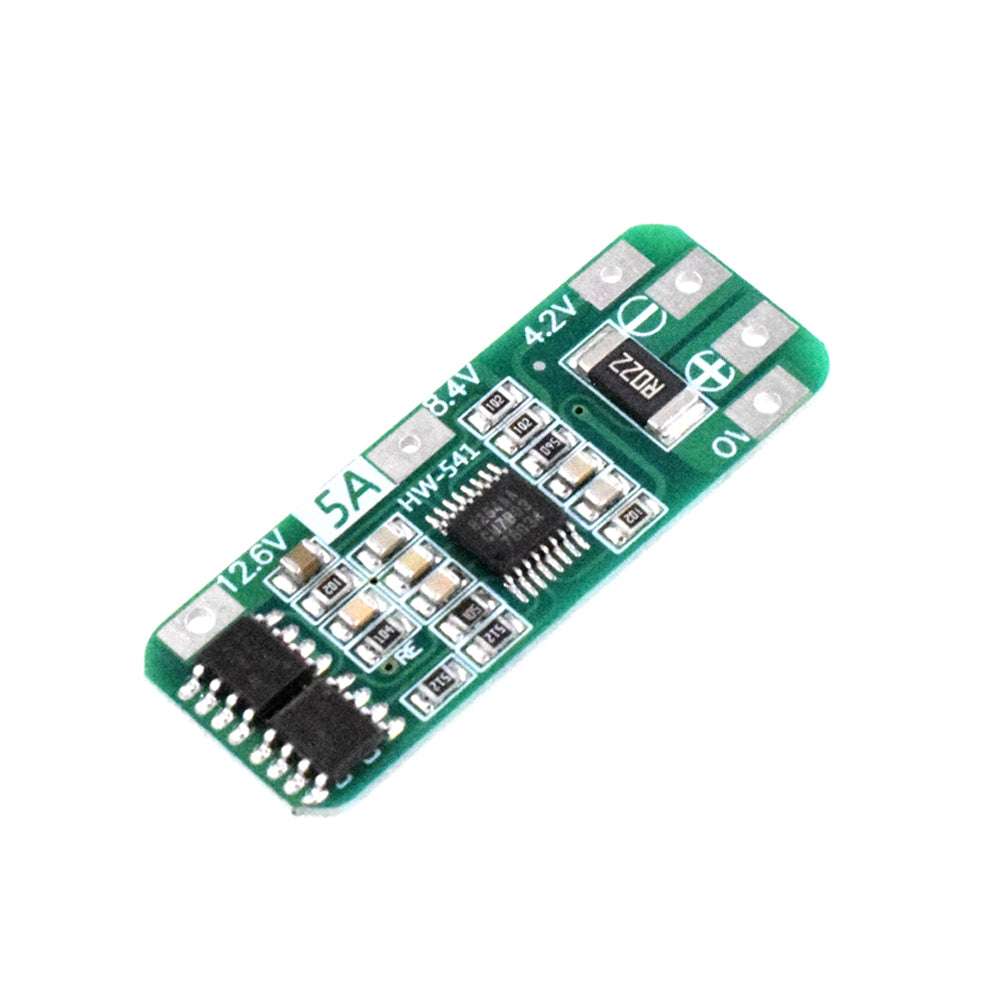

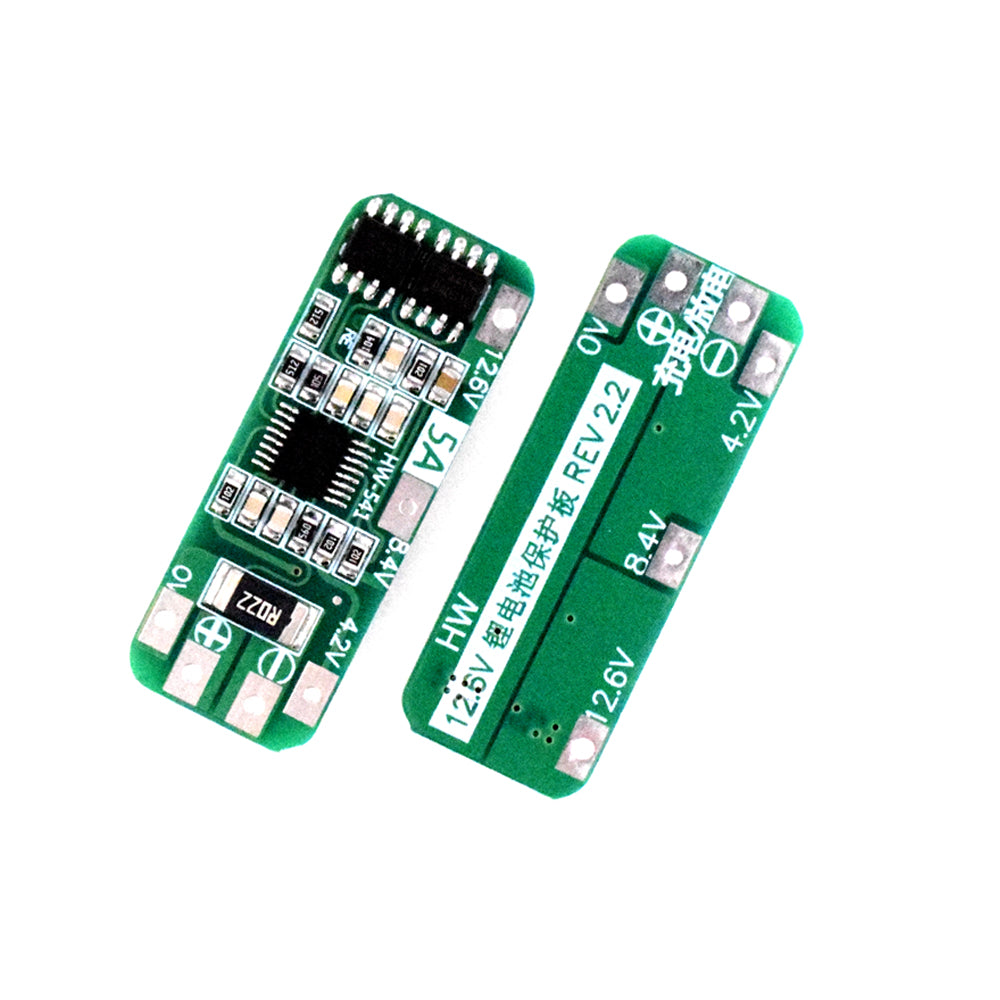

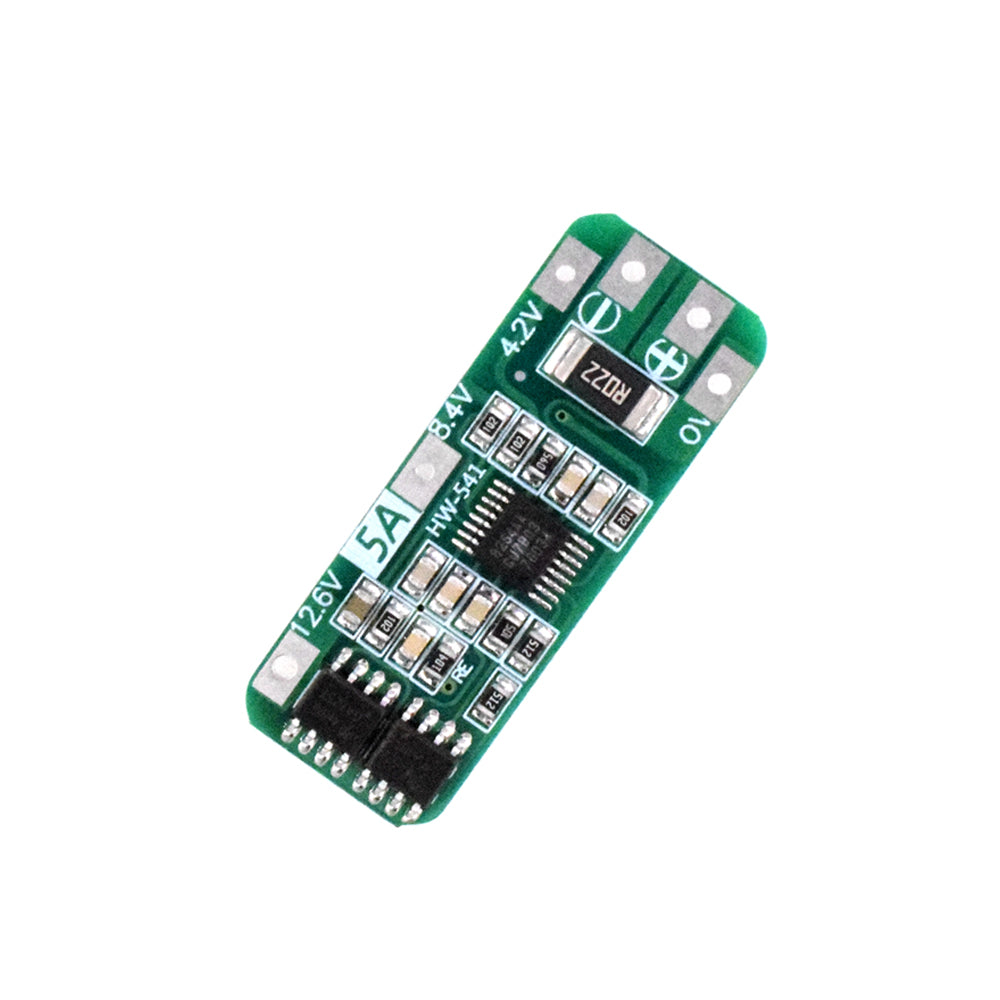

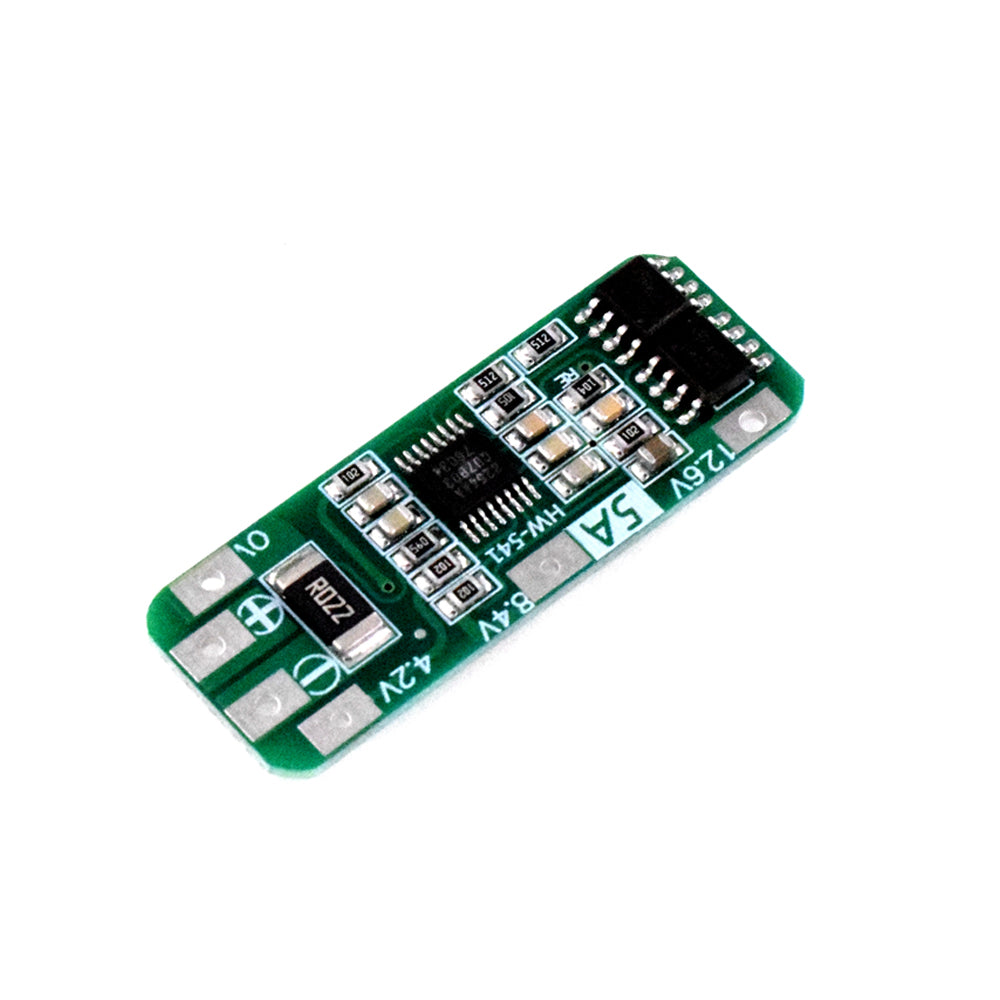

3S 12.6V 5A Lithium Battery Protection Module

3S 12.6V 5A Lithium Battery Protection Module

3S 12.6V 5A Lithium Battery Protection Module

SKU:XH0025
Regular price $5.99

Product introduction:

  • Product name: 3 strings of 12.6V 5A lithium battery protection module
  • Product model: HW-541
  • Charging voltage: DC 12.6~14V
  • Maximum working current: 4~5A
  • Maximum instantaneous current: 6~7A
  • Battery over-discharge voltage: 2.3~2.6V
  • Battery over-discharge protection recovery voltage 4.1~4.2V
  • Battery over-discharge current protection point: 5.5~6.5A
  • Battery overcharge protection voltage point: 4.2~4.3V
  • Battery overcharge protection recovery voltage: 4.1~4.2V
  • Product size: 40*15*1mm
  • Applicable options: suitable for lithium batteries with a nominal voltage of 3.7V and a full charge of 4.2V
  • (Including 18650, 26650, polymer lithium battery)

Package Included:

  • Lithium battery protection module x1
