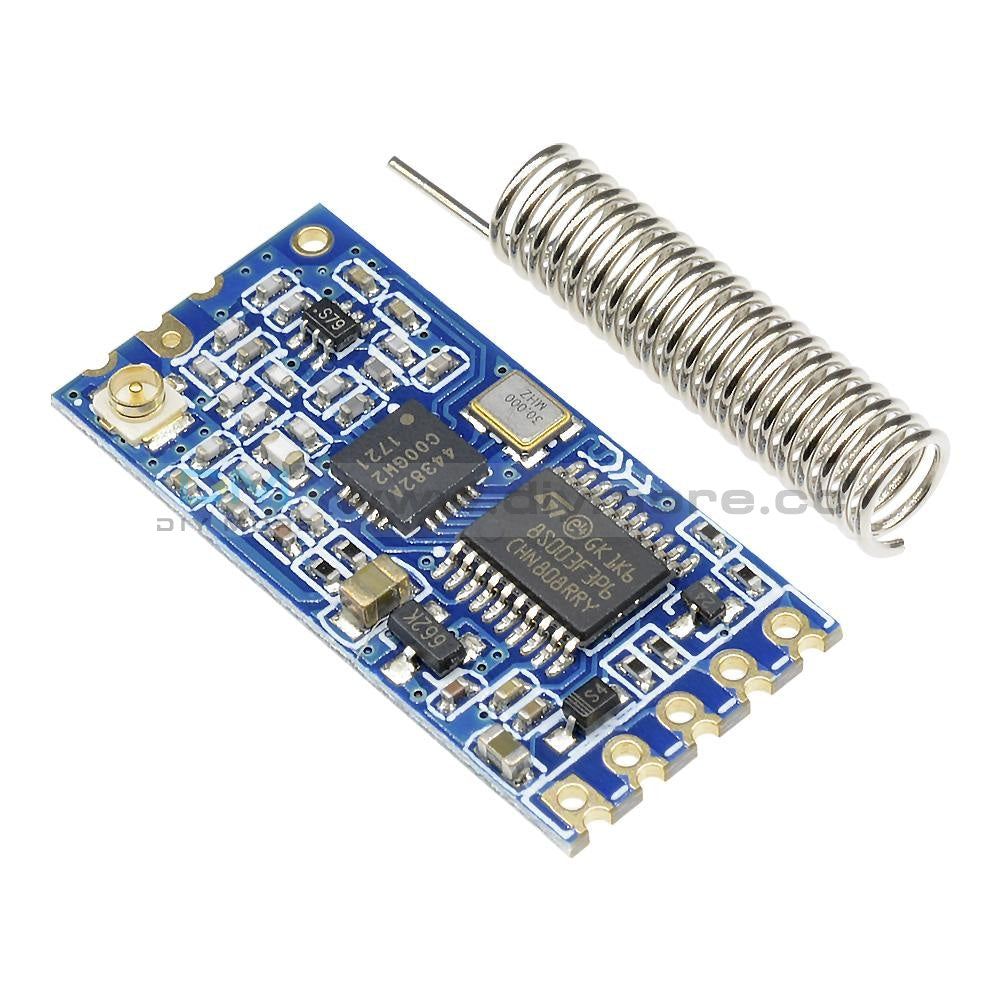

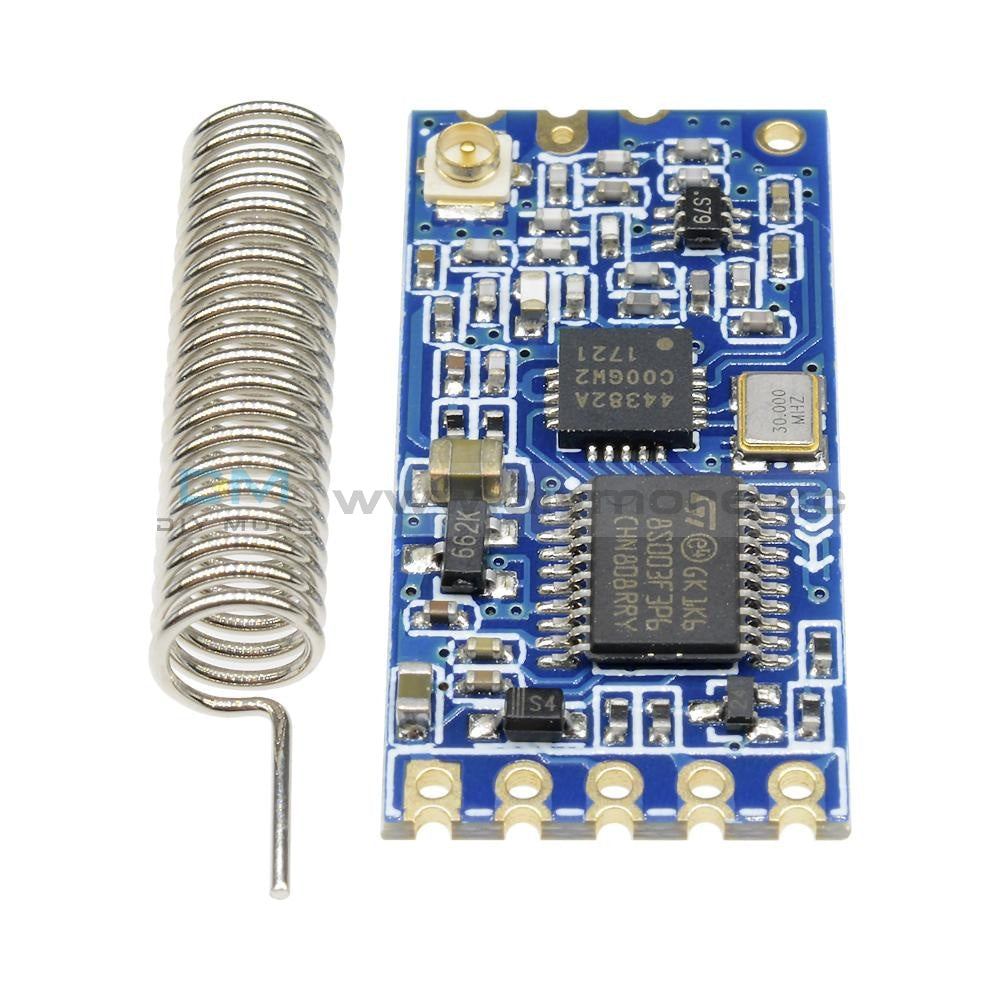

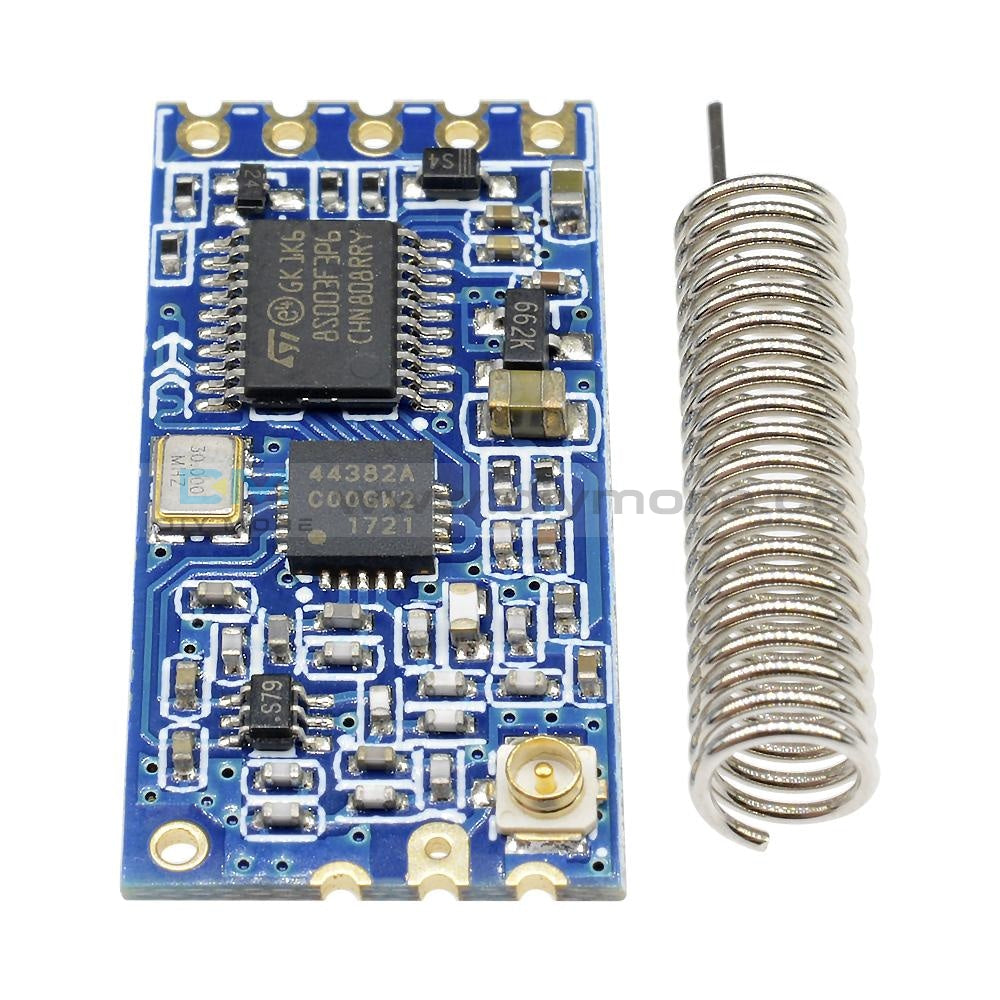

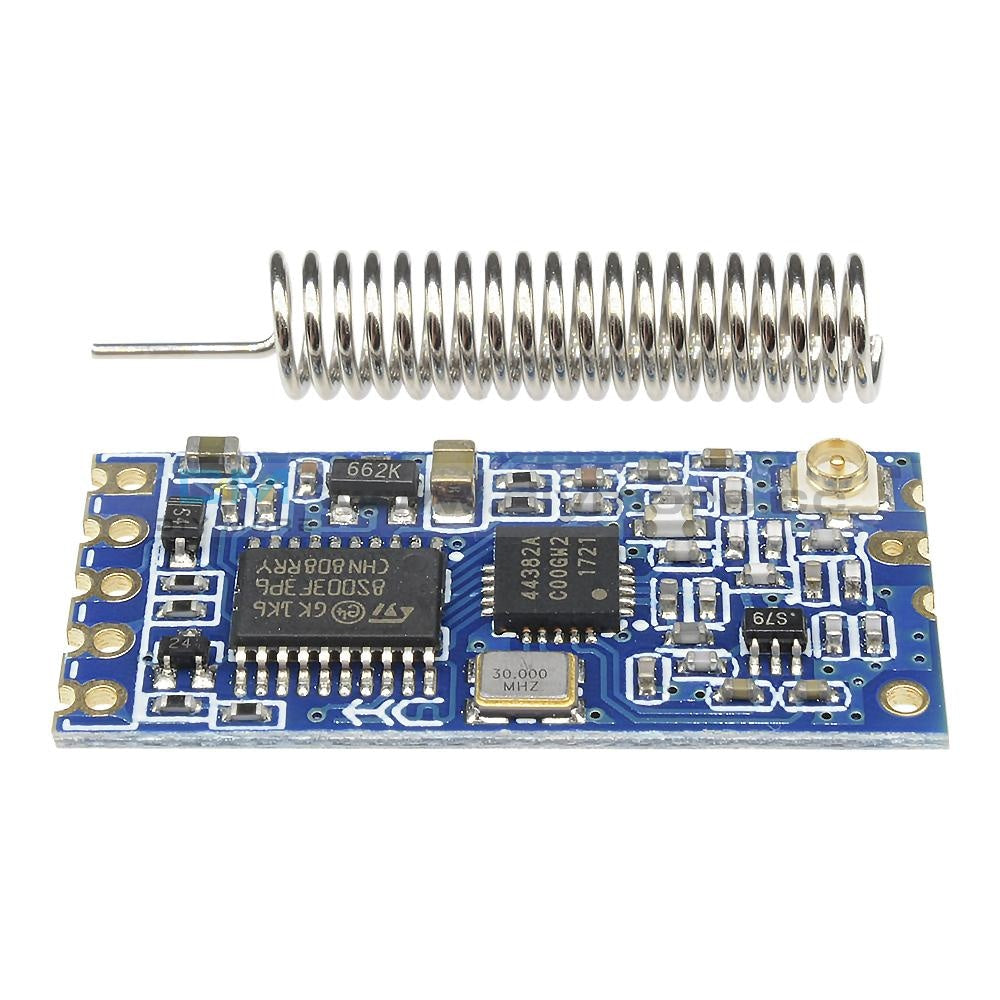

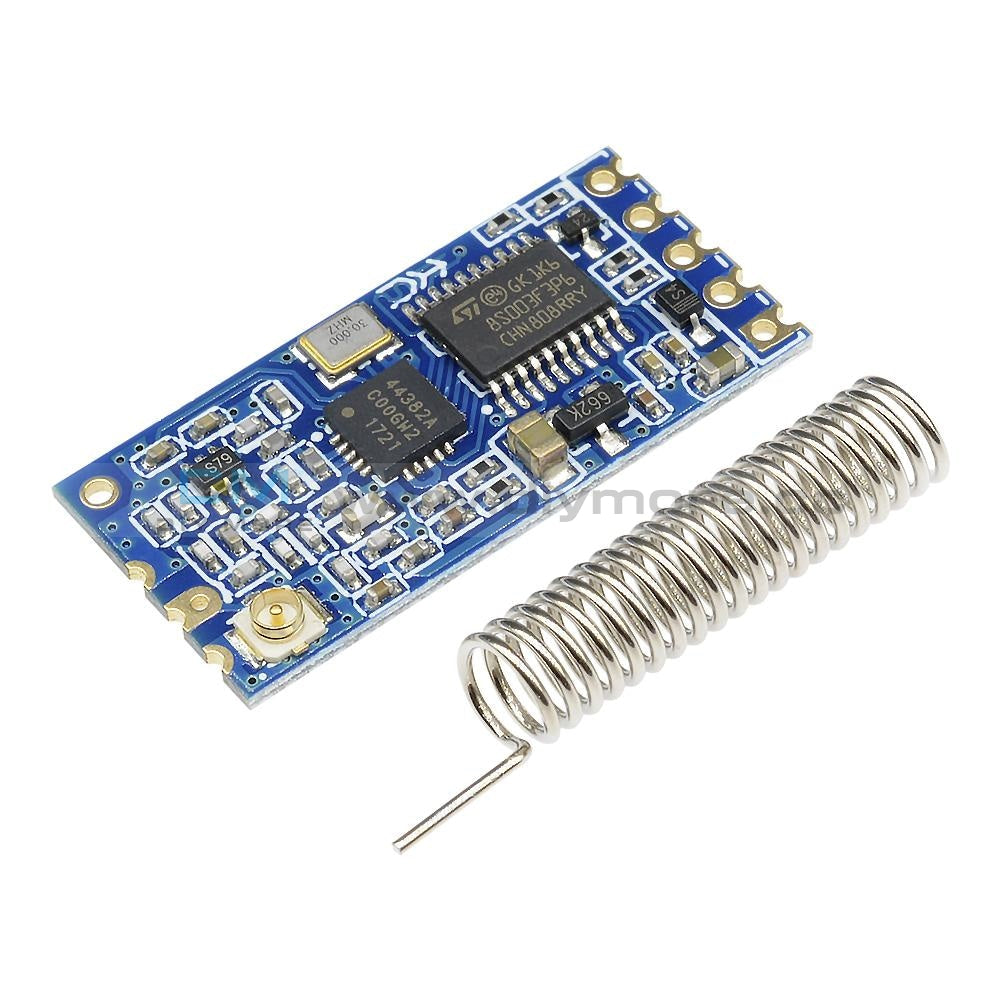

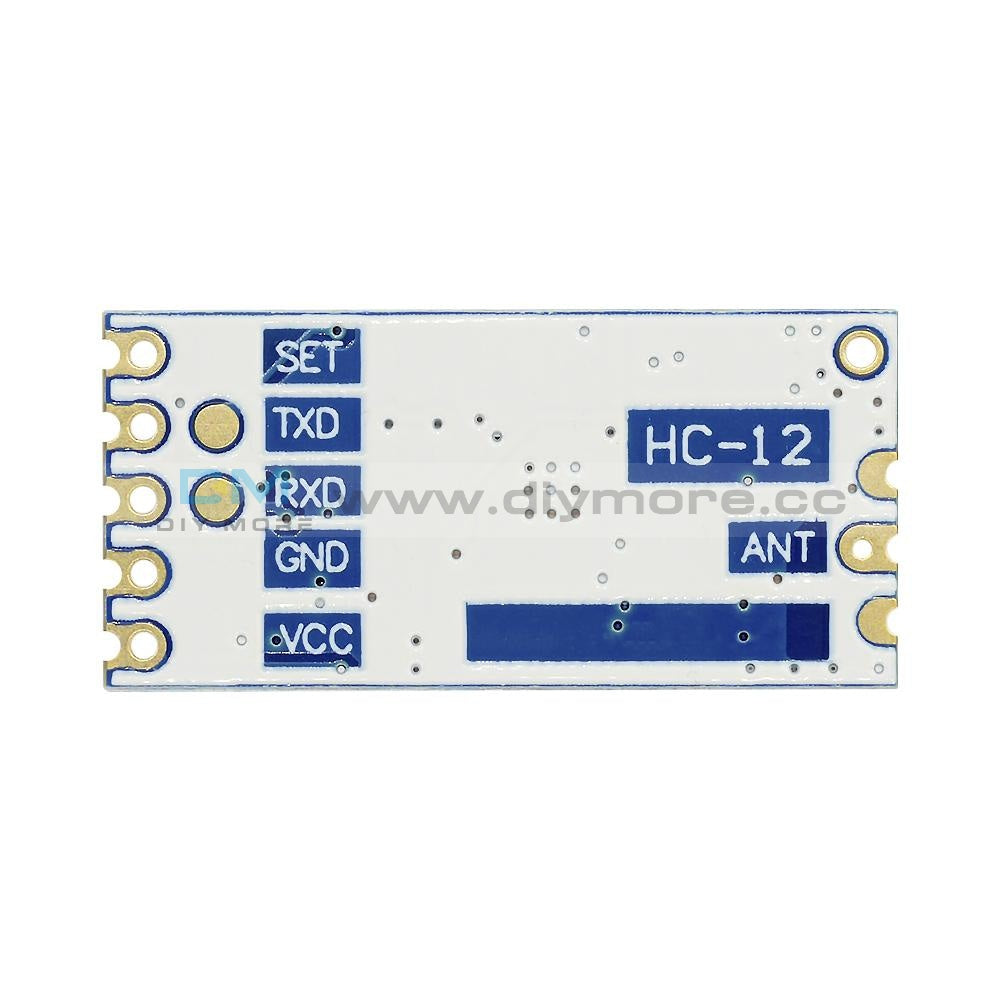

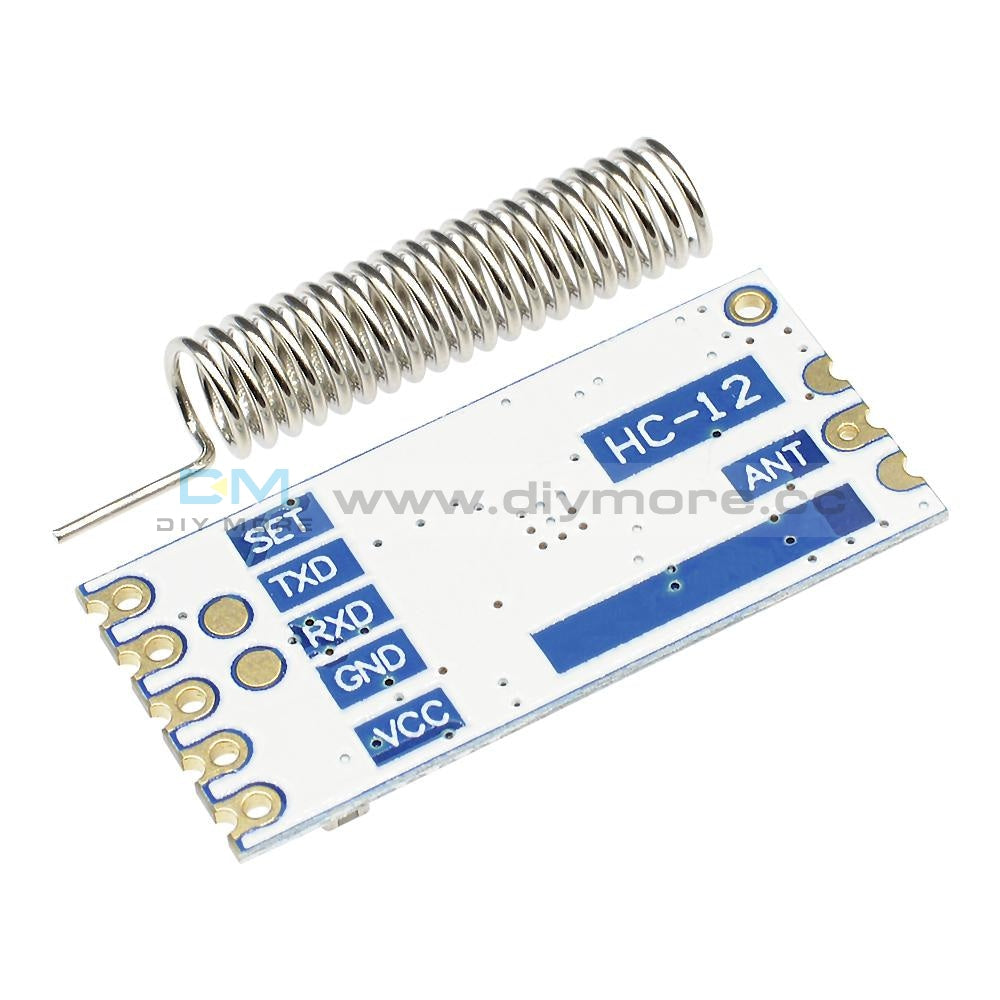

1pcs SI4463Lot HC-12 433Mhz Wireless Serial Port Module 1000m Replace Bluetooth Top
1pcs SI4463Lot HC-12 433Mhz Wireless Serial Port Module 1000m Replace Bluetooth Top
SKU:040071
Regular price
$6.99
Sale price
$4.99
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Feature:
Power supply voltage : 3.2 V -- 5.5 V.(if the modules working long hours in emission state, suggested that when the power supply voltage is greater than 4.5 V , you need concatenating a 1N4007 diode to avoid module built-in LDO got fever)
Default communication distance : about 600 m (communication distance is adjustable up to 1000 m, air baud rate 5000 BPS).
Default idle current: 16 ma (modules in different working mode of different current).

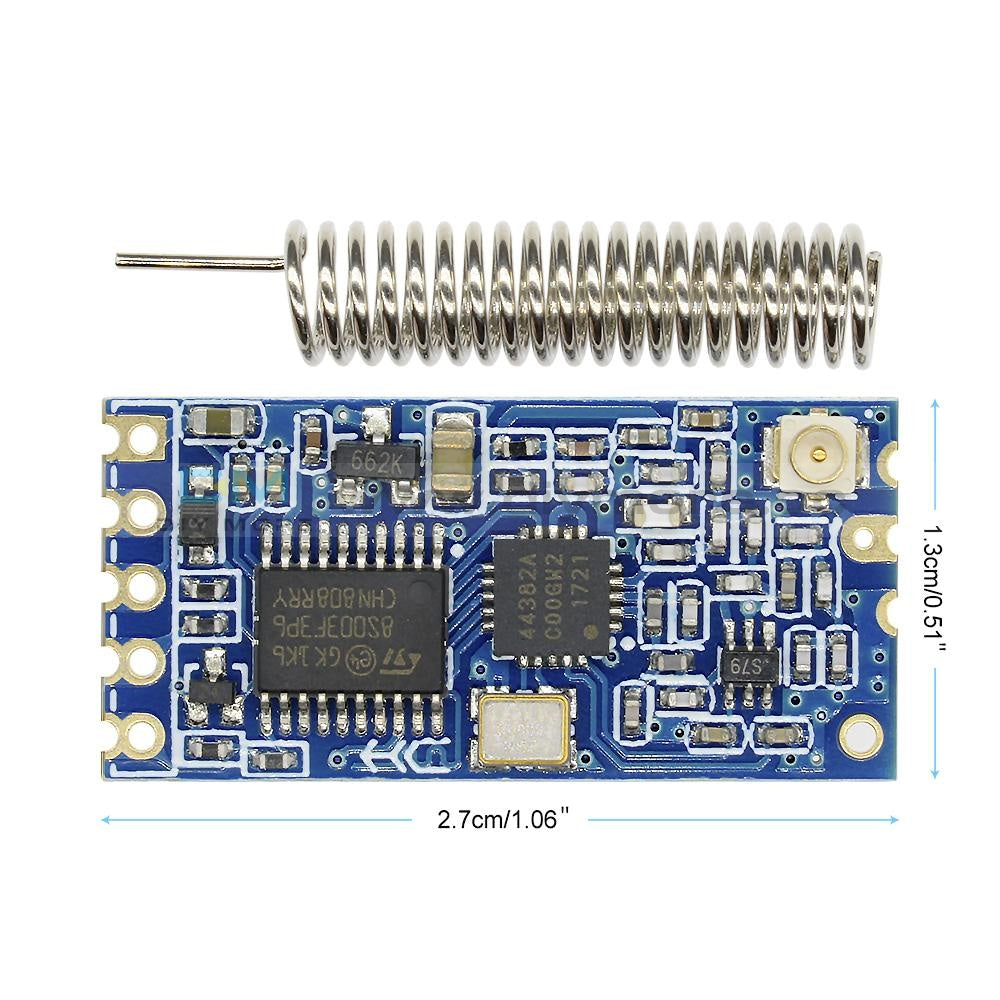

Module size: 27.8mm*14.4mm*4mm.
Operating frequency range (433.4 473.0 MHz, as many as 100 communication channel) maximum 100 mw fired power (can be set)
Default factory Settings: working mode FU3, baud rate 9600 BPS, communication channel CH001 (433.4 M). Module supporting software upgrades.
Package Include:
1 x HC-12 433Mhz SI4463 Wireless Serial Port Module 1000m Replace Bluetooth
Power supply voltage : 3.2 V -- 5.5 V.(if the modules working long hours in emission state, suggested that when the power supply voltage is greater than 4.5 V , you need concatenating a 1N4007 diode to avoid module built-in LDO got fever)
Default communication distance : about 600 m (communication distance is adjustable up to 1000 m, air baud rate 5000 BPS).
Default idle current: 16 ma (modules in different working mode of different current).
Module size: 27.8mm*14.4mm*4mm.
Operating frequency range (433.4 473.0 MHz, as many as 100 communication channel) maximum 100 mw fired power (can be set)
Default factory Settings: working mode FU3, baud rate 9600 BPS, communication channel CH001 (433.4 M). Module supporting software upgrades.
Package Include:
1 x HC-12 433Mhz SI4463 Wireless Serial Port Module 1000m Replace Bluetooth
