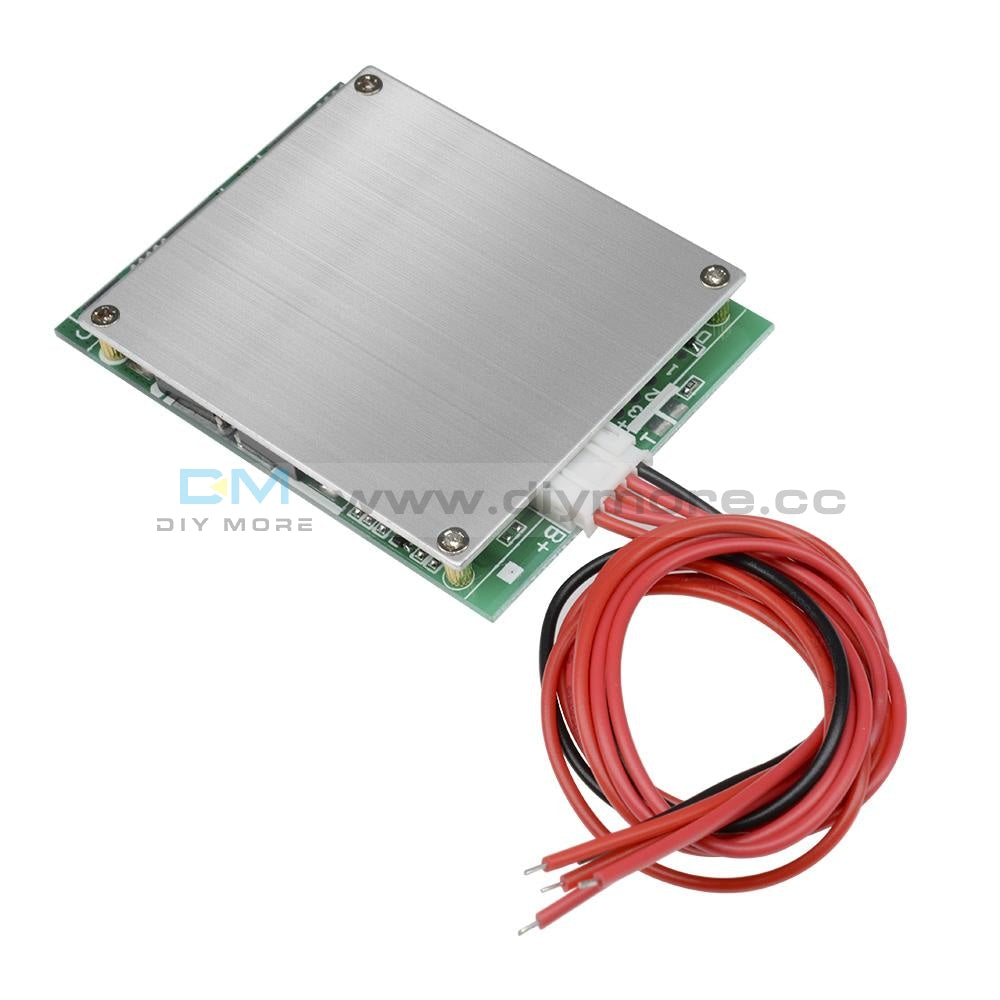

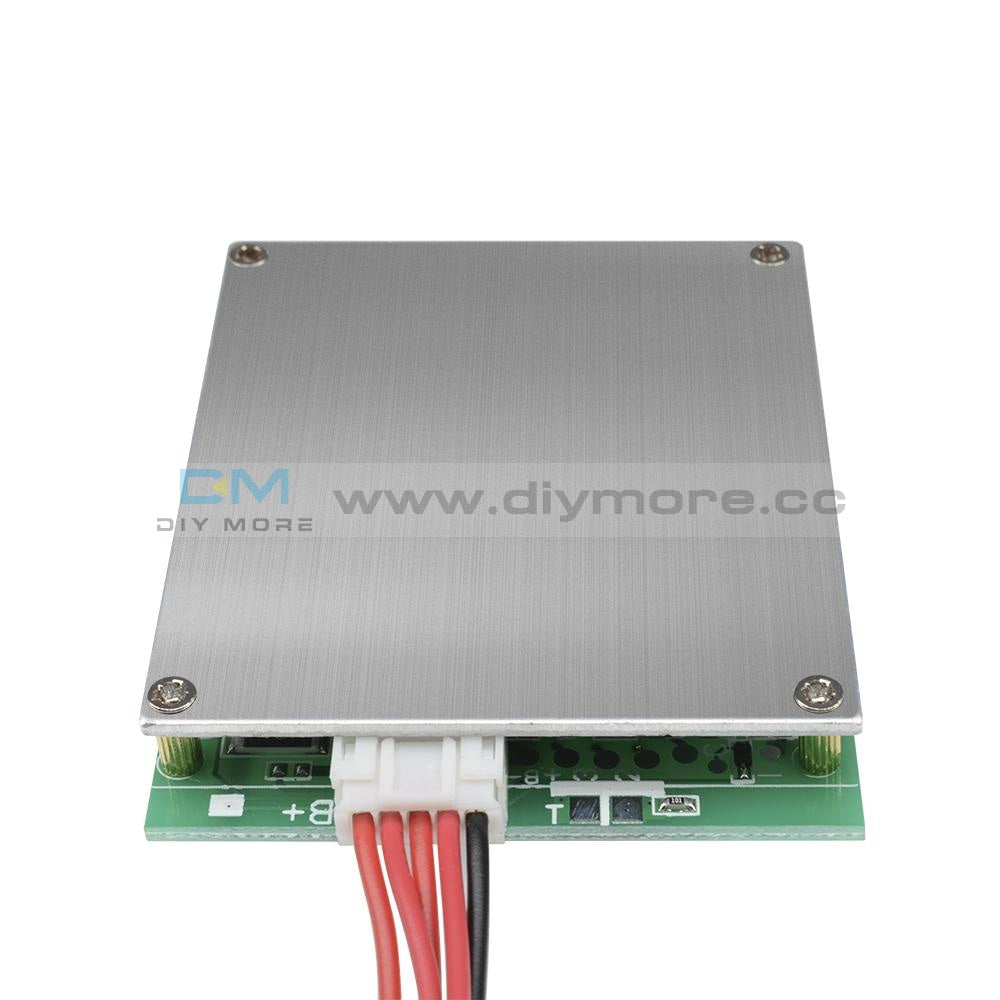

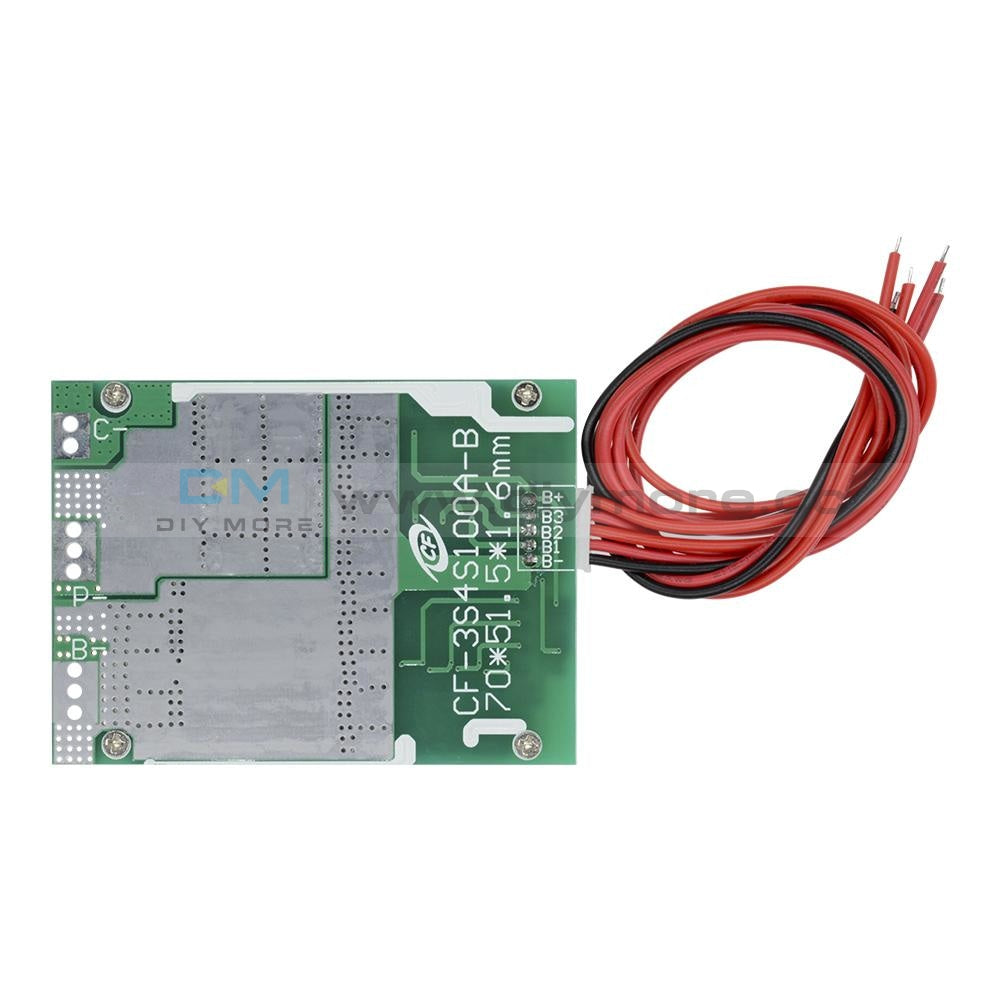

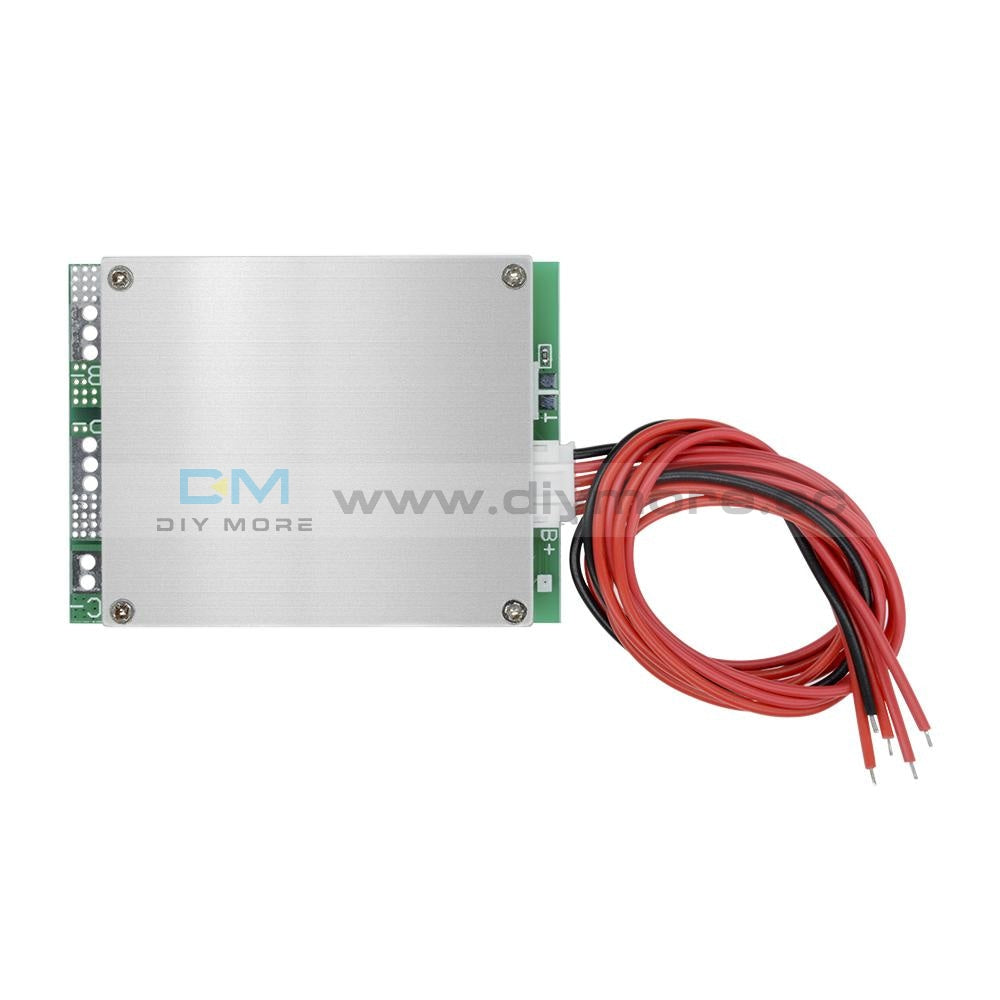

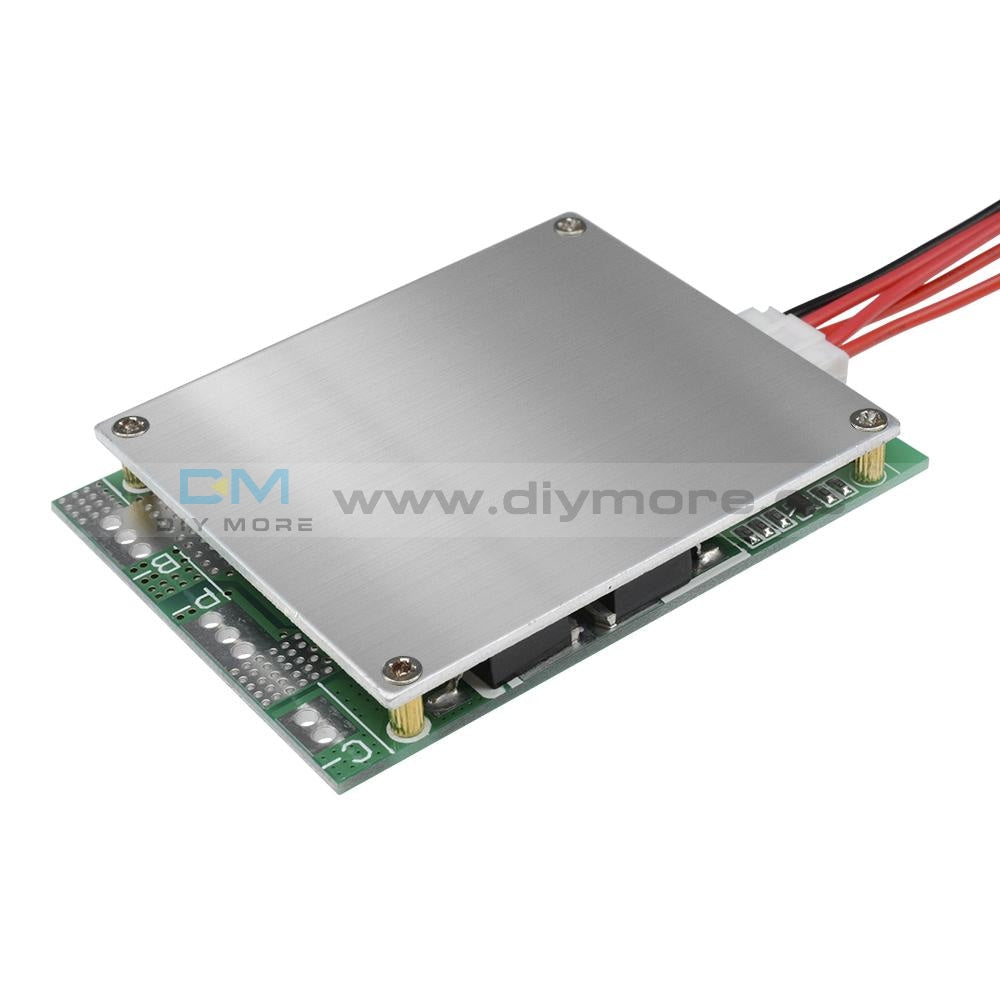

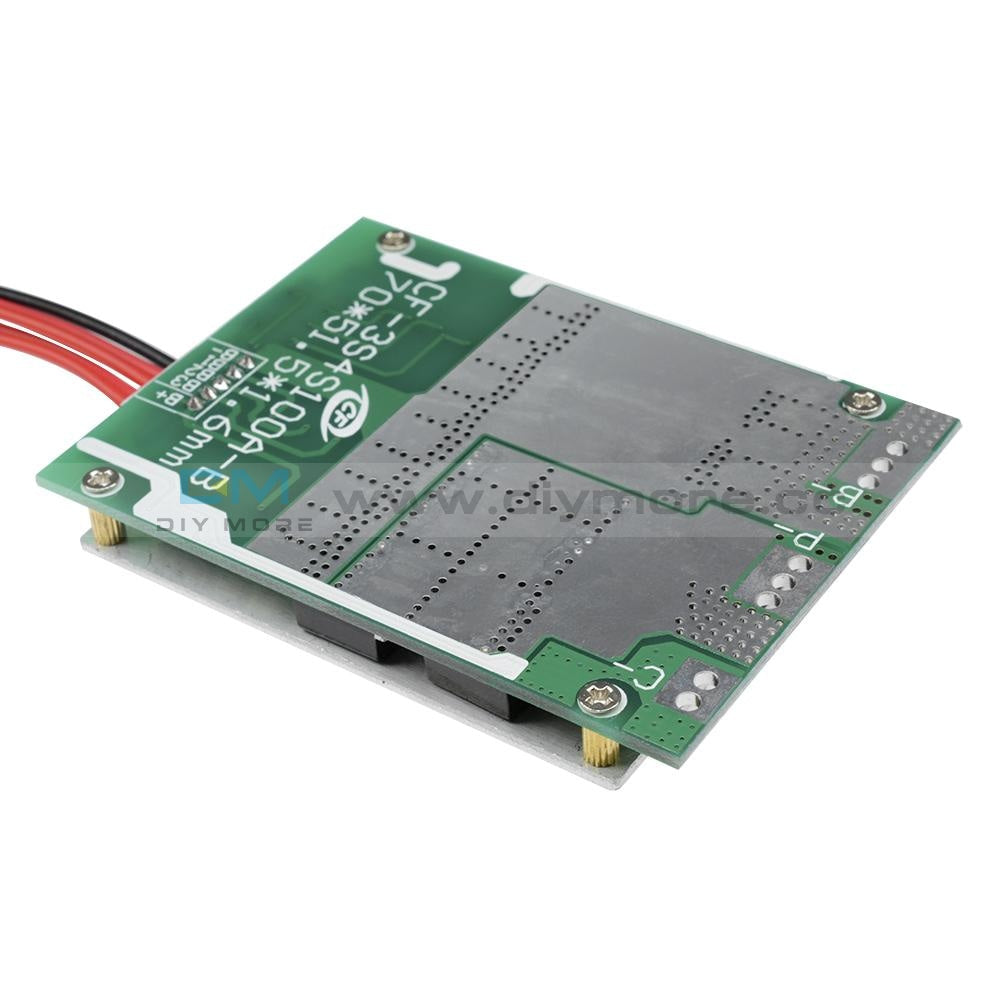

4S 100A 12V Balance 18650 Battery For LiFePo4 LiFe Cell BMS Protection PCB Board
4S 100A 12V Balance 18650 Battery For LiFePo4 LiFe Cell BMS Protection PCB Board
SKU:012730- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Description:
10 High-power, low resistance MOS, silicone heat, plus a heat sink on the MOS tube.
100A high current outflow, split charge balanced circuit, corresponding to the rapid.
Positive heat dissipation of the aluminum sheet, when the discharge of the switch MOS tube heat quickly lead to heat up the aluminum plate,
fully guarantee the product discharge performance, heat thoroughly, extend product life.
-Power battery protection board, special equipment detection, the protection of each chip on the battery charge and discharge
Specifications:
Continuous Operating Current: within 100A
Charging Current: within 10A
Electrical Parameters: 4 string 3.2V
Instantaneous Discharge Current: 150A
Power Detection Voltage: 3.60±0.05V
Power Release Voltage: 3.60±0.05V
Electricity Balance Current: 36±5mA
Temperature Range: -30/+80℃
Balance: yes
Battery: 4 string
Size: 7x5.1x1.6cm/2.76x2.01x0.63inch
Quantity: 1 Set
Note:
1.Please allow 1-2cm error due to manual measurement. pls make sure you do not mind before you bid.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package Included:
1PC*LiFePo4 battery protection plate
1PC*Cable
