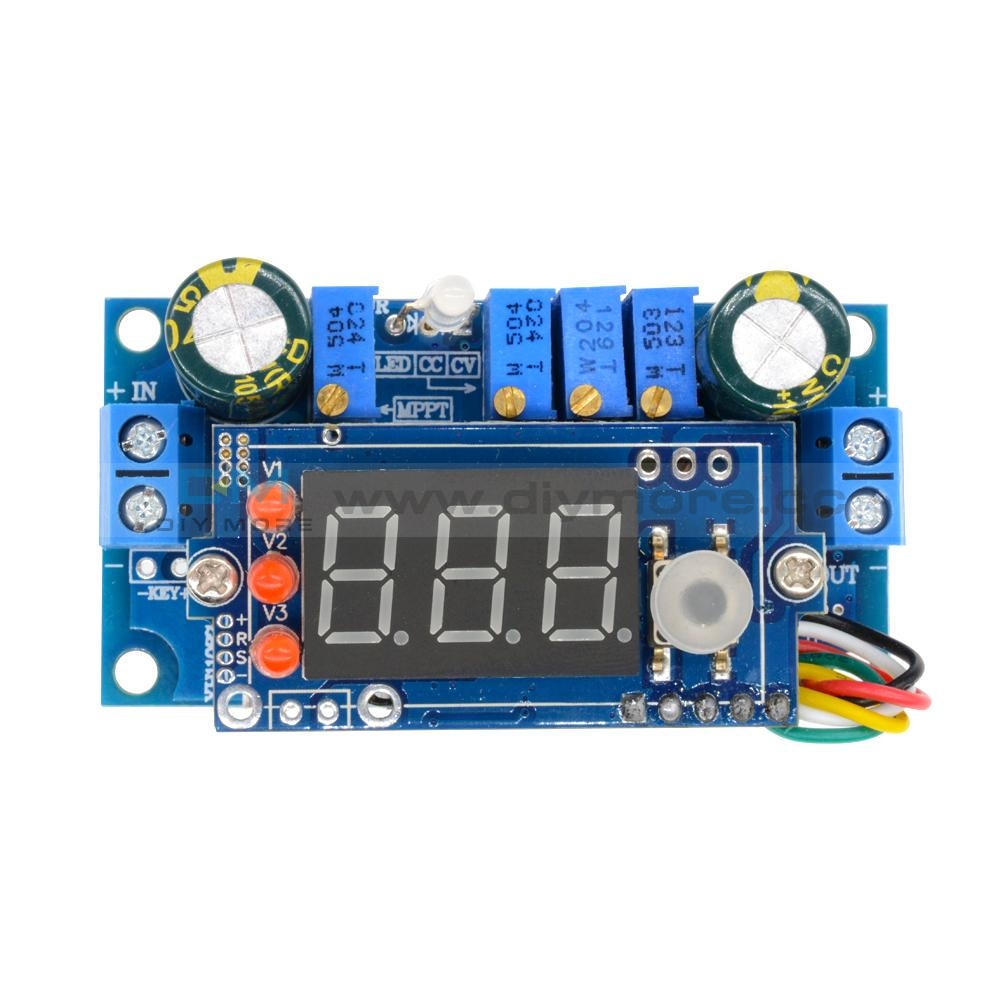

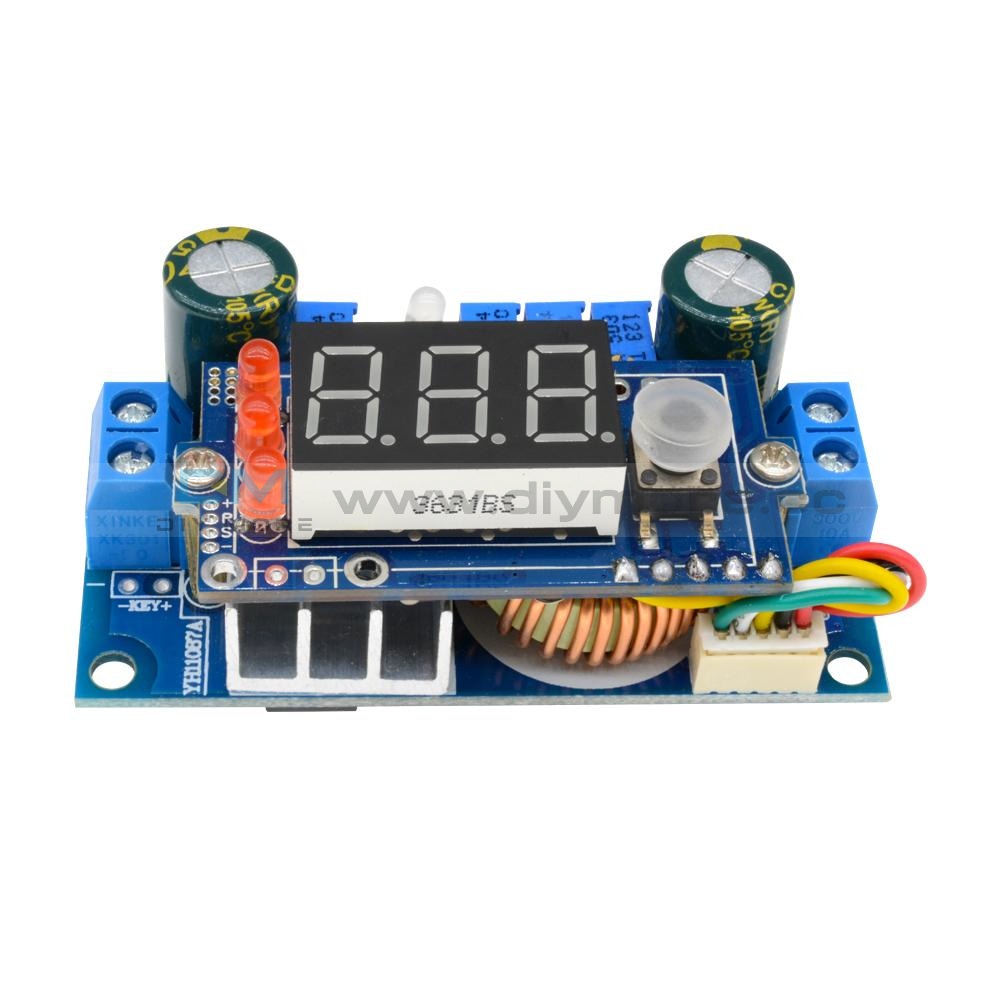

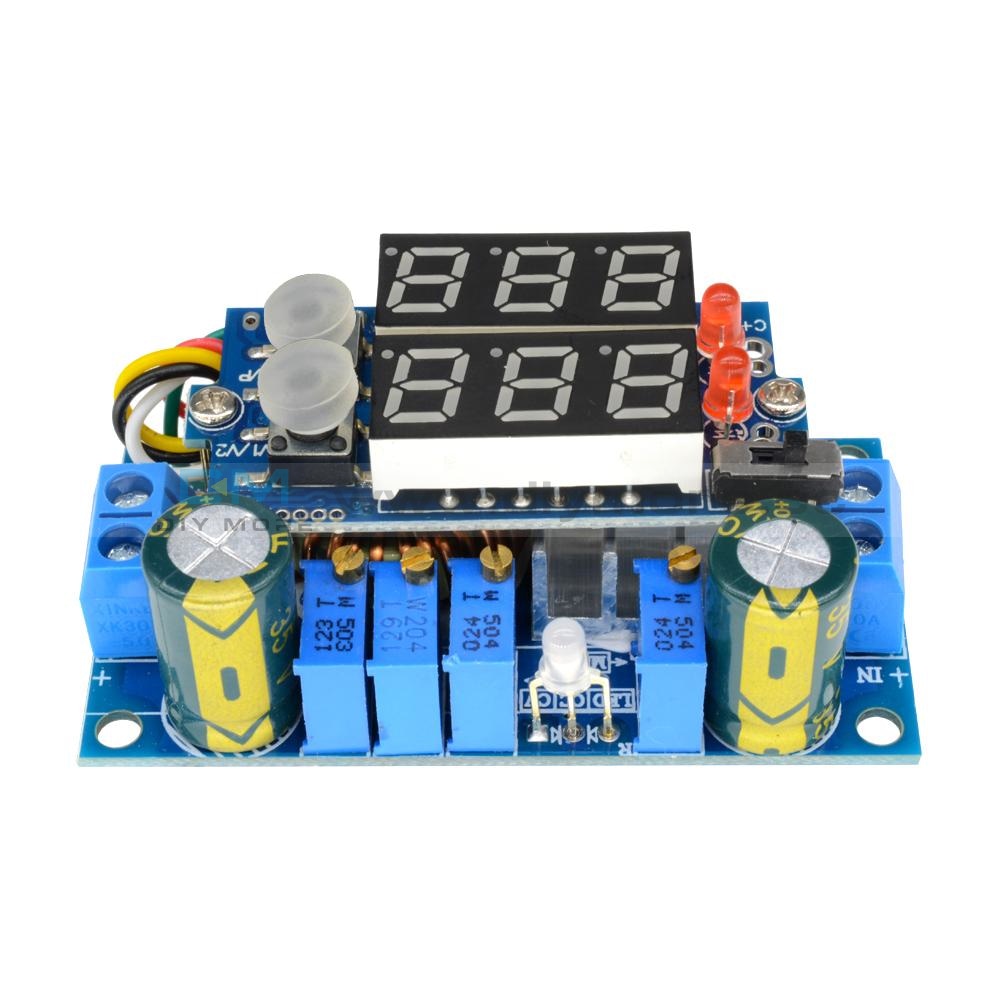

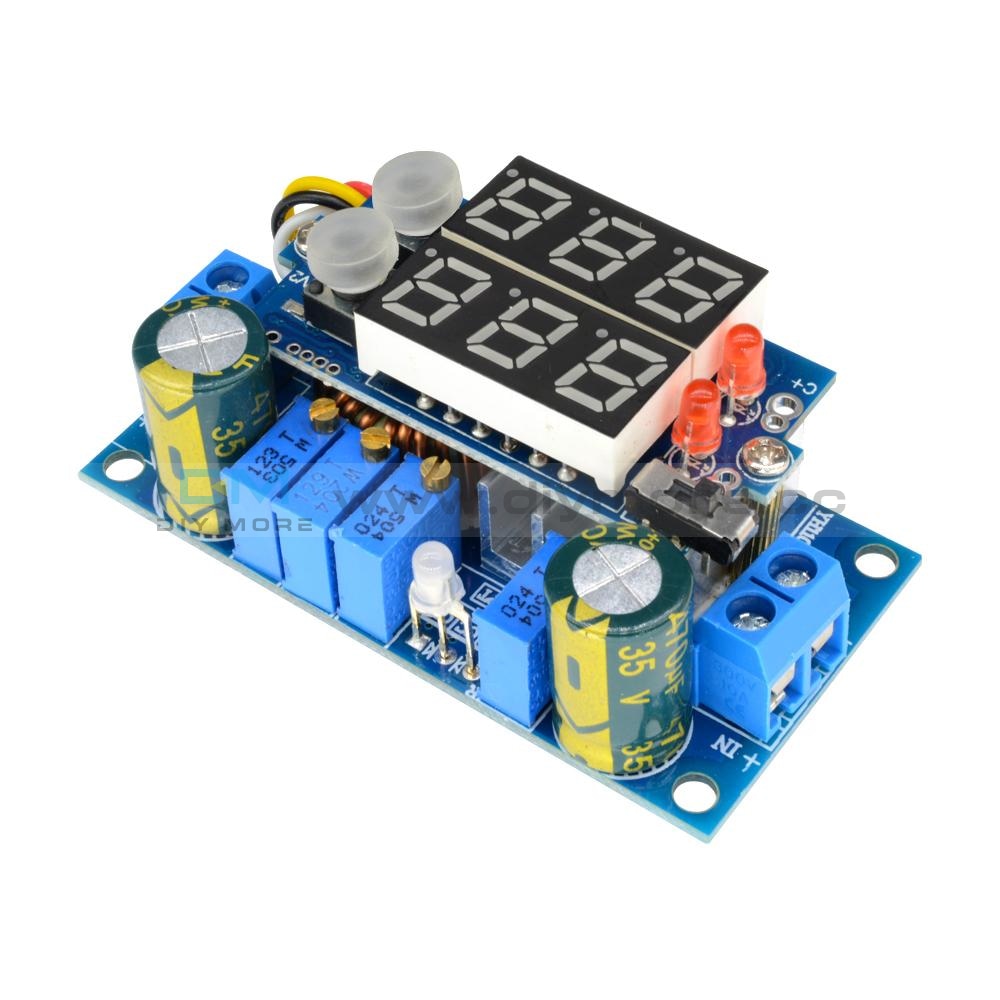

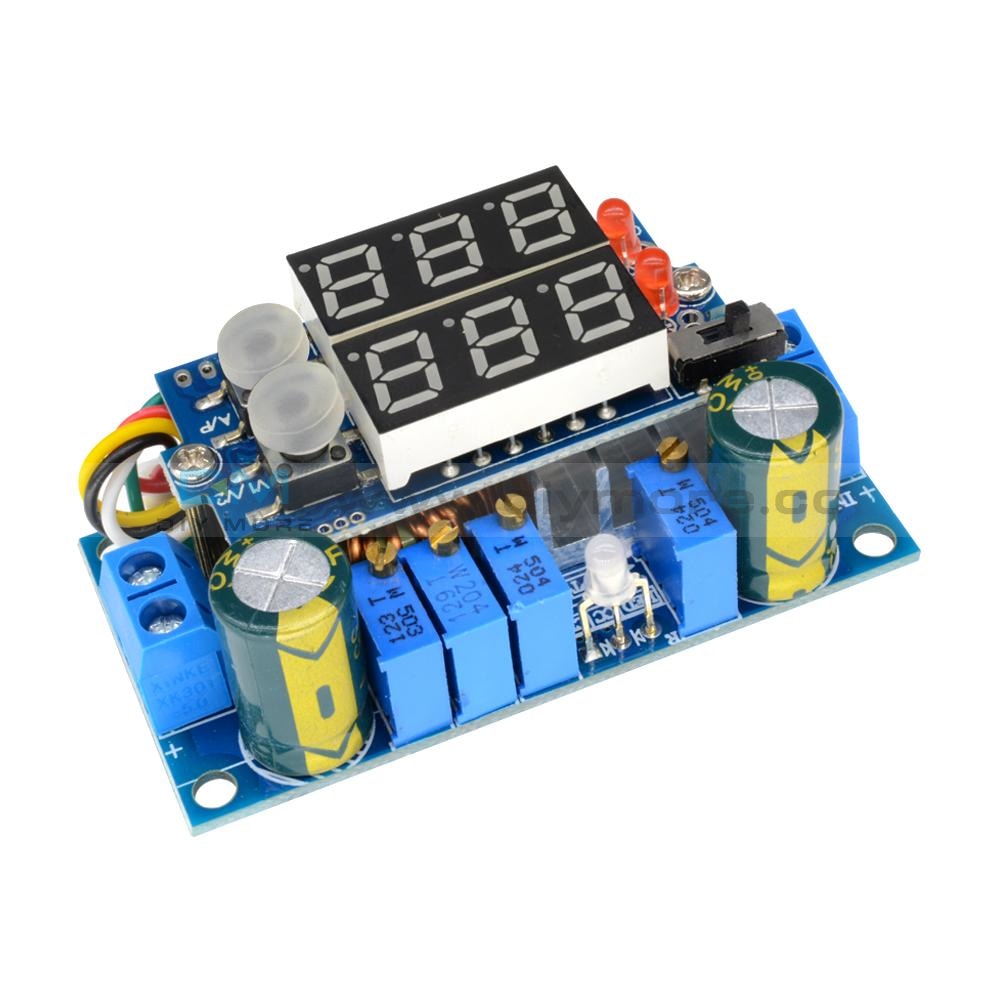

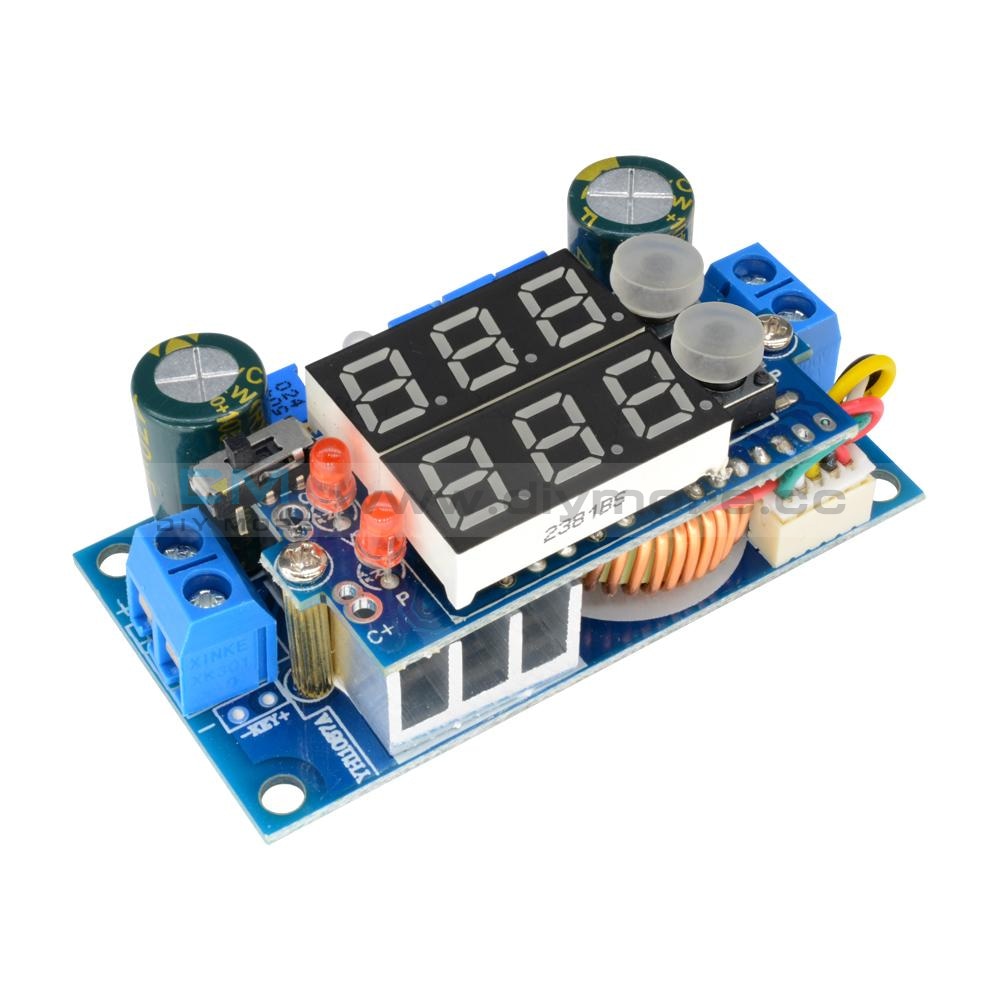

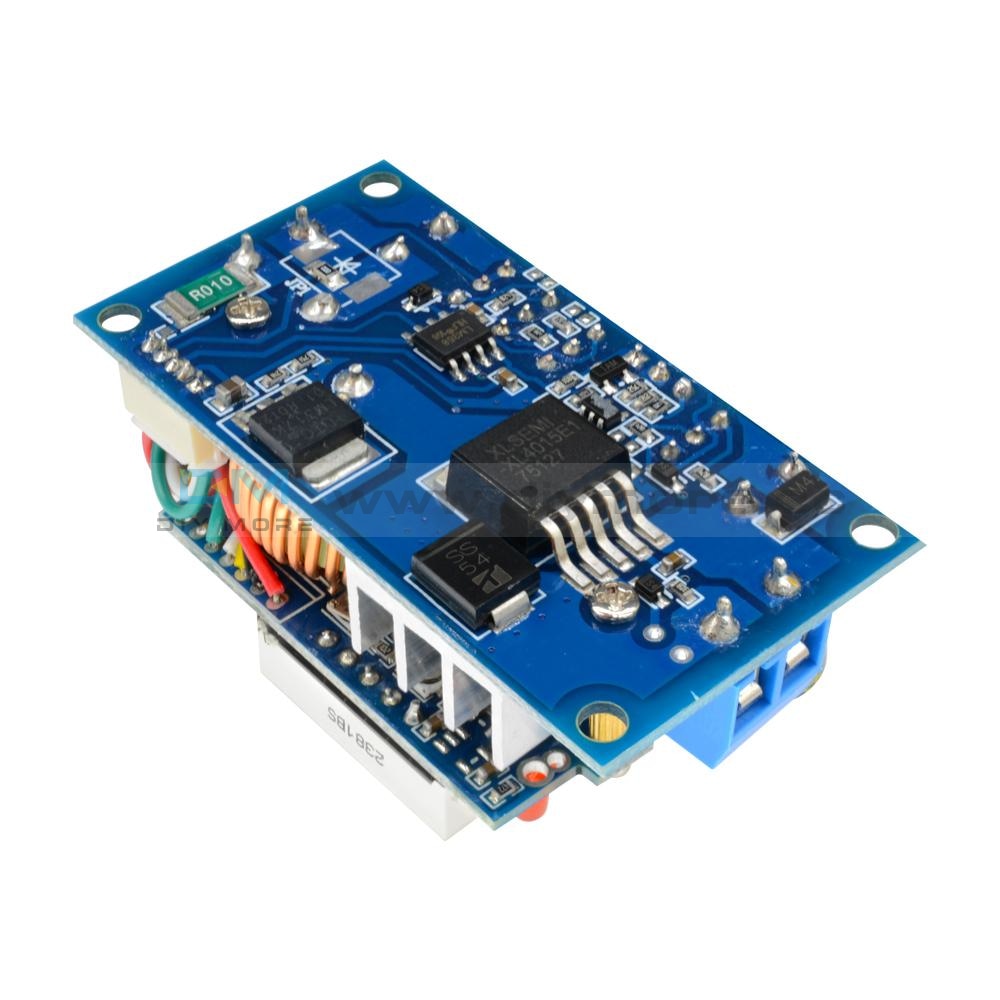

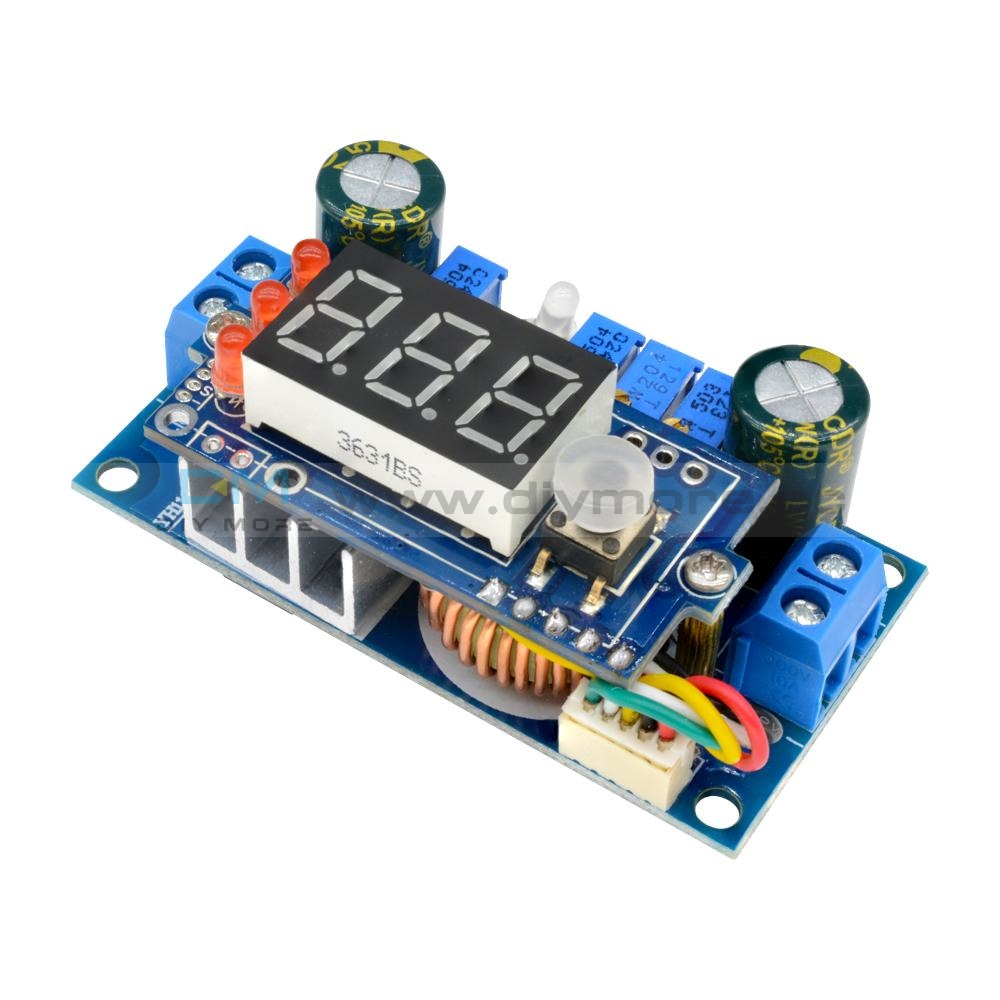

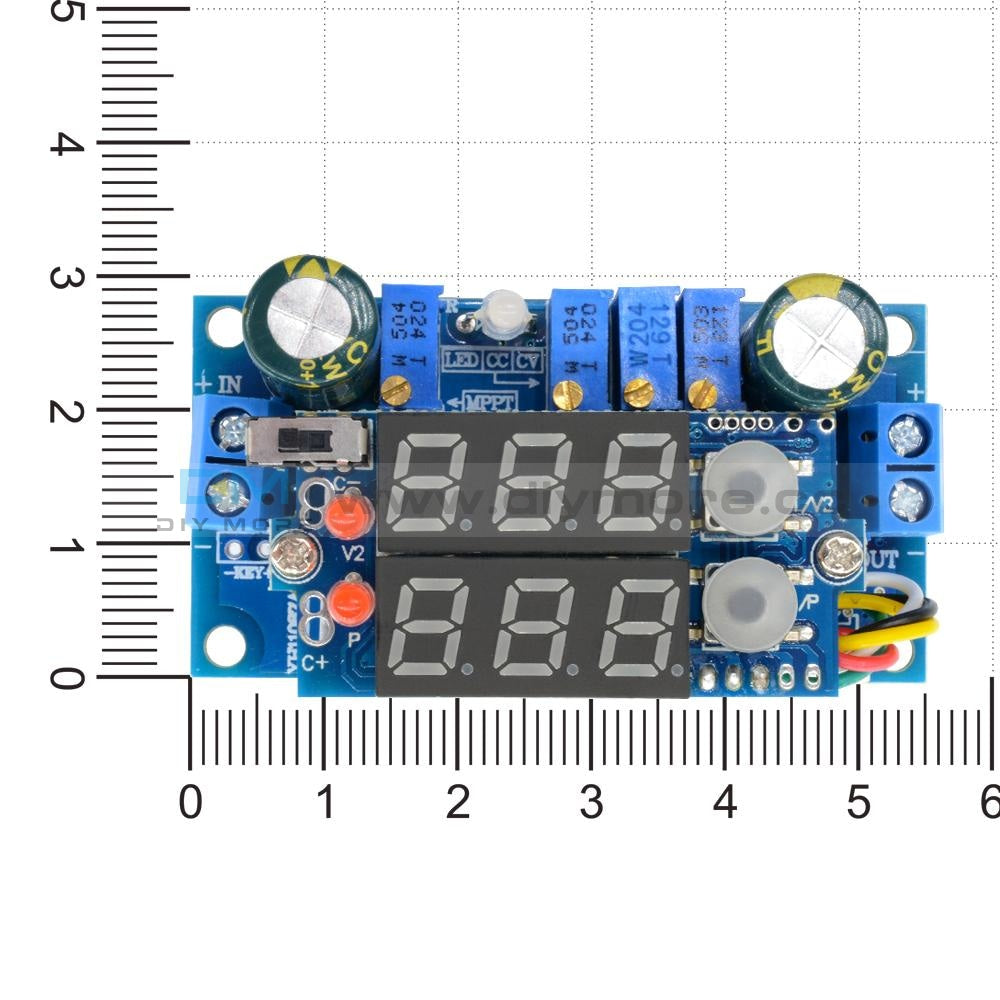

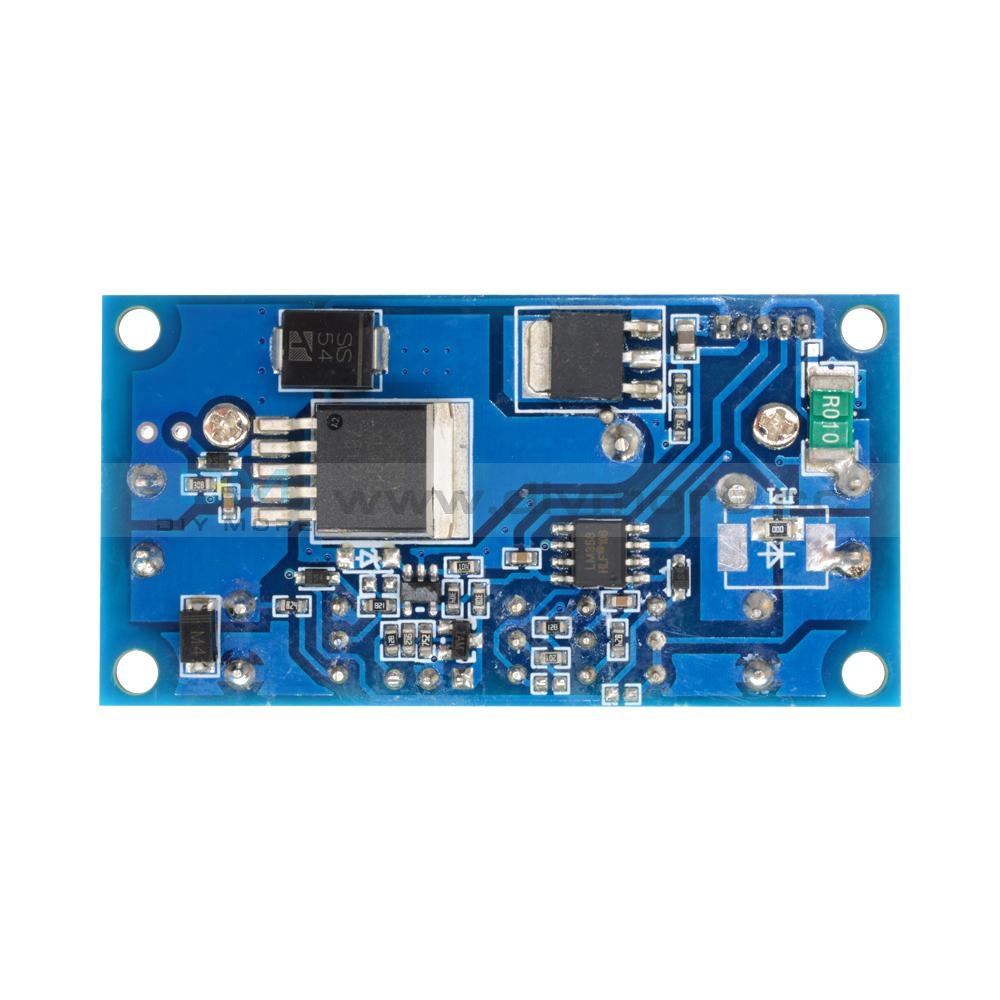

5A LED Buck MPPT Solar Panel Controller DC-DC Step-down CC/CV Charging Module
5A LED Buck MPPT Solar Panel Controller DC-DC Step-down CC/CV Charging Module
SKU:011030
Regular price
$8.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Overview:
Note:
Detection module, please do not direct connect the output of negative electrode and the input of negative electrode
Applications:
1, DIY a voltage Regulator, with constant current function, Short-circuit proof, can protect the load
2, It can power supply for electronic devices
3, For a variety of battery charge, can observe the state of charge
4, charger for all kinds of batteries, with MPPT function, can enhance the charging current to double. With a constant current and prevents battery overcharge, effective protection of the battery
5, it can support high-power LED
6, As a car power supply , it can for your cell phone or digital products supply
Package Included:
1* 5A MPPT Solar Panel Controller Step-down Module
- Module Name: 5A buck constant voltage constant current MPPT
- Module Properties: Non-isolated buck module (BUCK)
- Input voltage: 6-36V
- Output voltage: 1.25-32V continuously adjustable (the default output 5V)
- MPPT voltage setting range: 6-36V
- Output current range: 0.05-5A (The default output current is 3A)
- Turn lights output range: 0.01-5A (default turn lamp current 0.3A) the current range will be a little difference because the parts parameter error.
- Multifunction double display: input voltage, output voltage, output current, output power
- Operating temperature: -40 to + 85 degree
- Operating frequency: 180KHz
- Conversion efficiency: up to 95% (efficiency, input & output voltage, current and pressure-related)
- Short circuit protection: Yes
- Over temperature protection: (automatically shut off the output after overtemperature)
- Input reverse polarity protection: None, (if necessary, please add the string into the diode)
- Output anti-anti-irrigation protection: no, the output must be connected to the battery plus blocking diode, otherwise it will burn the module!
- Charging indicator: charging red, bright green when fully charged. Turn lamp is the output current detection.
- Installation: 4 pcs 3mm screws
- Connection: IN is the input, OUT is output
- Module dimensions:60 x 31 x 22 mm(without meter)
Note:
Detection module, please do not direct connect the output of negative electrode and the input of negative electrode
Applications:
1, DIY a voltage Regulator, with constant current function, Short-circuit proof, can protect the load
2, It can power supply for electronic devices
3, For a variety of battery charge, can observe the state of charge
4, charger for all kinds of batteries, with MPPT function, can enhance the charging current to double. With a constant current and prevents battery overcharge, effective protection of the battery
5, it can support high-power LED
6, As a car power supply , it can for your cell phone or digital products supply
Package Included:
1* 5A MPPT Solar Panel Controller Step-down Module
