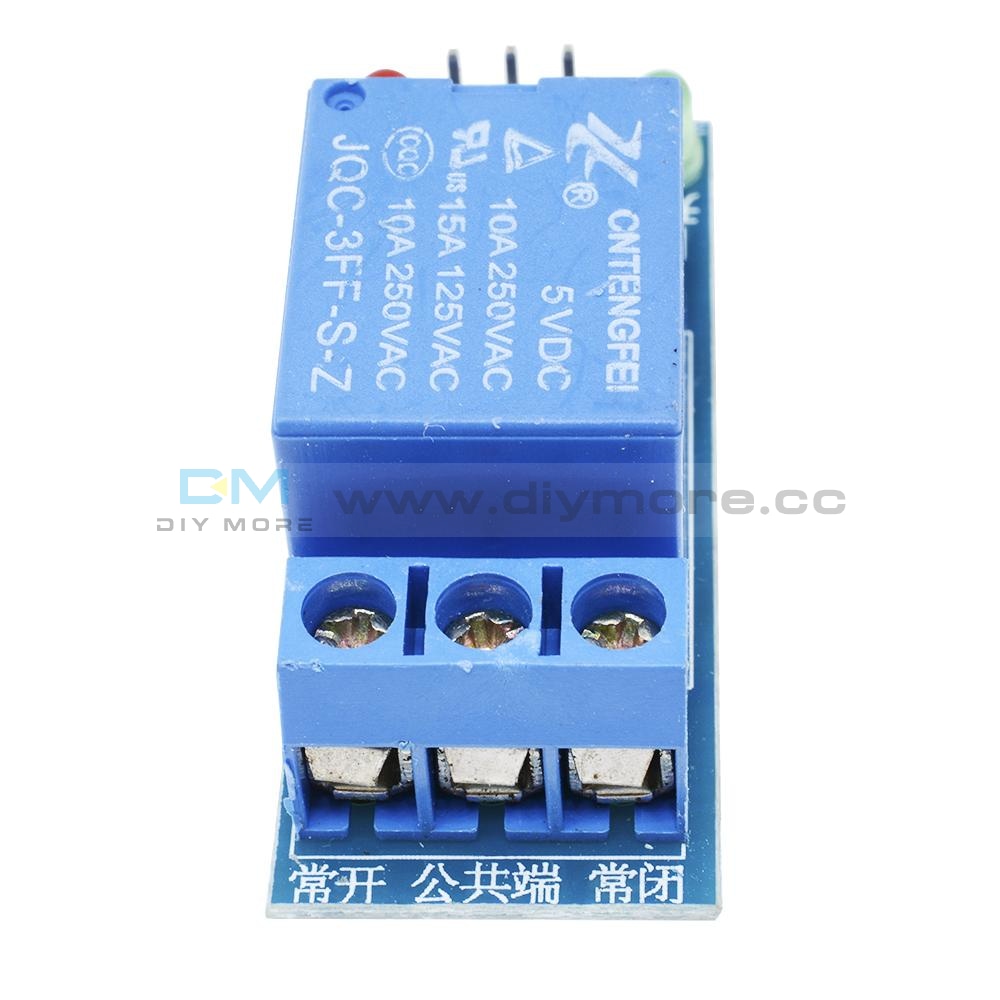

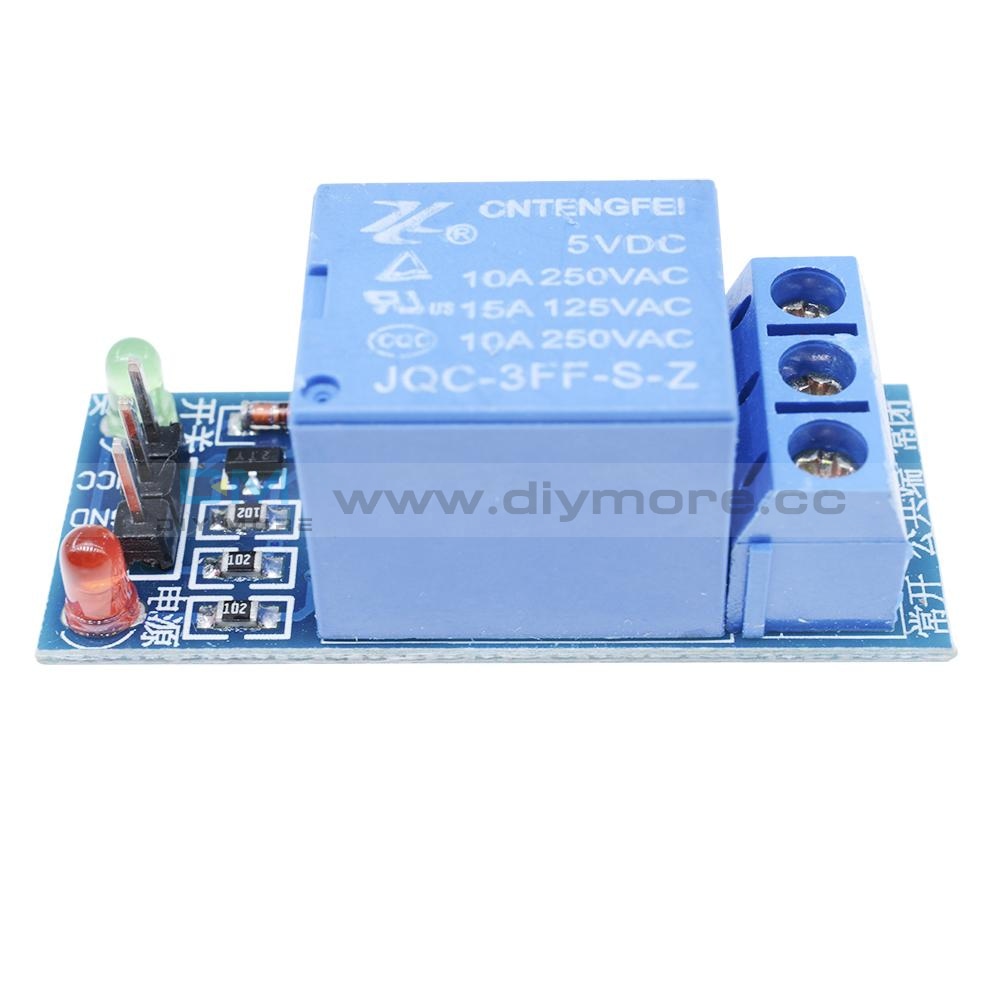

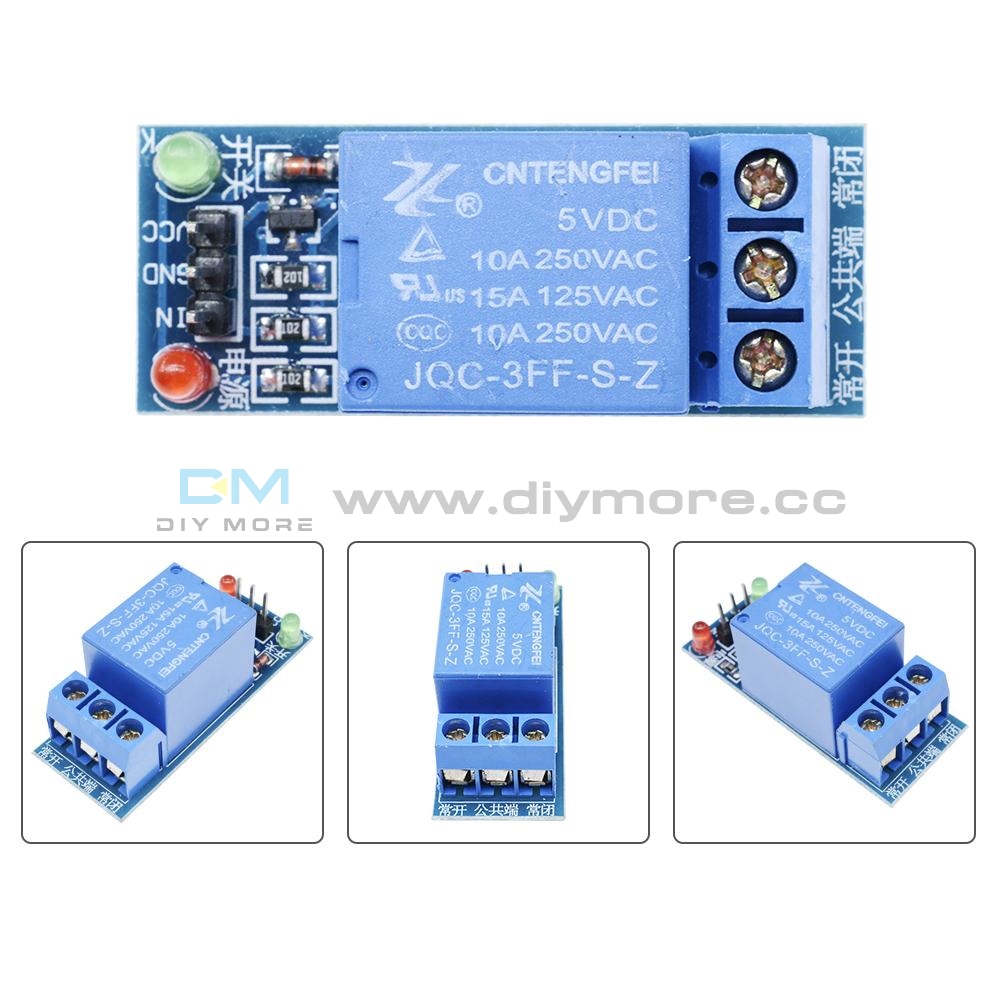

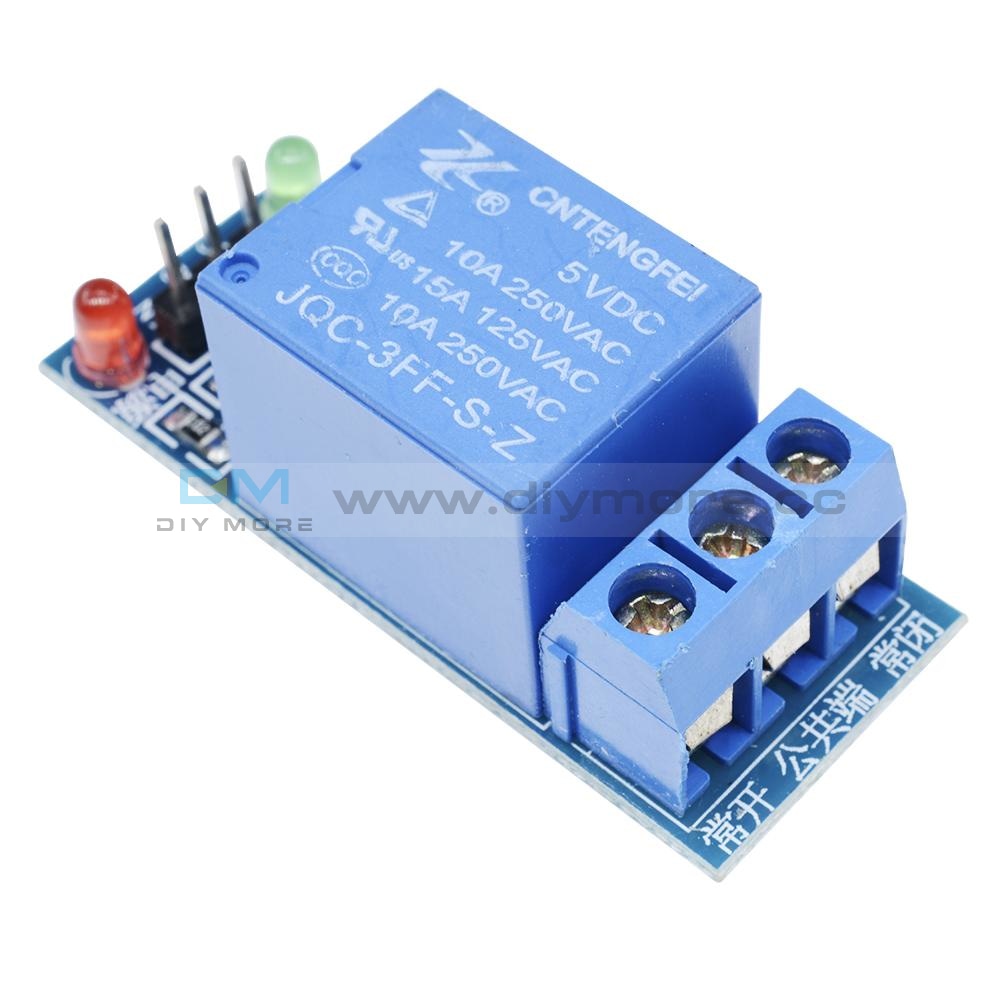

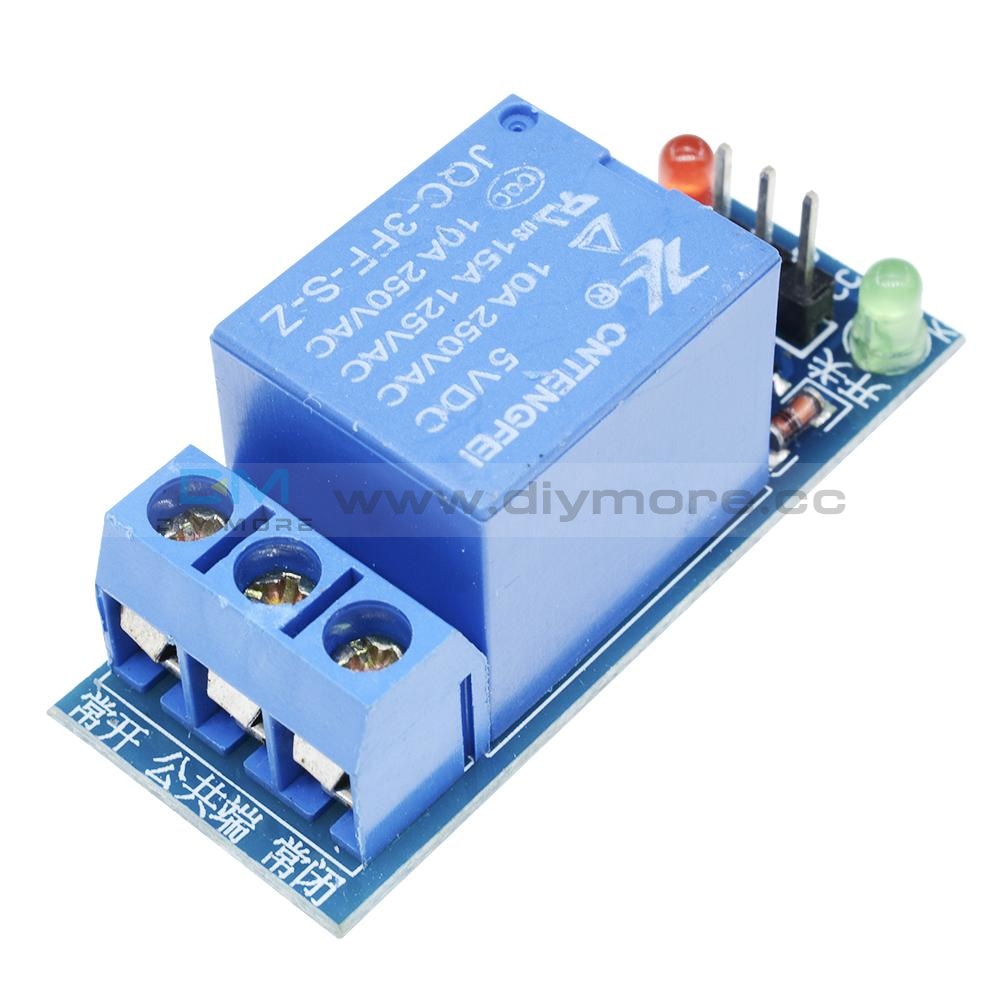

1 Channel 5V Relay Module Shield for Arduino Uno Meage 2560 1280 ARM PIC AVR DSP
1 Channel 5V Relay Module Shield for Arduino Uno Meage 2560 1280 ARM PIC AVR DSP
SKU:011928
Regular price
$4.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Features:
- With isolation groove in control area and load area.
- With power and relay action indication, bright when connect and go off when disconnects.
- When there is a signal in signal input, public side and common side will breakover.
- It can be not only used as a microcontroller development board module, but also as a home appliance control.
- It can not only control the DC or AC signal, but the 220V AC load.
- With a permanent open and close vents contact. It is convenient to connect with blue KF301 terminal access control cable.

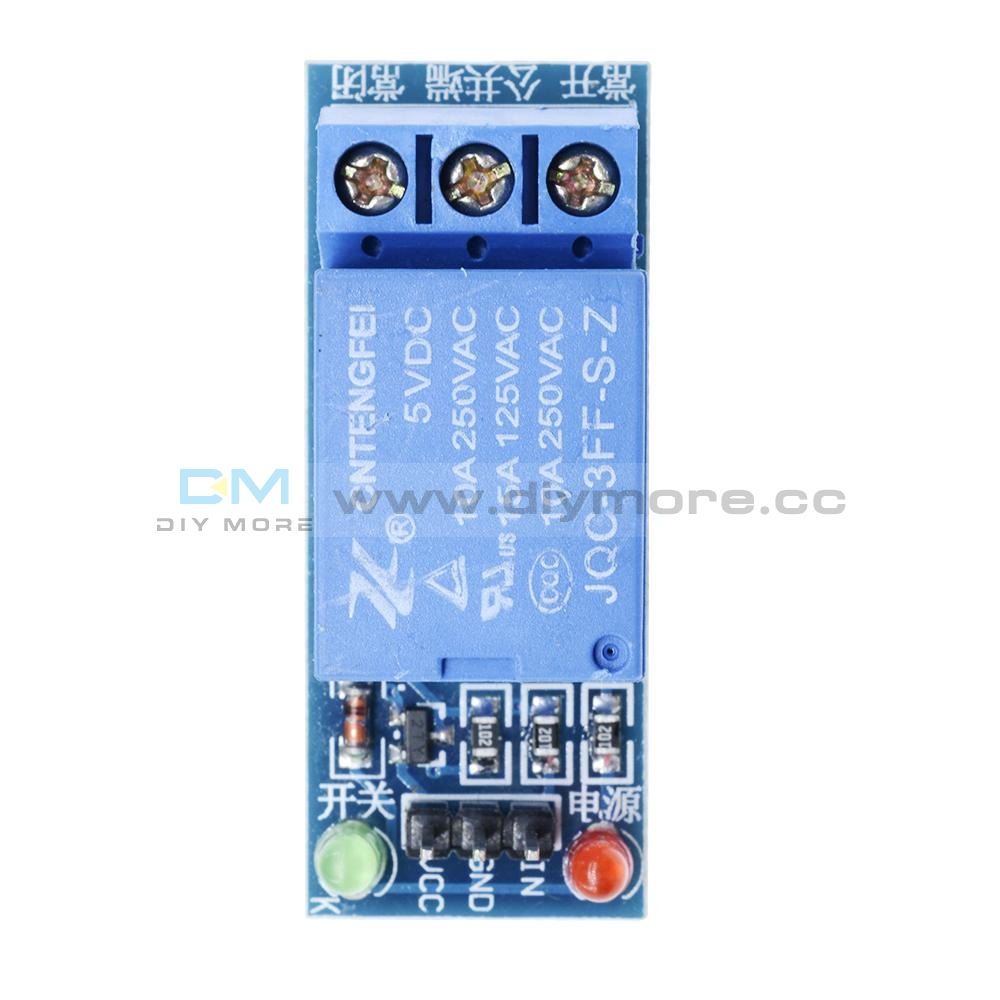

- VCC: Power interface ,5V
- GND: Ground
- IN: Control interface .Drive Current at least 4mA
- COM: Control circuit ground ,Connect to GND
- Size: approx. 41 x 16 x 16mm/ 1.61 x 0.62 x 0.62''
- Weight: approx. 12g
- High level flip-flops shows that there are trigger mode of the voltage between the signal input terminal and the ground; That is to say it is a way of short circuit trigger between signal input and VCC positive pole.

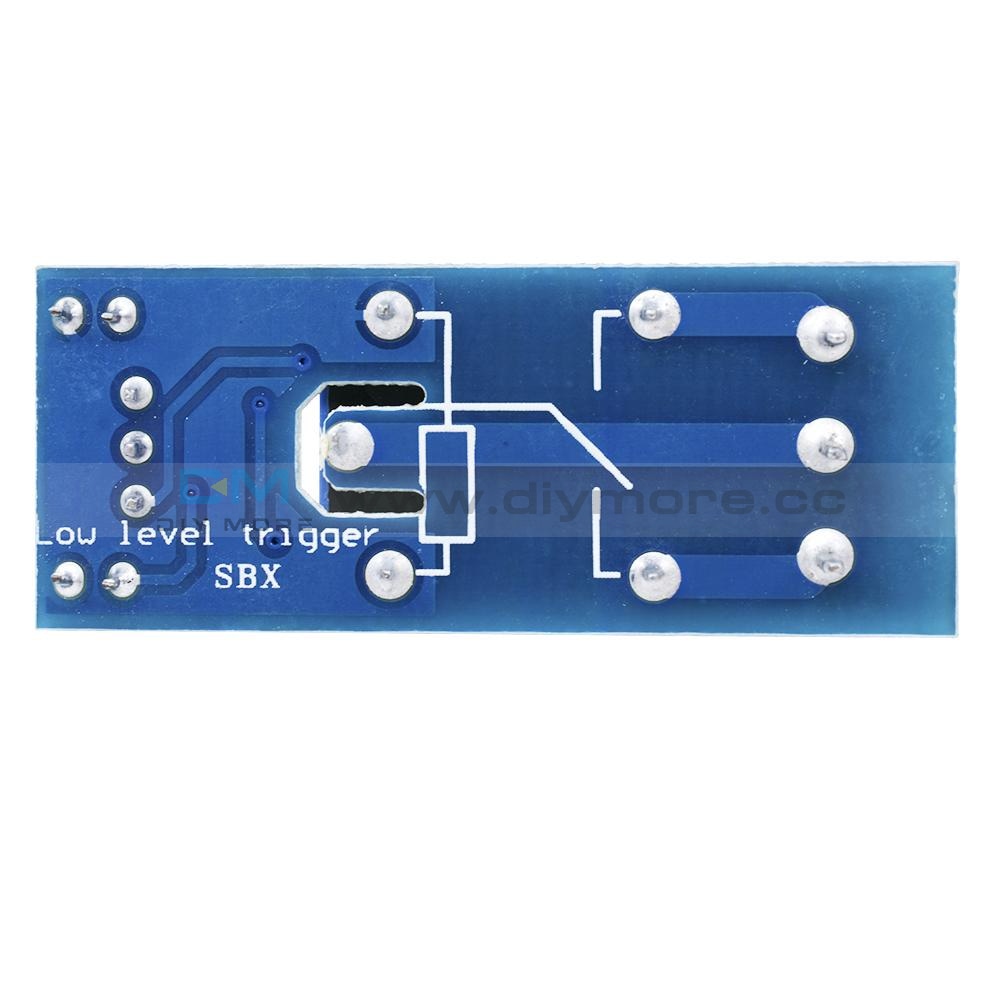

- Low level flip-flops shows that there are voltage for OV trigger mode between the signal input terminal and the ground. In a word, it is a way of short circuit trigger between signal input and GND negative pole.
- Please allow 1-3mm differs due to manual measurement.
- Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.
- 1PCS x 1 Channel 5V Relay Module Shield
