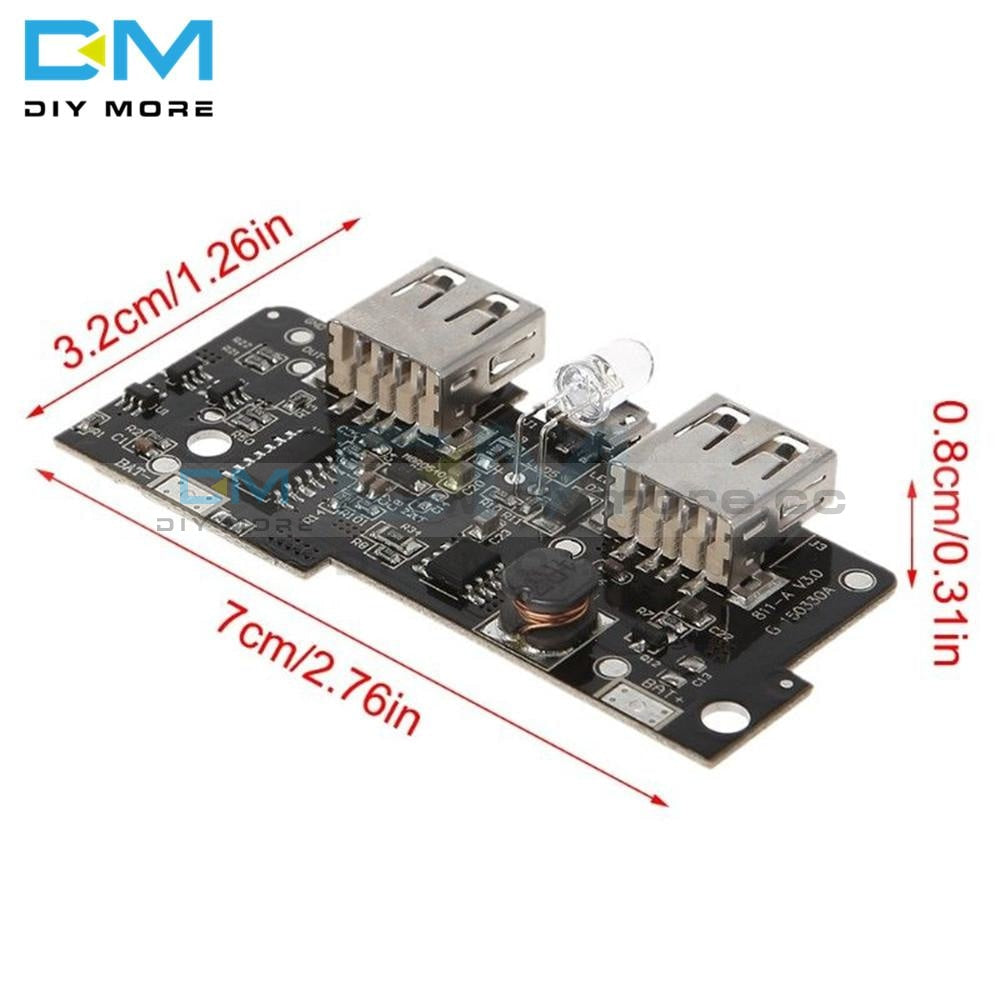

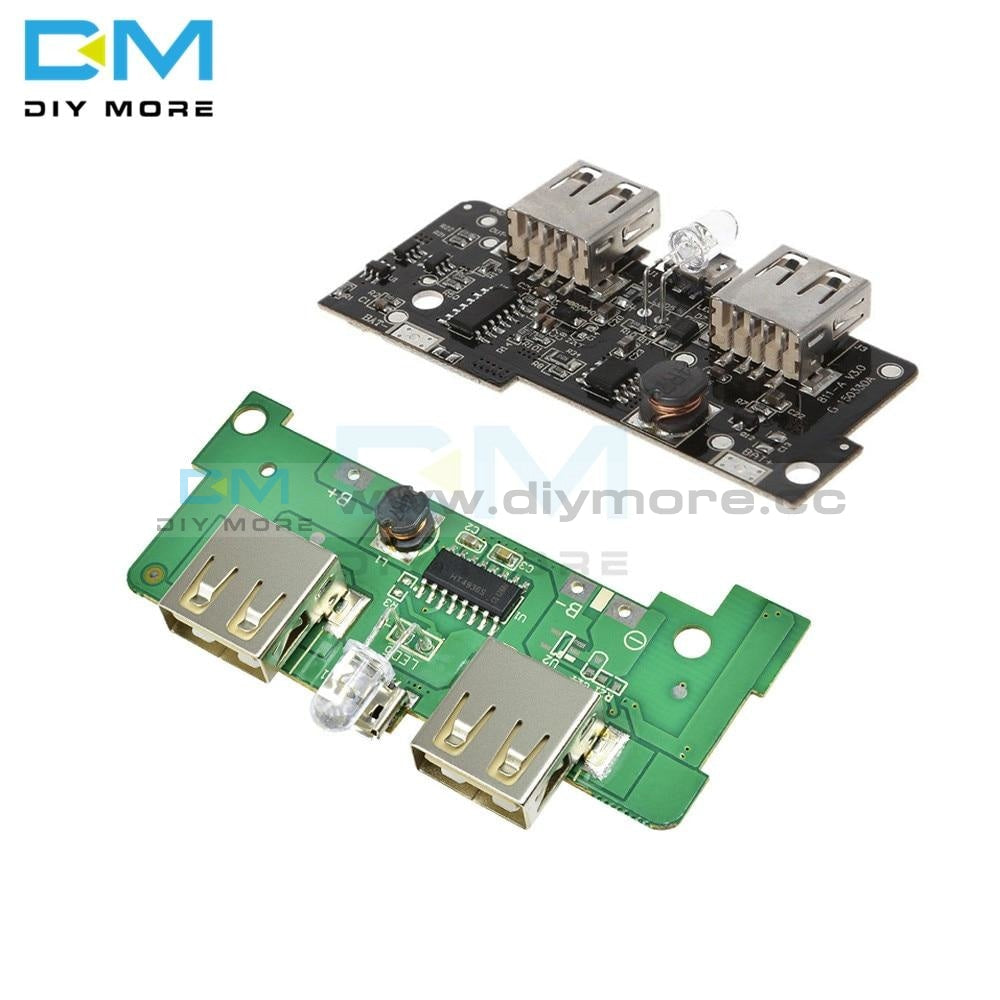

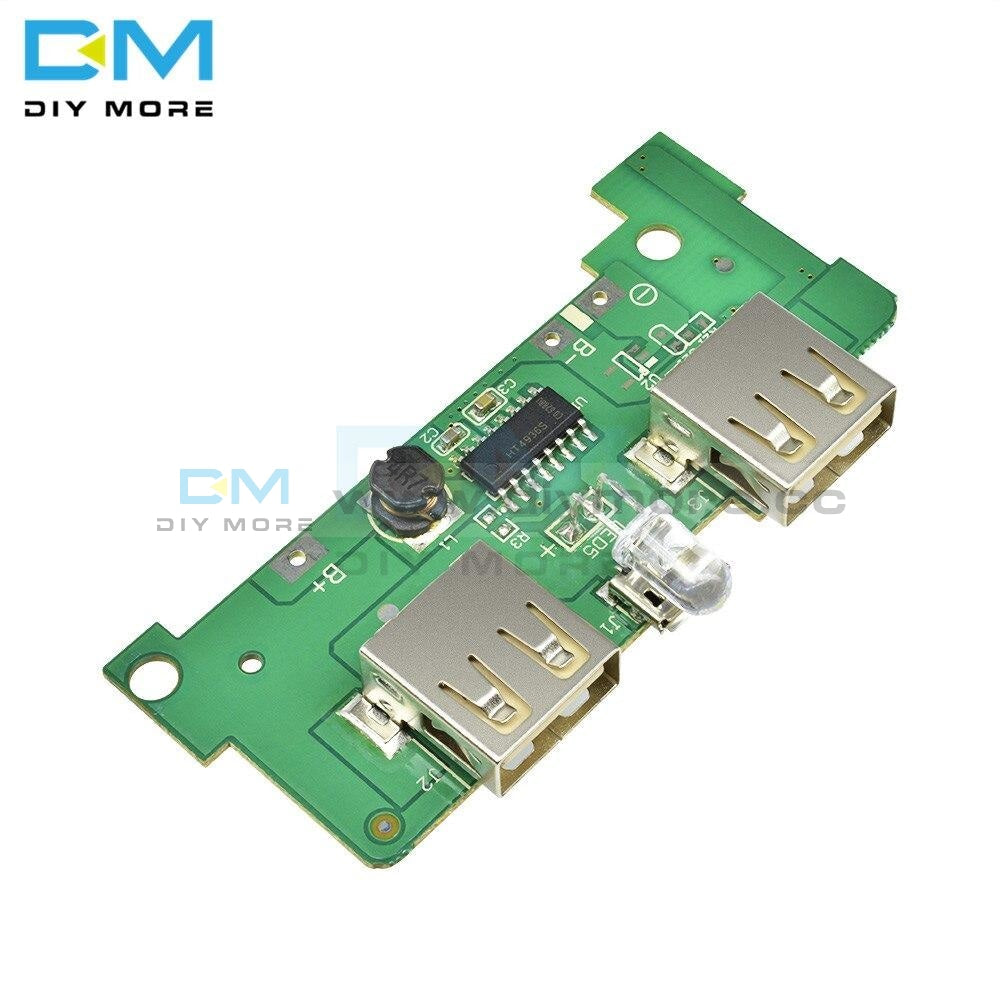

5V 1A 2A Power Bank Charger Module Step Up Boost Power Supply Charging

5V 1A 2A Power Bank Charger Module Step Up Boost Supply Charging Pcb Circuit Board Diy Dual Usb

5V 1A 2A Power Bank Charger Module Step Up Boost Power Supply Charging PCB Circuit Board DIY Dual USB Output LED Powerbank

SKU:040300

$7.99

Description:

Input:5V 1A
Output: dual output 5V 1A/2A
Conversion rate: average 85%
Features: with a LED lights (long press or double-click the boot button can be opened)
Power display: 4 LED lights show power, non-working state intelligent automatic shutdown
Charging display: 0-25% ,first light flashes, other lights do not light,
Charging to 25% - 50%, the second light flash,The first light becomes constant,
Charging to 50% - 75% when the third light is flashing, the front two lights to constant light,
Charging to 75% ---100% The fourth light flashes, the front three lights turn to constant light, four lights full charge to 100%

Safe design:

Power design overcharge, over discharge, short circuit protection circuit, do not worry about charging time is too long, free users to worry about.
Intelligent output, the device is fully charged, the automatic stop charging, to prevent the phone and other overshoot.
The power supply has multiple safety design, the output voltage and current stability, will not hurt the user equipment.
Wide operating temperature range (-20 ° -60 °), with over-temperature protection.
Power display 2A current actual output can be installed inside 6 and 4 18650 battery can also be equipped with polymer lithium battery.

Installation Notes:

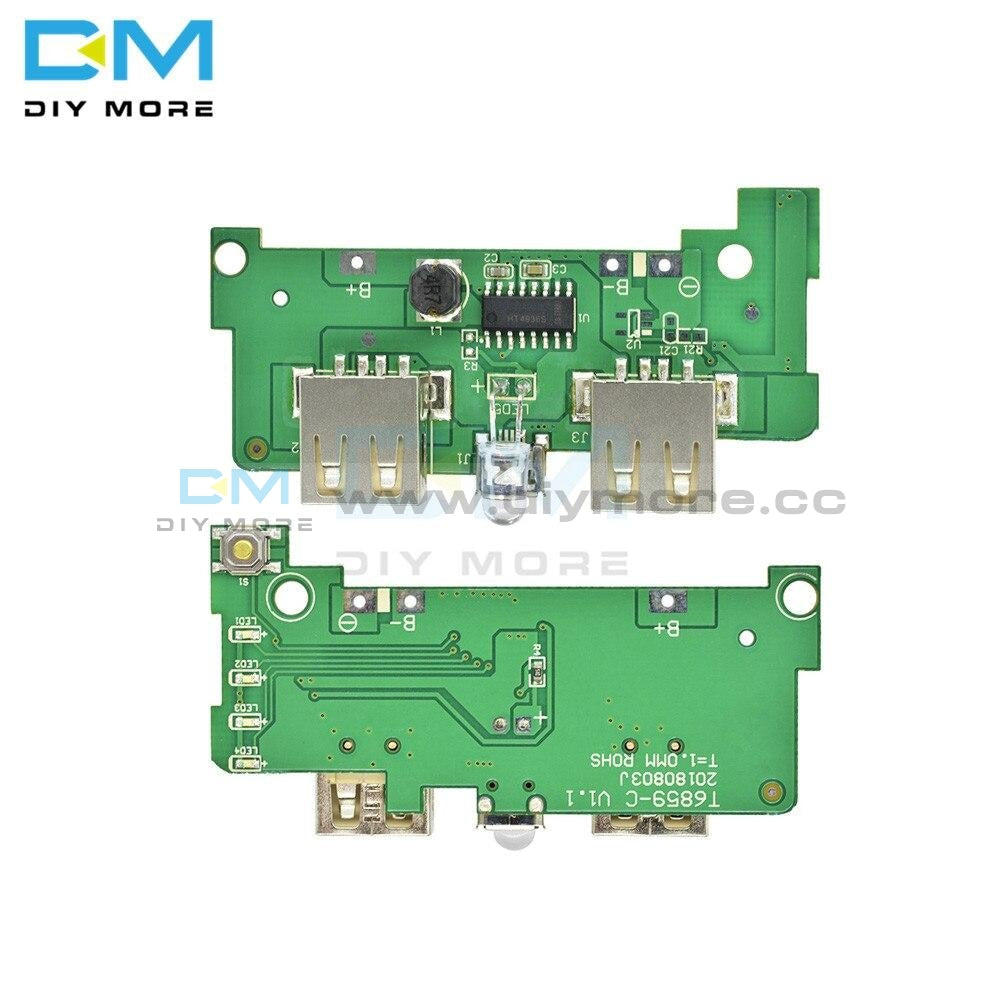

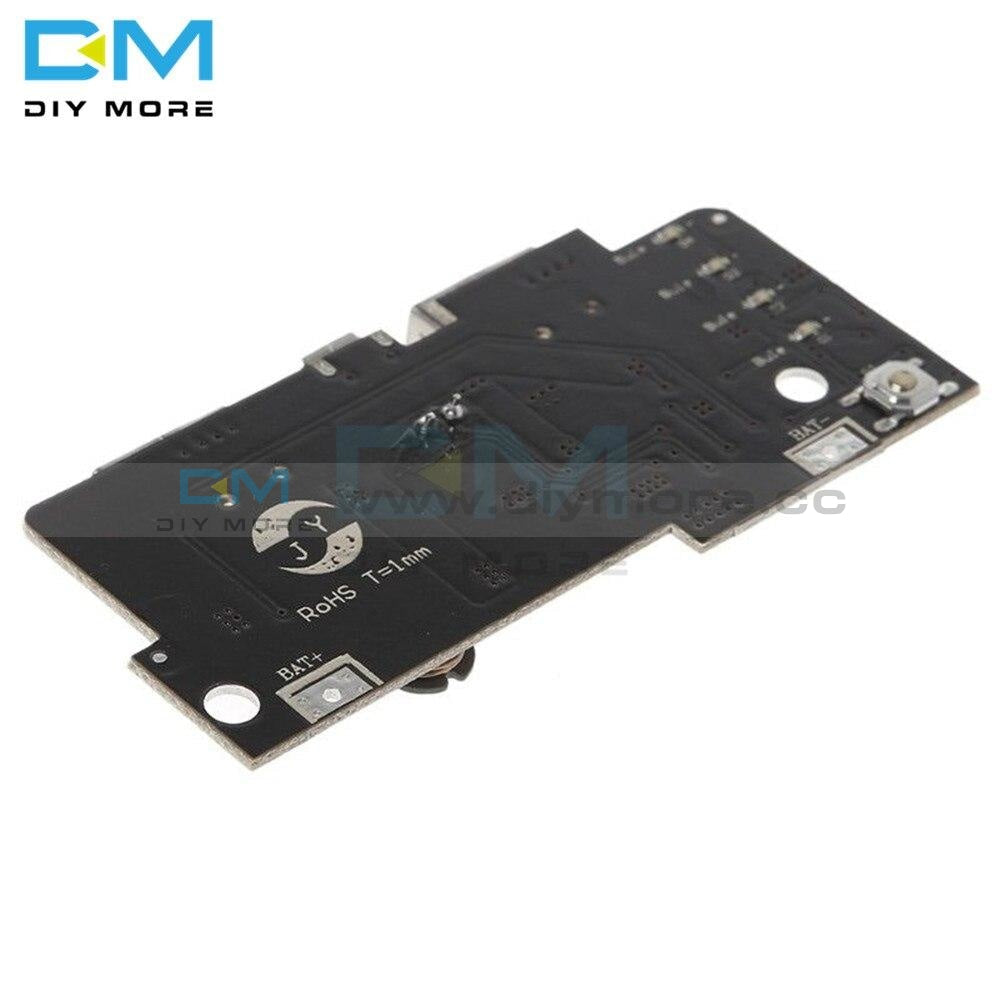

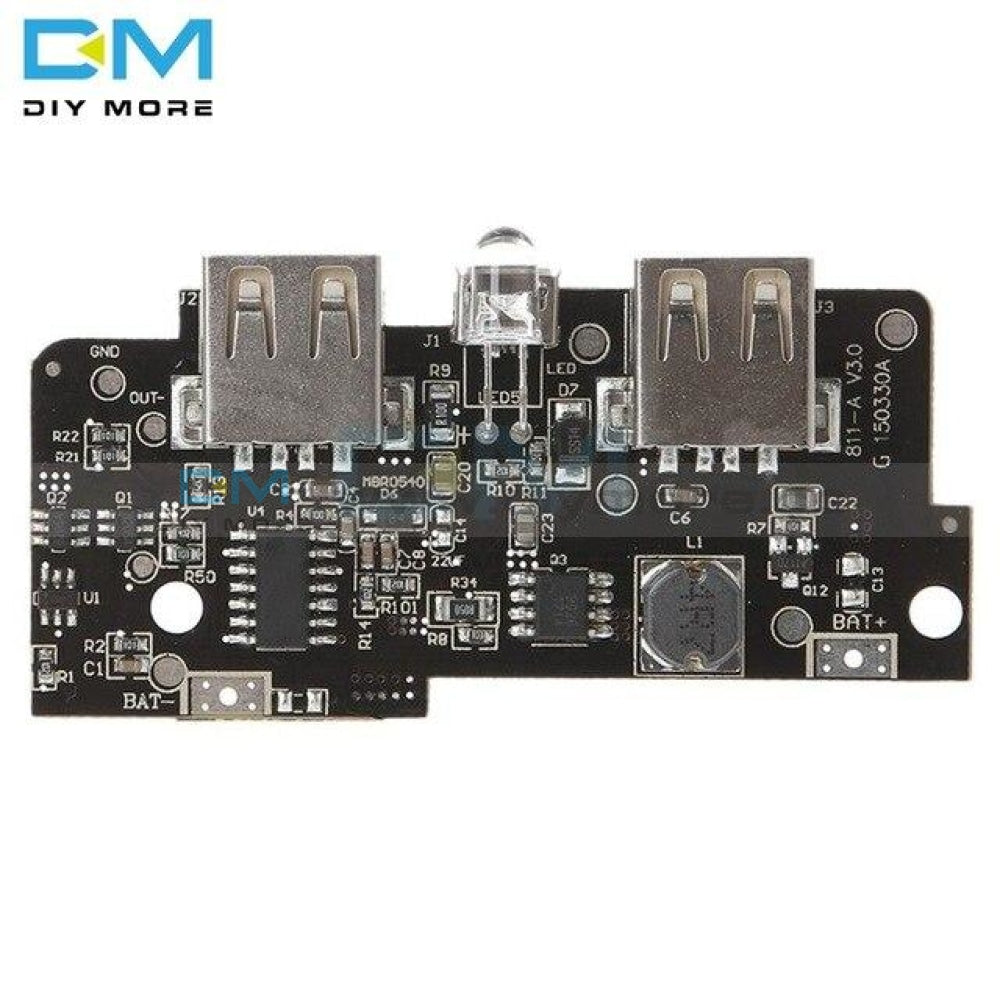

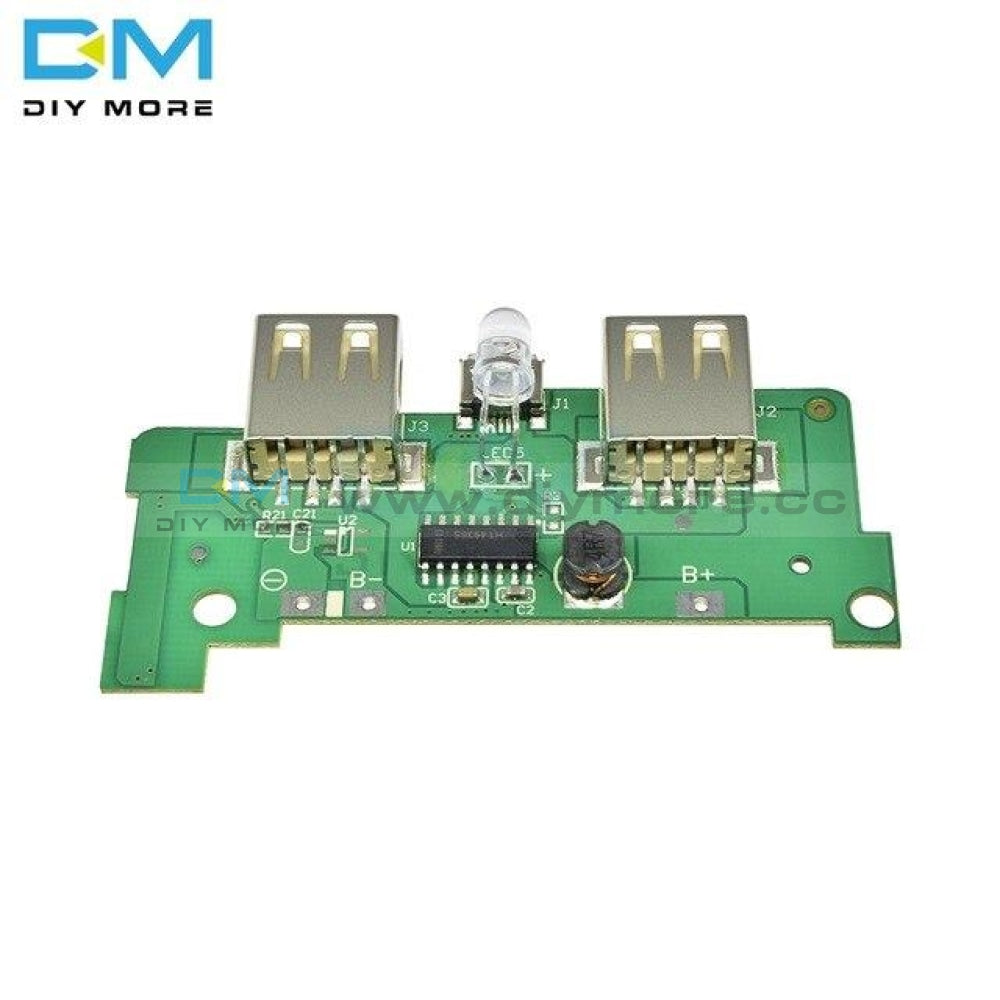

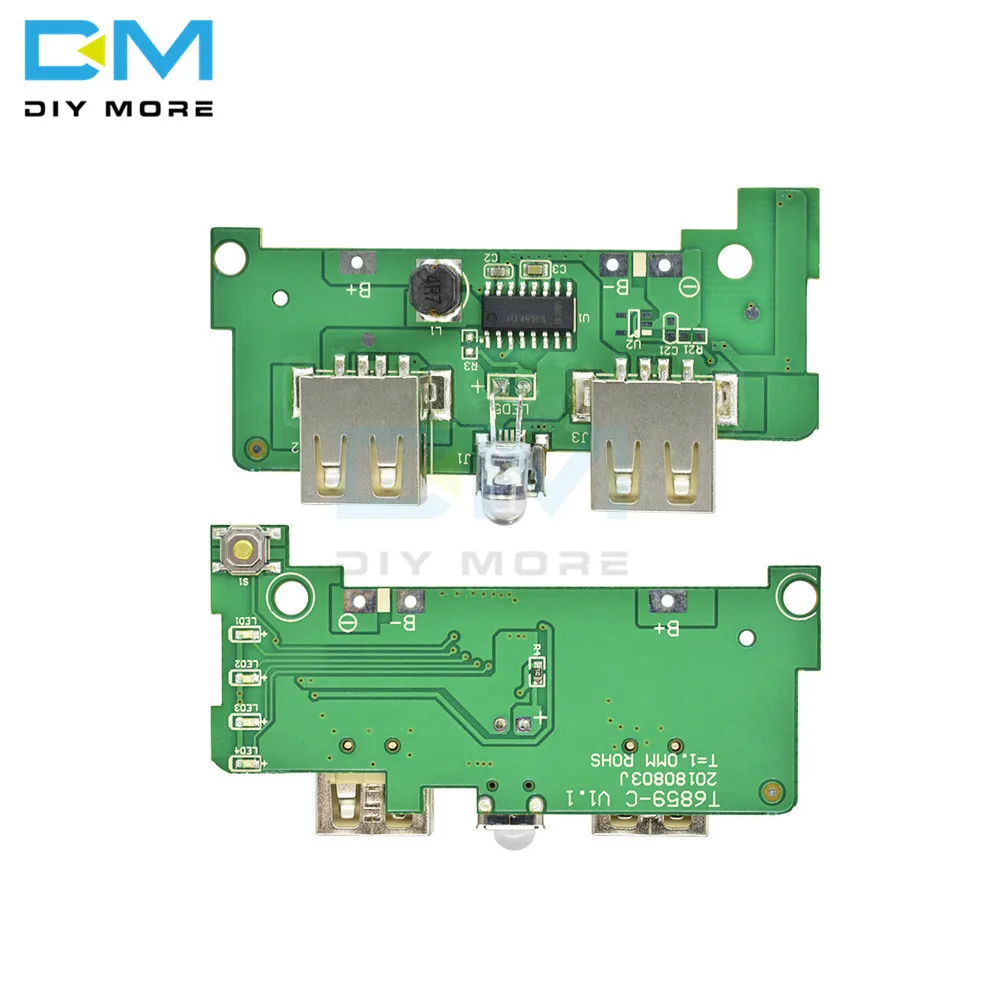

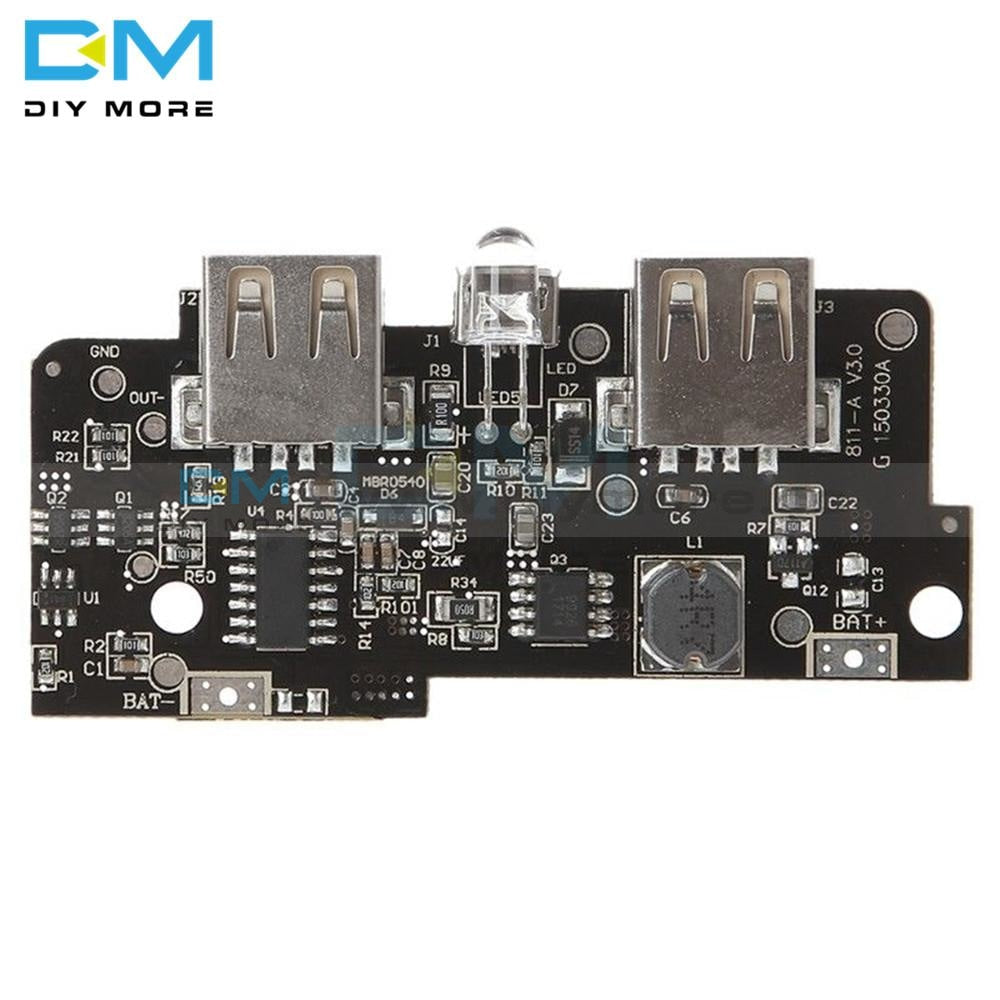

The circuit board B - for the battery negative, B + for the positive, do not reverse, and then refused to burn the board, the battery is parallel welding, when the battery assembly, pay attention to the insulation between the battery and the circuit board , The battery lead do not touch the circuit board, so as to avoid short circuit

040300 (333) 040300 (10) 040300 (1)

Color

5V 1A 5V 2A

Quantity

guaranteeQuality checked
Special gift cardsSpecial gift cards
Free return Within 60 days
Consultancy86-0755-85201155

Description:

Input:5V 1A
Output: dual output 5V 1A/2A
Conversion rate: average 85%
Features: with a LED lights (long press or double-click the boot button can be opened)
Power display: 4 LED lights show power, non-working state intelligent automatic shutdown
Charging display: 0-25% ,first light flashes, other lights do not light,
Charging to 25% - 50%, the second light flash,The first light becomes constant,
Charging to 50% - 75% when the third light is flashing, the front two lights to constant light,
Charging to 75% ---100% The fourth light flashes, the front three lights turn to constant light, four lights full charge to 100%

Safe design:

Power design overcharge, over discharge, short circuit protection circuit, do not worry about charging time is too long, free users to worry about.
Intelligent output, the device is fully charged, the automatic stop charging, to prevent the phone and other overshoot.
The power supply has multiple safety design, the output voltage and current stability, will not hurt the user equipment.
Wide operating temperature range (-20 ° -60 °), with over-temperature protection.
Power display 2A current actual output can be installed inside 6 and 4 18650 battery can also be equipped with polymer lithium battery.

Installation Notes:

The circuit board B - for the battery negative, B + for the positive, do not reverse, and then refused to burn the board, the battery is parallel welding, when the battery assembly, pay attention to the insulation between the battery and the circuit board , The battery lead do not touch the circuit board, so as to avoid short circuit

040300 (333) 040300 (10) 040300 (1)
