AC-DC 5V 700mA 3.5W Power Supply Buck Converter Step Down Module for Arduino

AC-DC 5V 700mA 3.5W Power Supply Buck Converter Step Down Module for Arduino

SKU:010751
Regular price $4.99

Overview:

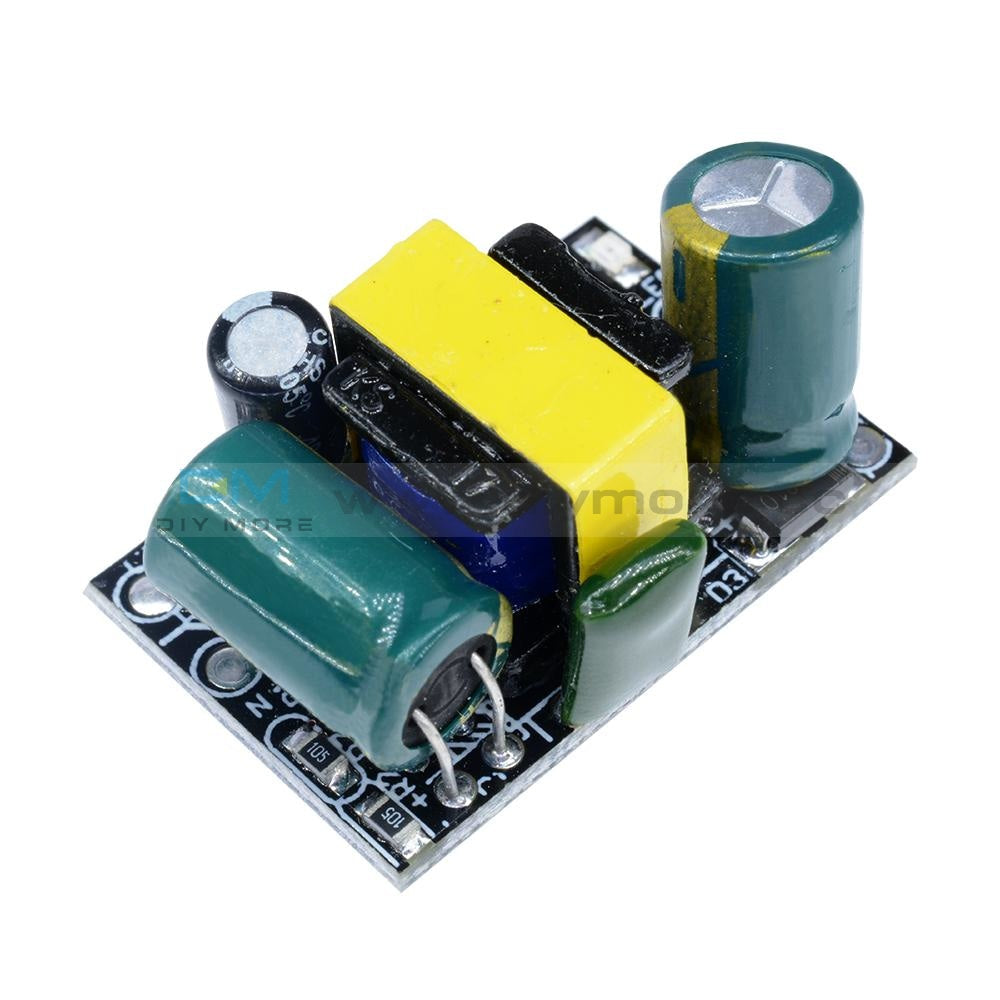

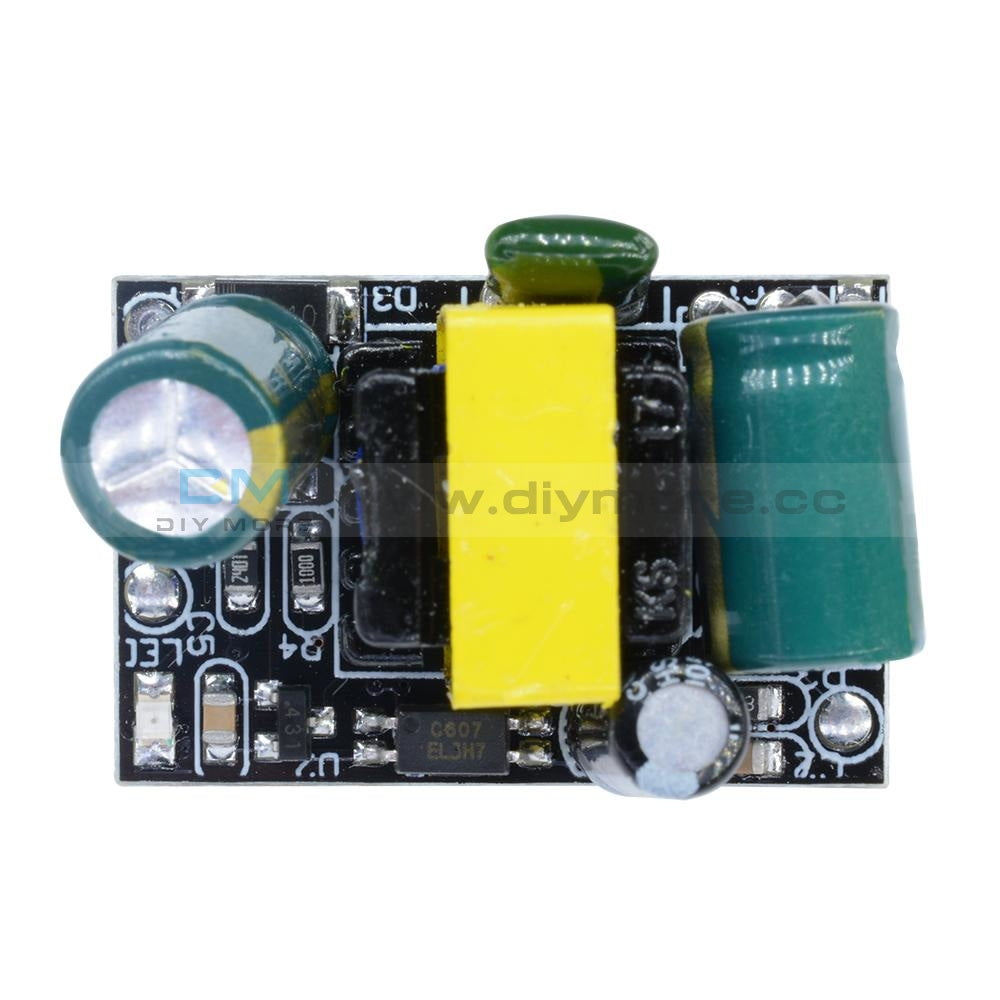

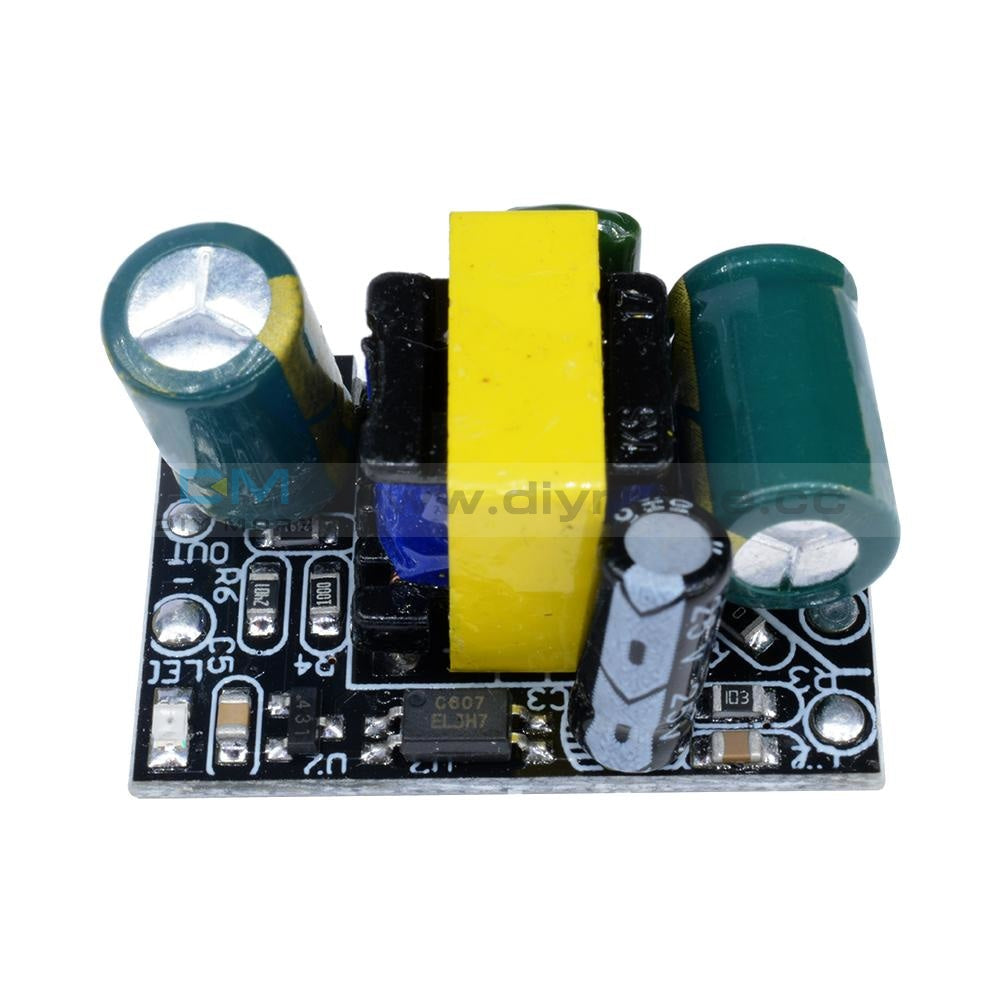

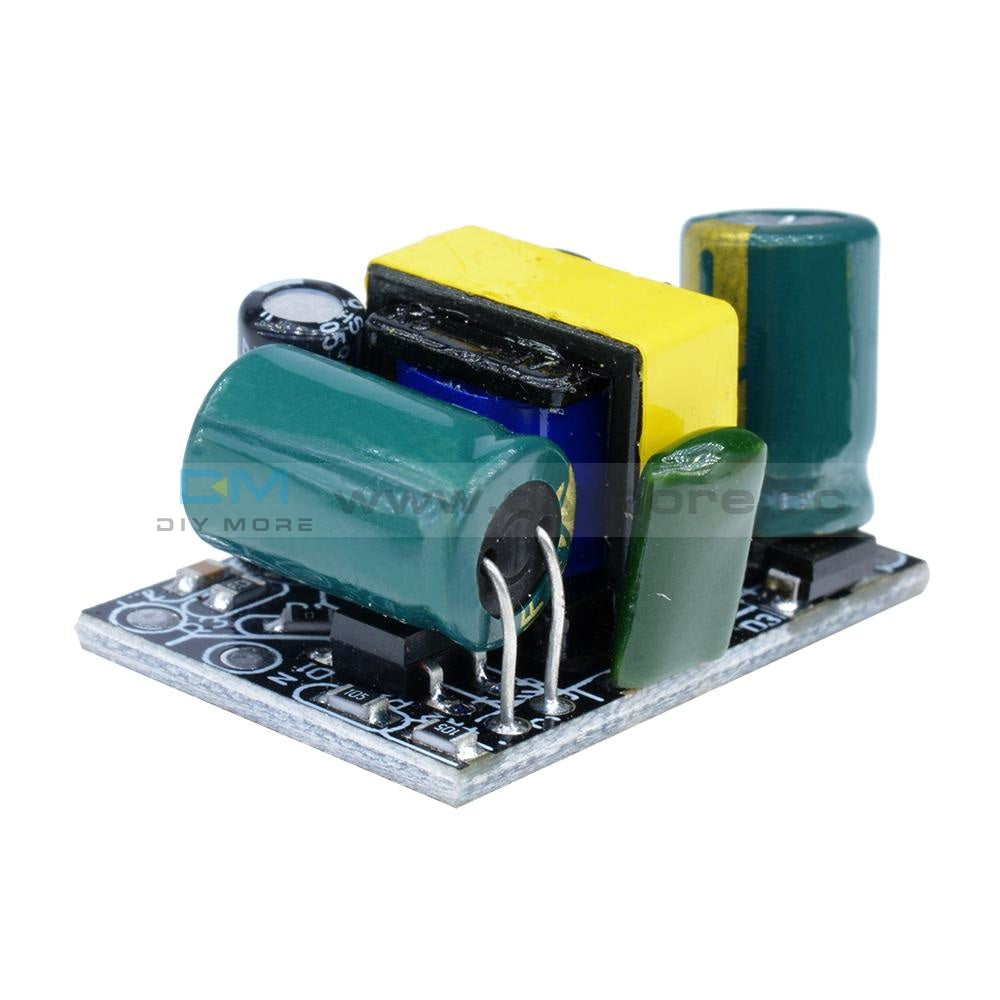

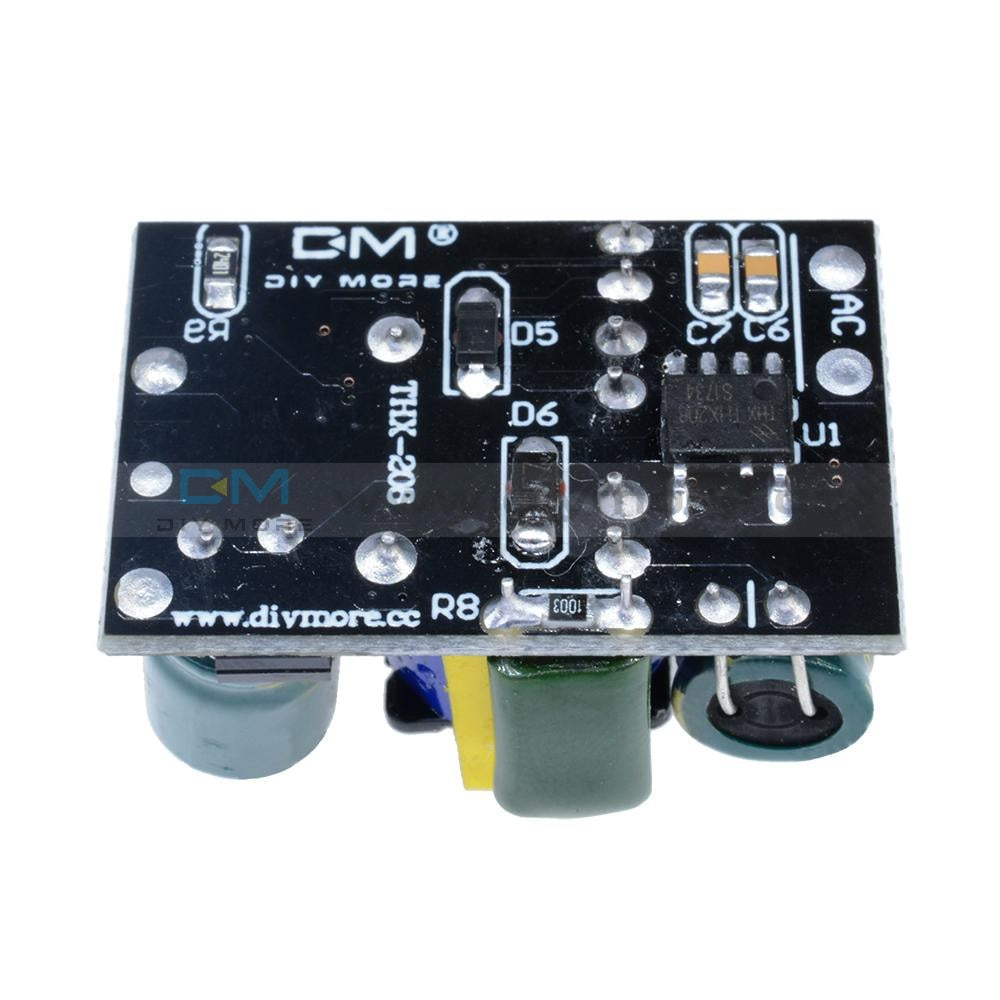

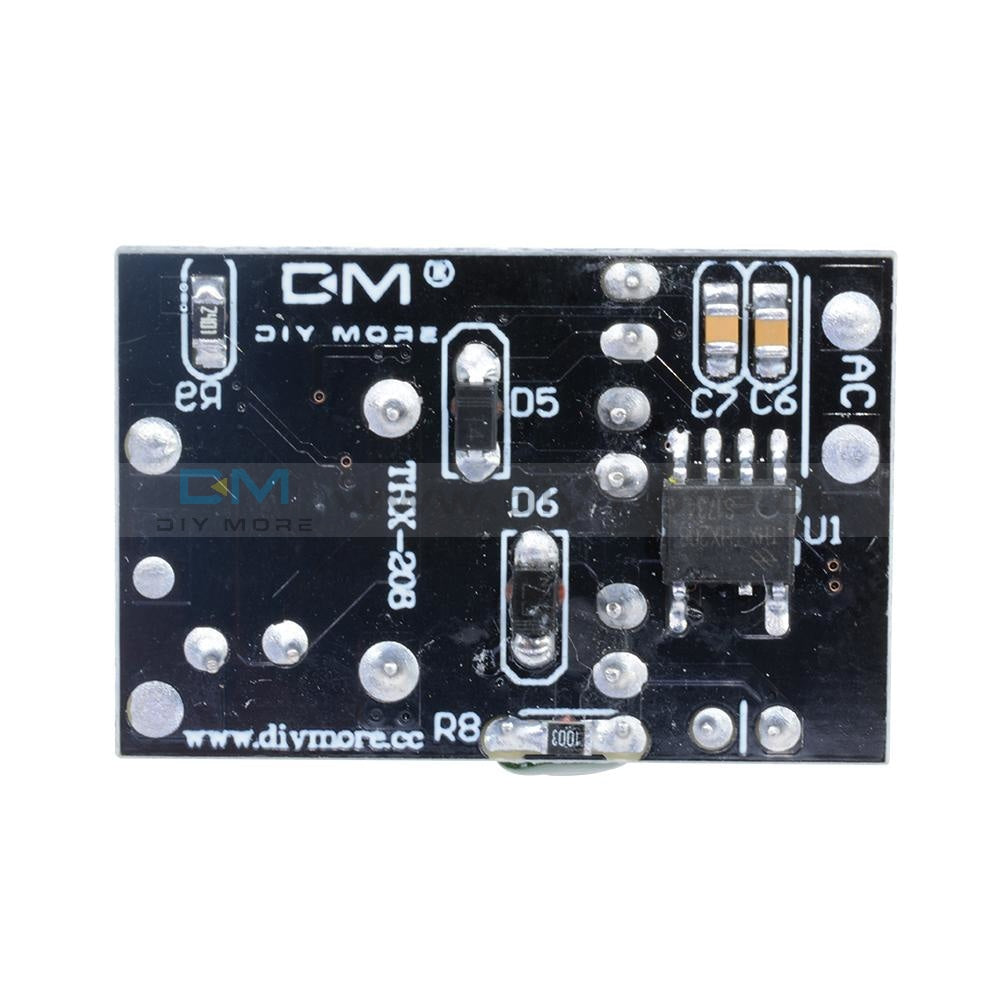

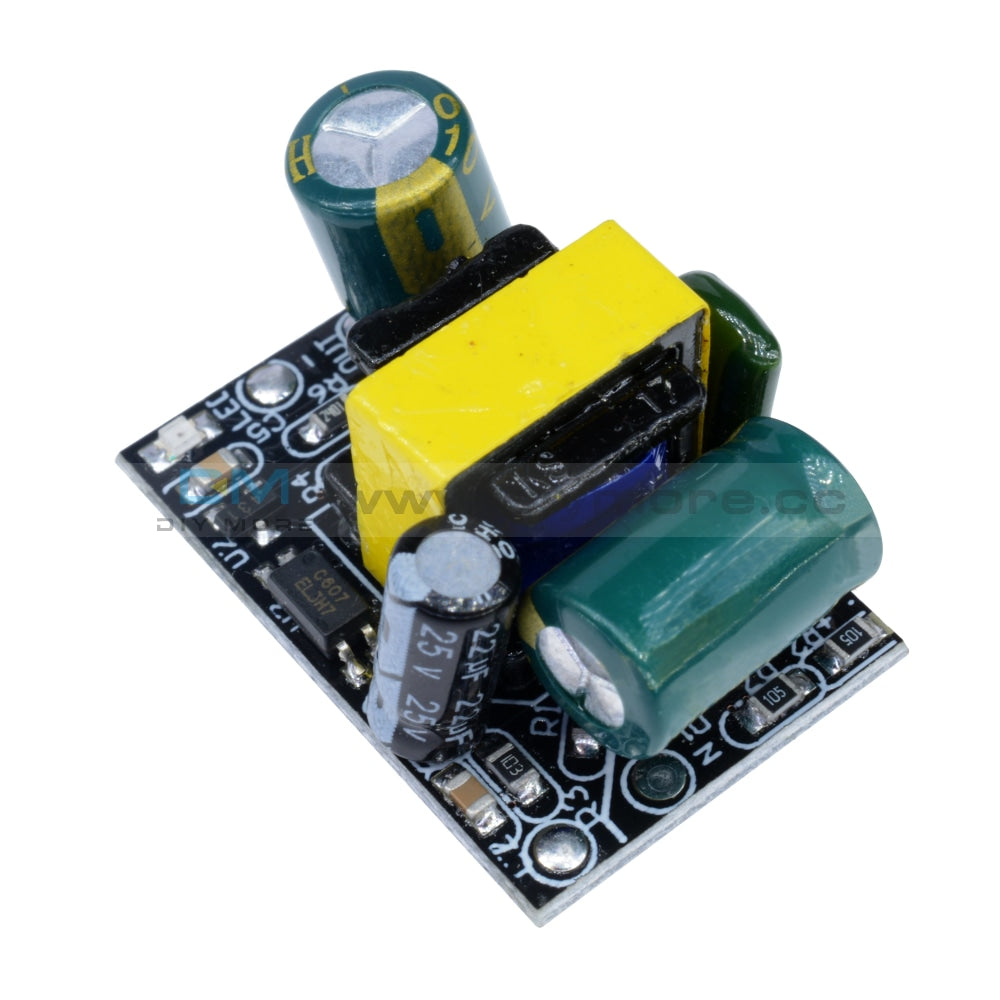

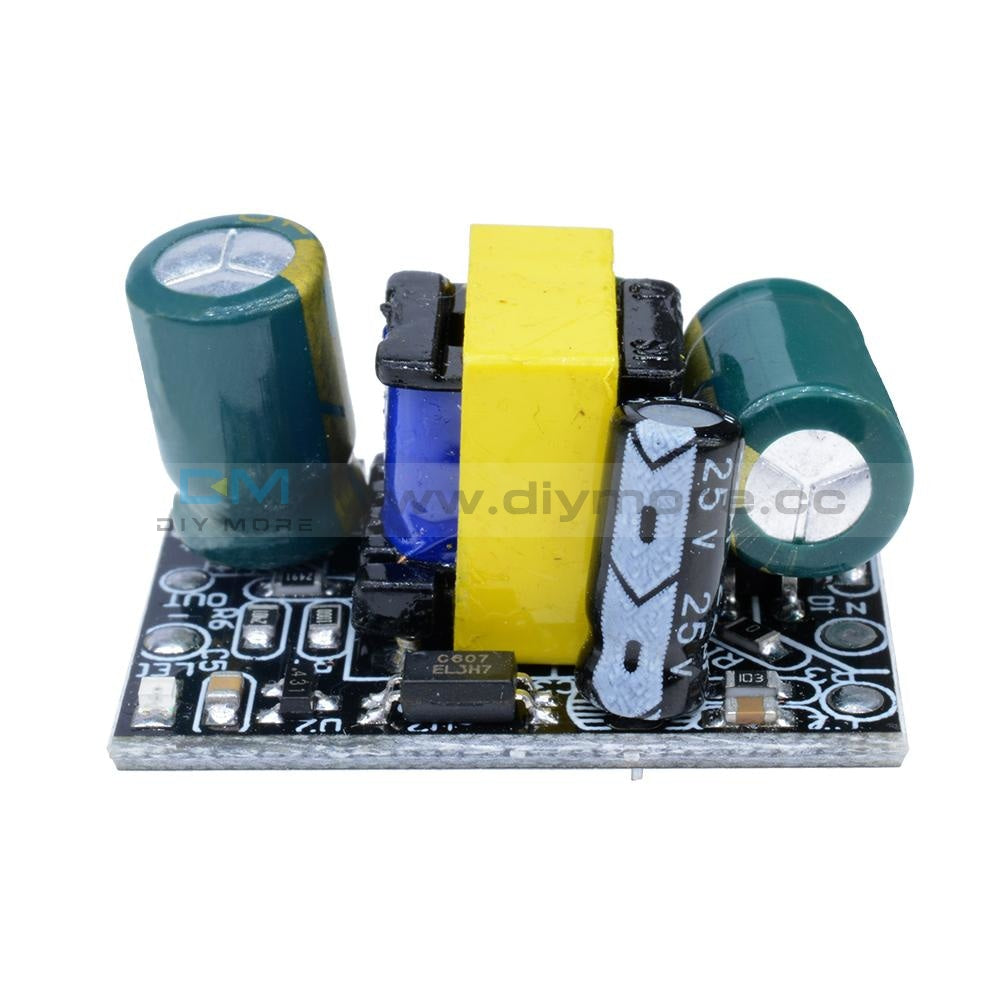

AC-DC 5V 700mA Step Down Module
With temperature protection, over current protection and short circuit protection, high and low voltage isolation, AC85 ~ 265V wide voltage input, ac/dc current, 431 precision voltage stability DC 5V output

Specifications:

  • Input voltage: AC 85 ~ 265 v 50/60 hz or DC 100~ 370 v
  • Imput current: 0.0273A(AC110V) 0.014A(AC220V)
  • Input Inrush Current: 20A
  • Output voltage: DC 5V (+ / - 0.2 V)
  • Output current 700 mA
  • Power 3.5 W
  • Operating temperature -20~60℃
  • Relative humidity 40-90%RH
  • Output: 5V
  • Mini current: 0A
  • Max current :700mA
  • Peak current: 800mA
  • output range: 4.8~5.2V
  • ripple wave: 60mV
  • Output power:0-4W(DC current)
  • Output efficiency: 80%
  • Switch machine overshoot: MAX 10%
  • Output voltage rise time: MAX 100MS
  • Output over voltage: 4.8-5.2V, recovery:Lock, restart after recovery
  • Output over power protection:YES ,recovery:Lock, restart after recovery
  • Short-circuit protection: YES, automatic recovery after problem solved
  • Temperature protection: YES,recovery:Lock, restart after recovery
  • Overcurrent protection: YES,recovery:Lock, restart after recovery


Package Include:
1 x AC-DC 5V 700mA Buck Converter

trust seal
  • guaranteeQuality checked
  • Special gift cardsSpecial gift cards
  • Free return Within 60 days
  • Consultancy86-0755-85201155

Overview:
AC-DC 5V 700mA Step Down Module
With temperature protection, over current protection and short circuit protection, high and low voltage isolation, AC85 ~ 265V wide voltage input, ac/dc current, 431 precision voltage stability DC 5V output

Specifications:

  • Input voltage: AC 85 ~ 265 v 50/60 hz or DC 100~ 370 v
  • Imput current: 0.0273A(AC110V) 0.014A(AC220V)
  • Input Inrush Current: 20A
  • Output voltage: DC 5V (+ / - 0.2 V)
  • Output current 700 mA
  • Power 3.5 W
  • Operating temperature -20~60℃
  • Relative humidity 40-90%RH
  • Output: 5V
  • Mini current: 0A
  • Max current :700mA
  • Peak current: 800mA
  • output range: 4.8~5.2V
  • ripple wave: 60mV
  • Output power:0-4W(DC current)
  • Output efficiency: 80%
  • Switch machine overshoot: MAX 10%
  • Output voltage rise time: MAX 100MS
  • Output over voltage: 4.8-5.2V, recovery:Lock, restart after recovery
  • Output over power protection:YES ,recovery:Lock, restart after recovery
  • Short-circuit protection: YES, automatic recovery after problem solved
  • Temperature protection: YES,recovery:Lock, restart after recovery
  • Overcurrent protection: YES,recovery:Lock, restart after recovery


Package Include:
1 x AC-DC 5V 700mA Buck Converter
