ATU100 MINI 0.96 inch OLED Automatic Antenna Tuner 100W Weather Adjustment
ATU100 MINI 0.96 inch OLED Automatic Antenna Tuner 100W Weather Adjustment
SKU:XF0115
Regular price
$35.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Only the model 3 version with a housing comes with a battery! ! !
Model 1#: Unassembled, need welding, without battery.

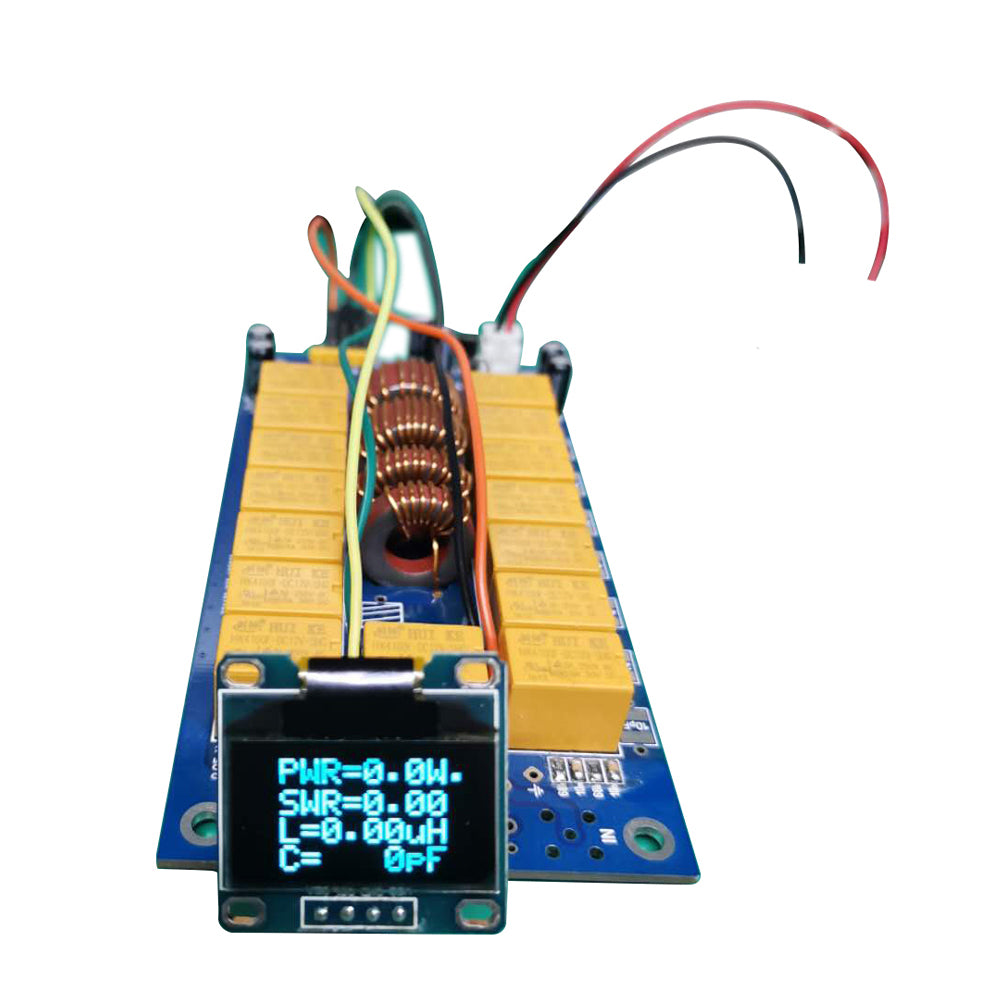

Model 2#: Welding has been completed, without battery.

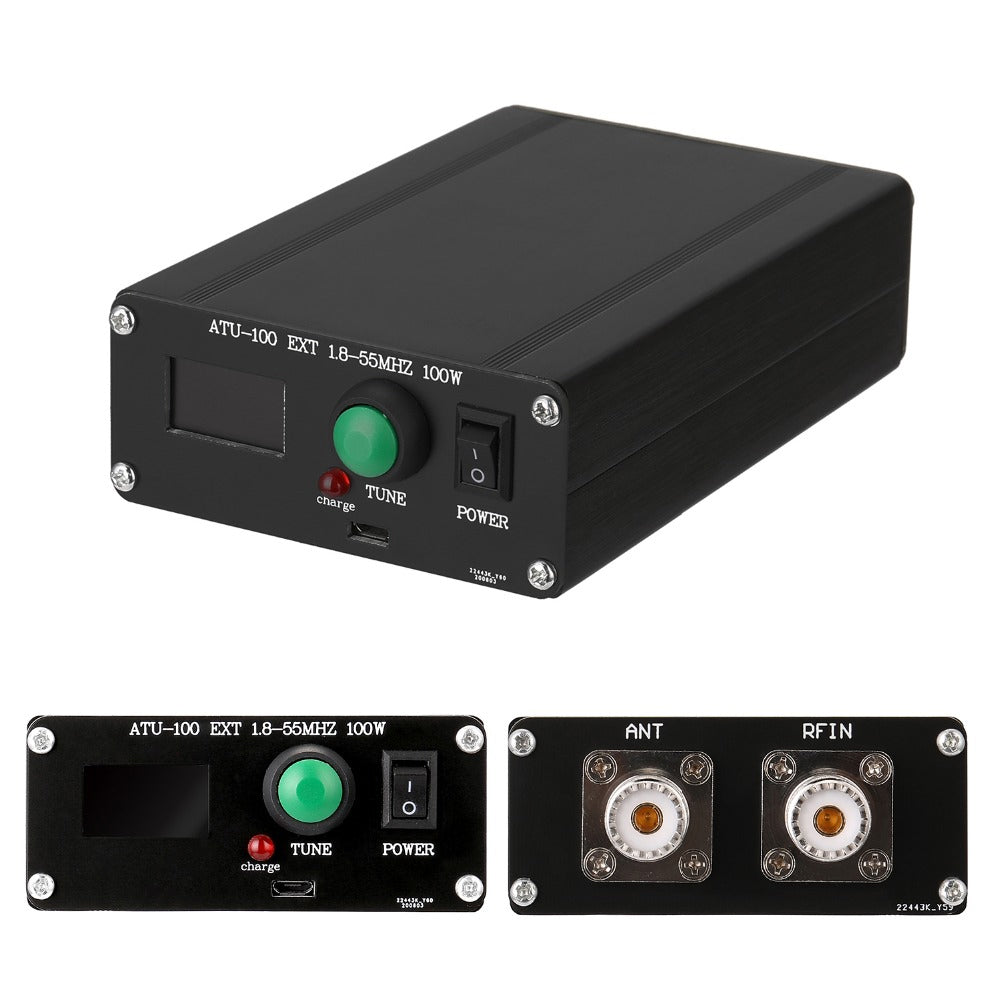

Model 3#: Welding has been completed, with shell and 400mA battery.
| Model 1# | Model 2# | Model 3# |
 |
 |
 |
| Unassembled, need welding, without battery | Unassembled, need welding, without battery | Welding has been completed, with shell and 400mA battery |
Made of fine quality material, practical, easy to operate and use, has a long service life.
Features:
Made of fine quality material, has a long service life.
Easy to install and use.
Kit of ATU (automatic antenna tuner) developed by N7DDC.
More professional, more stable and better performance.
Specifications:
Main material: PCB
Main color: yellow+blue
Power supply range: 10-15V DC
Max. current: 300mA
Max. working power: 100 watts
Max. measured power: 150 watts
Minimum power for tuning start: 1 watt
Recommended maximum power while tuning not above 30 watts. (after tuning you can set 100 watts and work on this power)
Minimum measured power: 0.1 watt
Step for measurement on powers under 10 watts: 0.1 watt
Step for measurement on powers above 10 watts: 1 watt
Power measurement accuracy: 10%
Maximum inductance set: 8.5 uH
Minimal step for setting inductance: 0.05 uH
Maximum installed capacity: 1870 pF
Minimal step for setting capacity: 10 pF
100 Watts tuner, 7x7 (7 capacitors x 7 coils) based on PIC 16F1938.
Package size: 150 * 100 * 40mm / 5.9 * 3.9 * 1.6in
Package weight: 240g / 8.5ounce
Note:
1. DIY kit, need to have welding ability.
2. No need to burn-firmware.
3. SMD electronic components are not soldered.
4. with OLED.
5. All information about project you can find on GitHub (N7DDC).

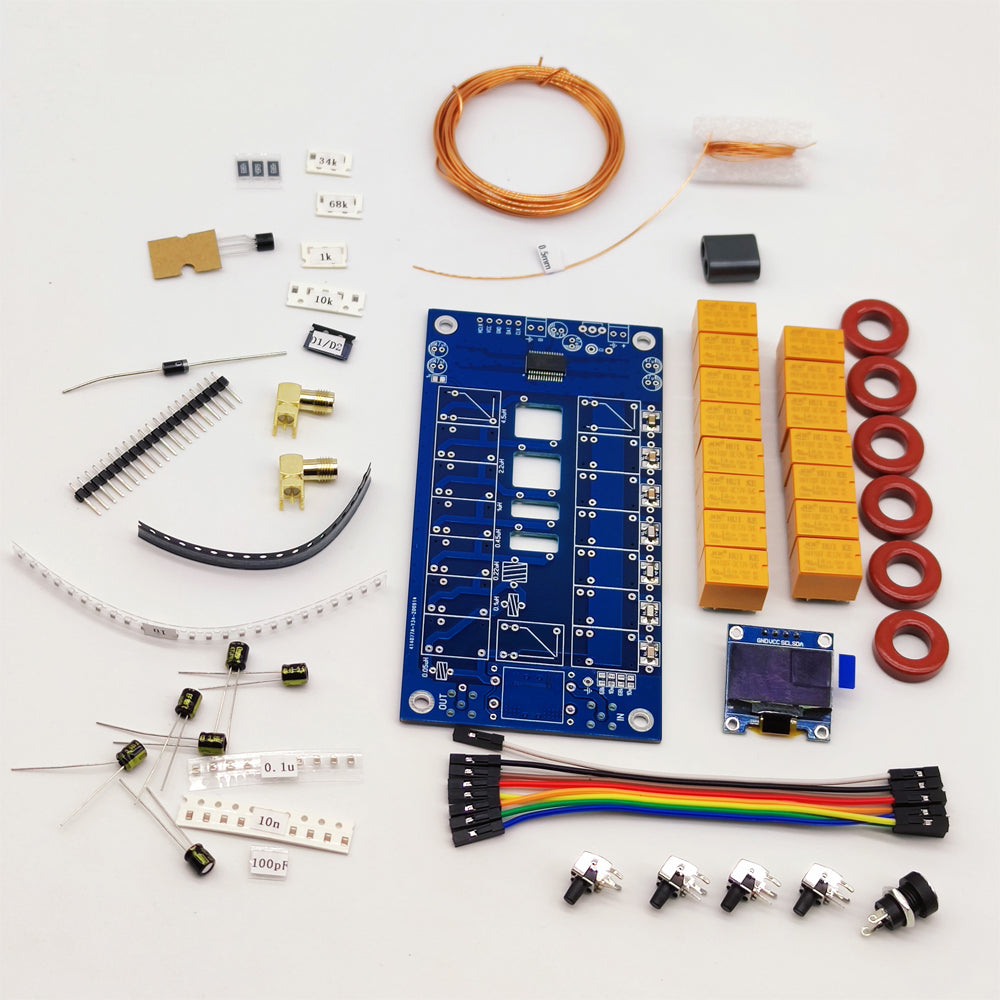

Packing List:
1 * PCB for ATU-100 7x7 HF Autotuner
1 * Set of Toroids (6pcs T68-2, 1pcs BN43-202)
1 * Set of Parts (PIC16F1938 (1pcs) soldered on PCB with default firmware v3.0, 4pcs 100R 2512 1%, 15pcs relay HK4100F-DC12V, 1pcs 0.96 inch OLED)
