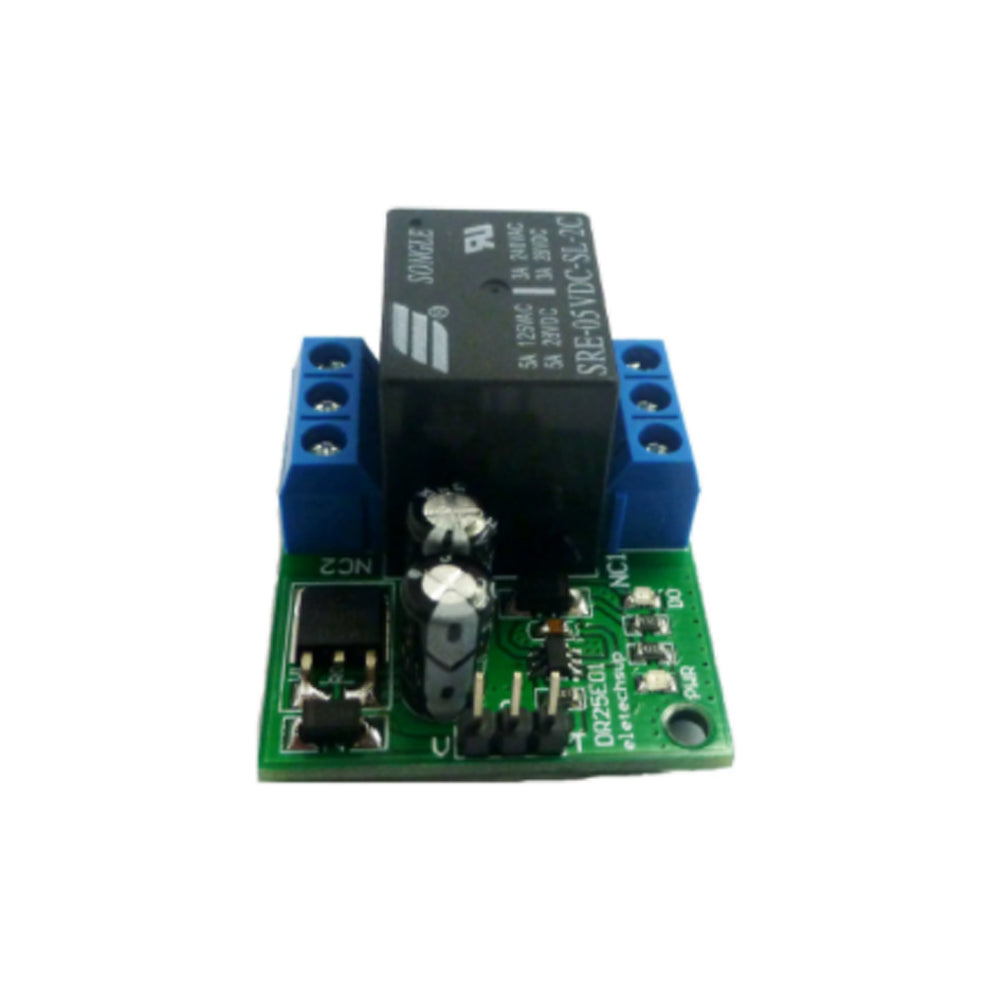

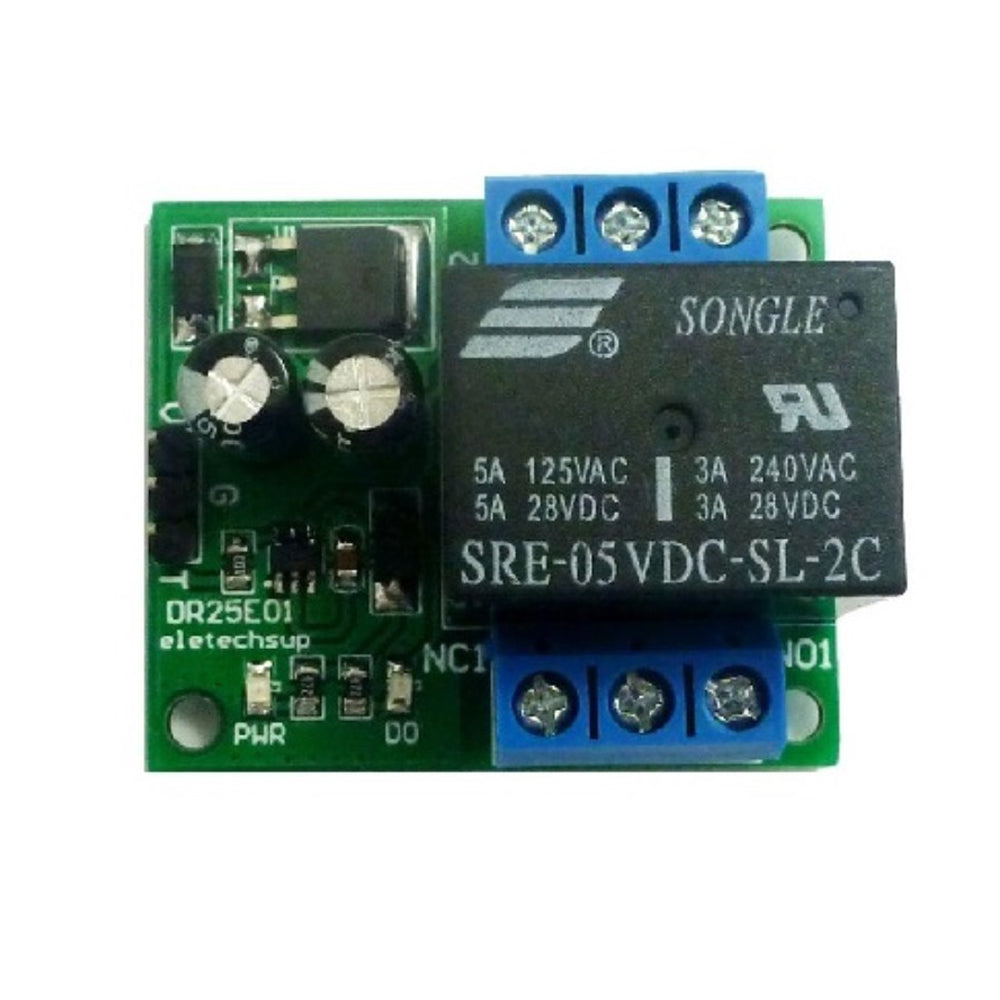

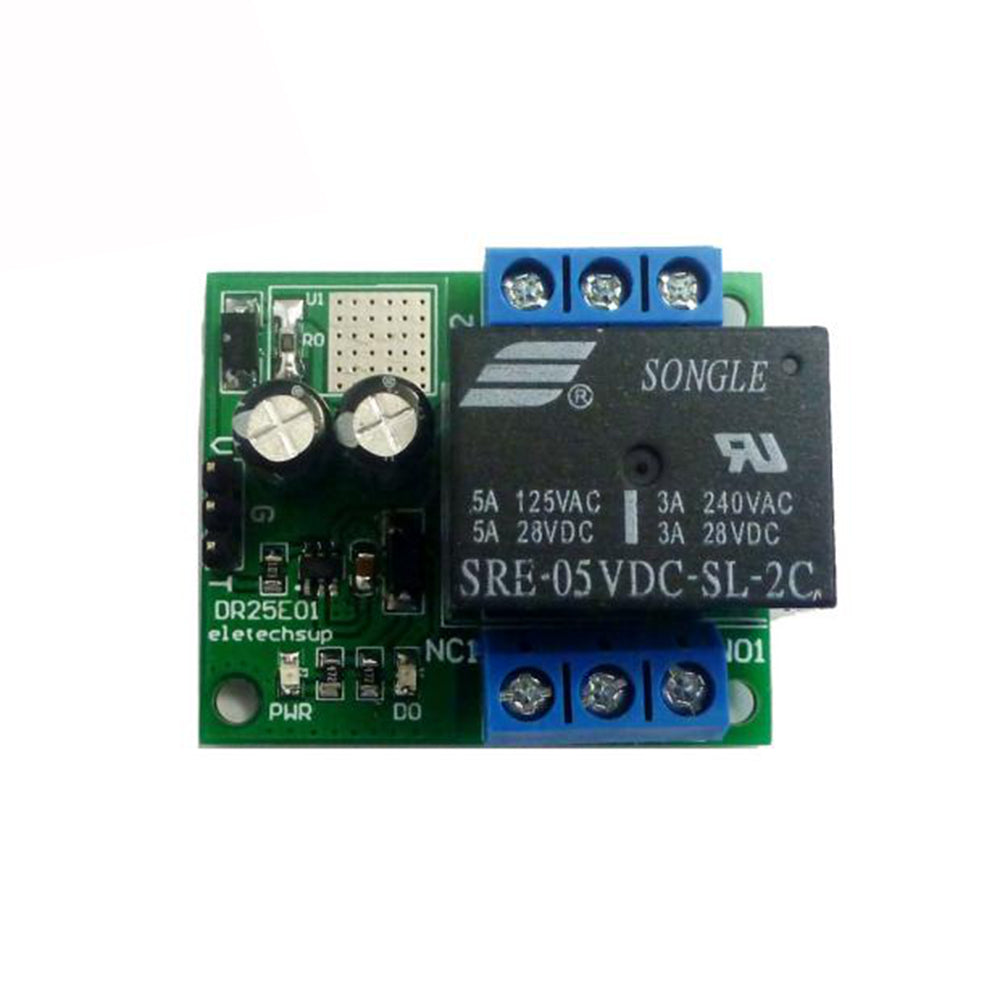

DC 5V 6V-24V Double Pole Double Throw DPDT Self-locking Bistable Relay Module
SKU:XM0010
Regular price
$6.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Description：
- Input voltage: DC 5V (5V version), DC 6-24V (12V version)
- Module working current: forward 2MA, reverse 60-70MA
- Load current: maximum 5A (motor <=3A)
- With power indicator and reverse polarity indicator
- Control mode: low pulse control
- Size: 39.5mm X 33.3mm X 23.3mm
- This is a self-locking (bistable) double-pole double-throw relay. When triggered once, the relay is closed, and triggered again, the relay is disconnected.

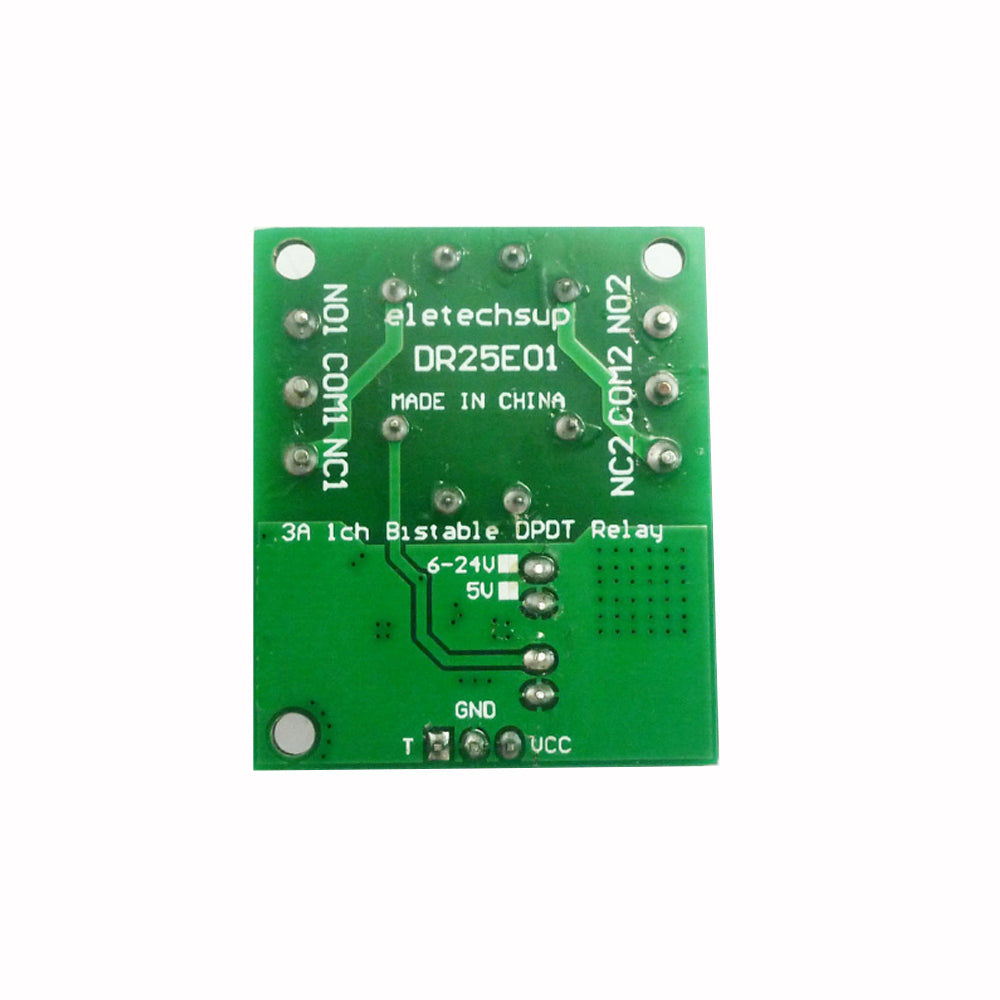

- V: positive power supply
- G: The negative pole of the power supply and the ground terminal of the trigger signal;
- T: Trigger signal input (0.2-2 second low pulse).
- NO1: Relay normally open port
- COM1: Relay common port
- NC1: Relay normally closed port
- NO2: Relay normally open port
- COM2: Relay common port
- NC2: Relay normally closed port
Instructions:
- When power is applied, the relay is disconnected. Click the trigger port (T port) to close the relay, click the relay again to disconnect, and so on.
Package Included：
- 1PCS*Double Pole Throw DPDT Self-locking Bistable Relay Module
