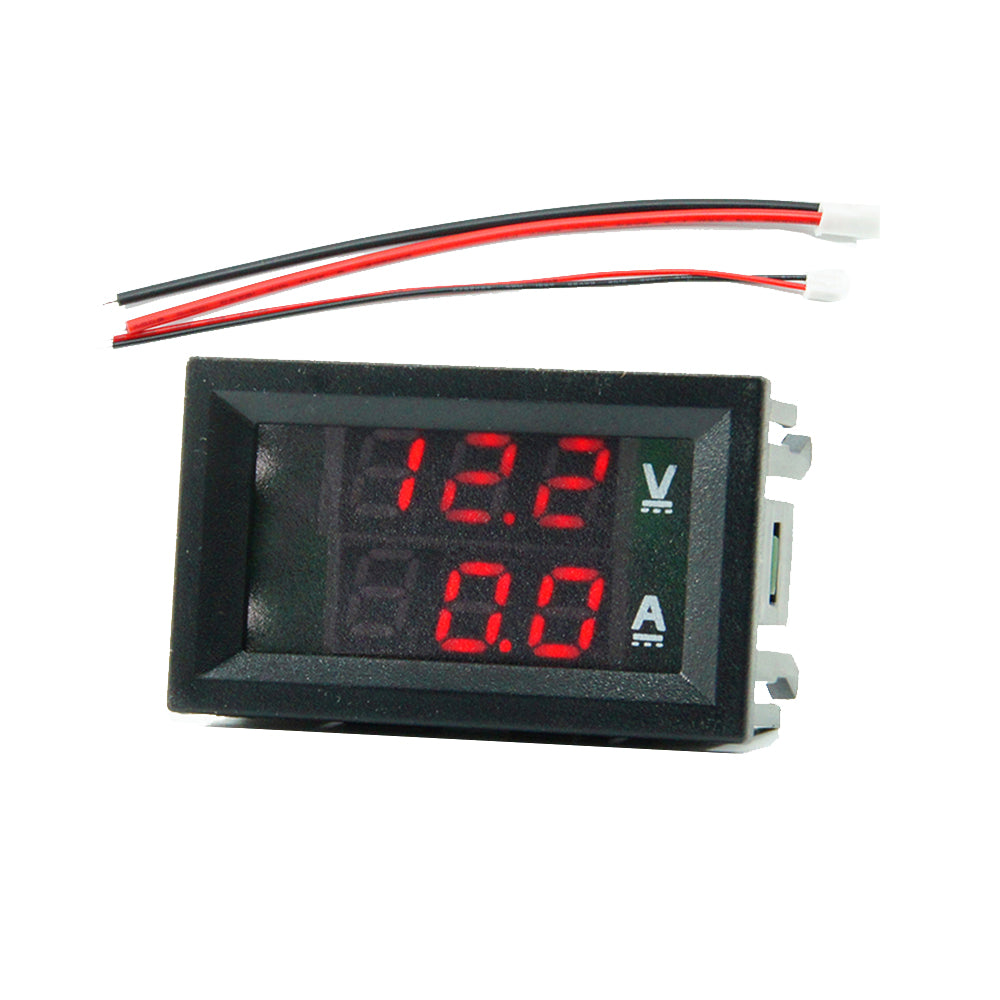

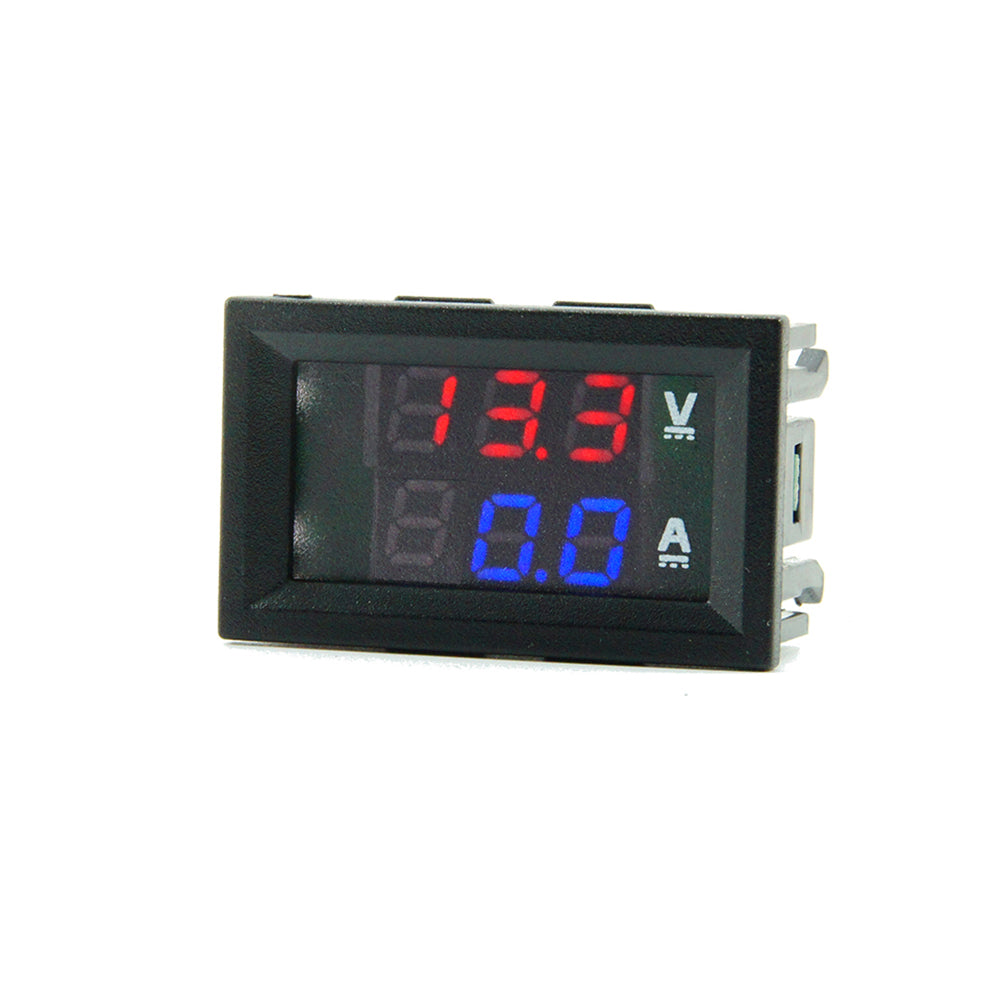

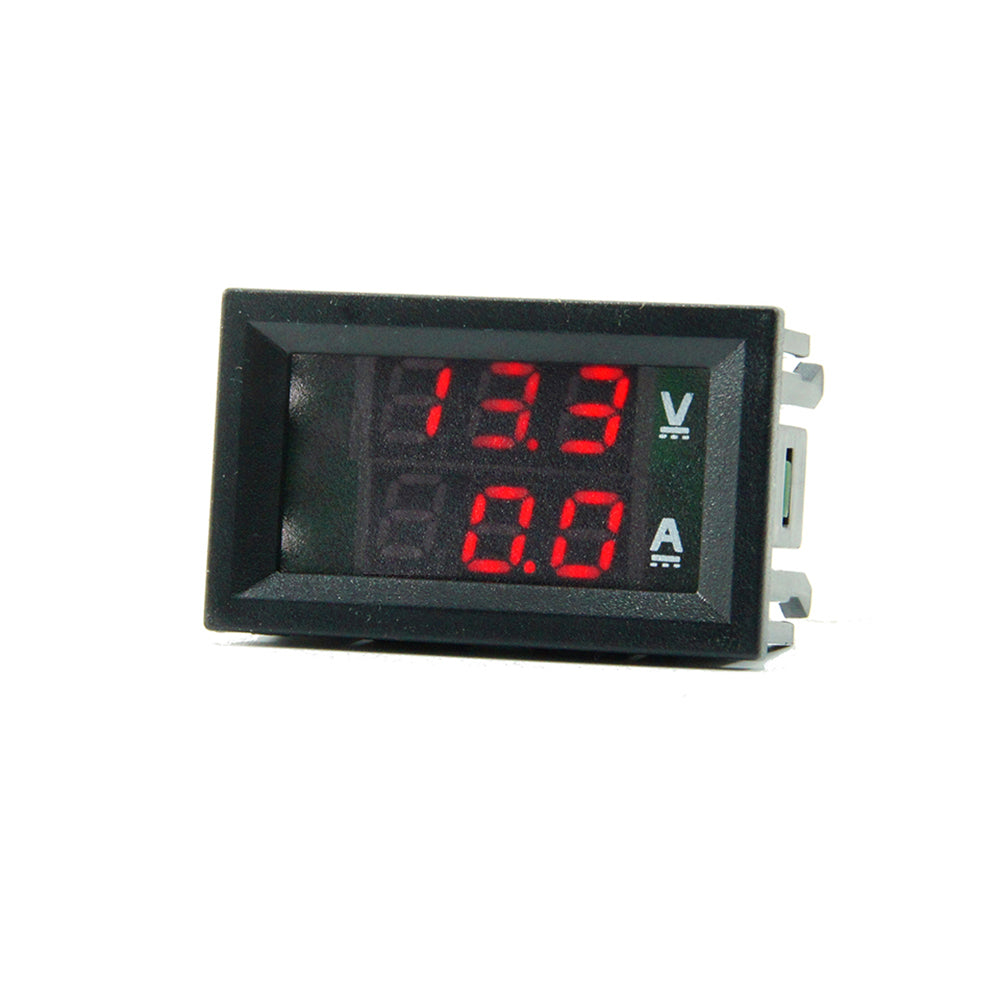

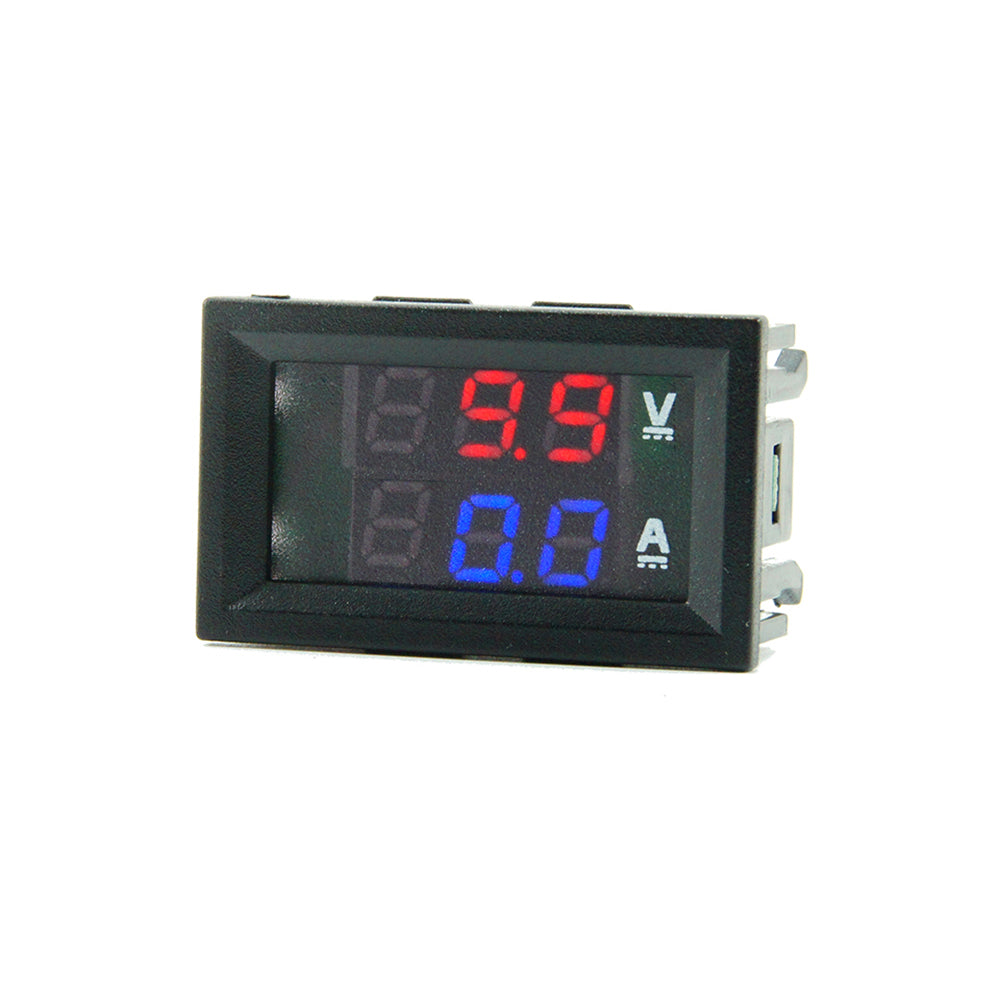

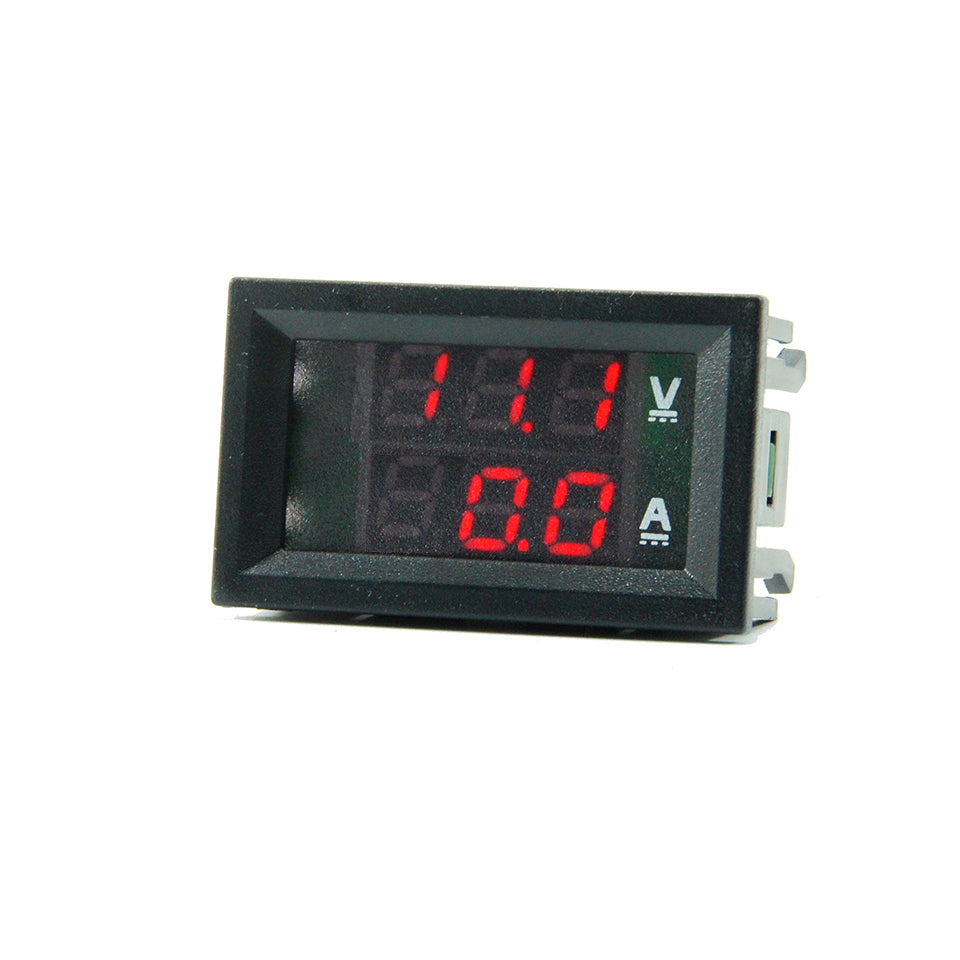

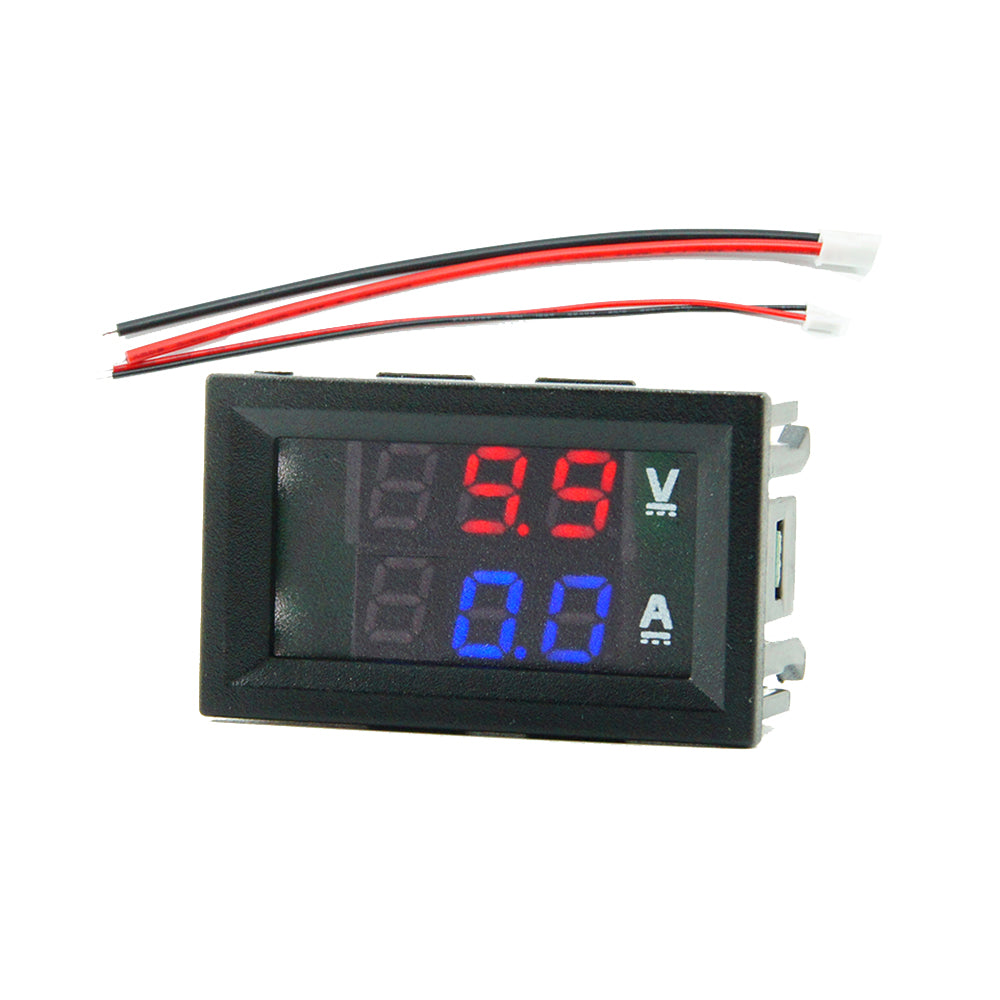

DC 7~110V Direct Power Supply 3-Digit Precision Dual Display Voltage And Current Meter
DC 7~110V Direct Power Supply 3-Digit Precision Dual Display Voltage And Current Meter
SKU:XQ0014
Regular price
$5.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Features:
- Working voltage: DC7~110V
- Measuring current range: DC0.05A~10A/50A/100A (display mode 0.05A~10.00A~100A)
- Voltage measurement range: DC 7~110V (display mode 0.0V~10.00V~110.0V)
- Refresh time: 300ms
- Display mode: 0.28 inch 3-digit LED
- Reverse connection protection: there is reverse connection protection of working power supply, but long time reverse connection may also cause damage
- Product wire: 4 wires (2P thin wire, 2P thick wire)
- Lead definition: thin red line: positive pole of instrument power supply and positive pole of voltage measurement
- Thin black wire: the negative pole of the power supply of the instrument and the negative pole of the voltage measurement
- Thick red line: the positive pole of the current test, in series with the negative pole of the load
- Thick black wire: negative pole of current test, connected to negative pole of load power supply
- Product size: 46.75×28.82×22.20mm
- Hole size: 45.5×26.0mm
Specification:
- Product packaging: electrostatic bag packaging (including the main body of the instrument, a thin 2P terminal wire and a thick 2P terminal wire. The 50A/100A meter does not contain a shunt. The shunt is purchased separately. It cannot be used normally without a shunt.)
- The selling point of the product is 7~110V for direct measurement, no independent power supply is required, which is convenient for wiring. The product withstand voltage is 150V. If the voltage exceeds 110V, the digital tube will be turned off. If the voltage exceeds 150V, including pulse voltage, the meter will be completely damaged.
