DC 8-26V TPA3118 PBTL Mono Digital Amplifier Board 1*60W/2*30W AMP Module
SKU:X12922
Regular price
$8.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Description:
1X60W
Specifications:
2X30W
1X60W
- Sound quality is very good by using this module.
- Mono digital audio power amplifier chip.
- High output and low power consumption.
- Applicable speaker impedance: 4-8 ohm(8 ohm is the best).
Specifications:
- Working Voltage: DC 8-24V
- Power Output: 60W
- Applicable Speaker Impedance: 4-8 ohm
- PCB Board Size: 45 * 35mm / 1.77 * 1.4in
- Weight: 12g / 0.43oz
- 1 * DC 8-26V TPA3118 PBTL Mono Digital Amplifier Board AMP Module 1*60W for Arduino
2X30W
- Audio input: Bluetooth receiver
- Supply voltage: 8 ~ 26VDC (direct current) reverse polarity protection
- 2X30W stereo power amplifier chip TPA3118
- Applicable Speaker Impedance: 4,6,8 ohm
- AUX output: 3.5 headphones on (after the amp for use)
- Display Bluetooth device name: Xpecial Audio
- 1 x TPA3118 2x30W Digital Bluetooth Audio Receiver Dual Stereo Power Amplifier Board

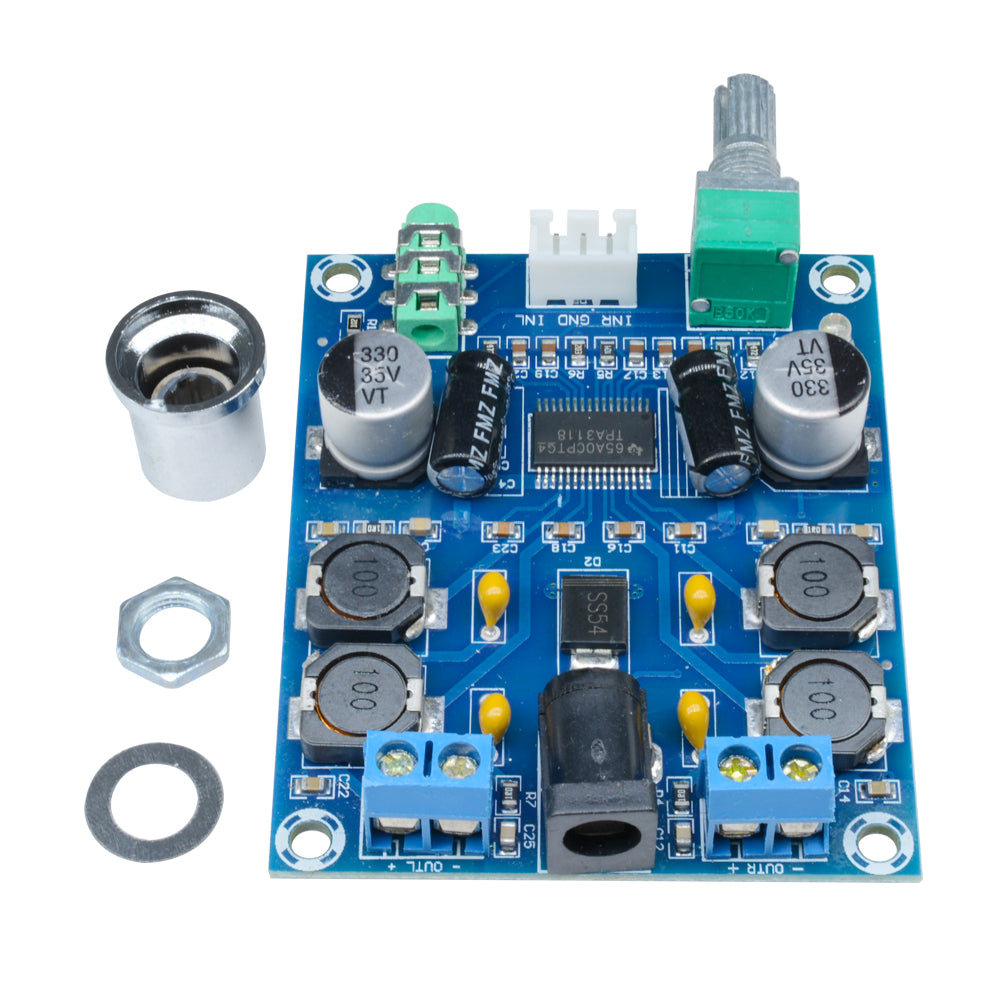

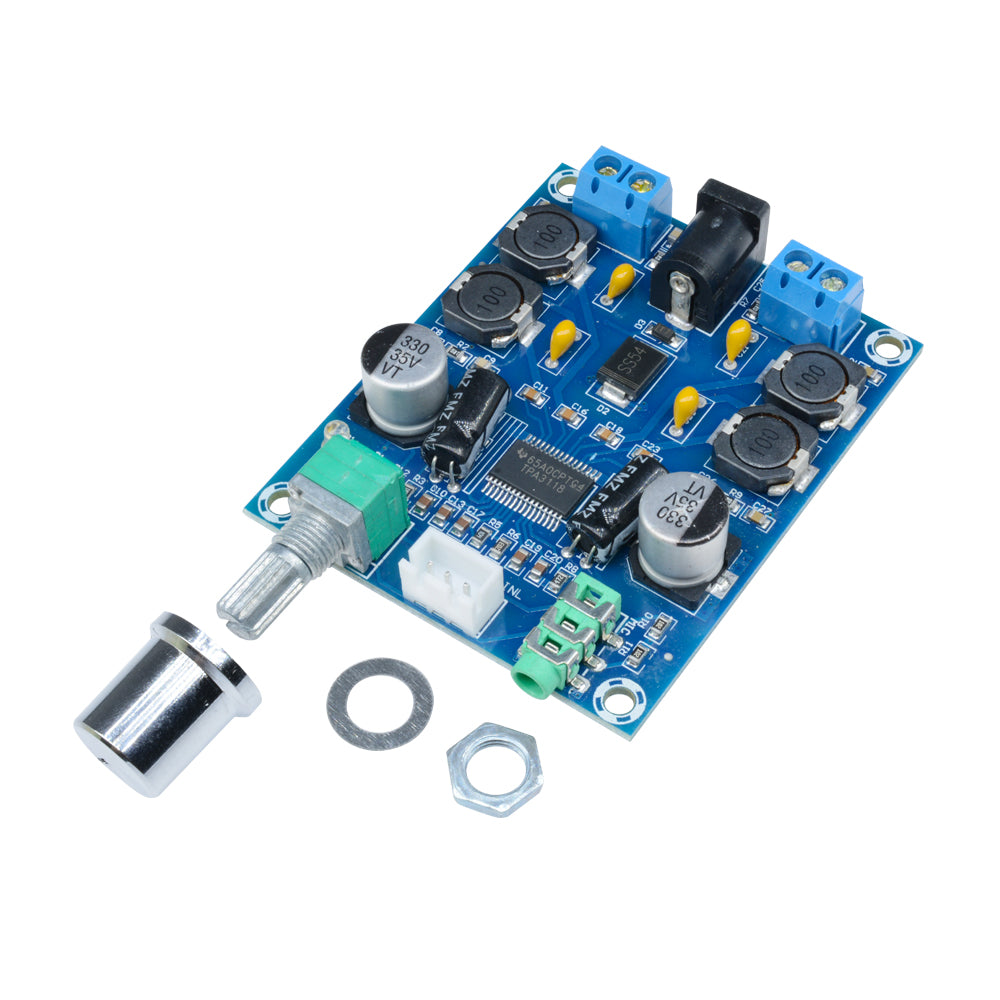

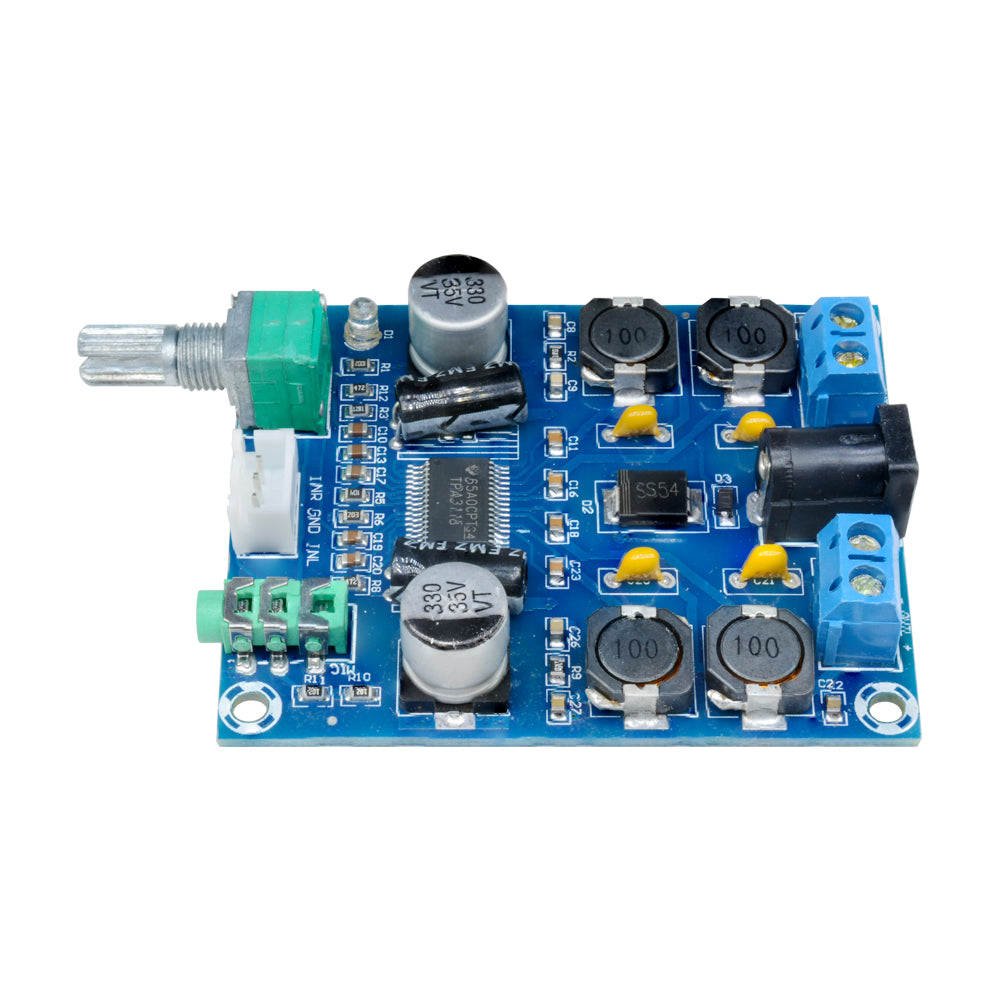

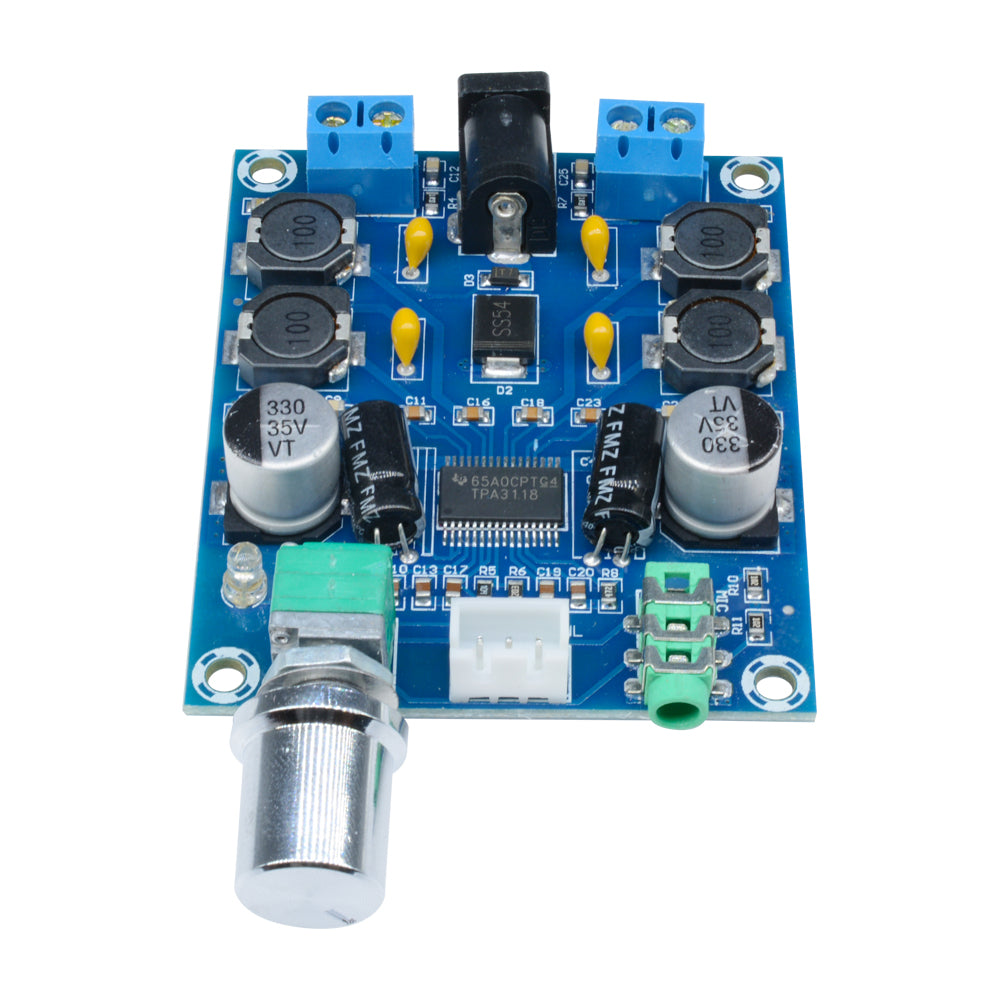

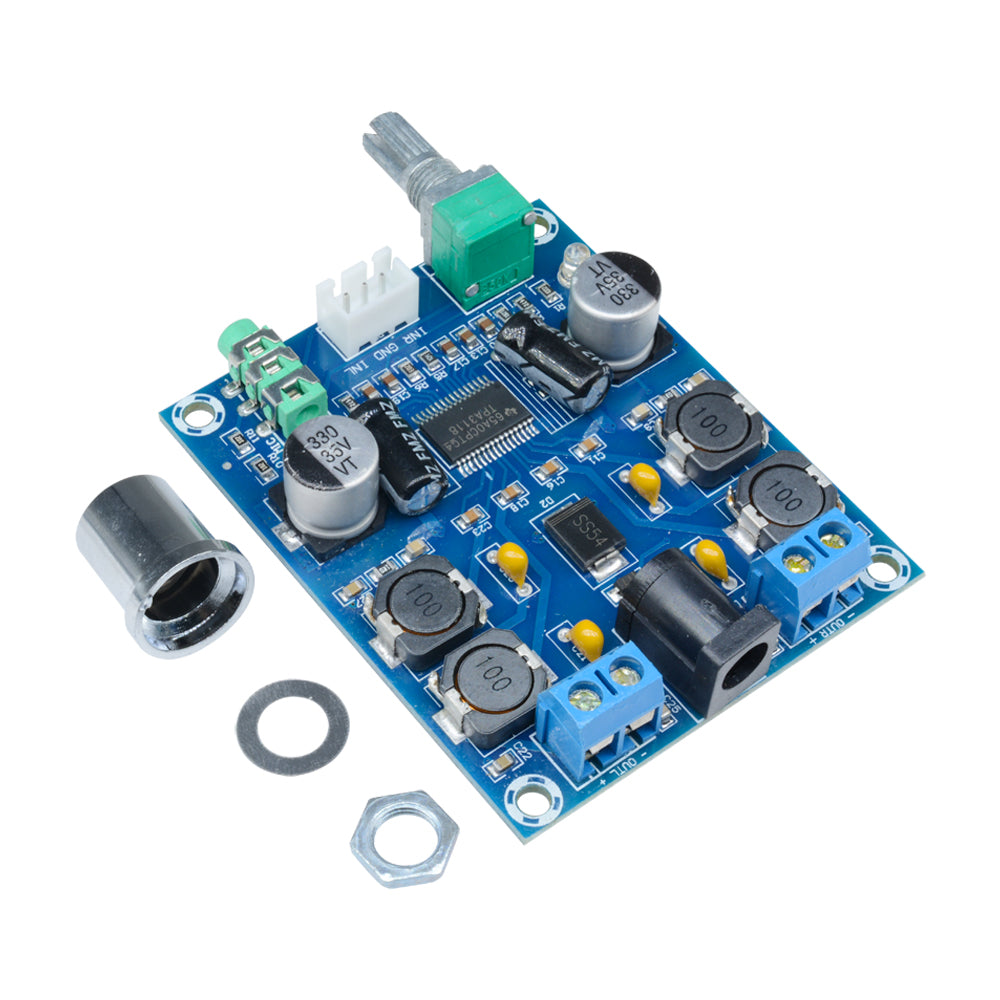

3:TPA3118D2 Digital HD Audio Amplifier Speaker Dual Channel Power Amp Board 45W*2
Description:
Product parameters:
- Product Name: Digital audio amplifier board
- Power amplifier chip: TPA3118D2 * 1
- Input voltage: DC12-28V, recommended DC24V
- Power supply interface: DC socket (5.5 * 2.1)
- Input current:> 3A
- Output power: 45W * 2
- Output impedance: 4-8ohm
- Input impedance: 1KΩ
- Signal to noise ratio: 100db
- Magnification: 30TSP
- Number of channels: two channels
- Audio input: 3.5mm socket / xH2.54-3P
- Size: 66 * 53MM
Product parameters:
- Board power supply maximum range DC12-28V, recommended DC24V power supply. 12V power supply is the output power of20W per channel, 24V power supply is the output power up to 45W per channel.
- The new original IC chip with overvoltage protection, overcurrent protection, overheating protection, short circuit protection, audio output 5mm pitch 2P terminal, can be connected to double 30W speakers.
- 1PC TPA3118D2 Digital HD Audio 45W*2 Dual Channel Amplifier Speaker Power Amp Board
