DC5V-24V 2A Self-locking Bistabl Reverse Polarity Switch Controller Relay Module
SKU:XM0015
Regular price
$6.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Description:
- Self-locking (bistable) reverse polarity Relay controller
- Input Voltage: DC 5V(5V version); DC 6-24V(12V version)
- Module working current : Forward 2ma;Reverse: 35-40ma;
- Load voltage: Equal to input voltage
- Load current: Maximum 2A(Motor <=1A)
- Power indicator AND reverse polarity indicator
- Control method : low pulse trigger(0.2-2 seconds)
- Size: 43mm X 21mm X 16mm
- Weight: 13.5 g
- This is a bistable (self-locking) Reverse polarity relay module,Trigger once, Output reverse polarity (and holds);Trigger again,the output=input (and holds)

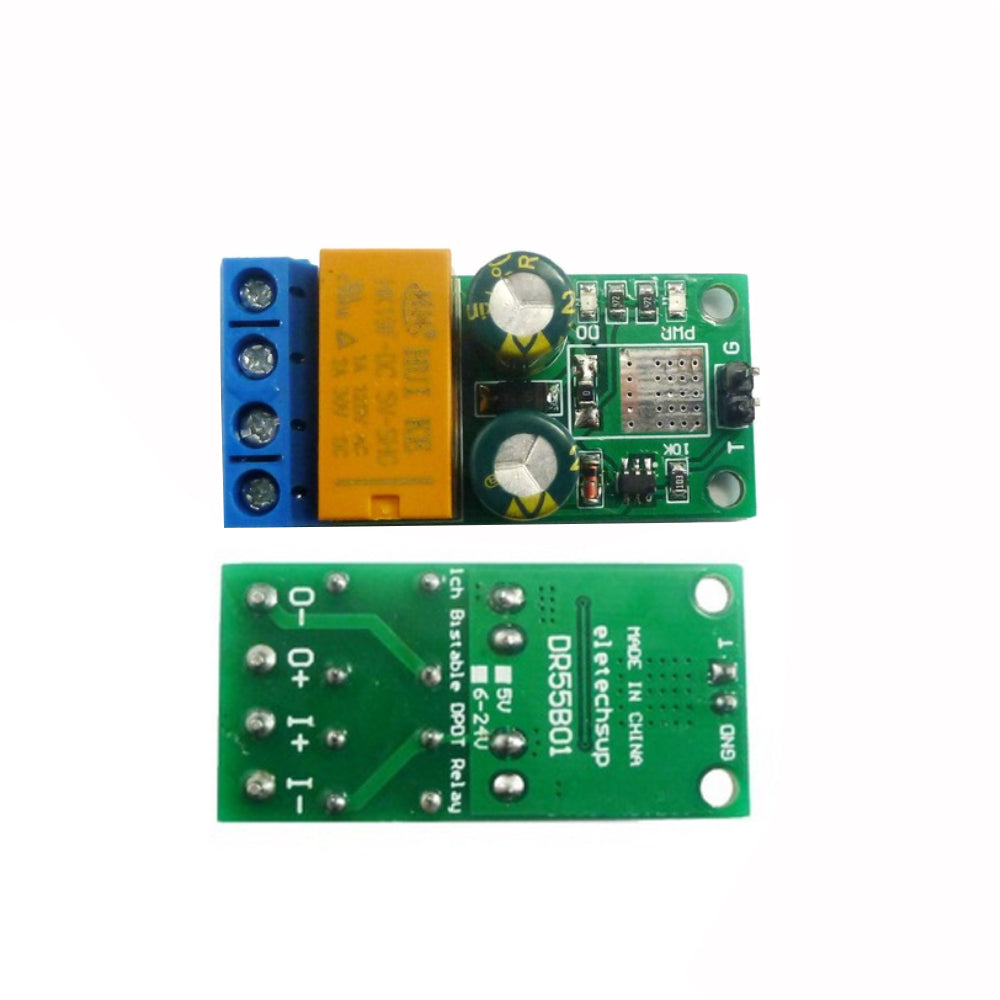

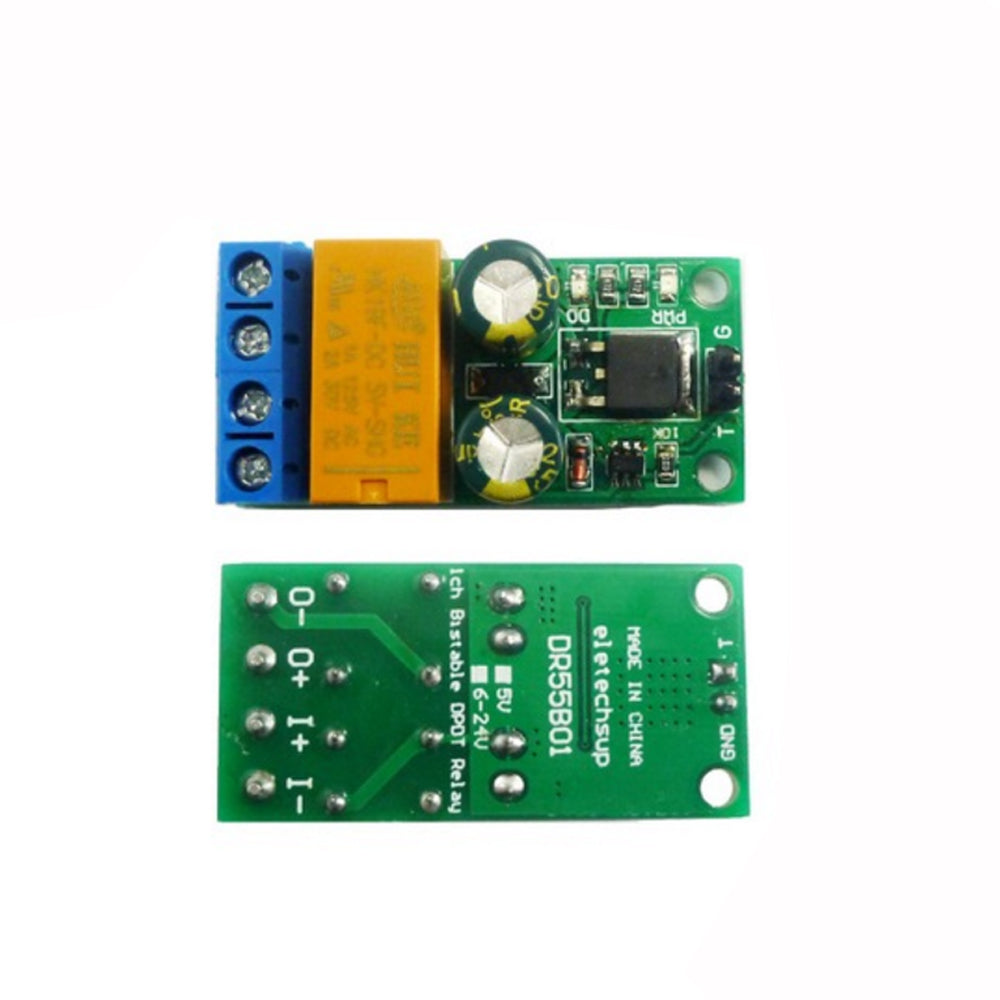

Pin description:
- I+ :Power Input +;
- I- :Power Input -;
- O+:Power Output +(When reversed is Power Output -);
- O- :Power Output -(When reversed is Power Output +);
- G:trigger signal input ground;
- T:trigger signal input terminal(0.2-2 second low pulse trigger).
- 1 For the module to work stably, be sure to use a power supply with sufficient current.Power supply current is greater than 2 times load current
- 2 The maximum load current is 2A, if it is a motor, the maximum load current is 1A
- 3 Can only control forward and reverse(Start and stop by power on and power off control)
- Power-on, the output=input, press the trigger button, Reverse polarity output, press again, the output=input, the third press, Reverse polarity output, and so on.
- Turn off the power and stop output
Package Include:
- 1x DC 5V or 6-24V Self-locking Relay Motor Forward And Reverse Controller Module
