Diymore 125k Id Card RFID Reader IoT Module RF Serial 9600 TTL Level Board Replace EM4095 2270 3.5V 6V Low Frequency For Arduino
Diymore 125k Id Card RFID Reader IoT Module RF Serial 9600 TTL Level Board Replace EM4095 2270 3.5V 6V Low Frequency For Arduino
SKU:012784
Regular price
$15.00
Sale price
$7.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155

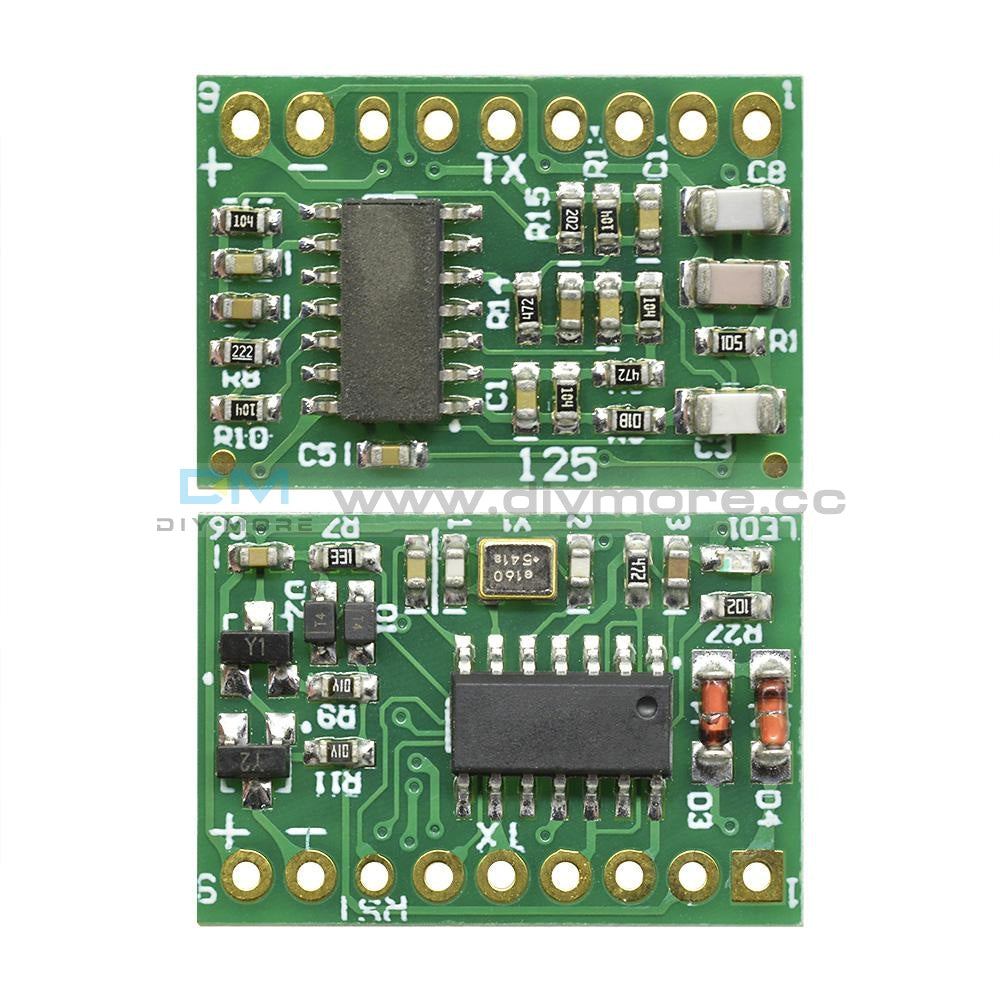

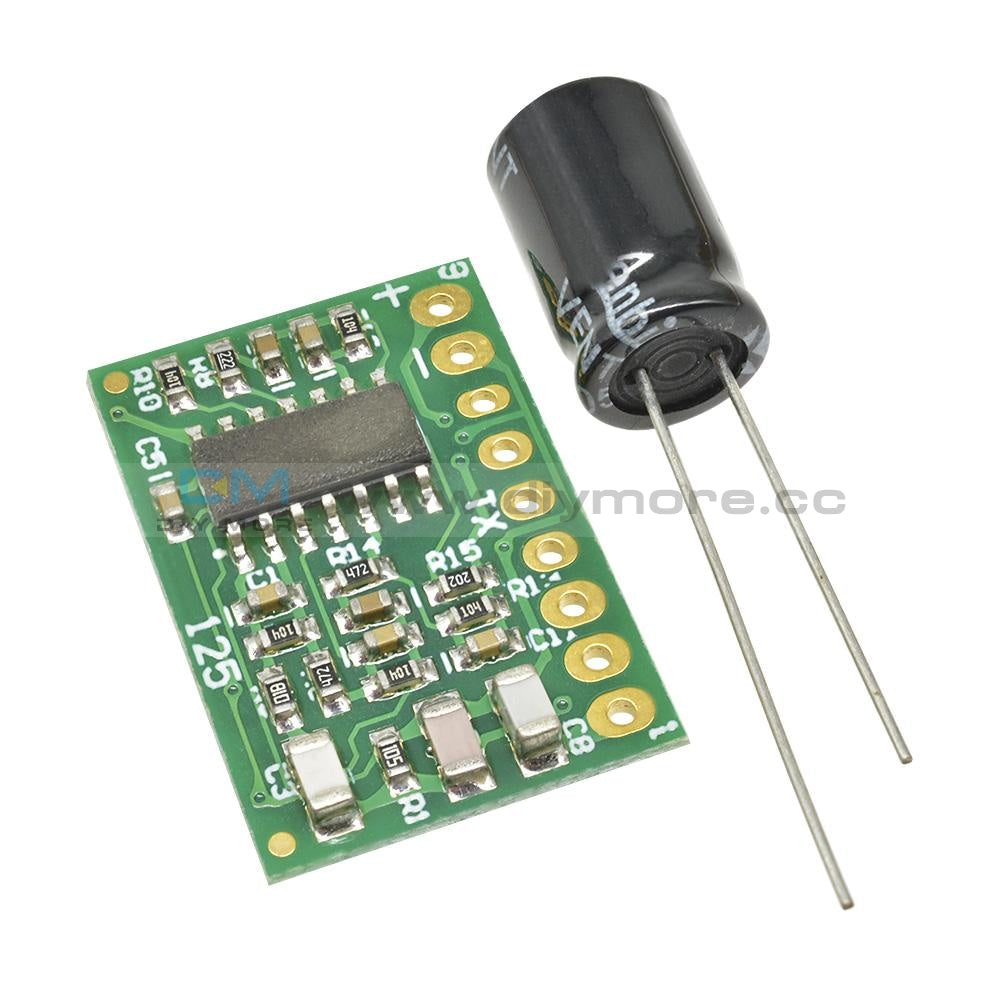

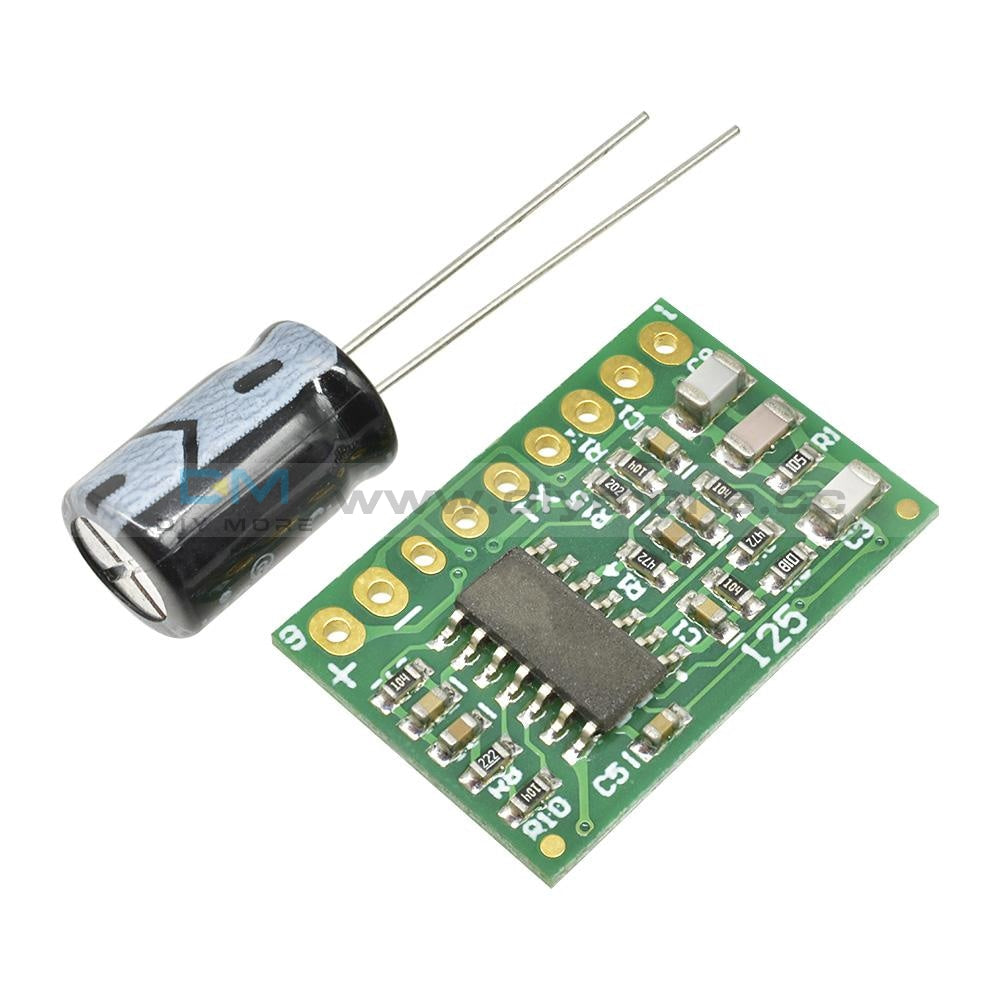

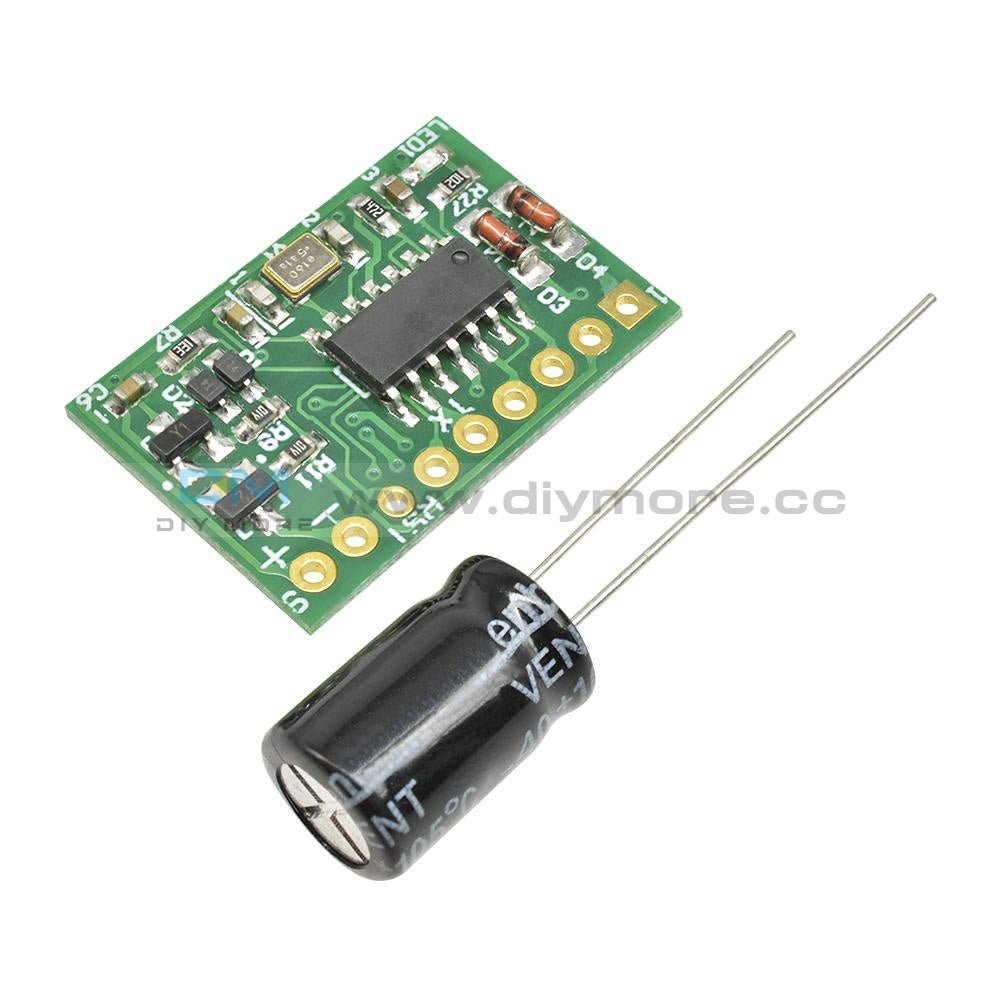

Separation using industrial-grade components to build reader circuit, you can read EM4100,4001,TK4100,EM4305 125K RF card the card serial number, long time reader performance is stable and reliable. Card read distance far, decoding skills, and low power consumption.
Output type: serial, wg26
Output port: the buzzer and the LEDs.
Input voltage: 3.5v-6V
Current: 25mA
Size: 16*24MM

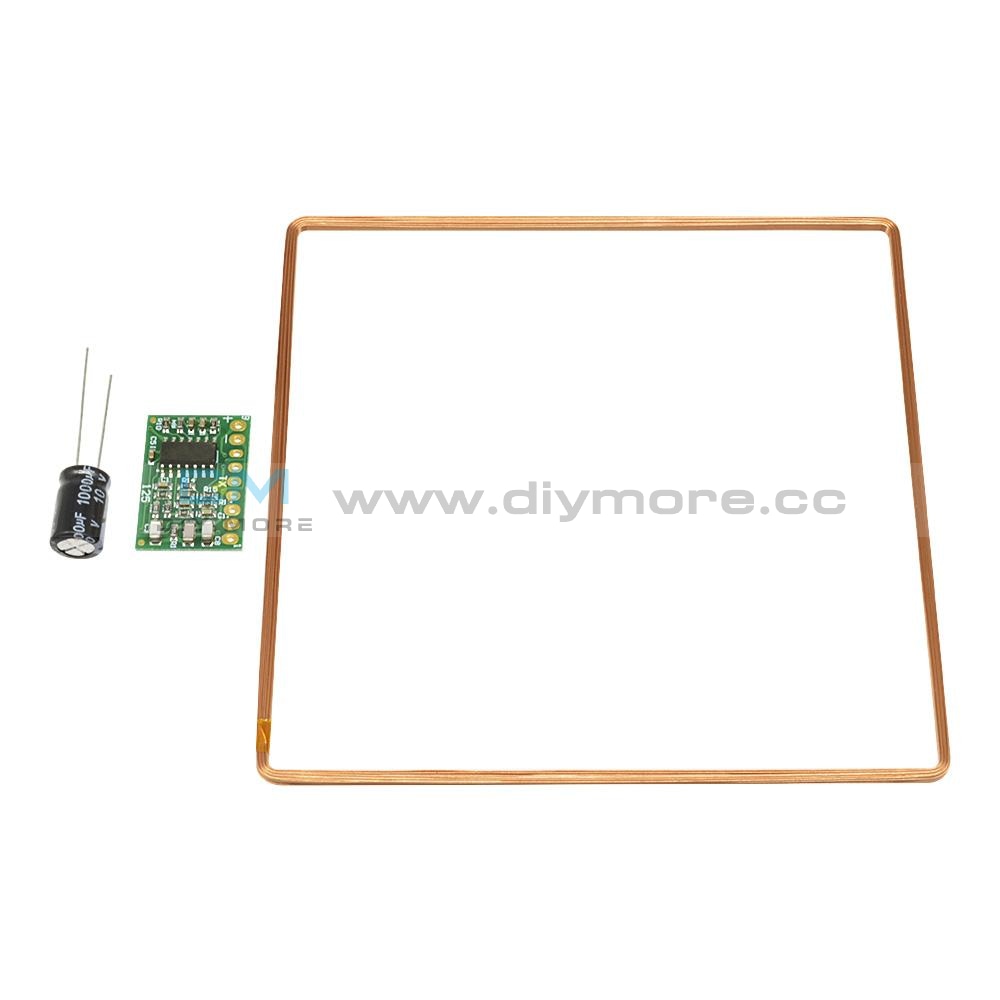

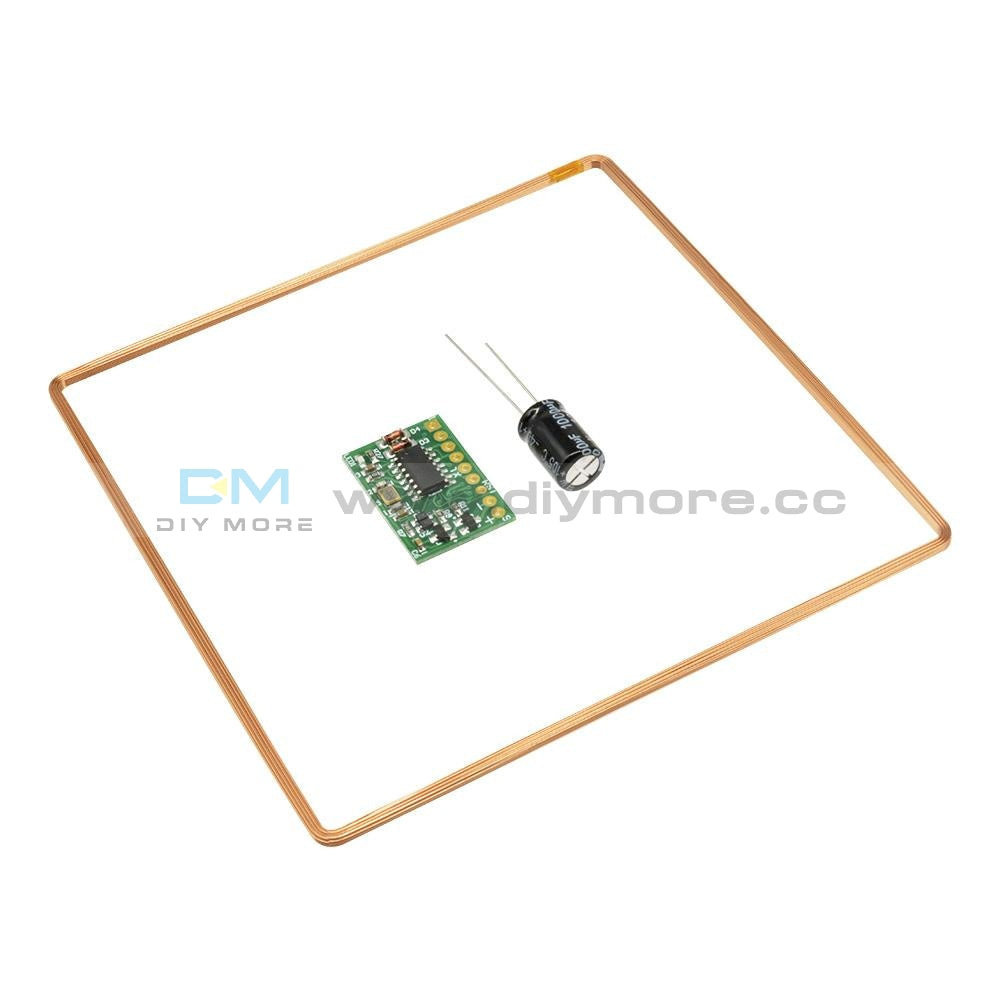

Antenna: default 45mm (optional 97x97)
Card read distance: ID thick card 25CM. (And card with the antenna and environment) normal dots depending on the chip quality 8~15CM
Output type: serial, wg26
Output port: the buzzer and the LEDs.
Input voltage: 3.5v-6V
Current: 25mA
Size: 16*24MM
Antenna: default 45mm (optional 97x97)
Card read distance: ID thick card 25CM. (And card with the antenna and environment) normal dots depending on the chip quality 8~15CM
Card read distance reference tables
|
Diameter 45mm small circular antenna distances are as follows |
Use edge length 97x97mmsquare antenna distances are as follows |
|
Nail 9CM |
Nail 12CM |
|
Diameter 2.5CM dot card read distance for 11CM |
Diameter 2.5CM dot card read distance for 17CM |
|
Diameter 3CM dot card read distance for 14CM |
Diameter 3.5CM dot card read distance for 20CM |
|
Credit card size ordinary IDcard for 16CM |
Credit card size ordinary ID card for 23CM |
|
Thick credit card size remote card 24CM |
Thick credit card size remote card38CM |
Package Included:
1 x module
