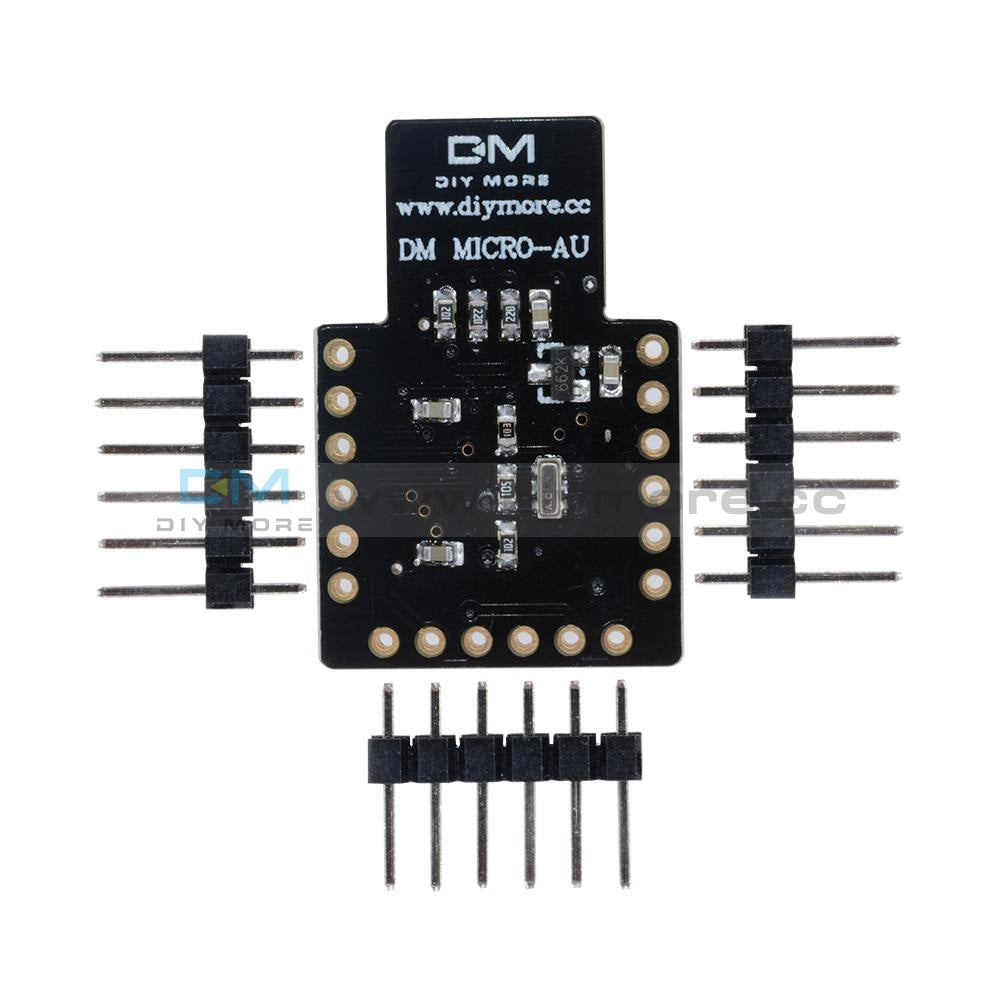

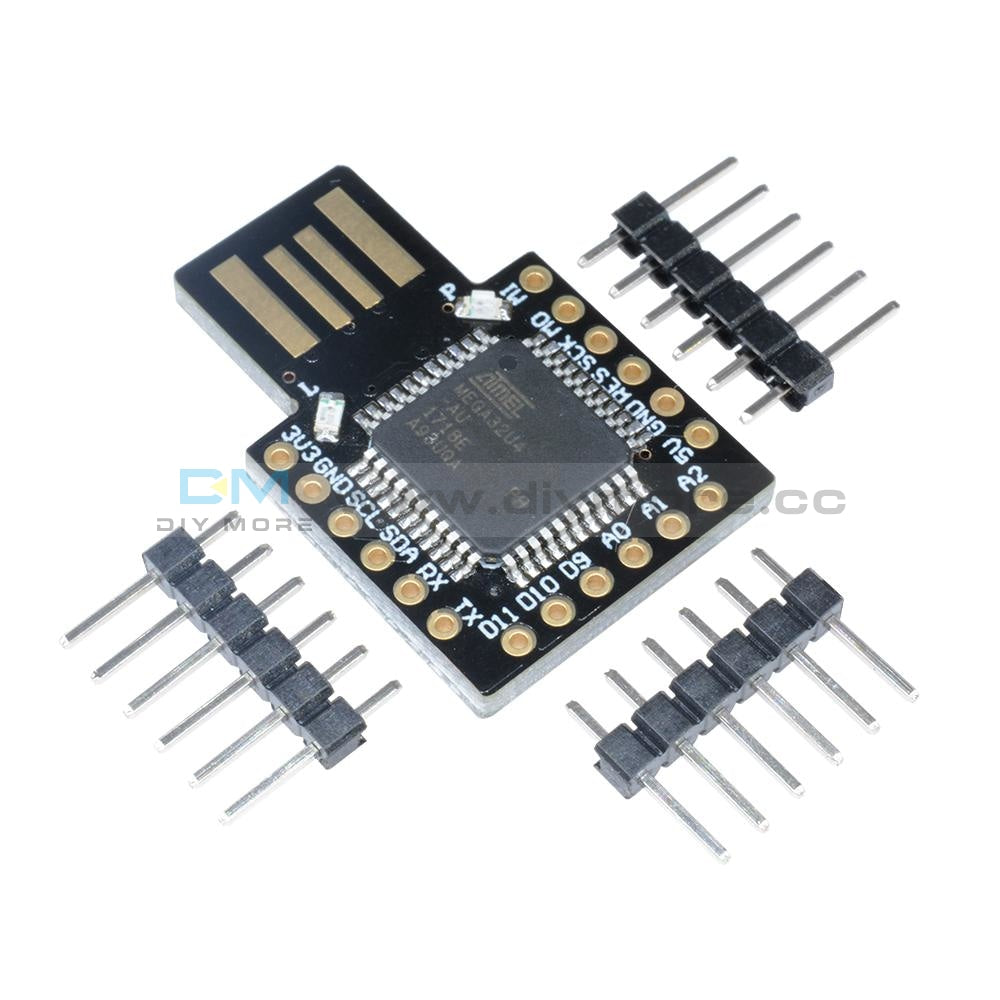

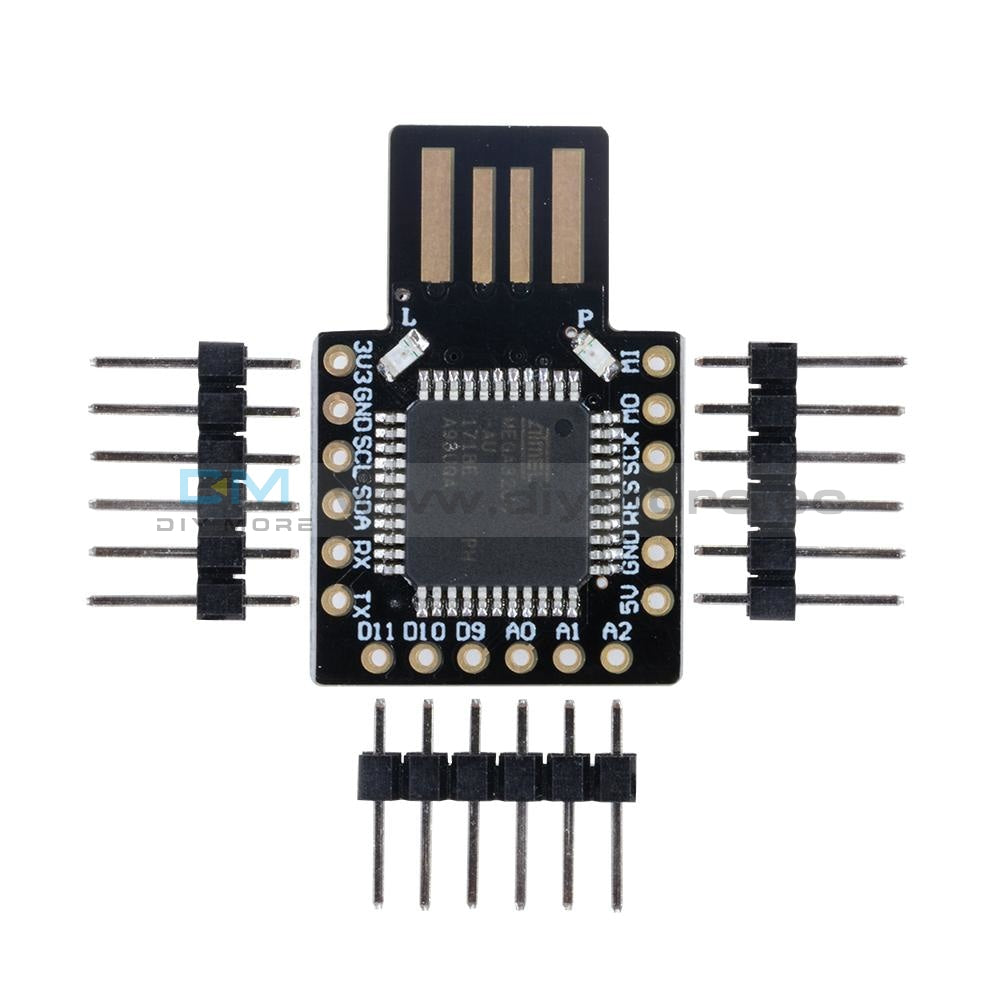

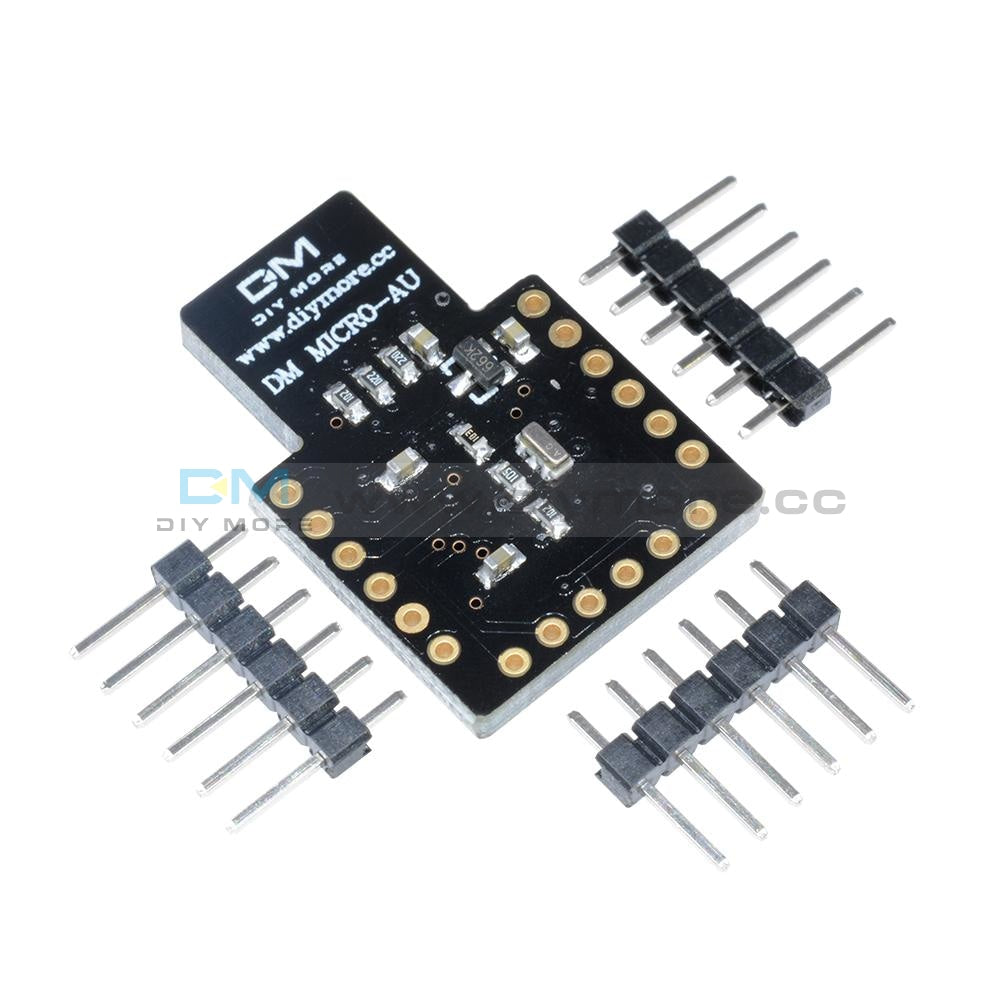

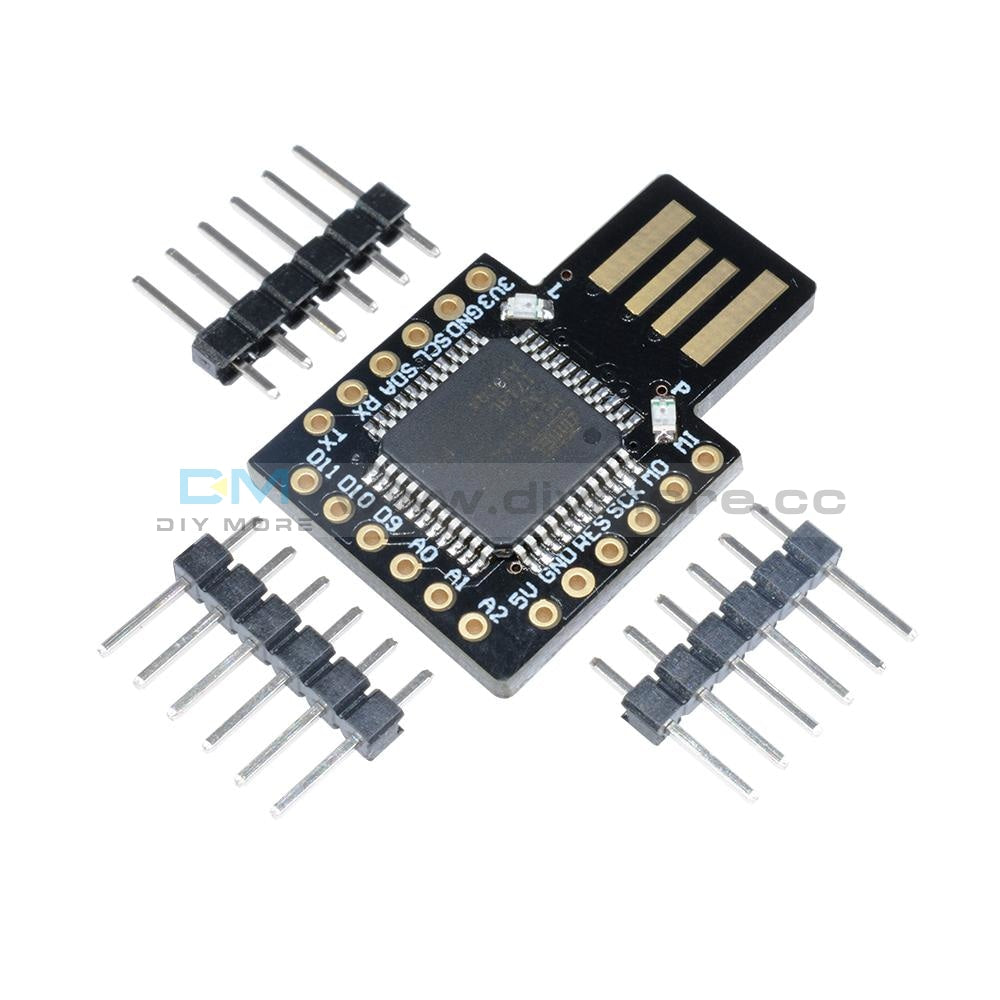

BEETLE BadUSB Micro ATMEGA32U4-AU Development Expansion Module Board For Arduino Leonardo R3 5V I2C
BEETLE BadUSB Micro ATMEGA32U4-AU Development Expansion Module Board For Arduino Leonardo R3 5V I2C
SKU:012594
Regular price
$47.99
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
Feature:
- Microcontroller: ATmega32u4
- Operating Voltage: 5V DC
- Digital I/O Pins: 10
- PWM Channels: 4
- Analog Input Channels: 5
- Frequency: 16 MHz
Descripton:
Microcontroller: ATmega32u4
Frequency: 16 MHz
Operating Voltage: 5V DC
Digital I/O Pins: 10
PWM Channels: 4
Analog Input Channels: 5
UART: 1
I2C: 1
Micro USB: 1
Flash Memory: 32 KB (ATmega32u4) of which 4KB used by bootloader
SRAM: 2.5 KB (ATmega32u4)
EEPROM: 1 KB (ATmega32u4)
Package Include:
1 x Beetle USB ATMEGA32U4 Development Board for Arduino
