DUE R3 Board SAM3X8E 32-bit ARM Cortex-M3 Control Board Module For Ard

Due R3 Board Sam3X8E 32-Bit Arm Cortex-M3 Control Module For Arduino Motherboard

DUE R3 Board SAM3X8E 32-bit ARM Cortex-M3 Control Board Module For Arduino

SKU:010717

$46.99

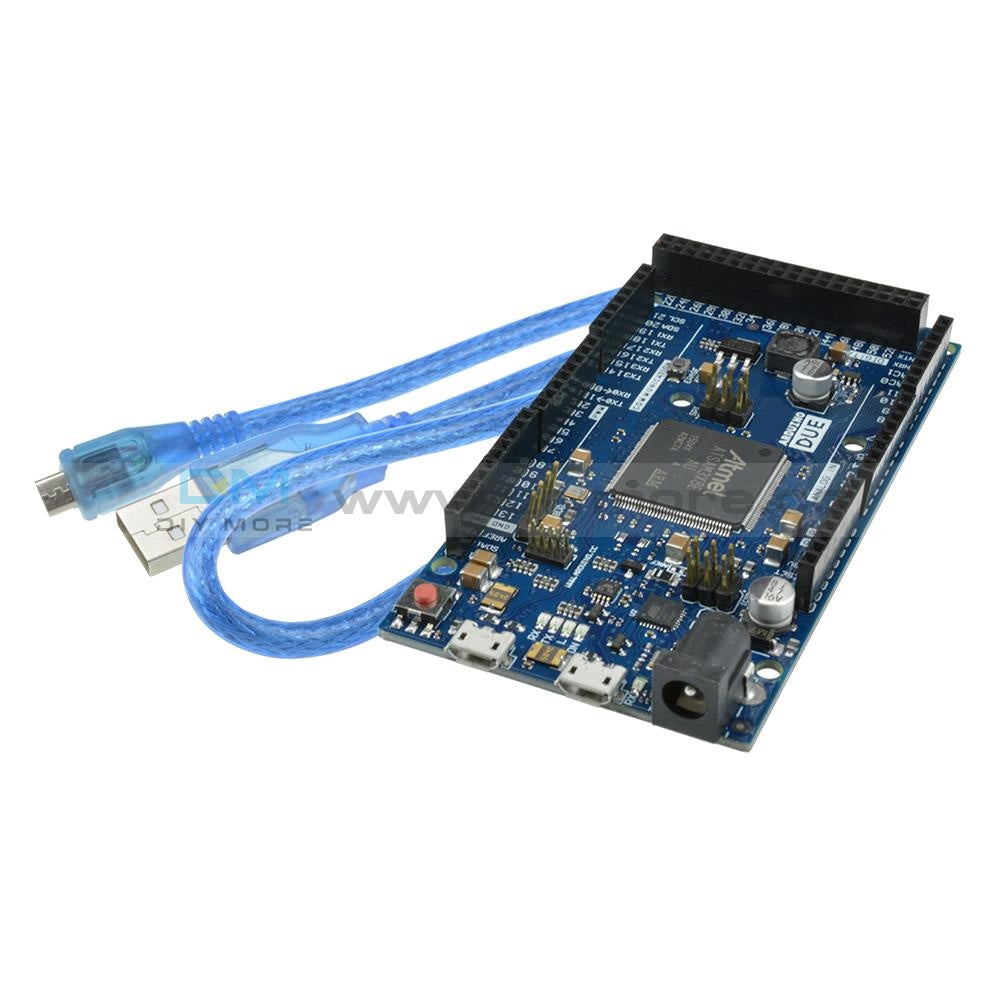

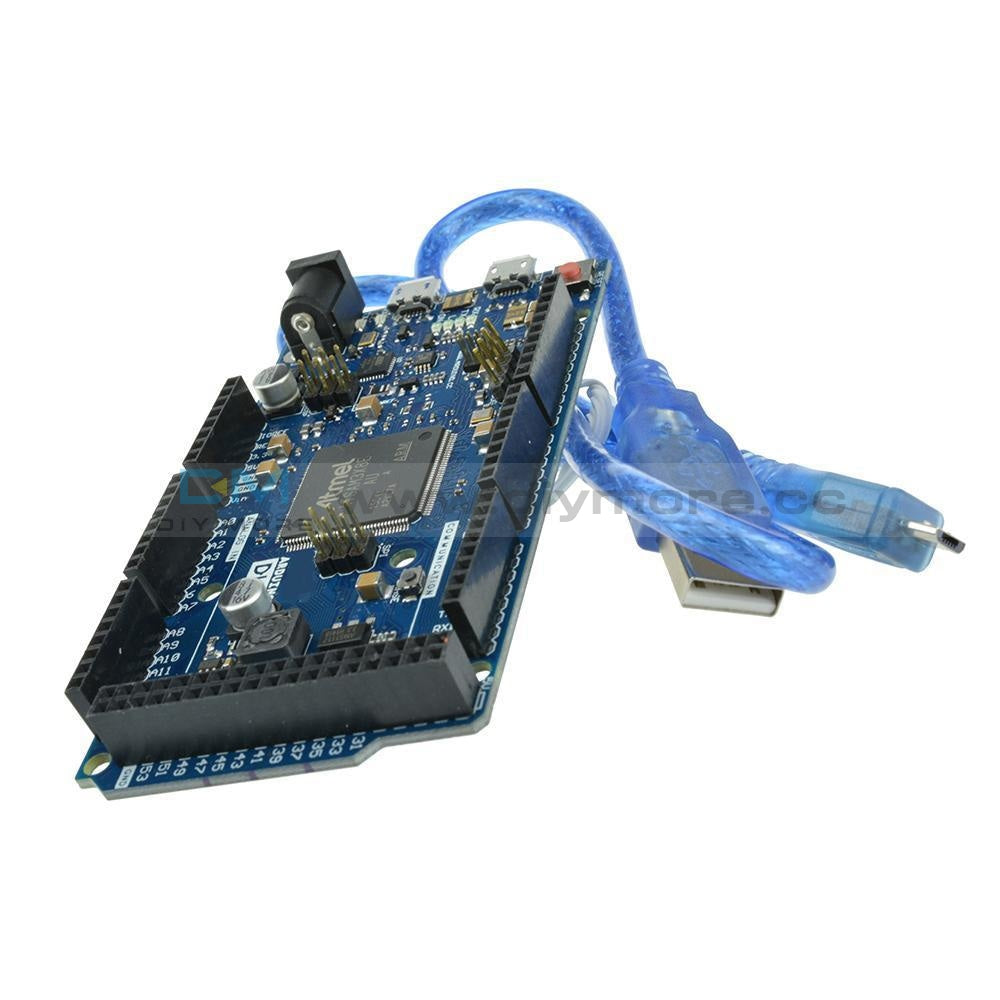

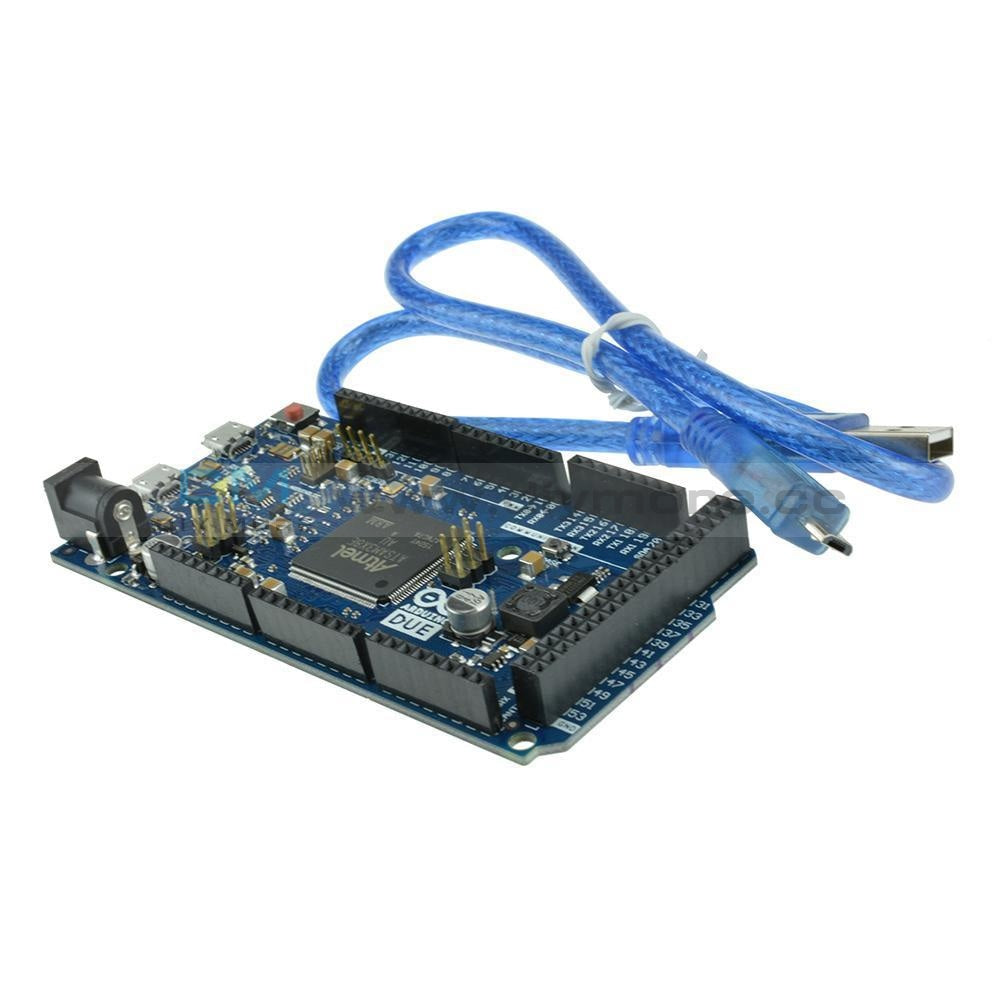

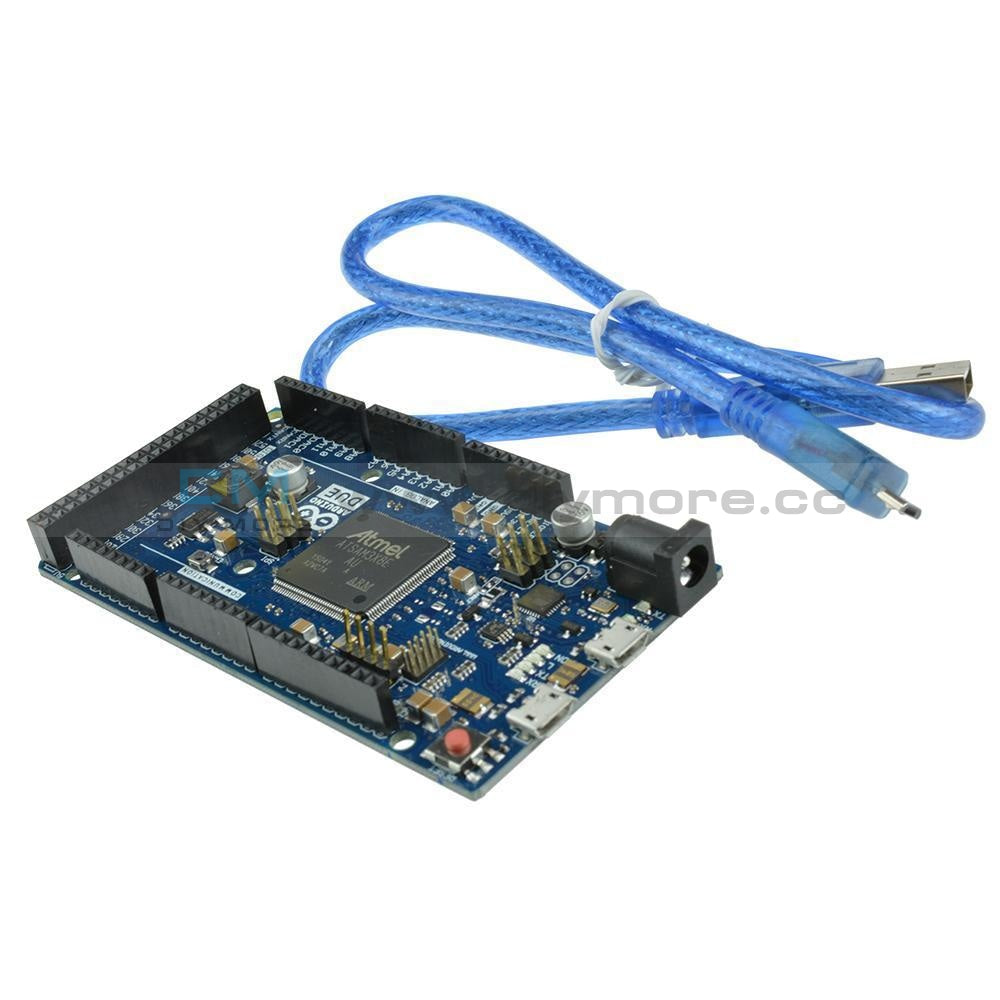

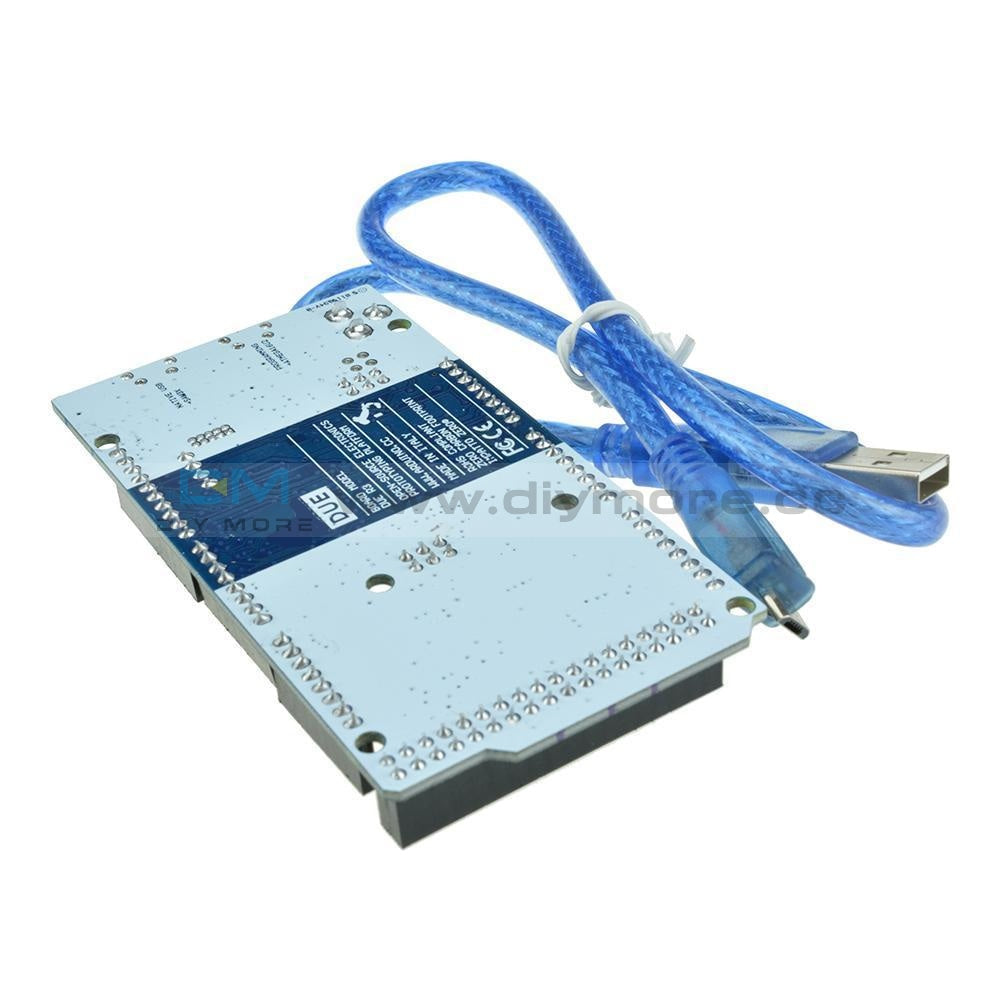

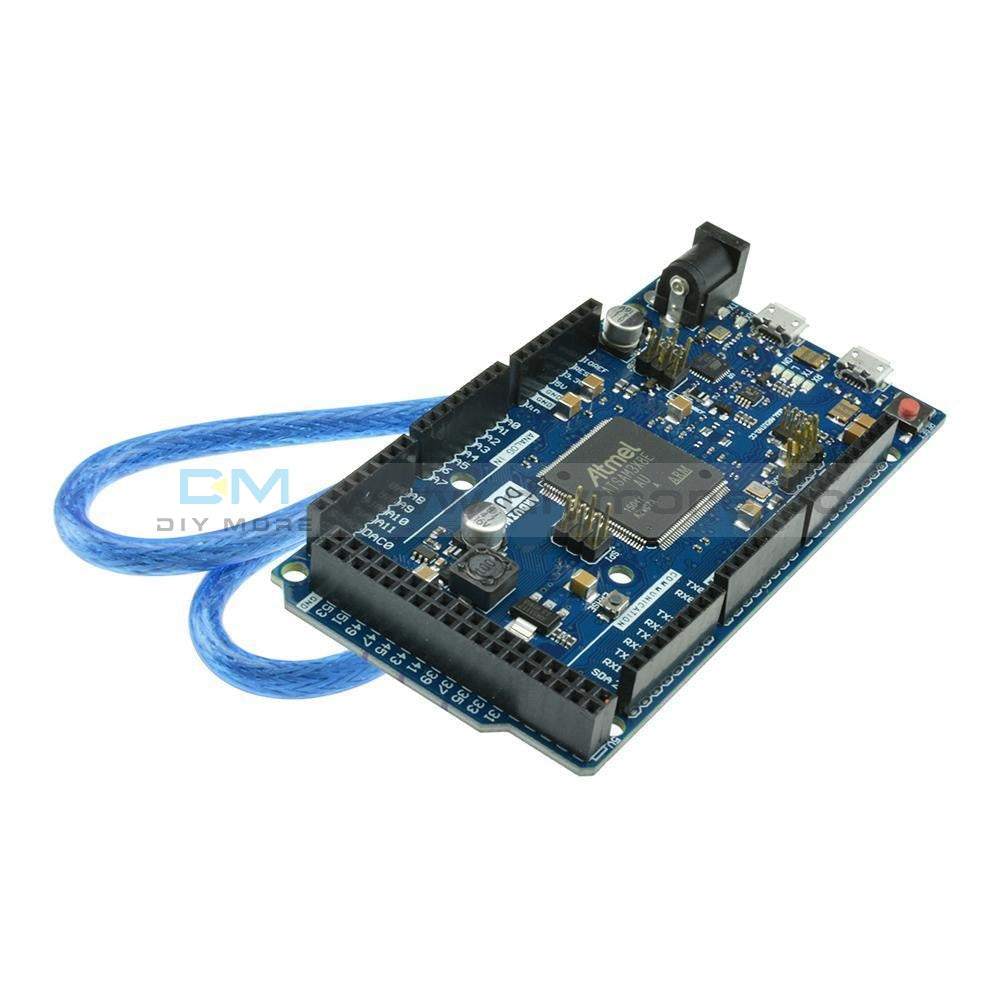

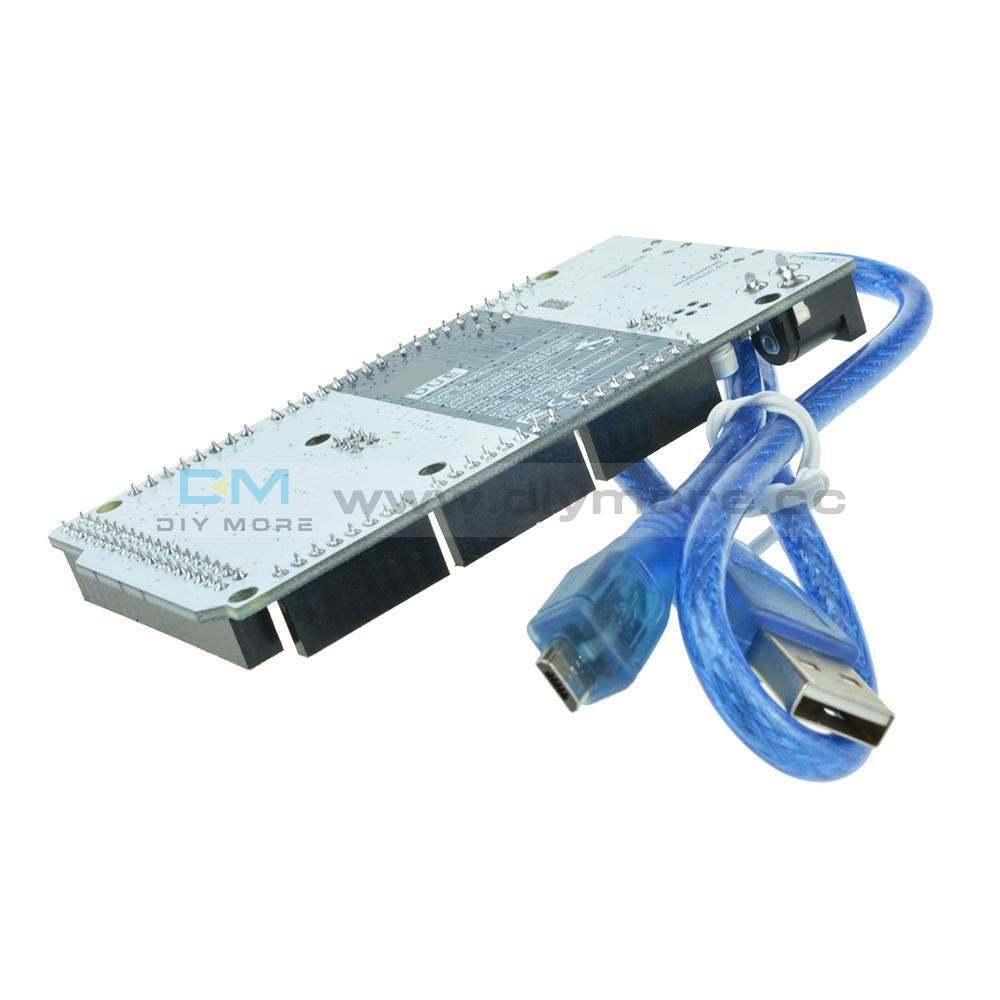

The Due is a microcontroller board based on the Atmel SAM3X8E ARM Cortex-M3 CPU (datasheet).

It is the first board based on a 32-bit ARM core microcontroller.

It has 54 digital input/output pins (of which 12 can be used as PWM outputs),

12 analog inputs, 4 UARTs (hardware serial ports), a 84 MHz clock,

an USB OTG capable connection, 2 DAC (digital to analog),

2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button.

Note: Unlike other for for arduino boards, Due board runs at 3.3V.

The maximum voltage that the I/O pins can tolerate is 3.3V.

Providing higher voltages, like 5V to an I/O pin could damage the board.

Features:

Microcontroller: AT91SAM3X8E
Operating Voltage: 3.3V
Recommended Input Voltage: 7-12V
Min-Max Input Voltage: 6-20V
Digital I/O Pins: 54 (of which 12 provide PWM output)
Analog Input Pins: 12
Analog Outputs Pins: 2
Total DC Output Current on all I/O lines: 130 mA
DC Current for 3.3V Pin: 800 mA
DC Current for 5V Pin: 800 mA
Flash Memory: 512 KB all available for the user applications
SRAM: 96 KB (two banks: 64KB and 32KB)
Clock Speed: 84 MHz

Package Included:

1 x DUE R3 Board SAM3X8E 32-bit ARM Cortex-M3 Control Board Module For for arduino

Quantity

guaranteeQuality checked
Special gift cardsSpecial gift cards
Free return Within 60 days
Consultancy86-0755-85201155

The Due is a microcontroller board based on the Atmel SAM3X8E ARM Cortex-M3 CPU (datasheet).

It is the first board based on a 32-bit ARM core microcontroller.

It has 54 digital input/output pins (of which 12 can be used as PWM outputs),

12 analog inputs, 4 UARTs (hardware serial ports), a 84 MHz clock,

an USB OTG capable connection, 2 DAC (digital to analog),

2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button.

Note: Unlike other for for arduino boards, Due board runs at 3.3V.

The maximum voltage that the I/O pins can tolerate is 3.3V.

Providing higher voltages, like 5V to an I/O pin could damage the board.

Features:

Package Included:

1 x DUE R3 Board SAM3X8E 32-bit ARM Cortex-M3 Control Board Module For for arduino
