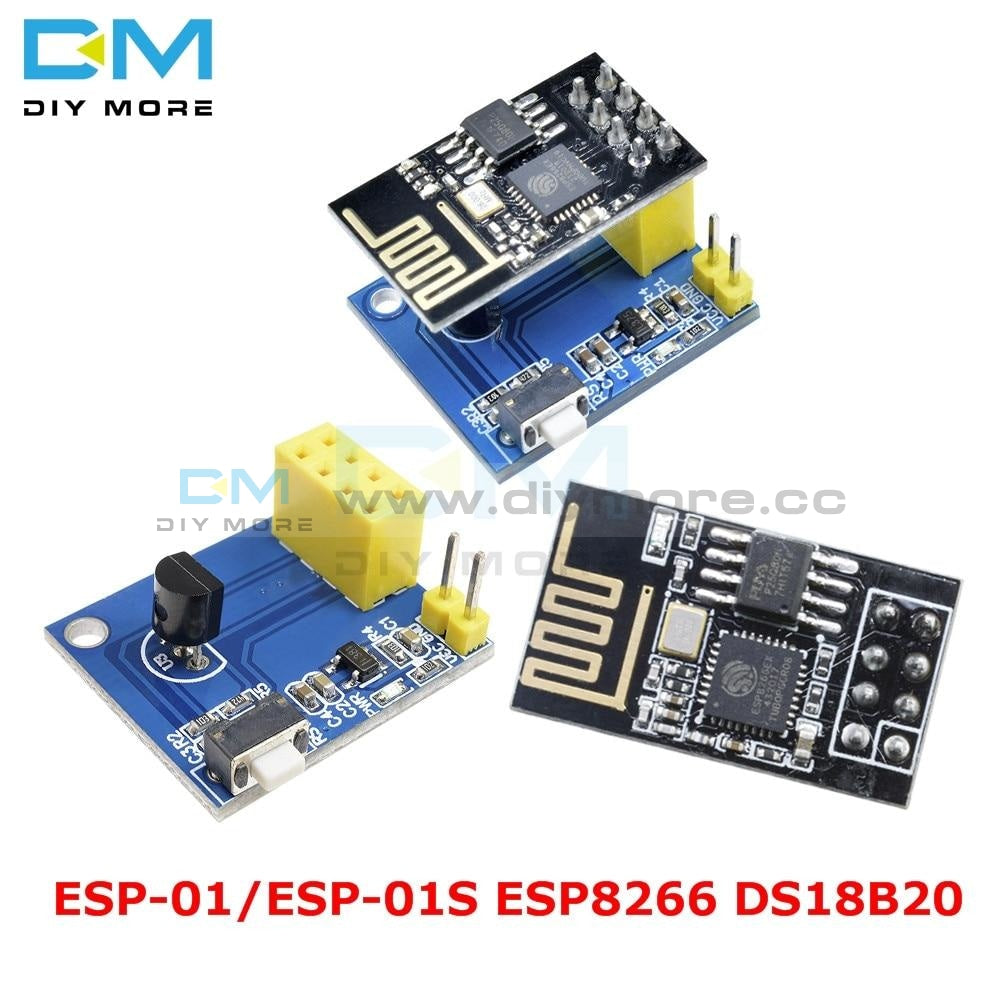

ESP 01/ESP 01S ESP8266 DS18B20 Temperature Sensor Module NodeMCU Adapter Board For Arduino UNO
ESP 01/ESP 01S ESP8266 DS18B20 Temperature Sensor Module NodeMCU Adapter Board For Arduino UNO
SKU:110019
Regular price
$4.99
![]()
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155

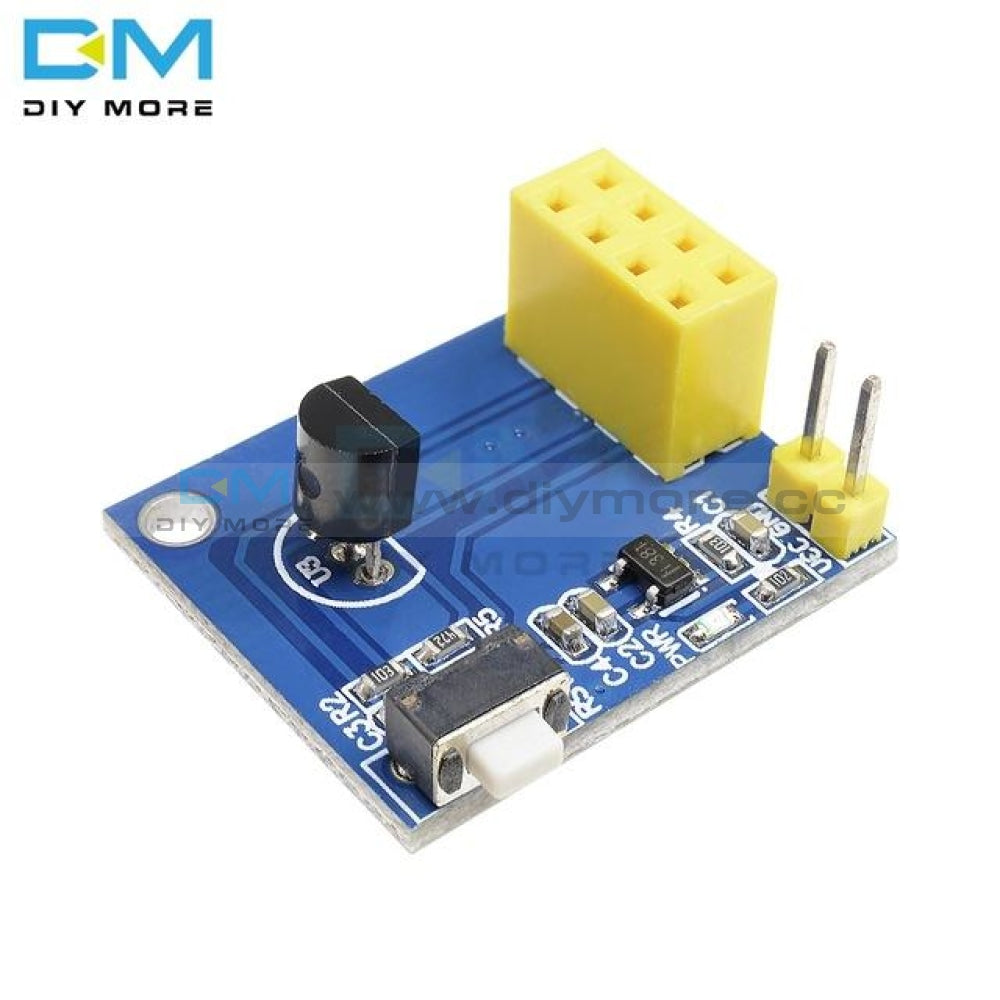

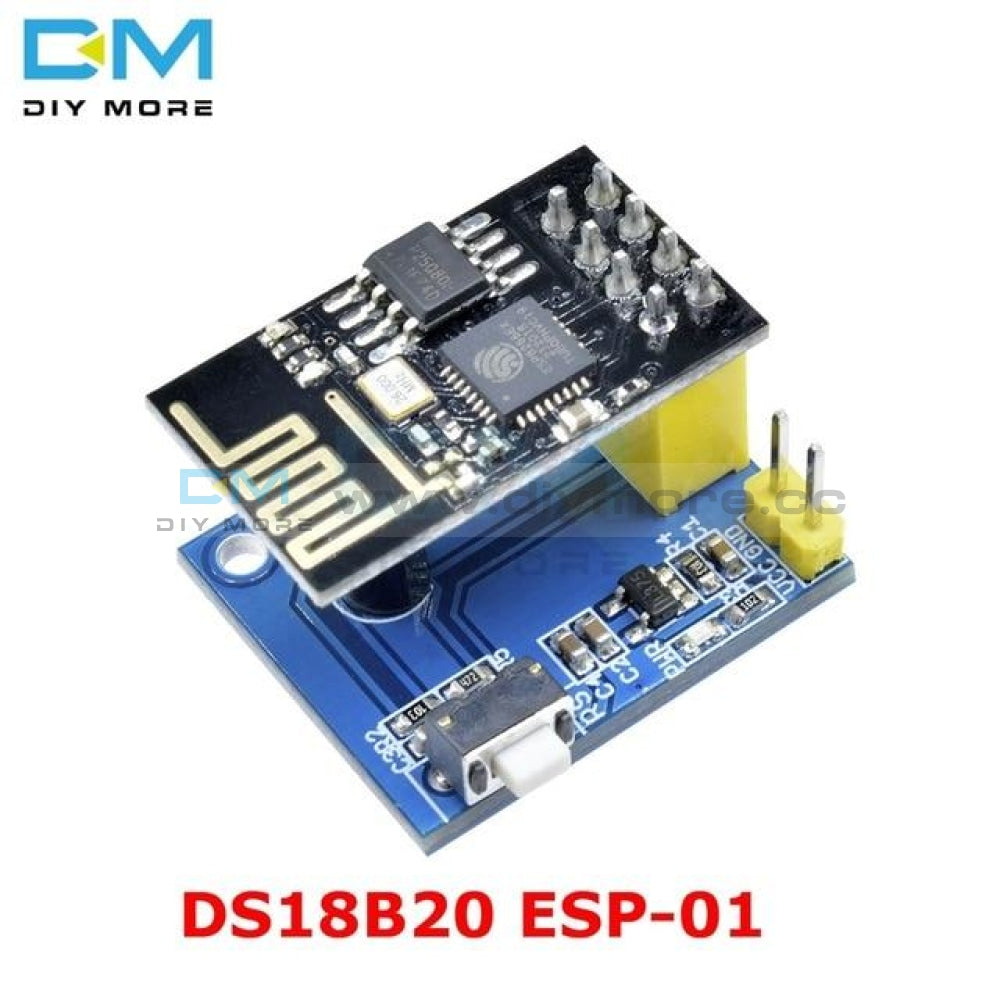

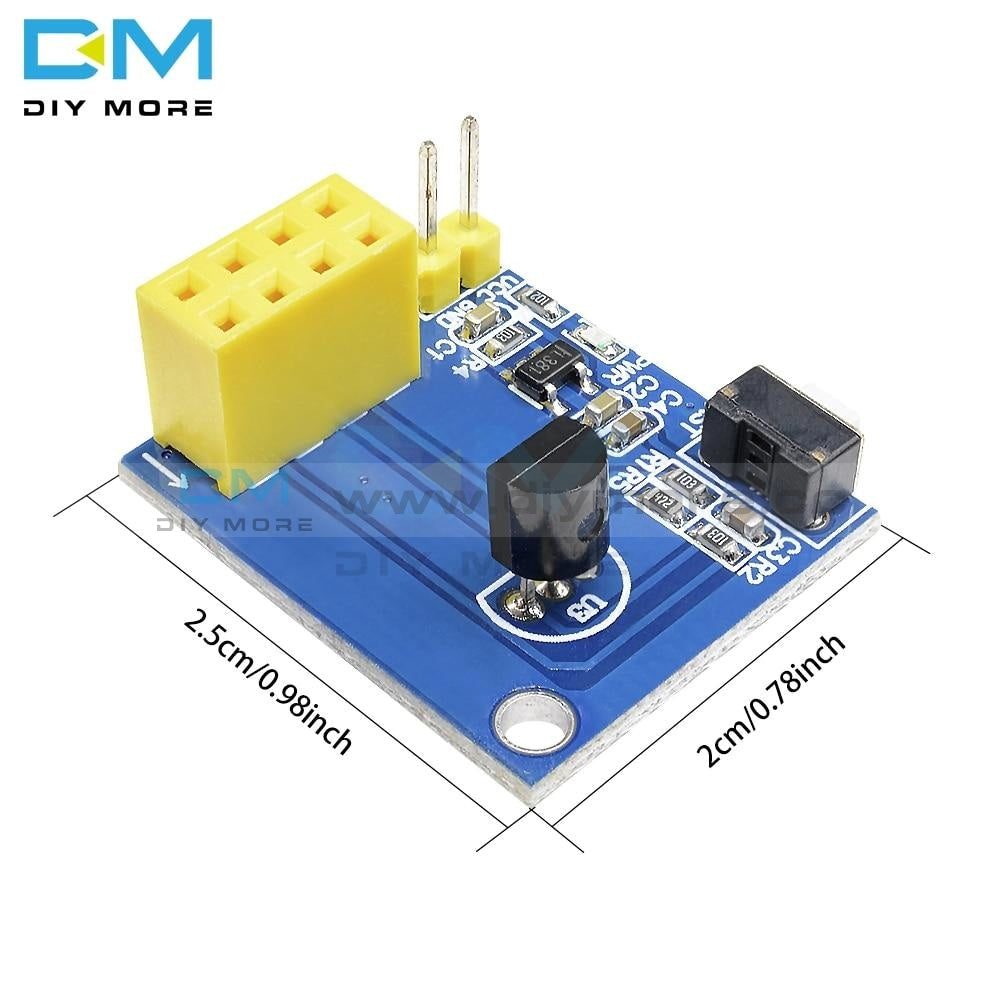

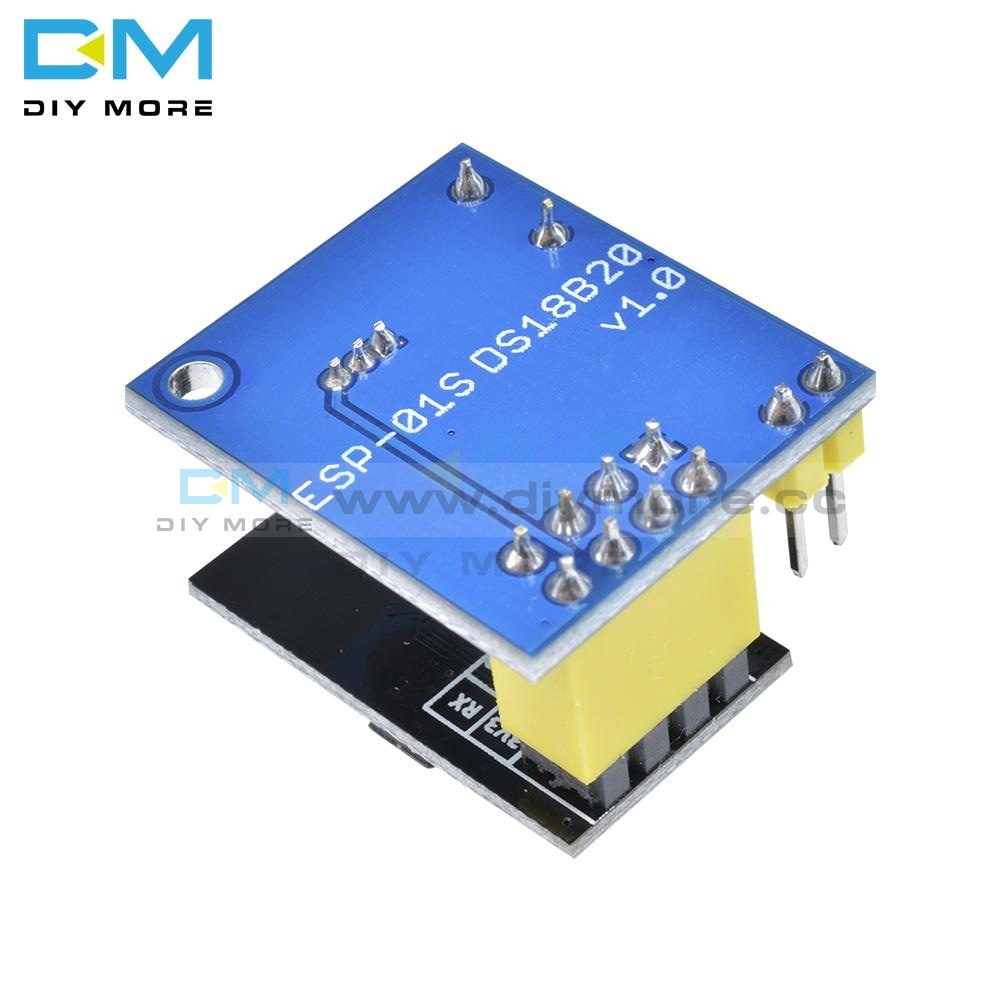

This ESP-01/ESP-01S DS18B20 Temperature module based on the ESP8266 and digital temperature module DS18B20. It is good for meature the temperature and uploader to the server as a node. It supports 3.7 to 12VDC power, so you can power it by a lipo battery and put it anywhere you need to meature the temperature. It is really useful in your smart home and IOT project.
Characteristic:
* Master: ESP-01 / ESP-01S (this module does not include ESP-01 / ESP-01S)

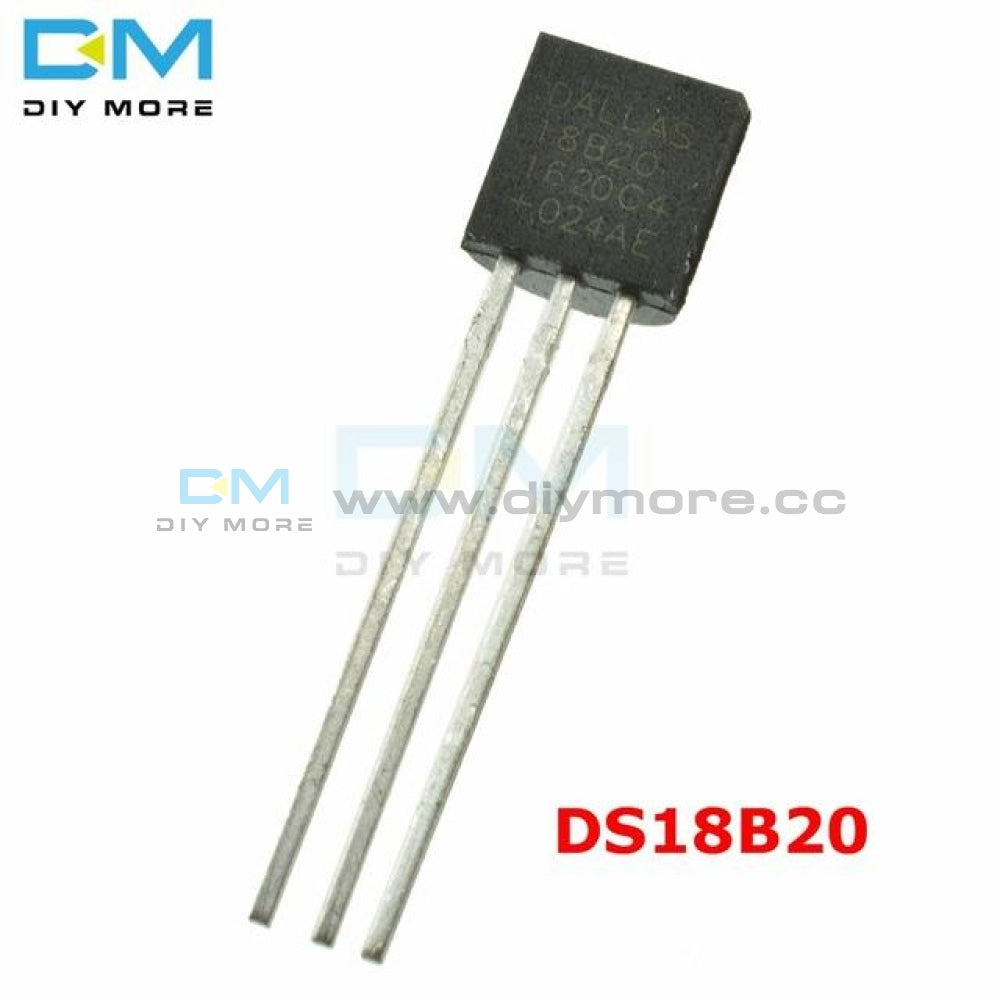

* Temperature sensor: DS18B20
* Operating voltage: DC 3.7V-12V (support 3.7v lithium battery power supply)
* Measuring range: -55 ° C to + 125 ° C
* Accuracy: ± 0.5 ° C

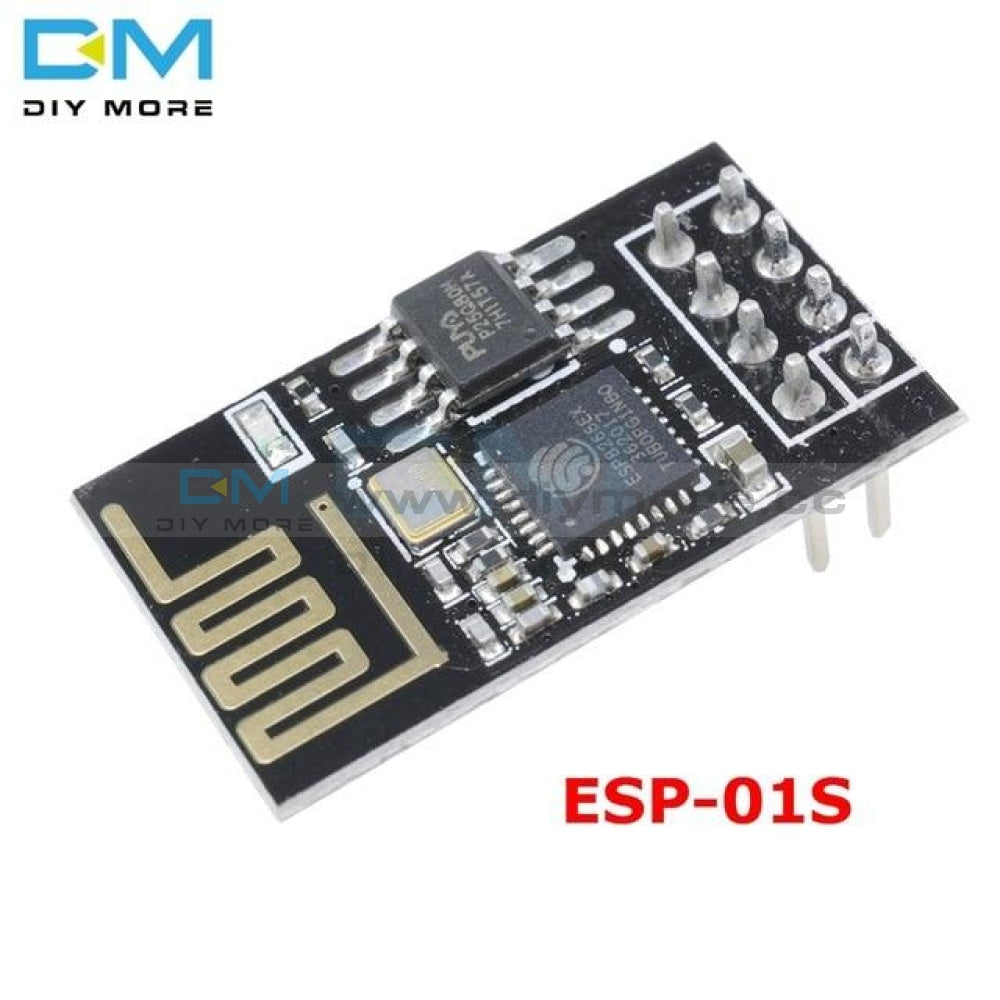

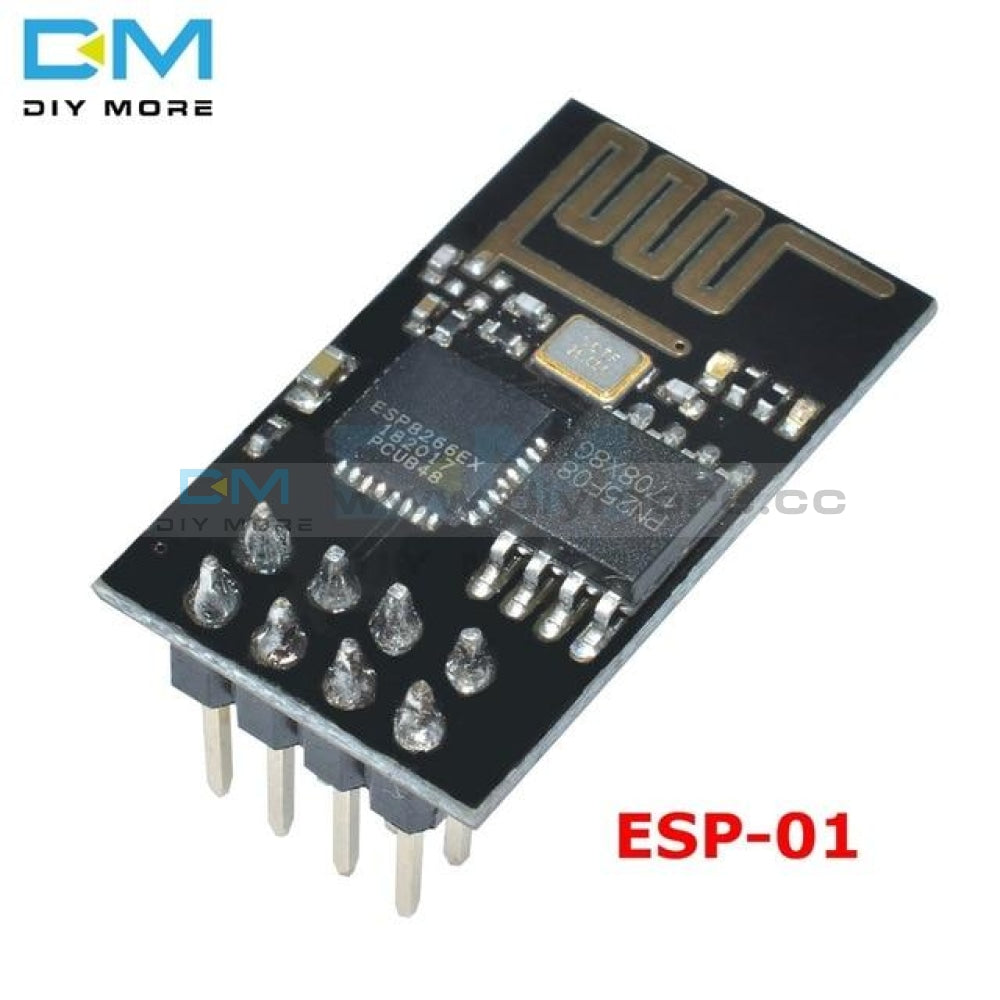

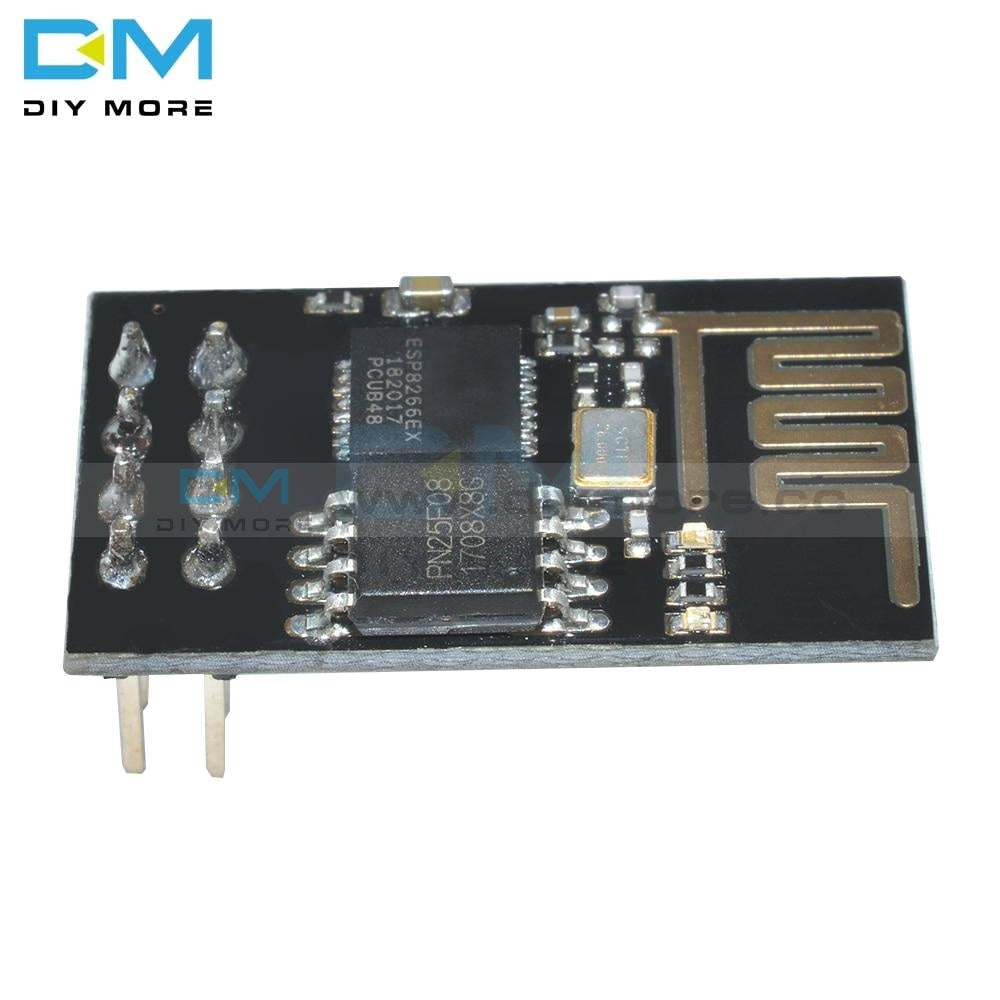

The ESP-01/ESP-01S Module
Wireless Standard:802.11b/g/n
Frequency Range:2.4GHz-2.5GHz(2400M-2483.5M)
Data Interface:UART/HSPI/I2C/I2S/Ir Remote Control/GPIO/PWM
Operating Voltage:3.0-3.6V(We recommended 3.3V)
Operating Current:Average 80mA
Operating Temperature:-40~125°
Wireless Network Mode:station/softAP/SoftAP+station
Safety Mode:WPA/WPA2
Encryption Type:WEP/TKIP/AES
Network Protocol:IPV4,TCP/UDP/HTTP/FTP
