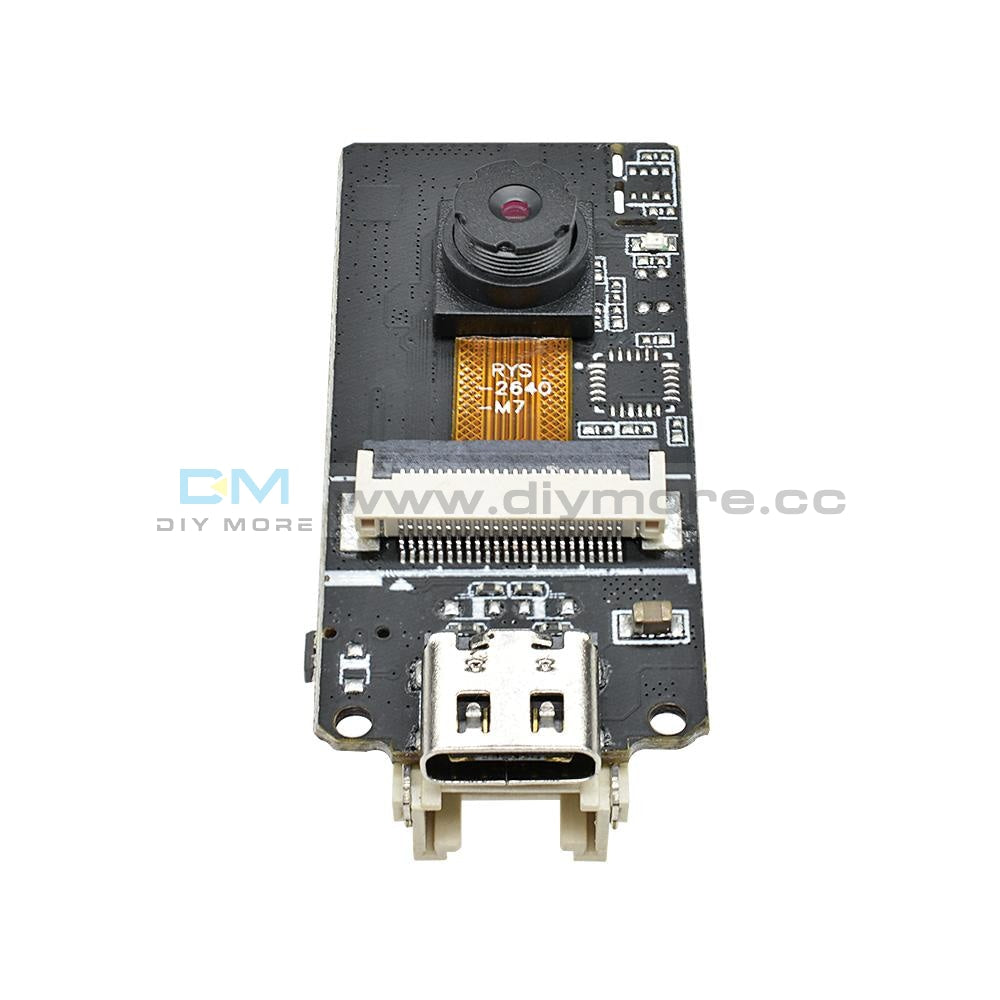

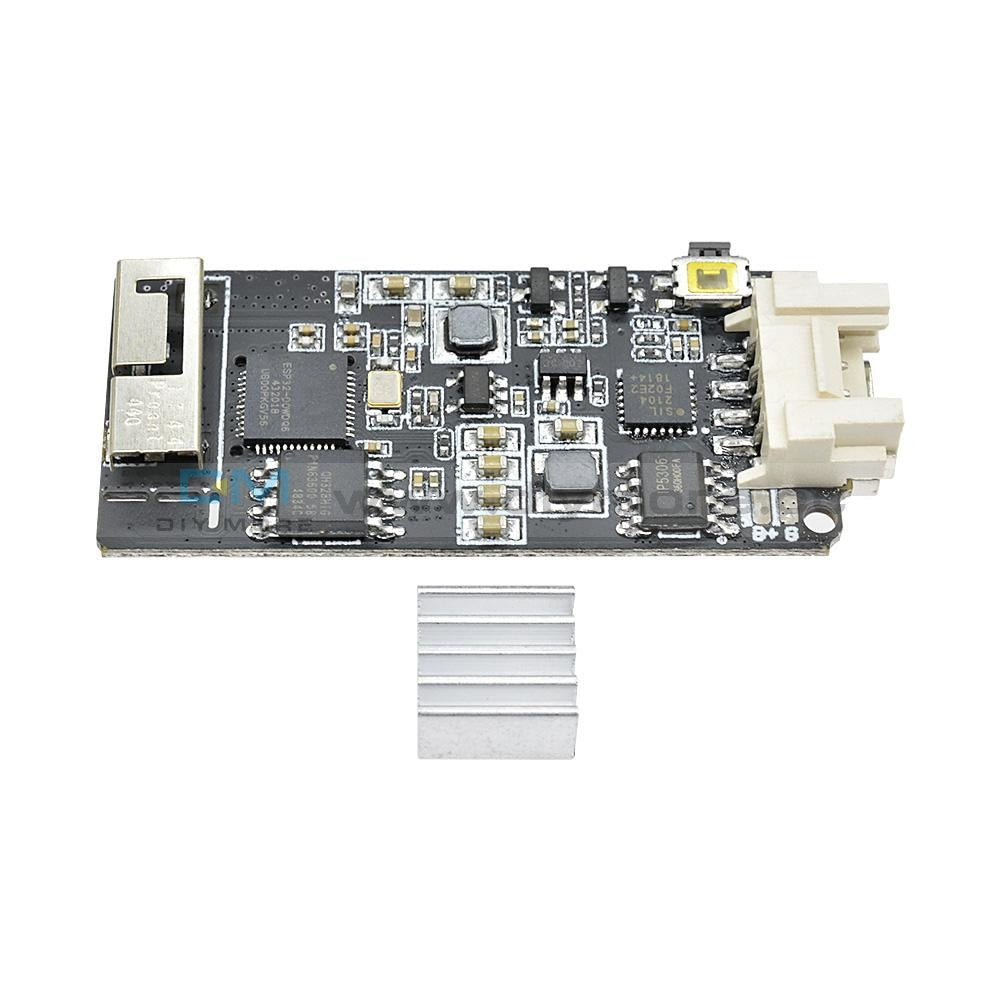

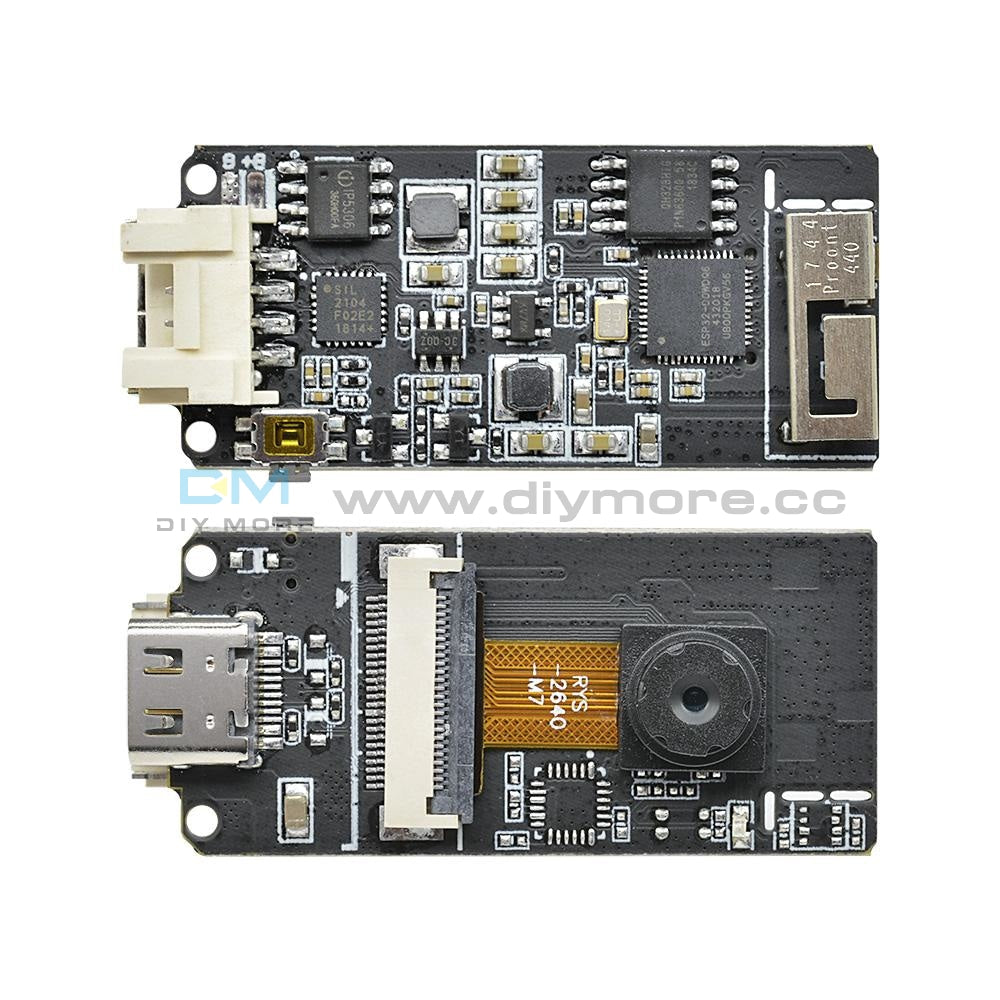

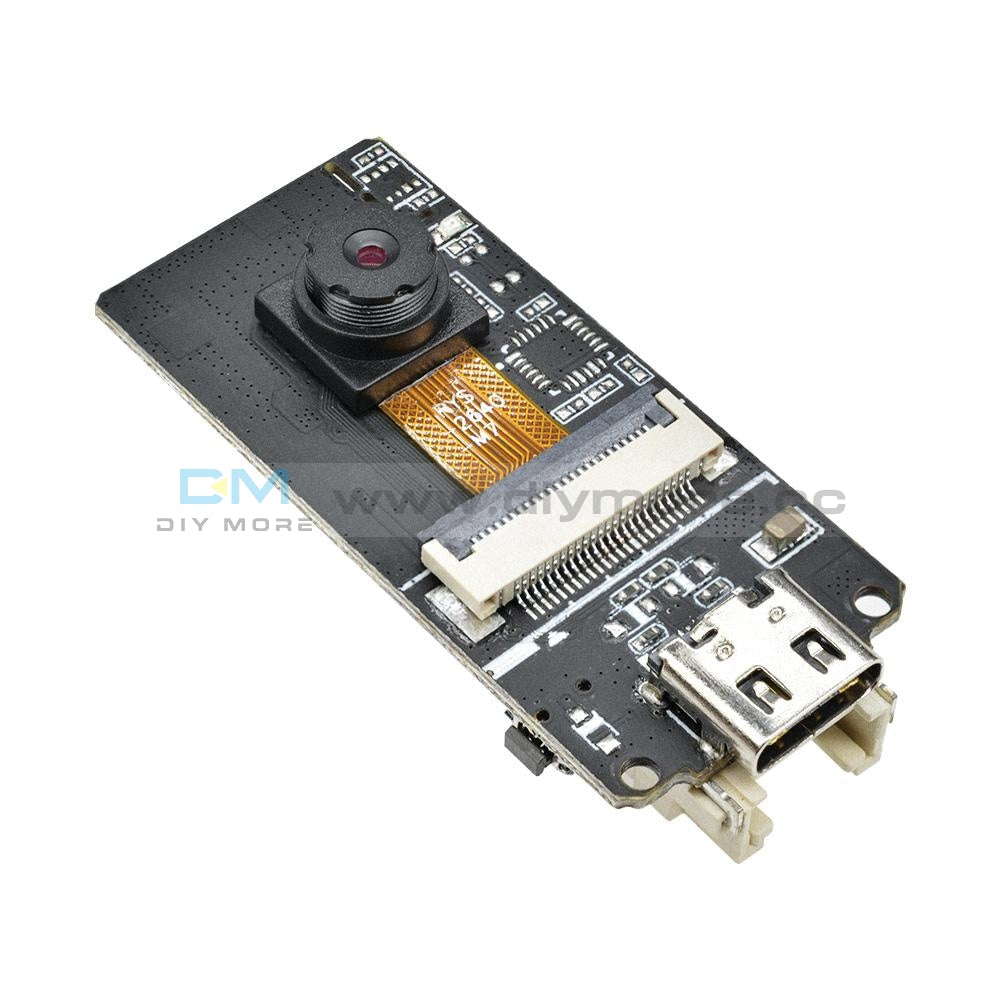

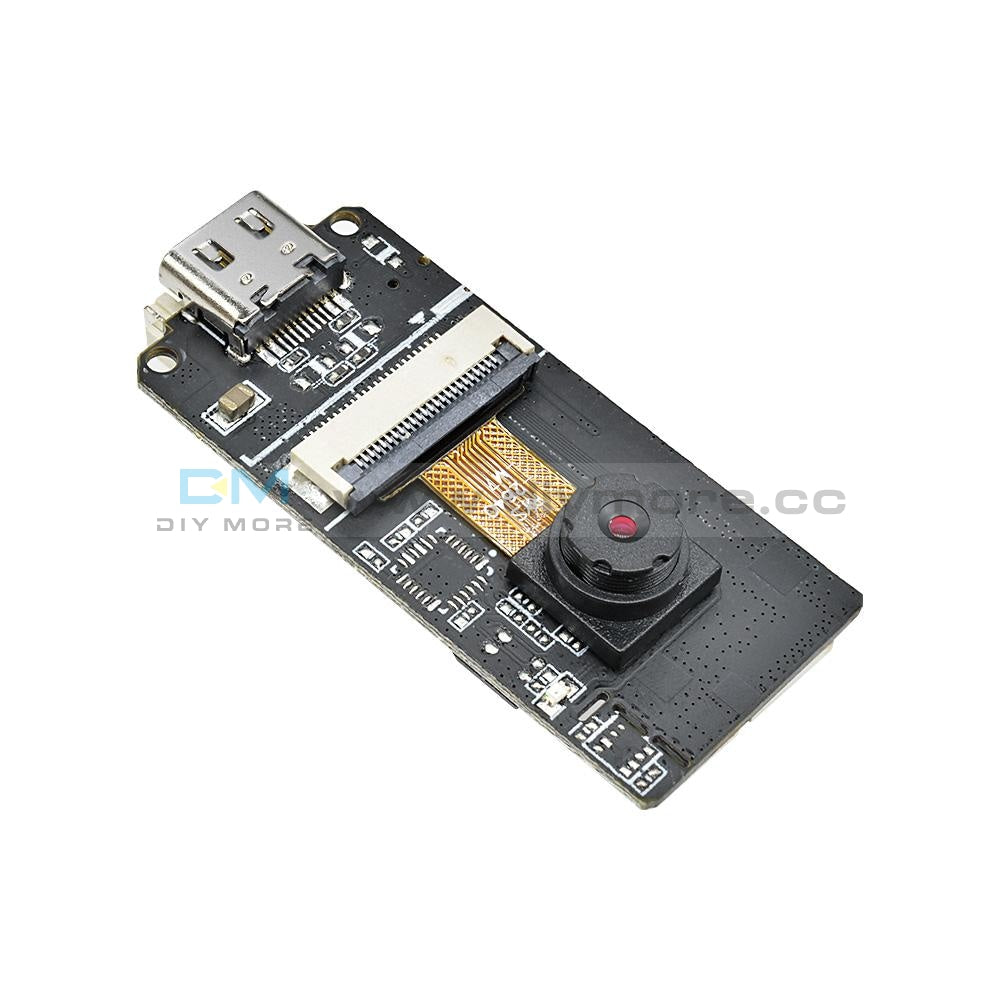

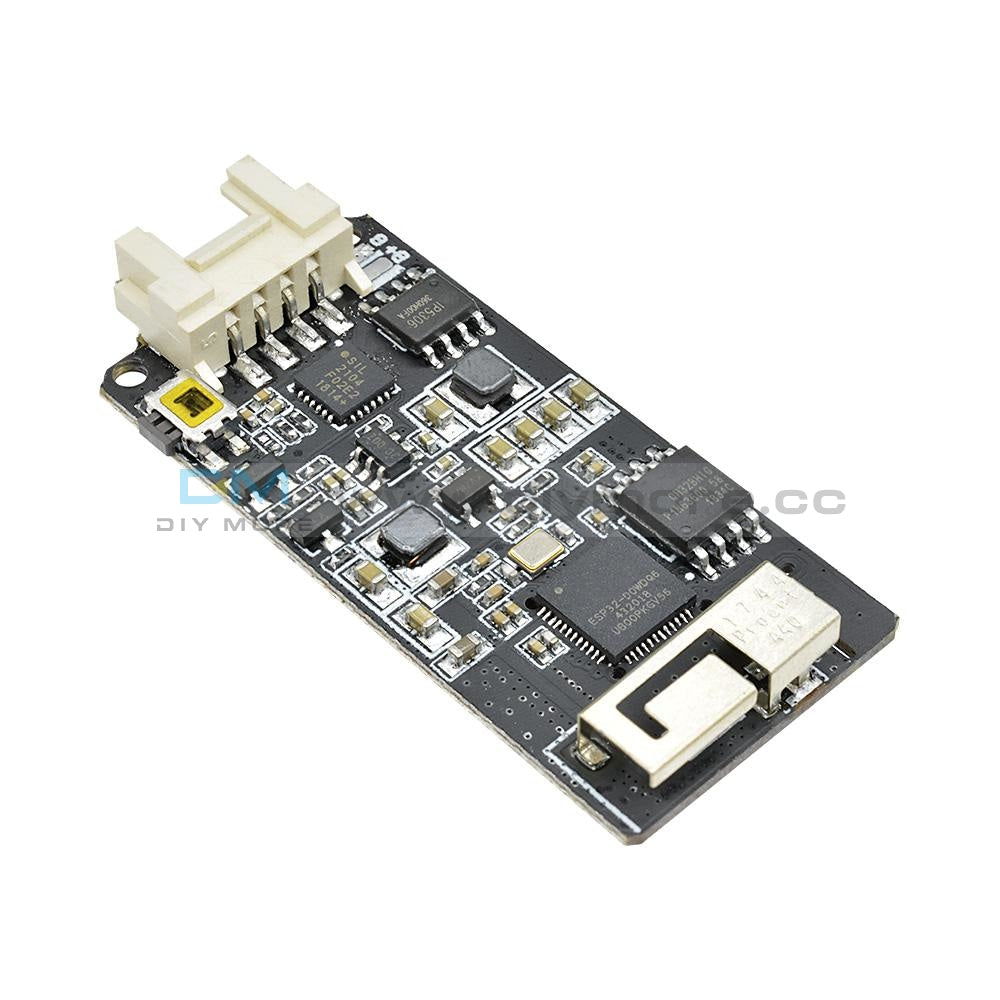

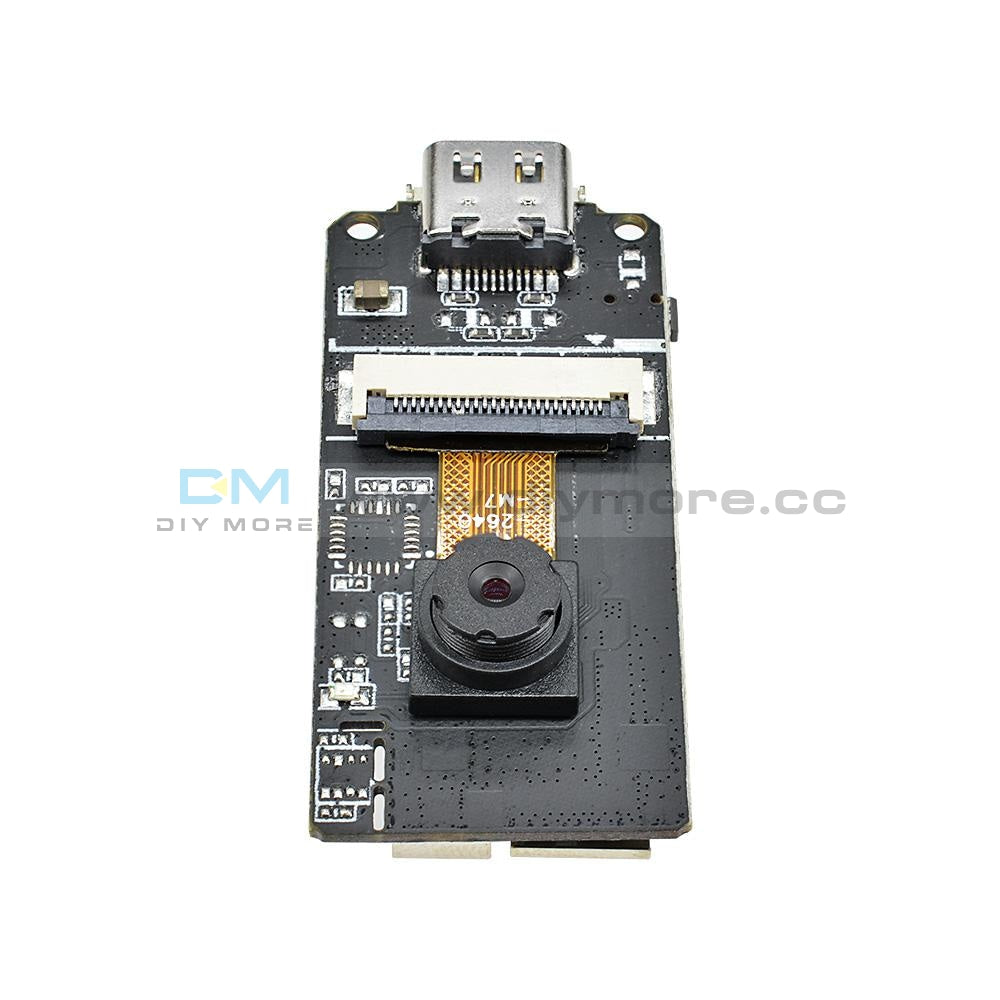

ESP32 CAM Module OV2640 Camera Module Development Board ESP32 for Arduino
ESP32 CAM Module OV2640 Camera Module Development Board ESP32 for Arduino
SKU:X13292
Regular price
$18.99
- guaranteeQuality checked
- Special gift cardsSpecial gift cards
- Free return Within 60 days
- Consultancy86-0755-85201155
FEATURES:
ESP32 specifications
Dual-core Tensilica LX6 microprocessor
Up to 240 mhz clock frequency
520kB internal SRAM
4 mb of Flash memory
Integrated 802.11 BGN WiFi transceiver
Integrated dual-mode Bluetooth (classic and BLE)
Hardware and accelerated cryptographic tools (AES, SHA2, ECC, RSA-4096)
CP2104 USB TTL
OV2640 sensor
Output Formats (8-bit):
YUV (422/420) / YCbCr422
RGB565 / 555
8-bit compressed data
8- / 10-bit Raw RGB data
Maximum Image Transfer Speed
UXGA / SXGA: 15fps
SVGA: 30fps
CIF: 60fps
Scan mode: Progressive
Camera technical features
CCD format: 1/4 inch
Field of View: 78 degrees
Maxmium Pixel: 200 w
Best resolution sensor: 1600 * 1200
Size: 25mm x 24mm
Package included:
ESP32 specifications
Dual-core Tensilica LX6 microprocessor
Up to 240 mhz clock frequency
520kB internal SRAM
4 mb of Flash memory
Integrated 802.11 BGN WiFi transceiver
Integrated dual-mode Bluetooth (classic and BLE)
Hardware and accelerated cryptographic tools (AES, SHA2, ECC, RSA-4096)
CP2104 USB TTL
OV2640 sensor
Output Formats (8-bit):
YUV (422/420) / YCbCr422
RGB565 / 555
8-bit compressed data
8- / 10-bit Raw RGB data
Maximum Image Transfer Speed
UXGA / SXGA: 15fps
SVGA: 30fps
CIF: 60fps
Scan mode: Progressive
Camera technical features
CCD format: 1/4 inch
Field of View: 78 degrees
Maxmium Pixel: 200 w
Best resolution sensor: 1600 * 1200
Size: 25mm x 24mm
Package included:
1 x ESP32-CAM Module OV2640 Camera Module Development Board ESP32 for Arduino
