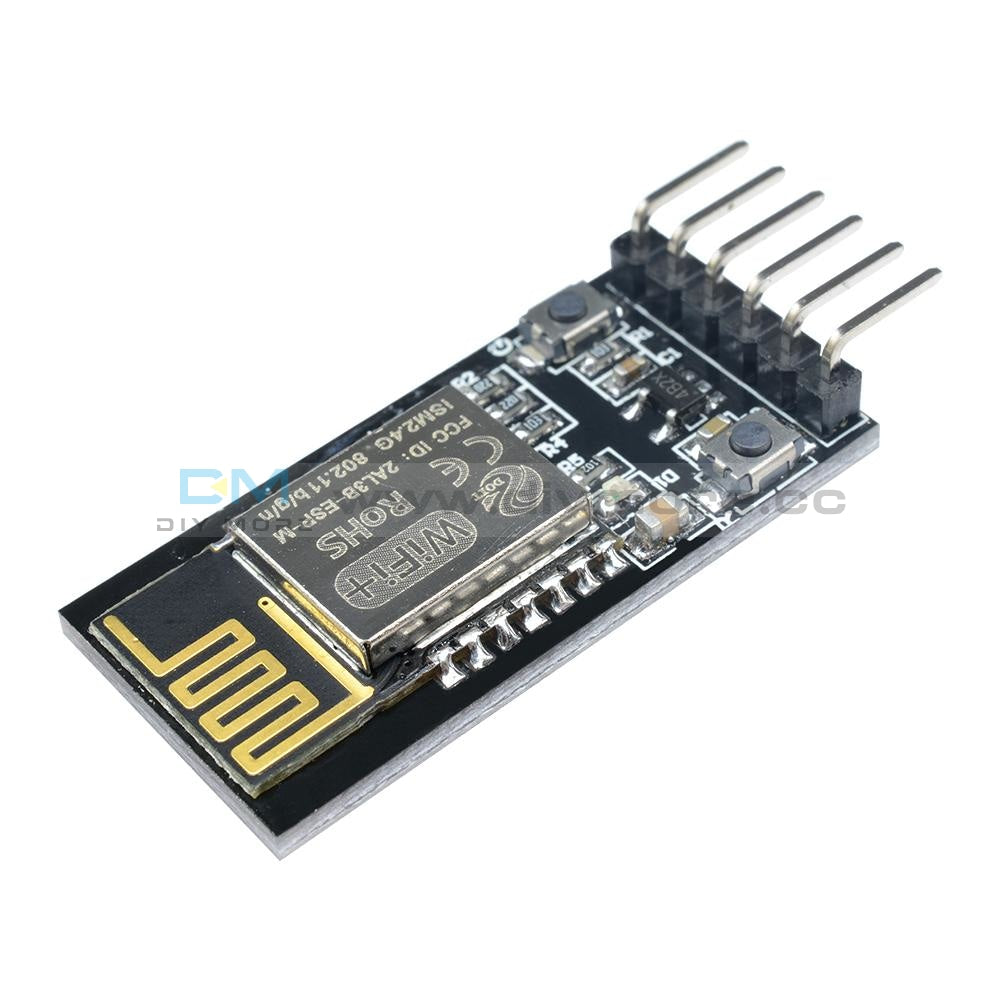

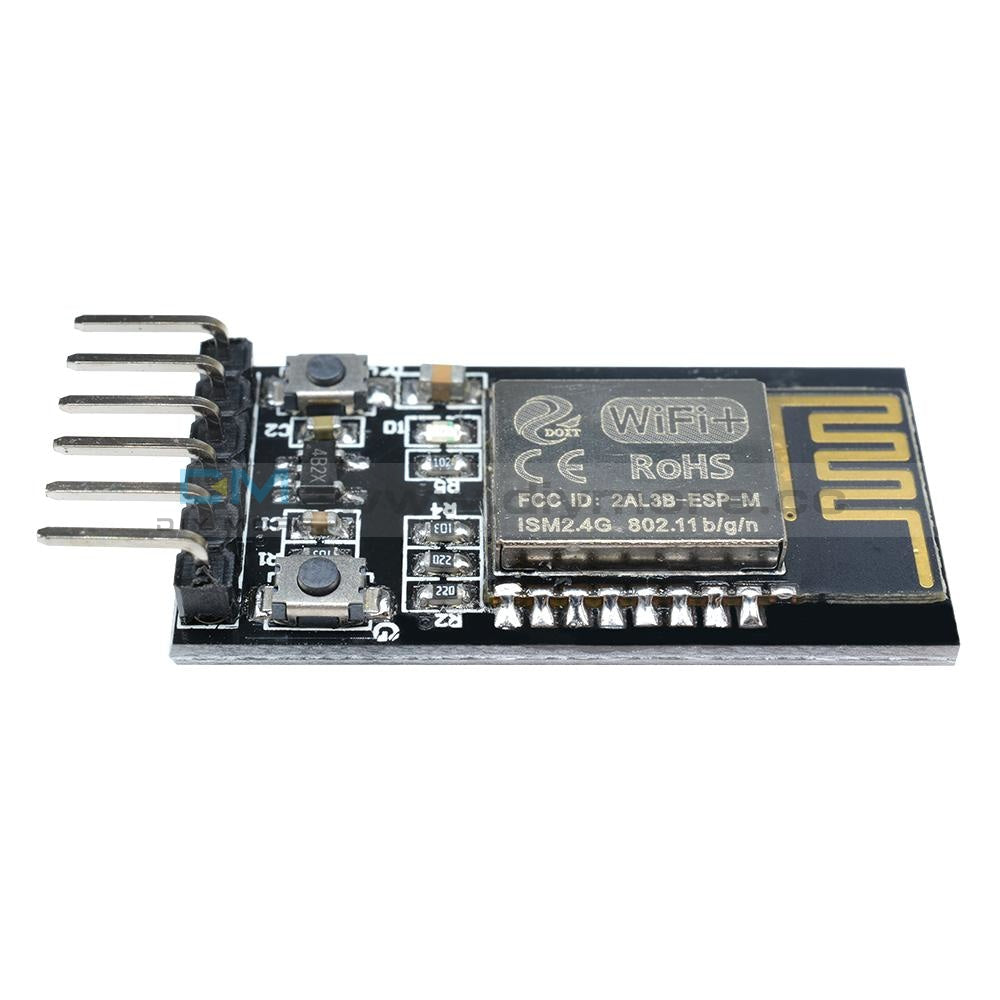

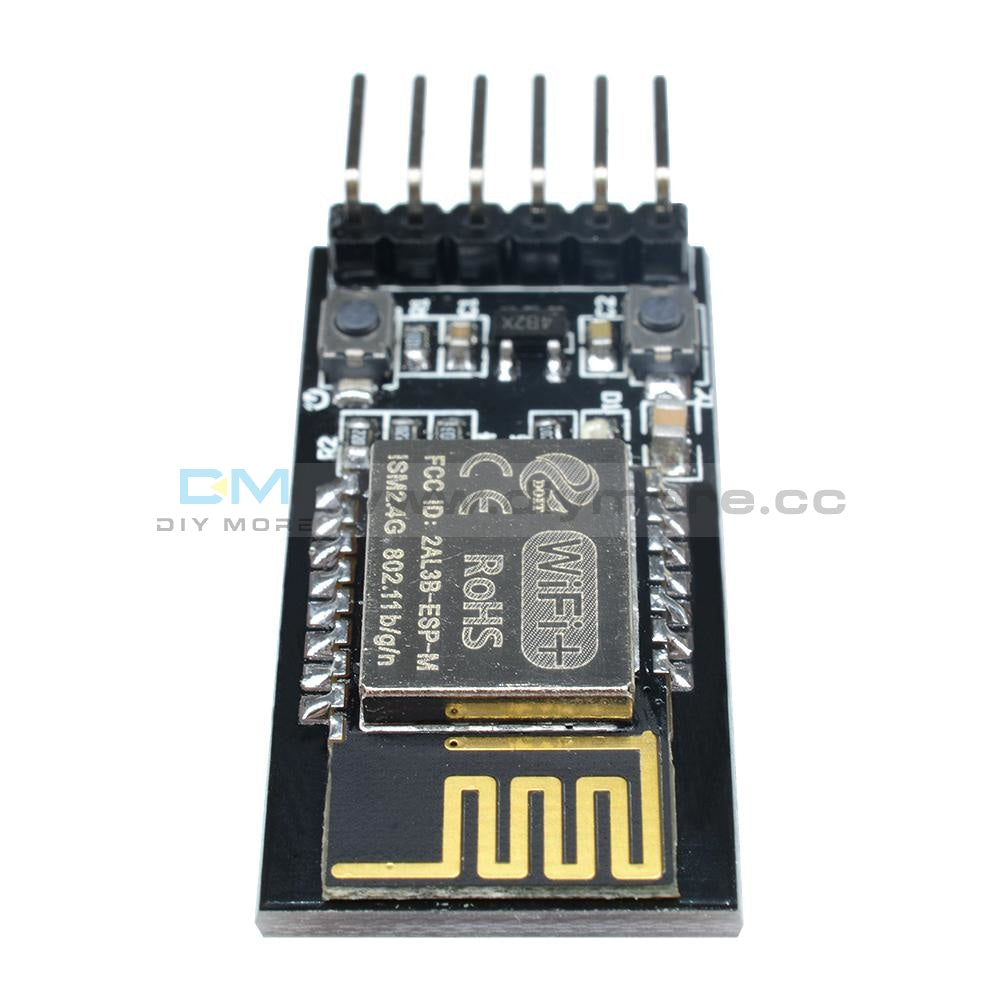

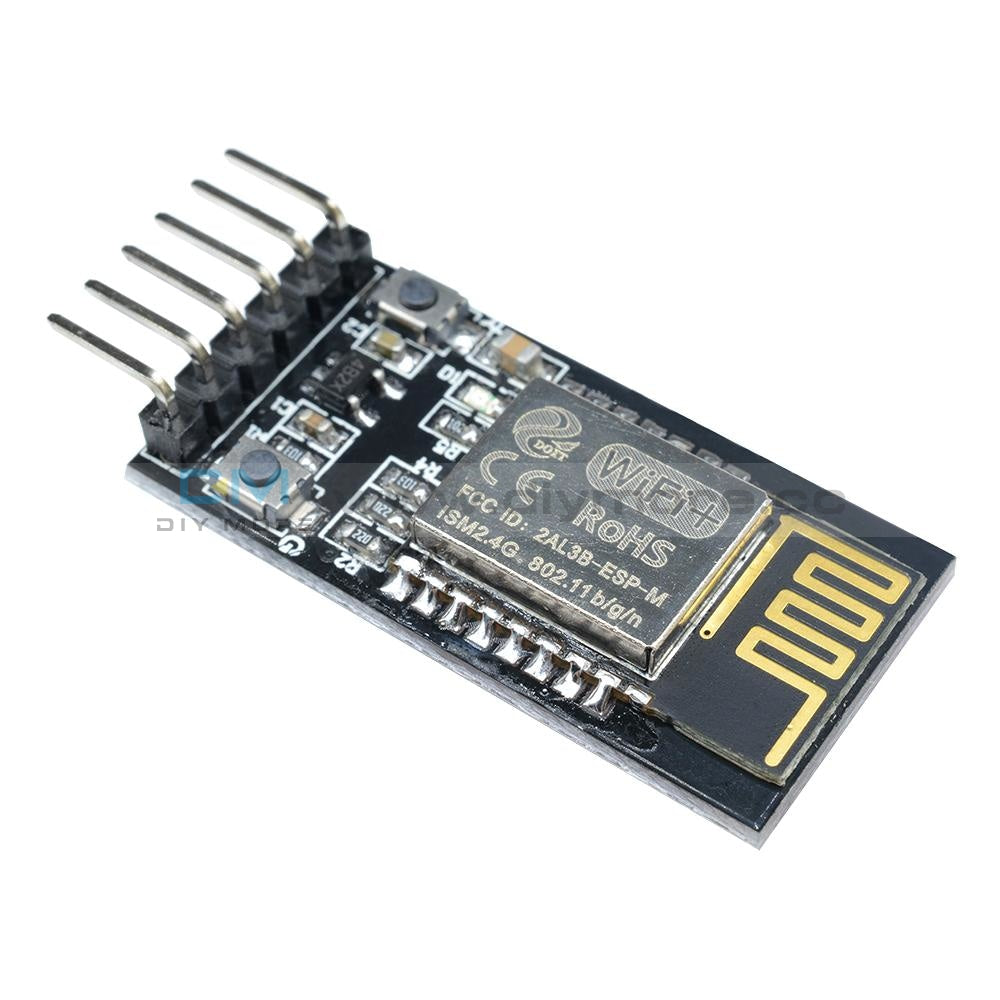

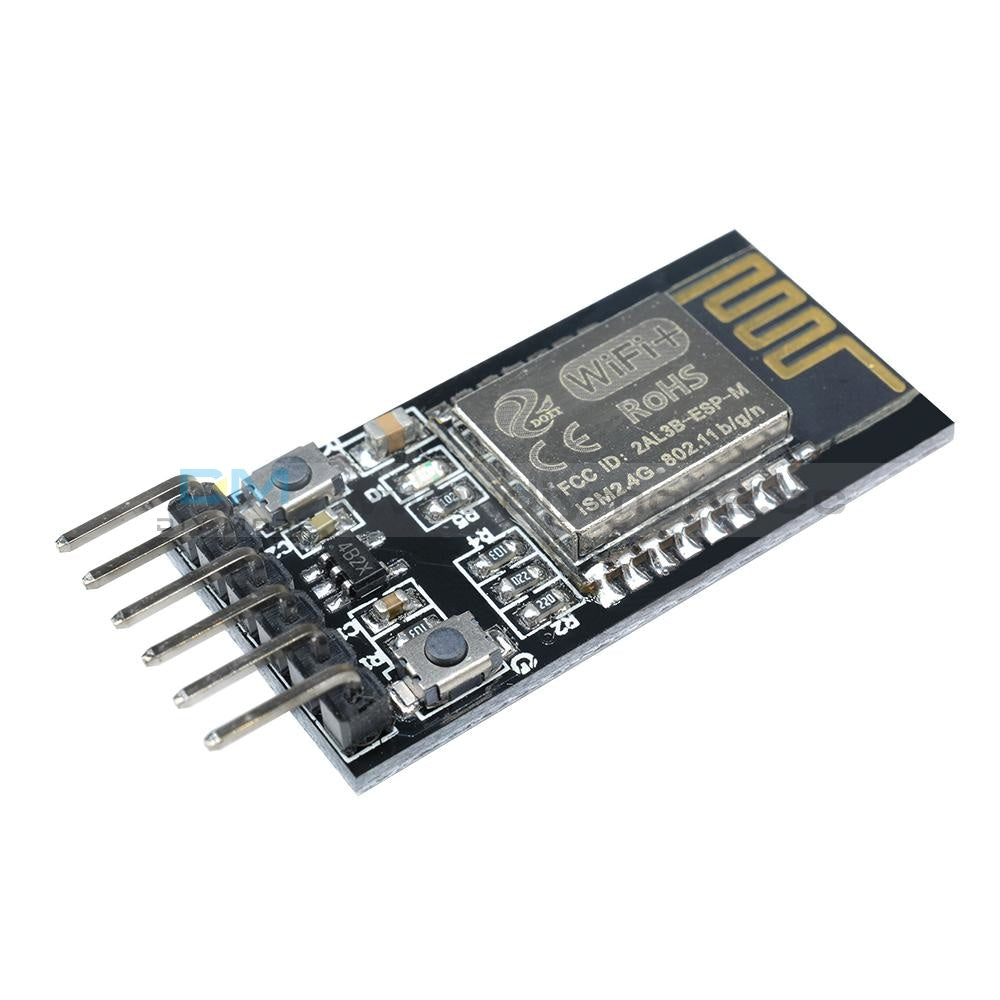

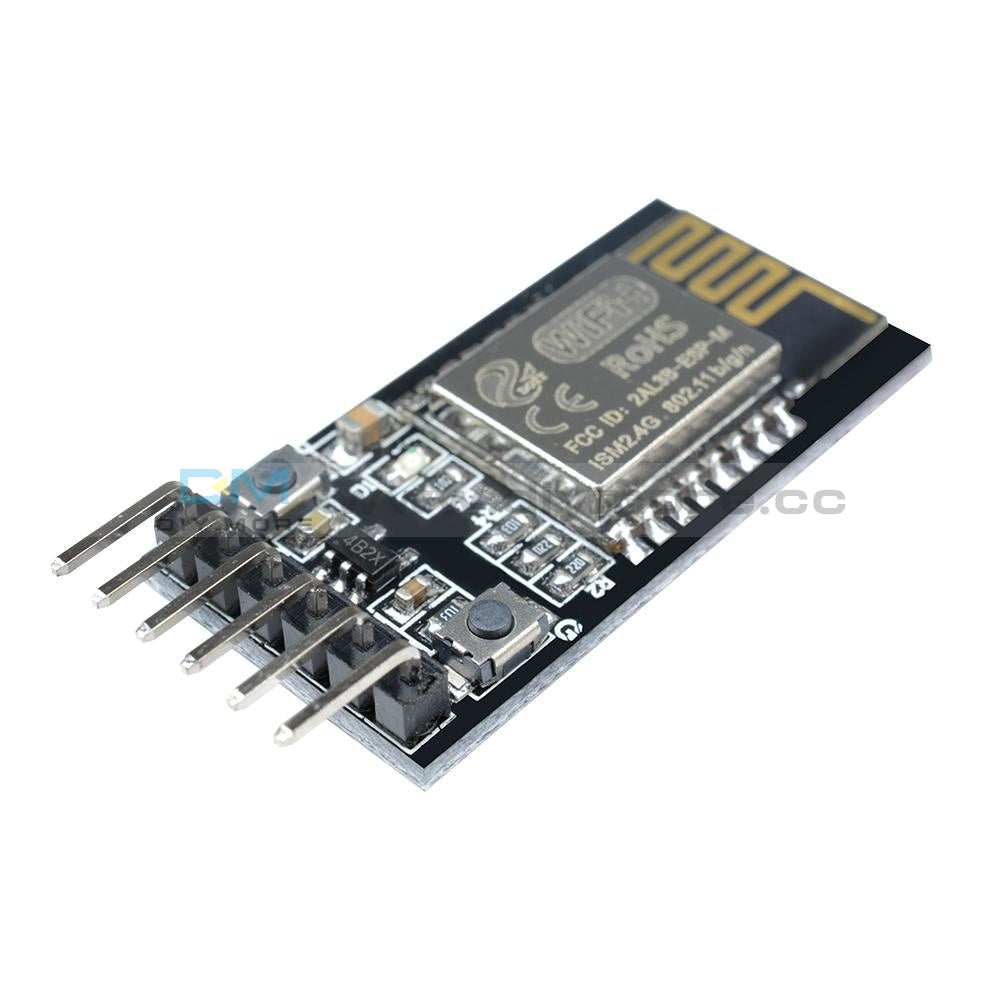

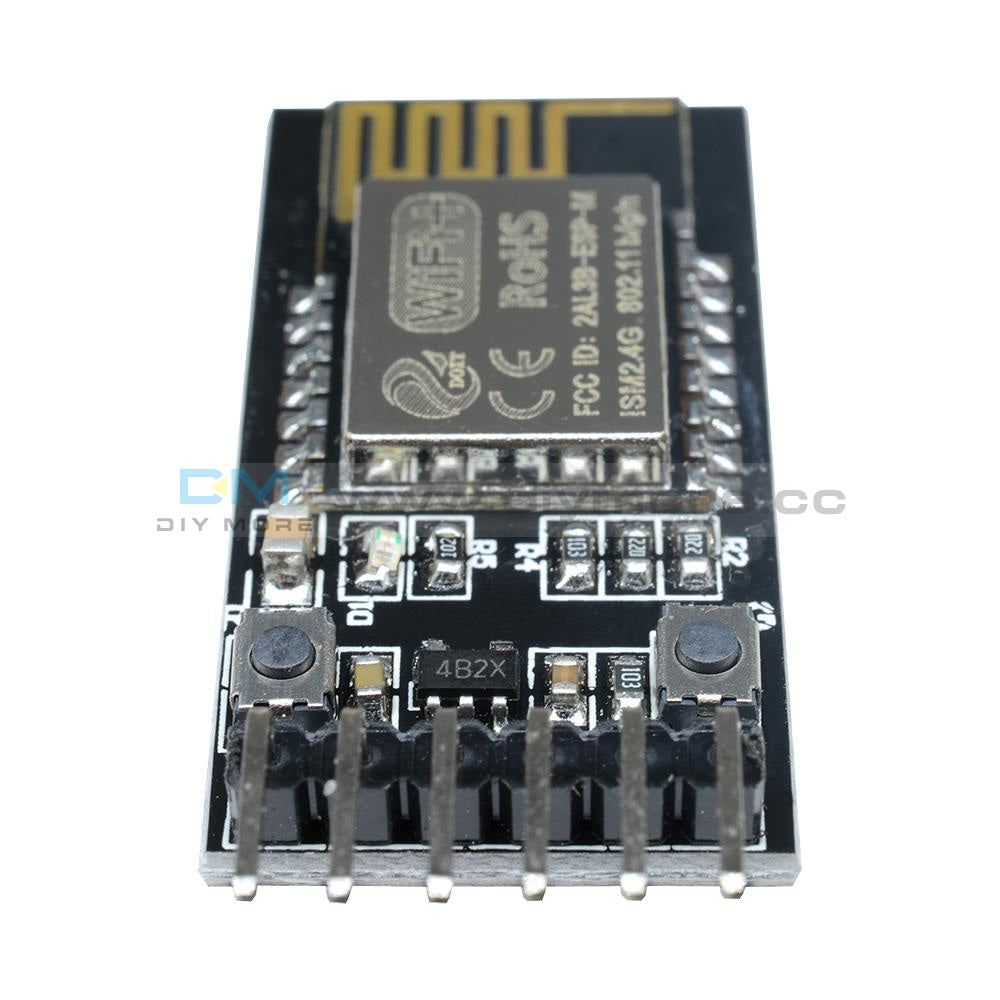

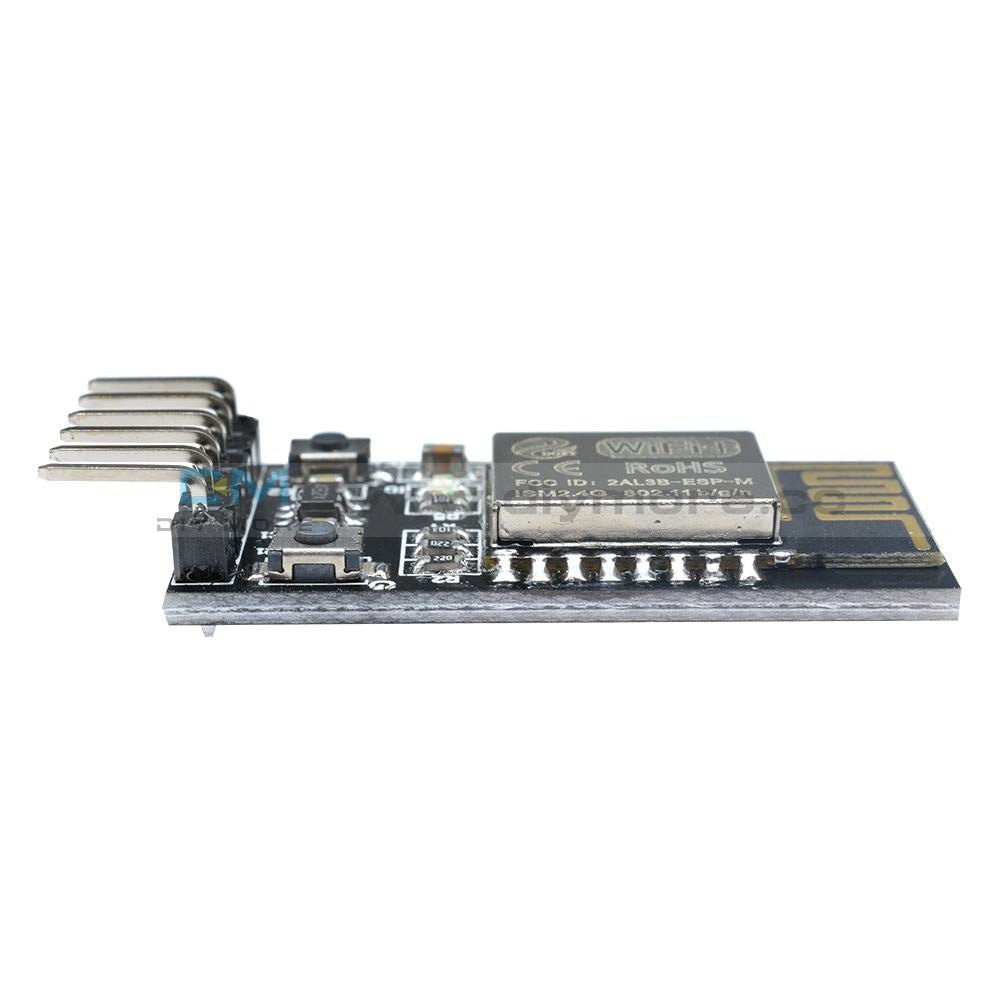

ESP8285 ESP-M2 Wireless WIFI Serial Board TTL Port for WIFI Transmission Module

ESP8285 ESP-M2 Wireless WIFI Serial Board TTL Port for WIFI Transmission Module

SKU:012463
Regular price $6.99

Overview:
TTL-WiFi is designed and developed based on ESP-M2 WiFi module, which is extracted the TTL, EN, STATE and other pins
Importantly, the TTL-WiFi is already built-in the serial transparent transmission firmware programmed by our company (SZdoit), which can realize the transparent transmit the data to the cloud on the real-time, together with low-power control, status indictor
This board can replace the old wiring serial WiFi device to realize the data collection and control.
Fully compatible with the original electrical interface and physical interface for the serial transparent Bluetooth

Features:
Built-in the industrial transparent transmission firmware V3.0 with stability and reliability by using the Web Configuration;
Built-in the high performance WiFi module ESP-M2 with size: 34mm17mm4mm
Working voltage: 4.5V~6.0V, TTL working voltage: 3.3V (compatible with 5.0V)

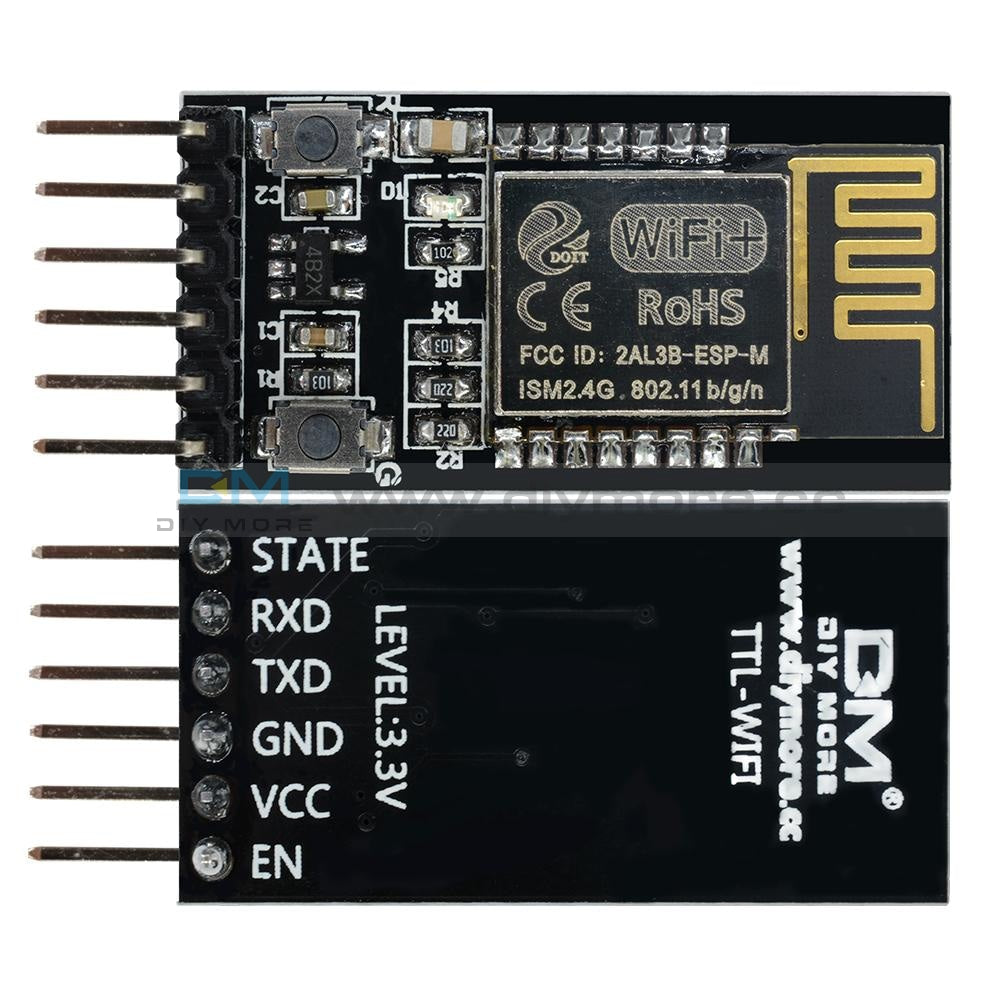

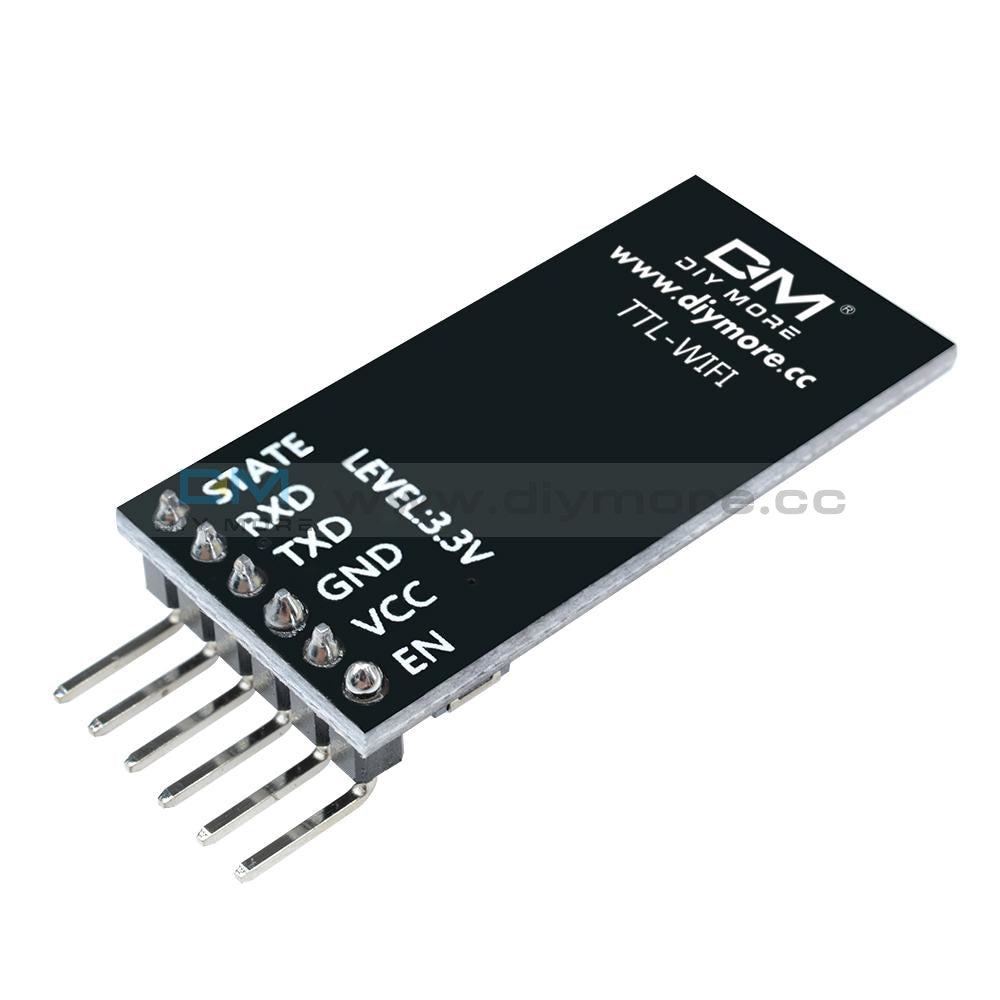

Provided pins: STATE, TXD, RXD,EN
Average current: 80mA; when data sent, it is 170mA; but it is 20μA at deep sleep mode;
Support serial AT command
Support re-programmable, OTA firmware update
Seamless transparent transmission between serial and WiFi
Built-in HTTP Web Server, support configure parameters by web page
Support re-connect automatically at WiFi STA mode and TCP Client
Support set baud rate, data bit, parity check, stop bits, and/or subcontracting time;
Support baud rate (bps): 300/600/1200/2400/4800/9600/19200/38400/57600/74800/115200/
230400/460800/921600/1843200/3686400
Support AP enable, self-defined SSID/password, self-defined IP and network duration;
Automatically scan the peripheral WiFi hotspot, support STA enable, DHCP, self-defined IP;
Support TCP Server, TCP Client, UDP Server, UDP Client and UDP local broadcast;
Support DNS resolution automatically for the remote sever address
Support checking the status by AT command
Provide IO4 to show the WiFi status
Working temperature: -40 Degrees Celsius-125 Degrees Celsius

Applications:
smart home, wireless data connection and transparent transmission, smart car control, wireless serial printer, LED light industrial control etc.

Package Included:
1*ESP8285 ESP-M2 WIFI Serial Board
