ESP8285 Infrared Receiving And Transmitting Wifi Remote Control Switch Module Development Learning Board

ESP8285 Infrared Receiving And Transmitting Wifi Remote Control Switch Module Development Learning Board

ESP8285 Infrared Receiving And Transmitting Wifi Remote Control Switch Module Development Learning Board

SKU:XF0069
Regular price $7.99

Reference description:

  • ESP8285 infrared receiving and transmitting wifi remote control switch module development learning board
  • Overview The ESP infrared transmitting and receiving remote module uses the ESP-01M module with ESP8285 as the core as the main control, and the procedure is the same as ESP8266. The module has an infrared receiver tube and an infrared transmitter tube which are controlled by io14 and io4 respectively, and a programming port is reserved.
  • Functional characteristics Send infrared related codes, infrared library, and programming environment construction process instructions, programming language arduino, demonstration program can read and transmit infrared keys and original codes. With it, you can record the infrared remote control at home, if you connect to the Internet of Things platform, you can remotely control it. Provides a programming port (communicable and power supply), which can be connected to a TTL downloader.
  • Three, hardware introduction and description

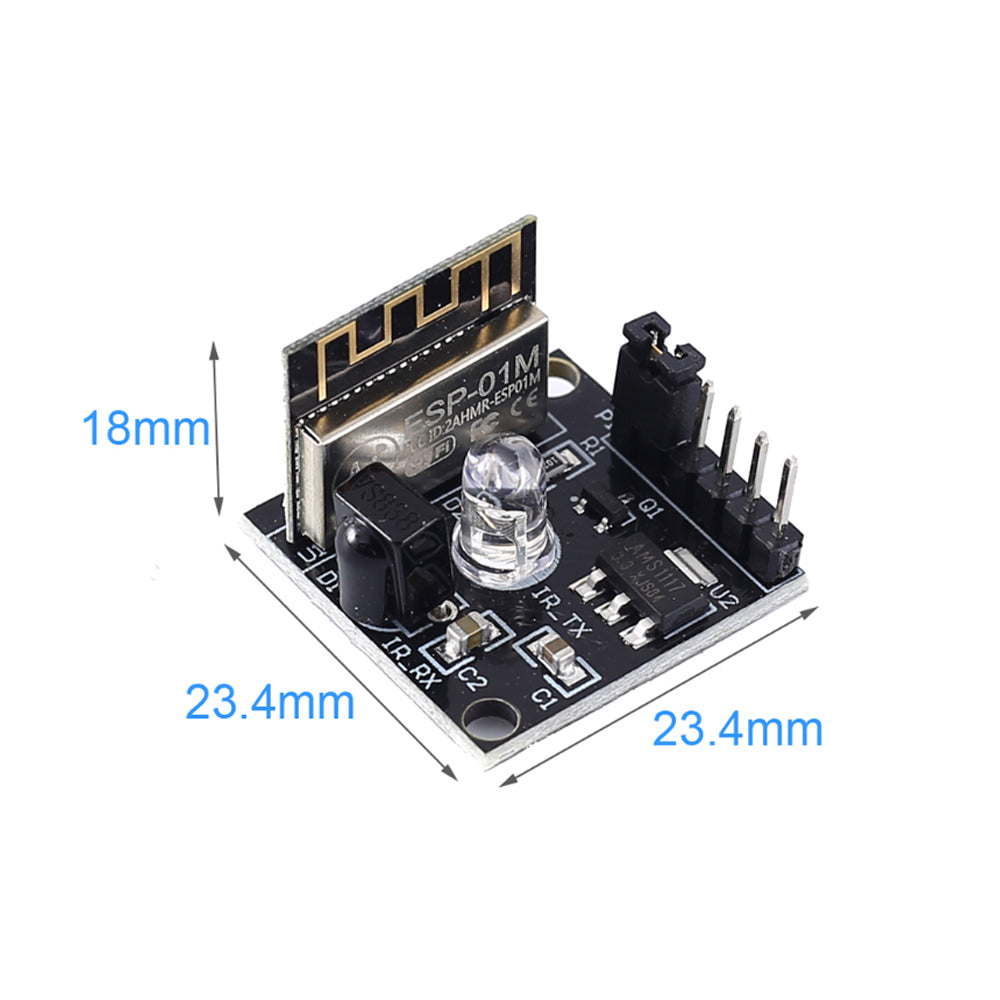

  • Board size: 23.4*23.4mm
  • Weight: 4g

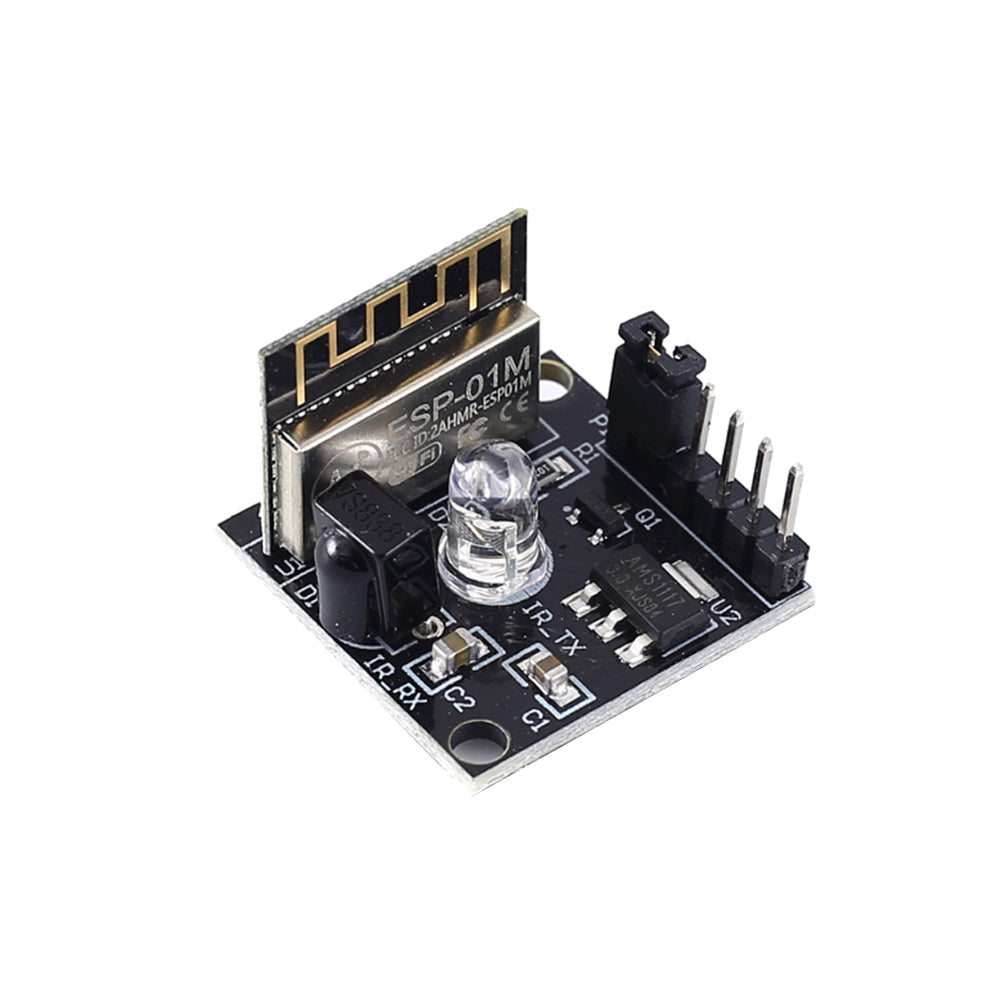

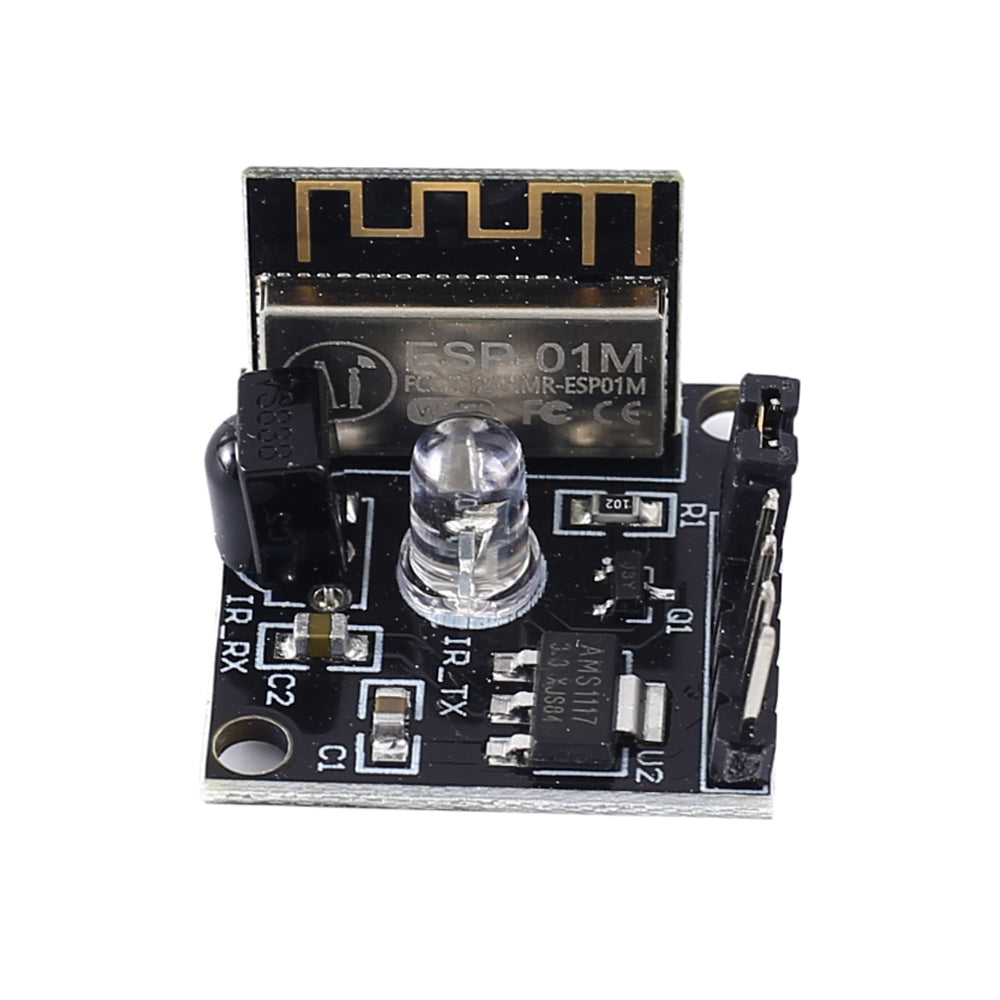

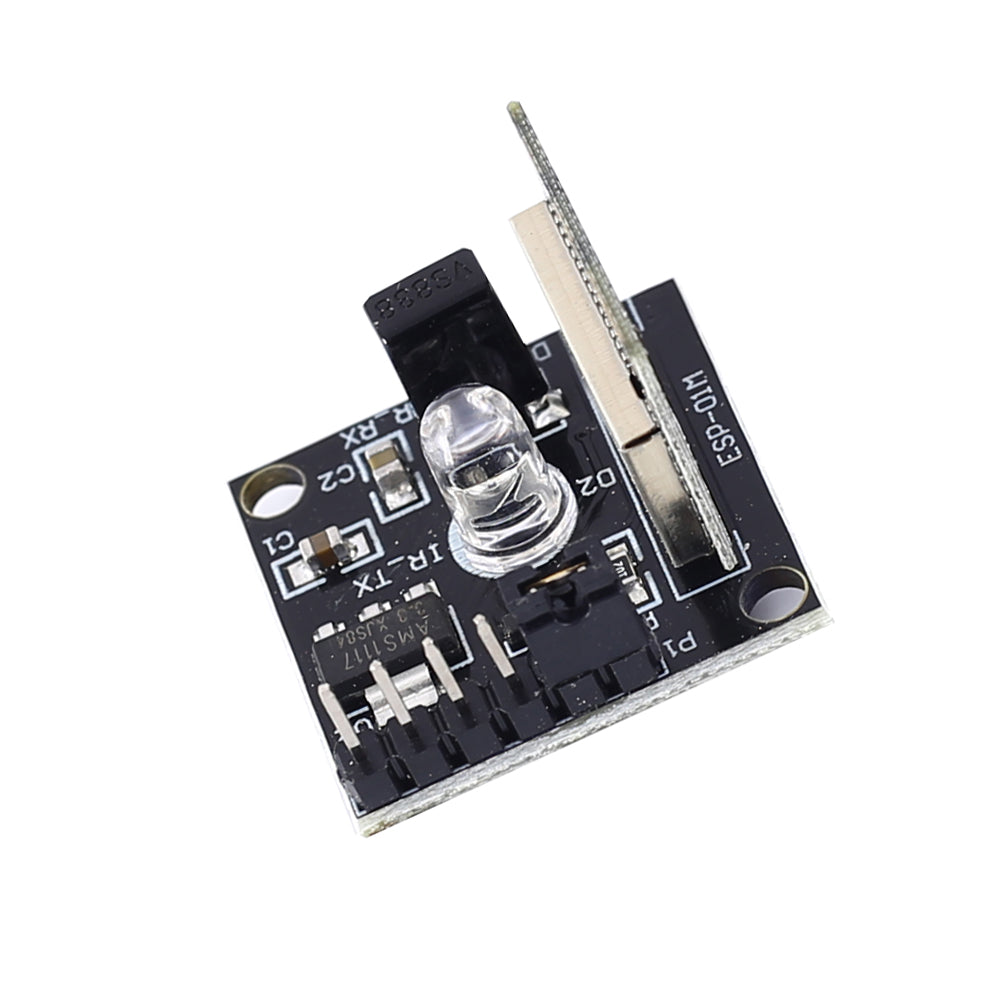

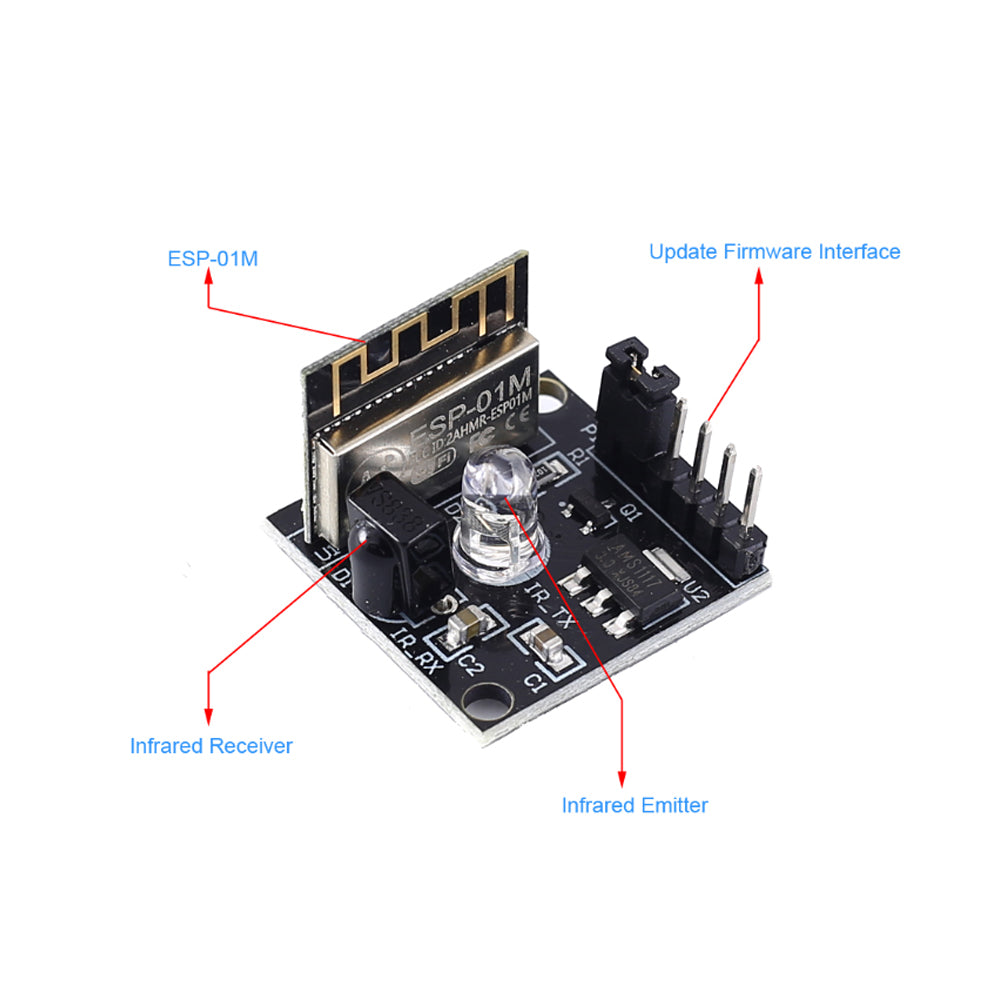

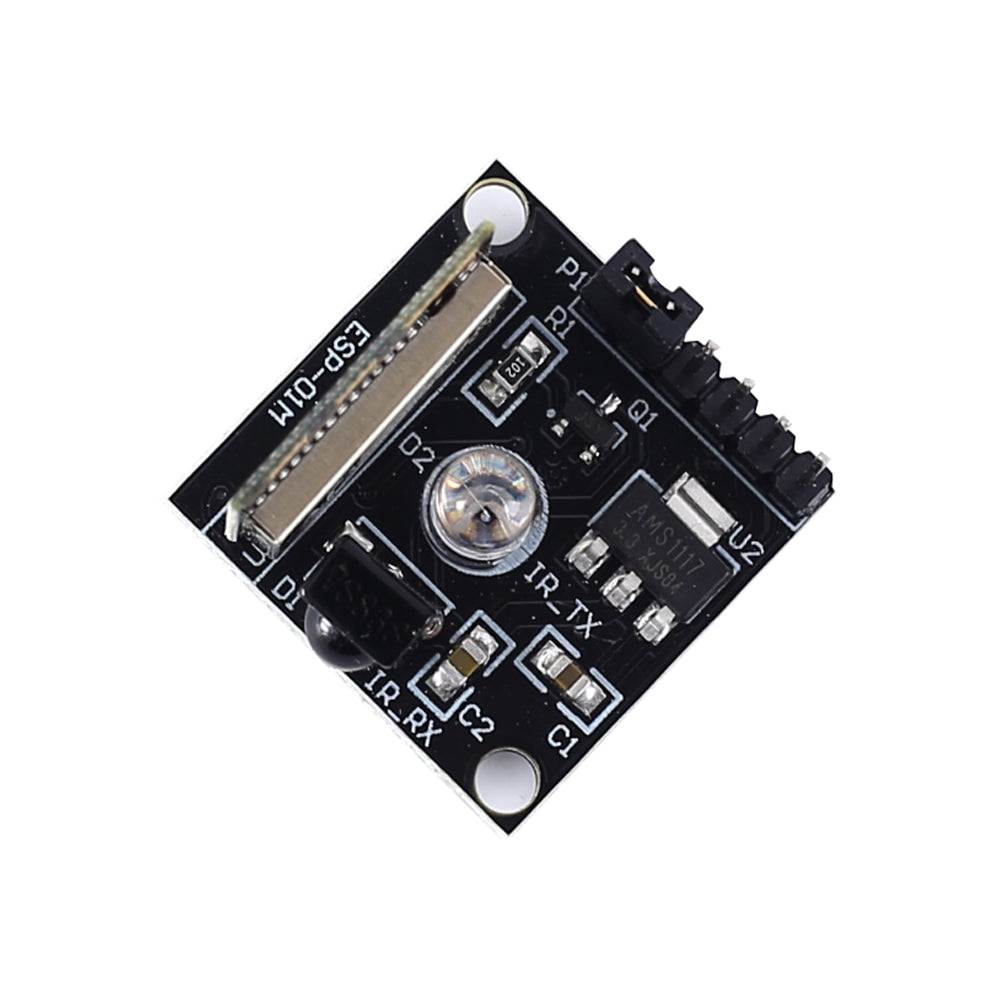

  • Description of board function physical picture:

Connect with TTL downloader:

  • GND -------- GND
  • 5V -------- 5V
  • RX --------- TX
  • TX --------- RX
  • When programming the program, IO0 and GND must be short-circuited, and the module needs to be re-powered; after programming, disconnect IO0 and GND and power-on again to run the program normally.
  • Four, matters needing attention
  • When supplying power, you need to look for 5V and GND. There is no reverse connection protection for the circuit, and the chip may be burned out if connected incorrectly.GY17103.51GY17103.52
