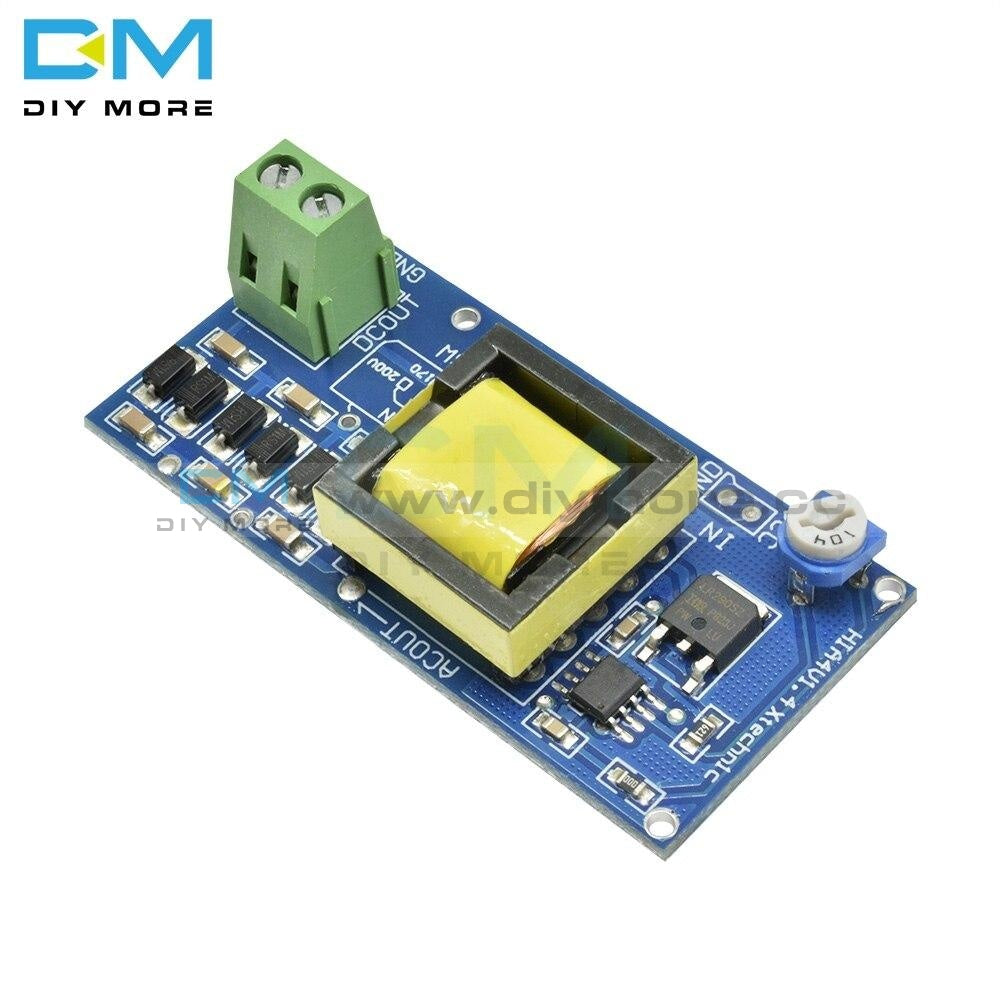

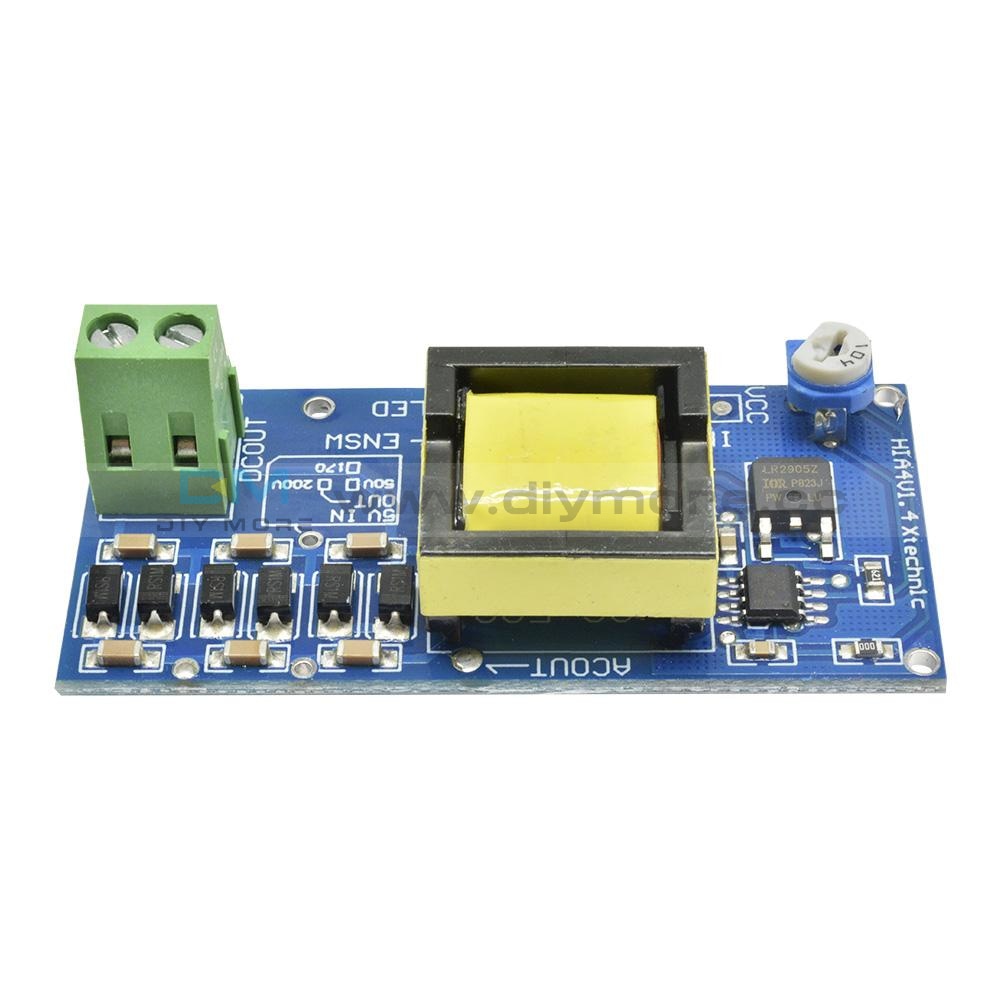

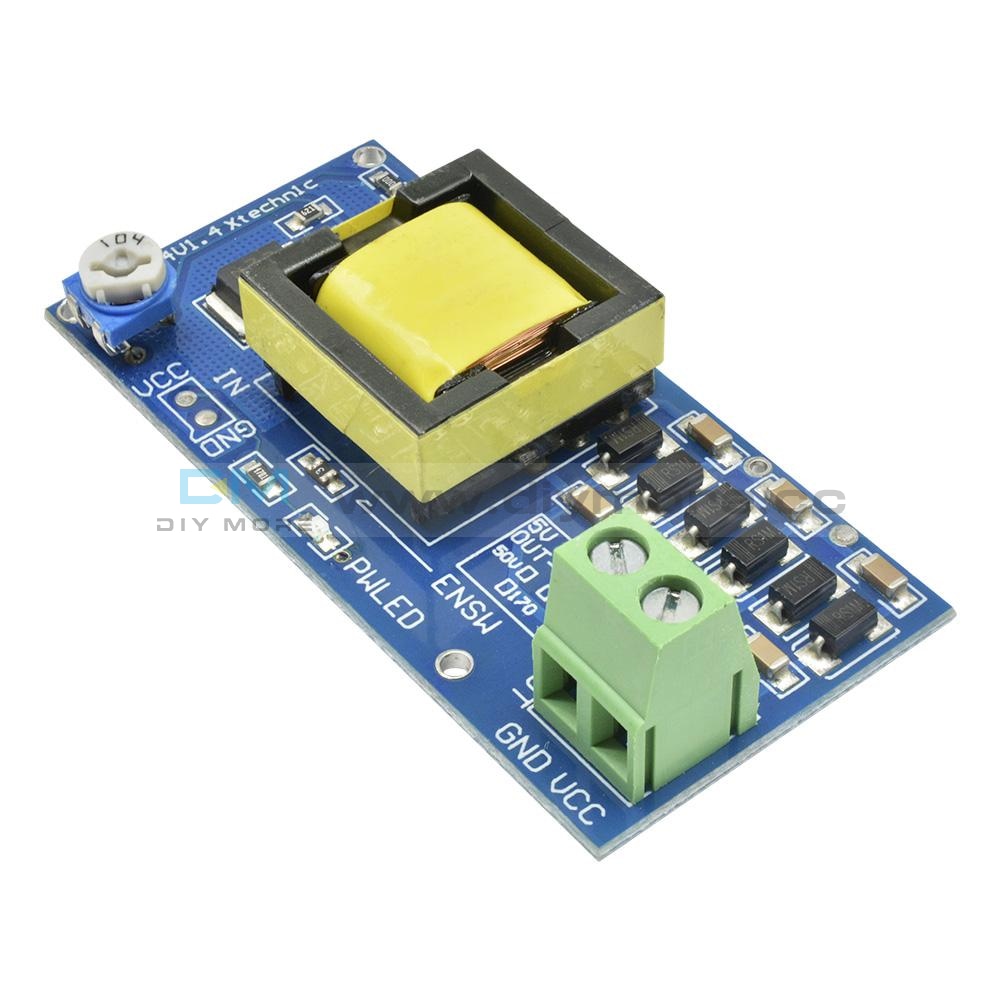

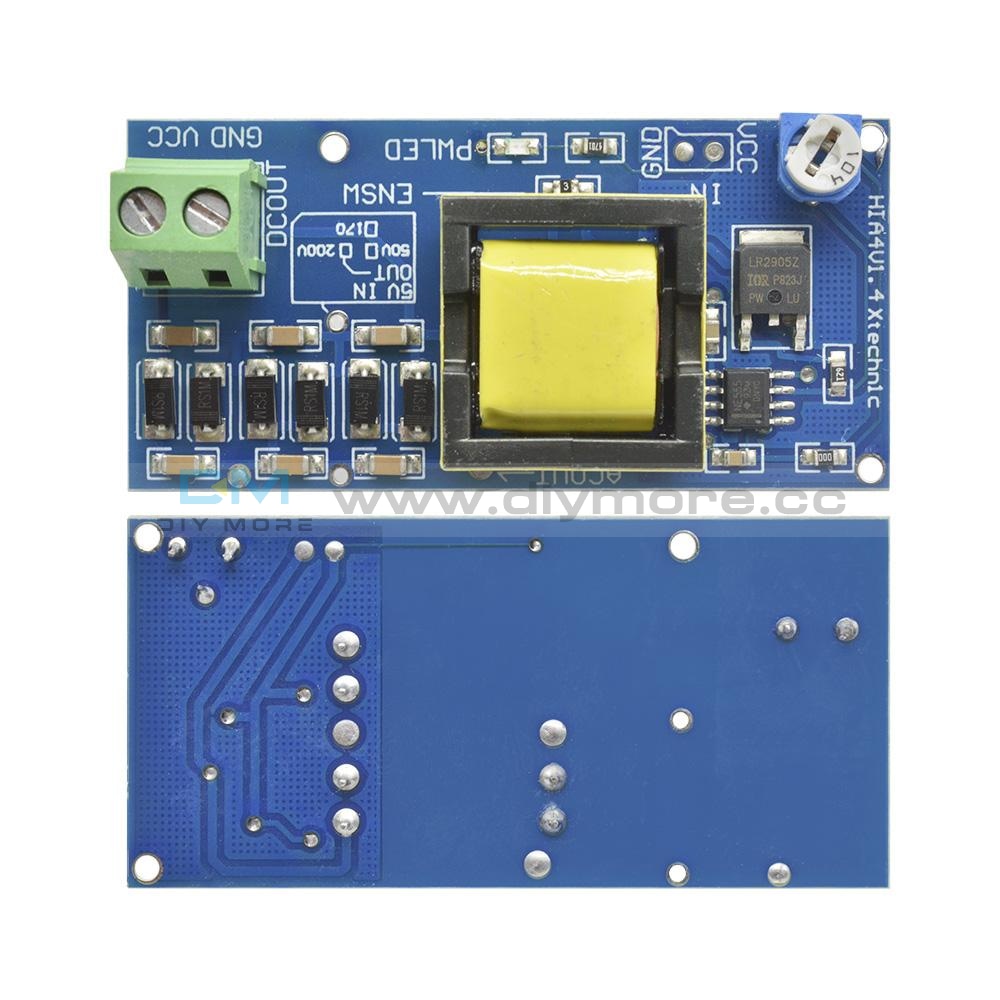

DC-DC High Voltage Boost Converter Input 3V-5V Output 1000V Power Supply Module

High Voltage Dc-Dc Boost Converter Step Up To Output 300V-1200V 400V 900V 1000V Adjustable Power Psu

DC-DC High Voltage Boost Converter Input 3V-5V Output 1000V Power Supply Module

SKU:X12901
Regular price $8.99 USD





Features:
He latest version The addition of features: Support for more than DC output voltage when 5V input
Module size: about 25 * 48mm (W * L)
Output current: 2 ~ 20mA. (If you want to add the current, pls put insurance under the transformer replaced the 0-ohm resistor, maximum 50mA, but not recommended increased.)
When the input voltage is 5 v, the output voltage can be adjusted in 280 ~ 1200 v.
When the input voltage is 6 ~ 12v, the output voltage can be adjusted in 400 ~ 1200v.
The capacitor can be charged, but the charging speed is a bit slow, please note.
Like the power of the output module module, it is not possible for the sensor.
Corresponding Product Description: This module is used in security products, stability is quite good
This module with AC output, output around AC 75 v, but can not be adjusted,
Product test model:
Please refer to the main map, the new output products are generally stable, of course, if you test the output voltage is unstable, you can add a current limiting resistance to the test, usually this problem does not occur .
When adjusting the recommended output add a resistance rectifier like the following picture
Warm reminder: This product is supported by the housing (3D PLA printing shell, full-toxic configuration, printing a housing needs an hour long), if you need, please you tell me, and add more 3EUR to me ,

Package Included:
 1Pcs High Voltage DC-DC Boost Converter 5v-12v Pitch up to 300v-1200v Power Module
