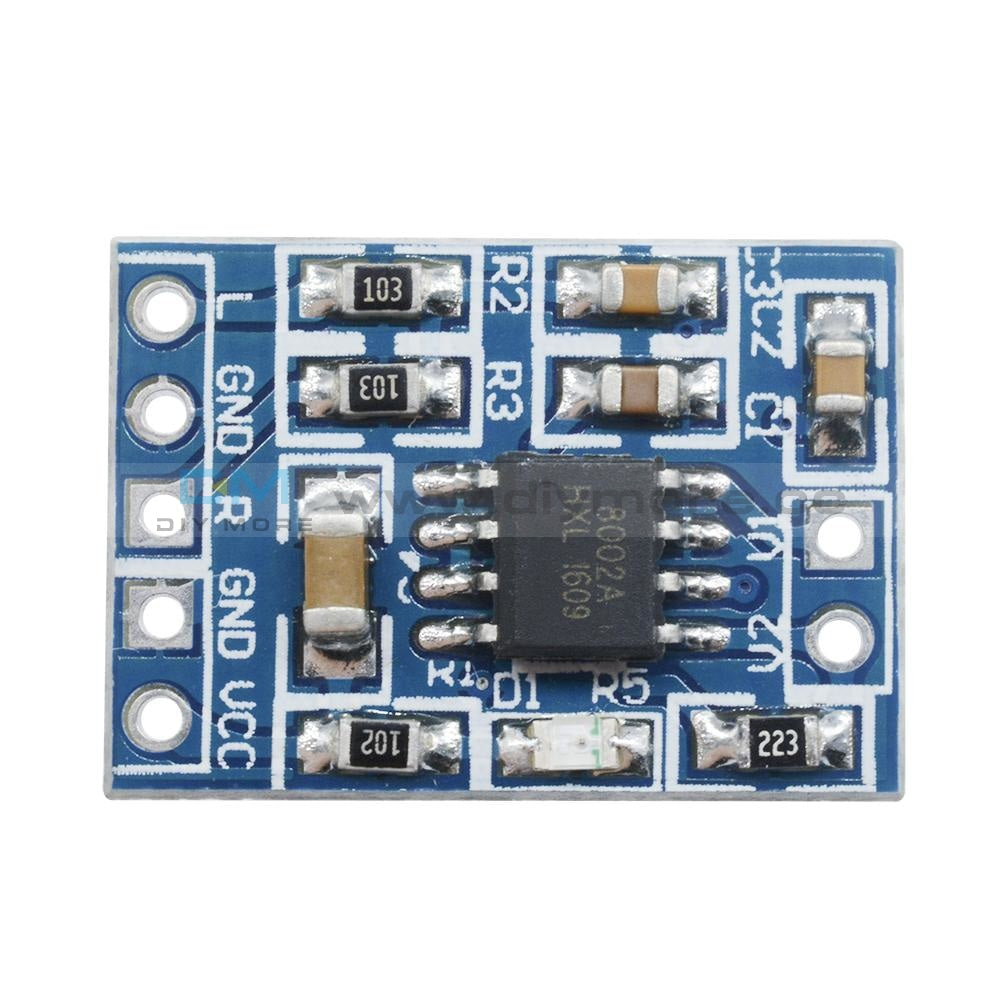

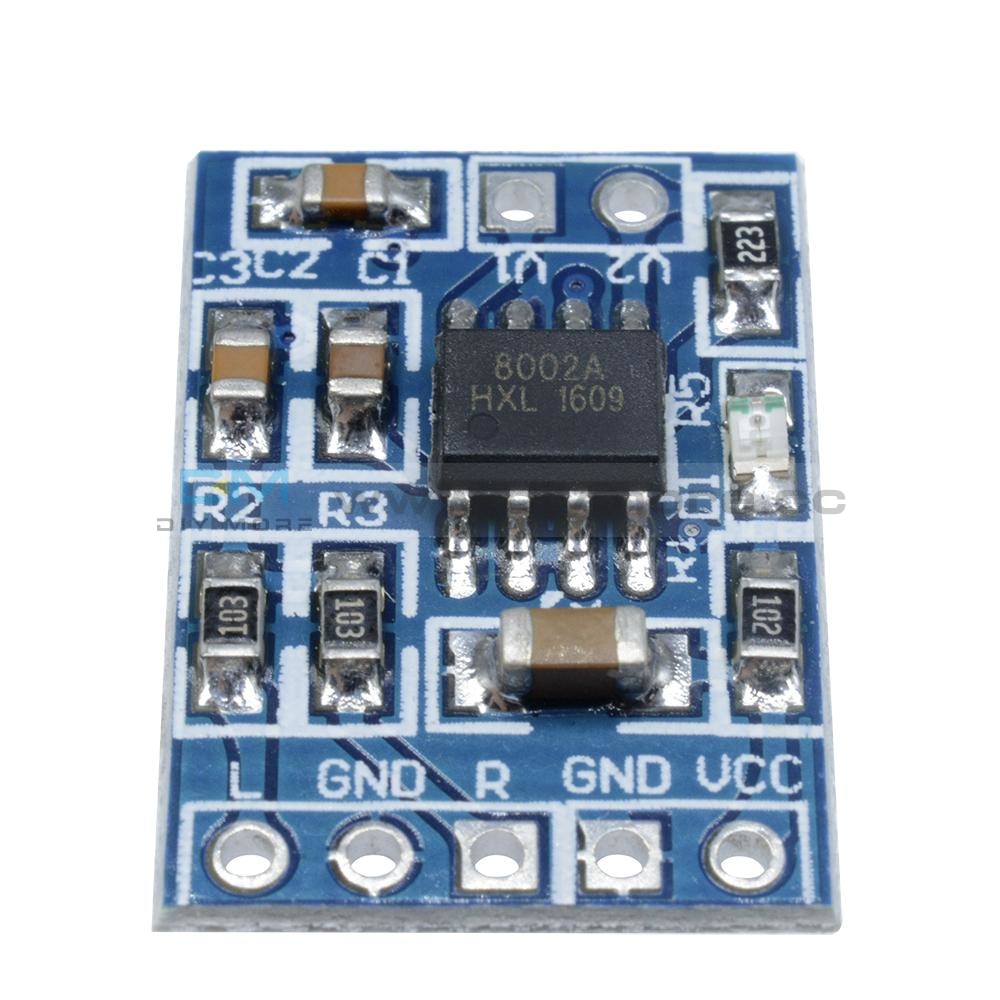

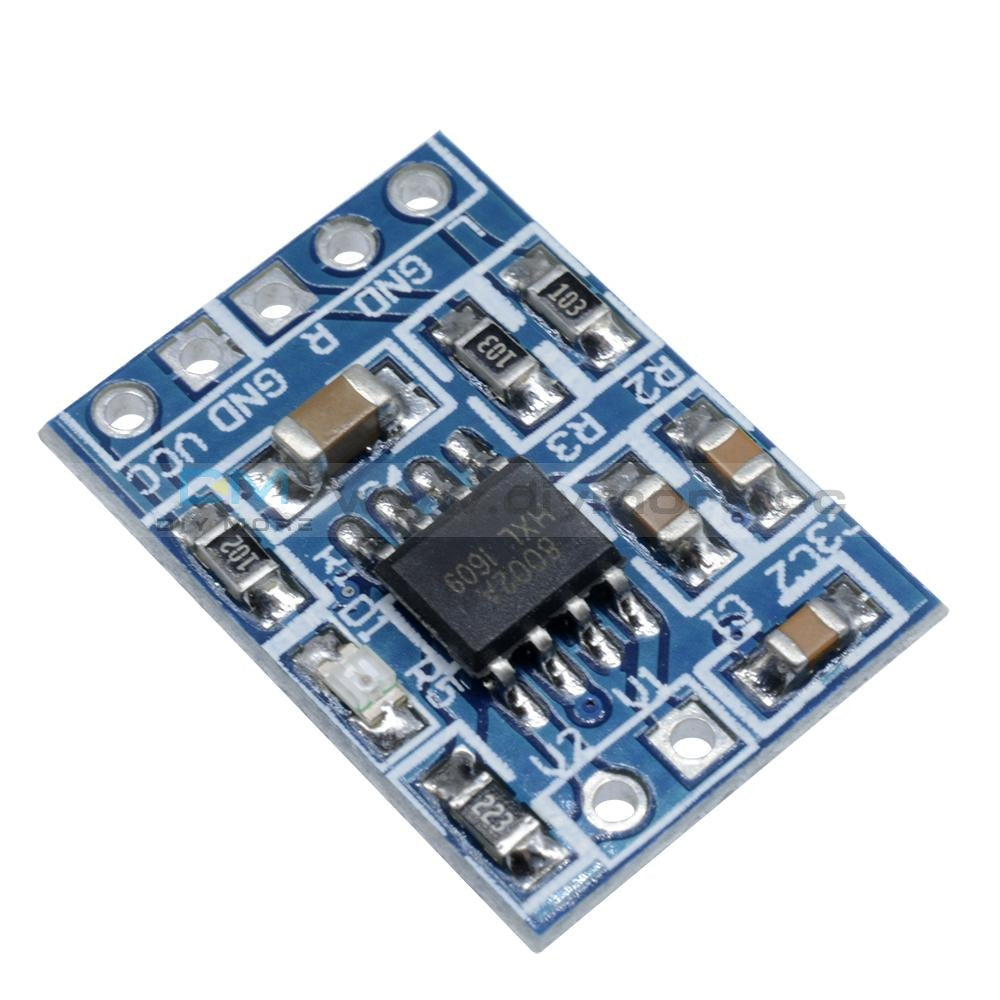

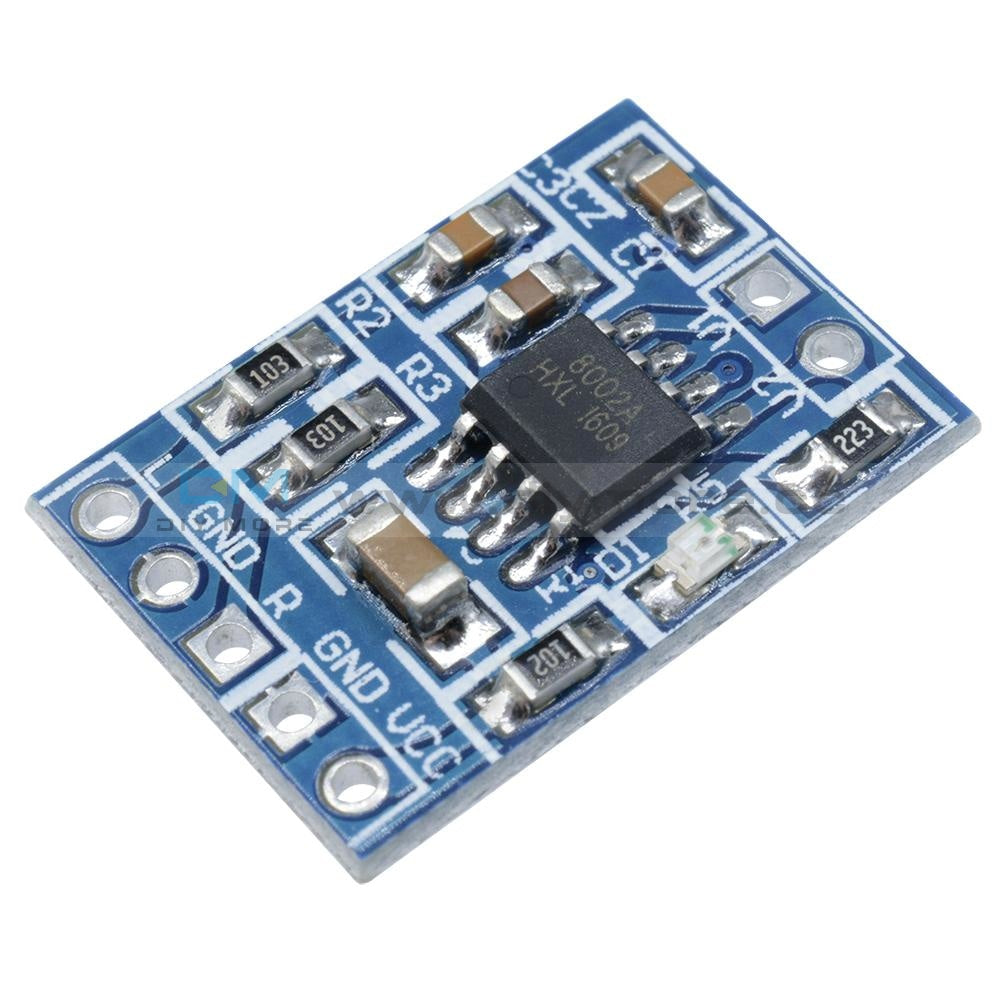

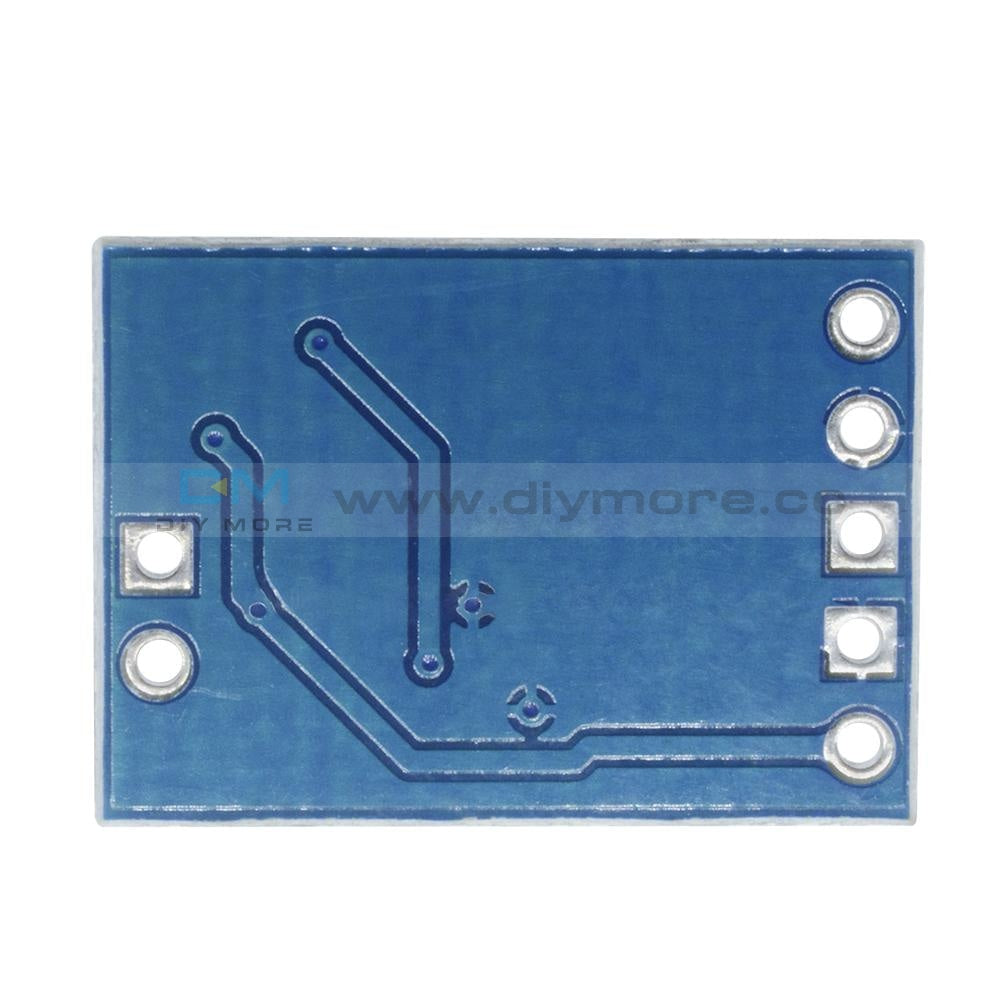

HXJ8002 Power Amplifier Board Mini Audio Voice Amplifier Module Replace PAM8403

HXJ8002 Power Amplifier Board Mini Audio Voice Amplifier Module Replace PAM8403

SKU:011081
Regular price $6.99

 Descriptions:
  • onboard HXJ8002 single channel 3W, BTL bridge connection audio power amplifier chip
  • working voltage :2.0-5 .5 V
  • Standby current: 0.6uA (typical value)
  • the input signal is a frequency is 1kHz, 8ω loads; average output power is 1W condition,
  • the maximum distortion is 0.5%
  • the THD + D <10%, while the frequency of the input is 1KHZ under different load conditions
  • the output power (typical): 3W (load 3ω); 2.5W (load 4ω); 1.5W (load 8ω)
  • board size: 19.8 (mm) x14.2 (mm)

Package Included:

  • 1 x  HXJ8002 Power Amplifier Board Mini Audio Voice Amplifier Module Replace PAM84
